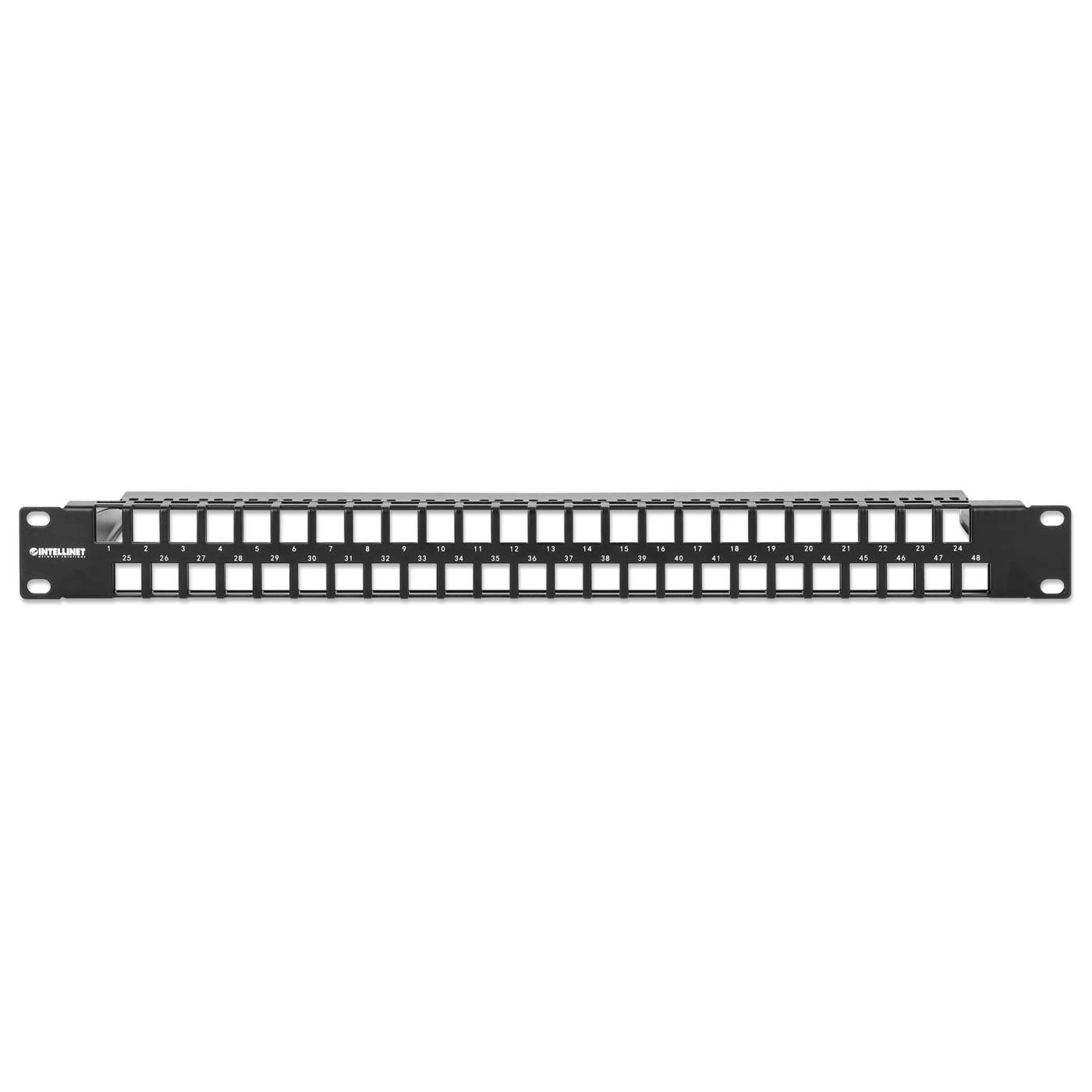

48-Port Unshielded Blank Patch Panel, 1U

Modular 19-inch 1U 48-Port Blank Patch Panel for Keystone Jacks - Maximize Connectivity in Minimal Space

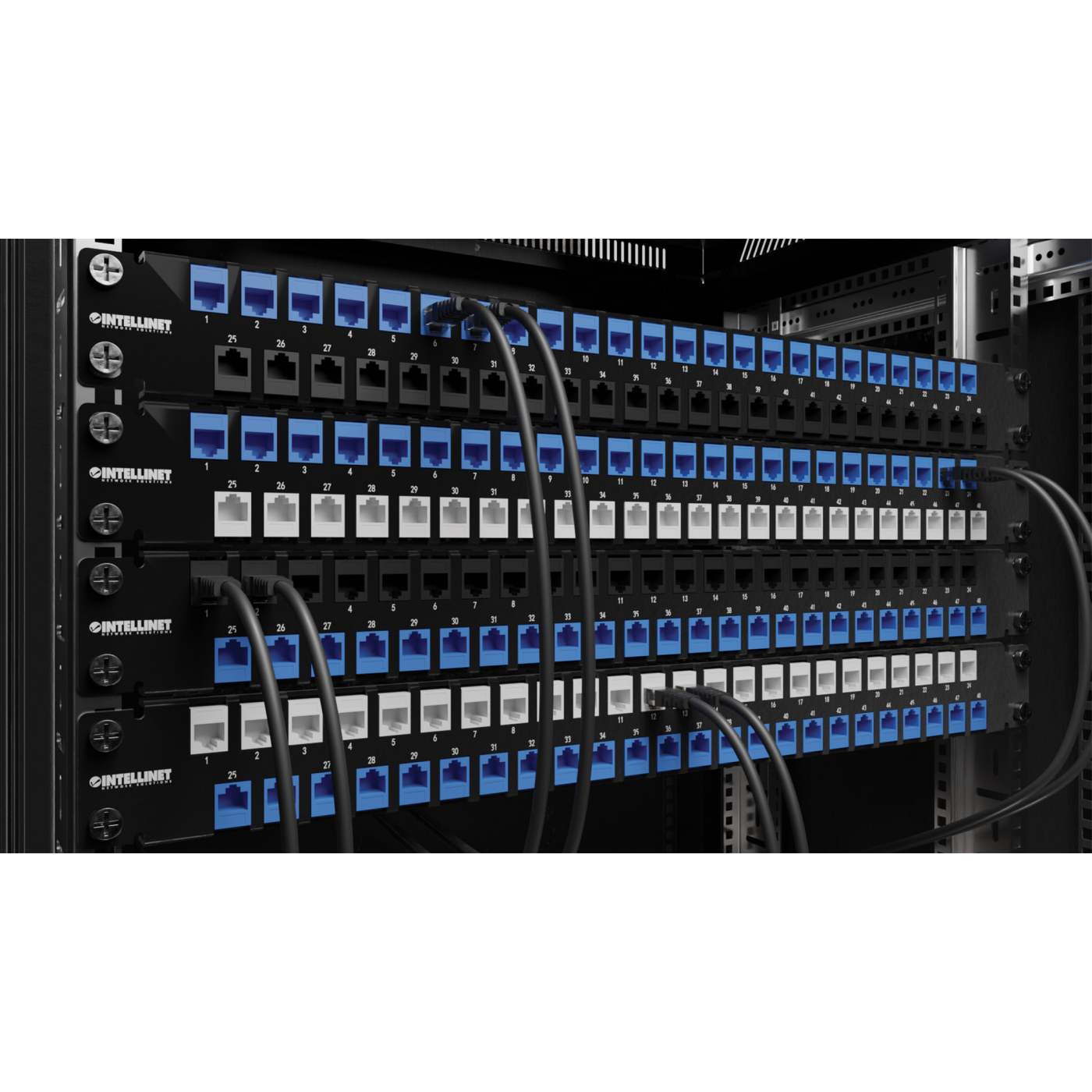

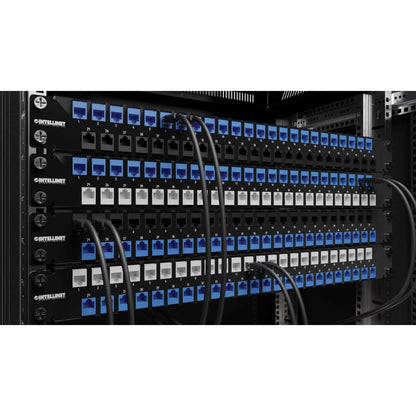

With its slim 1U installation height, this rack-mount blank patch panel provides you with more connectivity options in limited rack space. The numbered ports seamlessly accommodate keystone jacks and offer easy device identification. A removable cable-management bar helps keep cables in place. Construction from sturdy, high-quality, cold-rolled SPCC steel guarantees reliability for many years. A cage nut set with four cage nuts, four M6 screws and four plastic washers are included to make your installation easier. This patch panel supports voice, data, audio, video, and fiber-optic distribution. It is ideal for a wide range of applications in small to medium-sized businesses, making it an excellent choice for IT professionals in various industries.

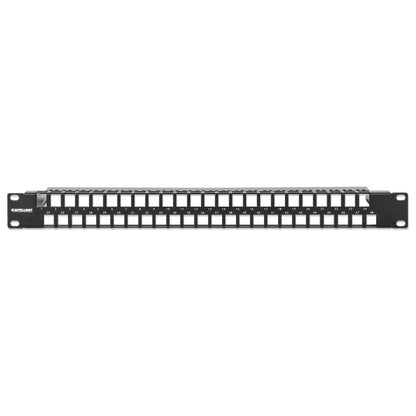

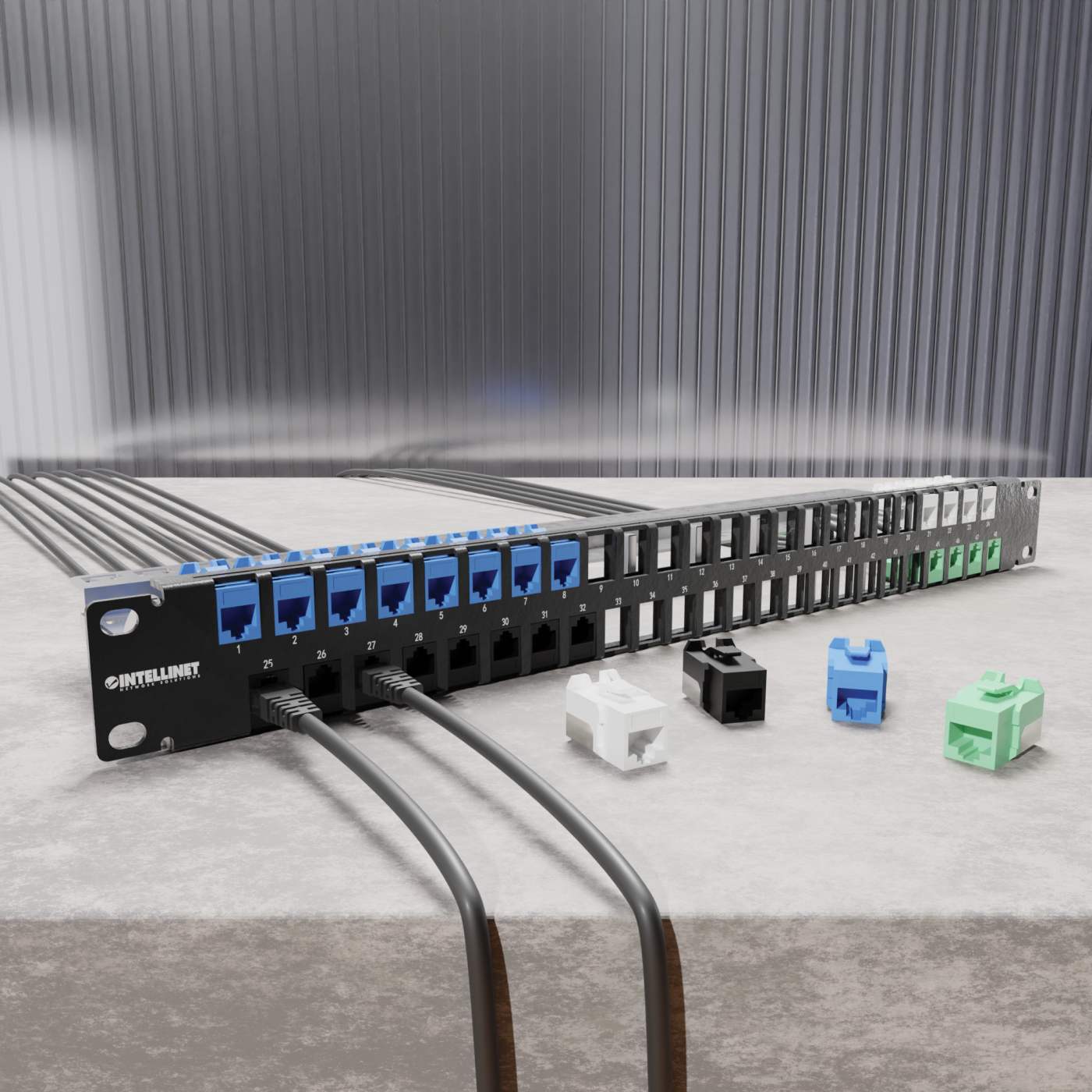

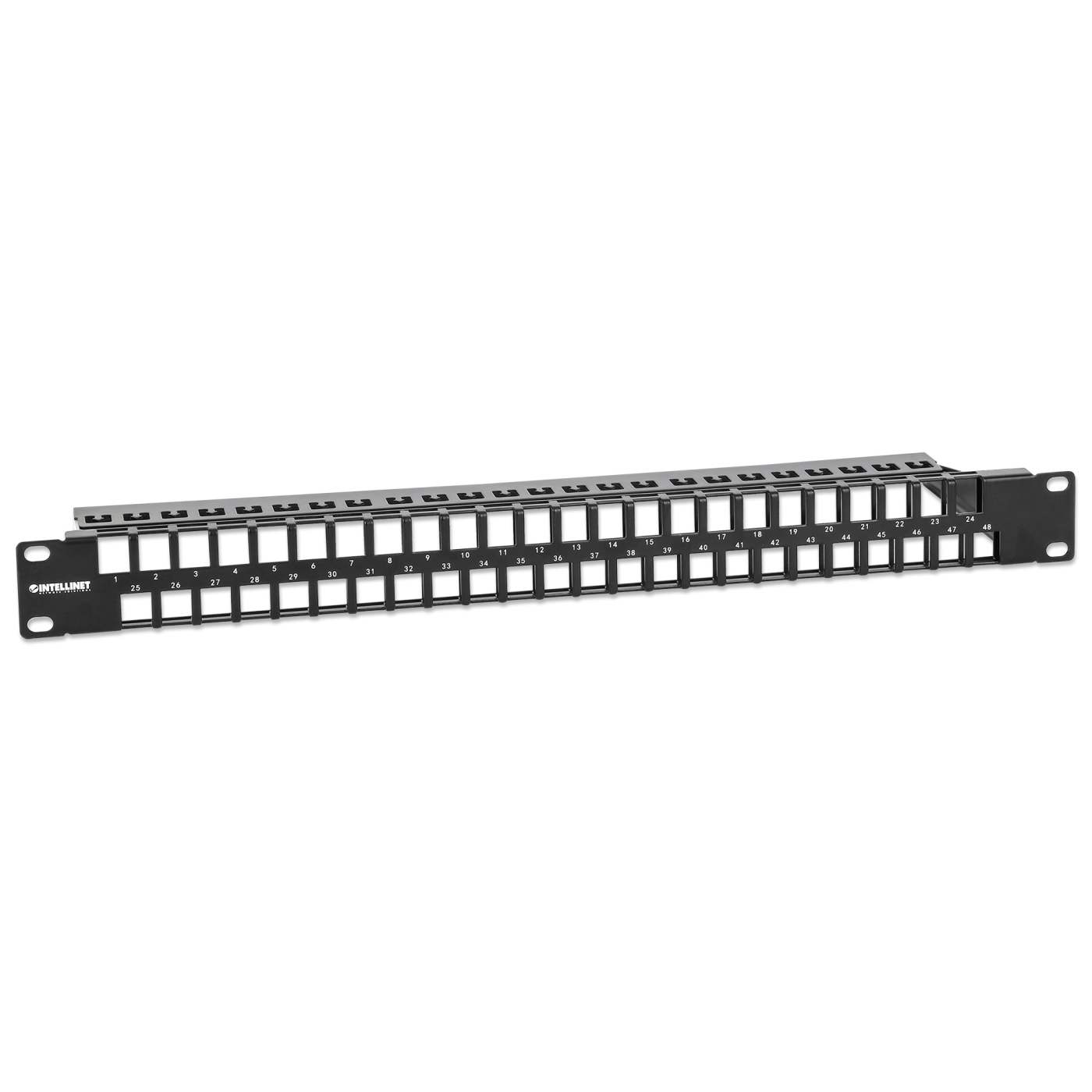

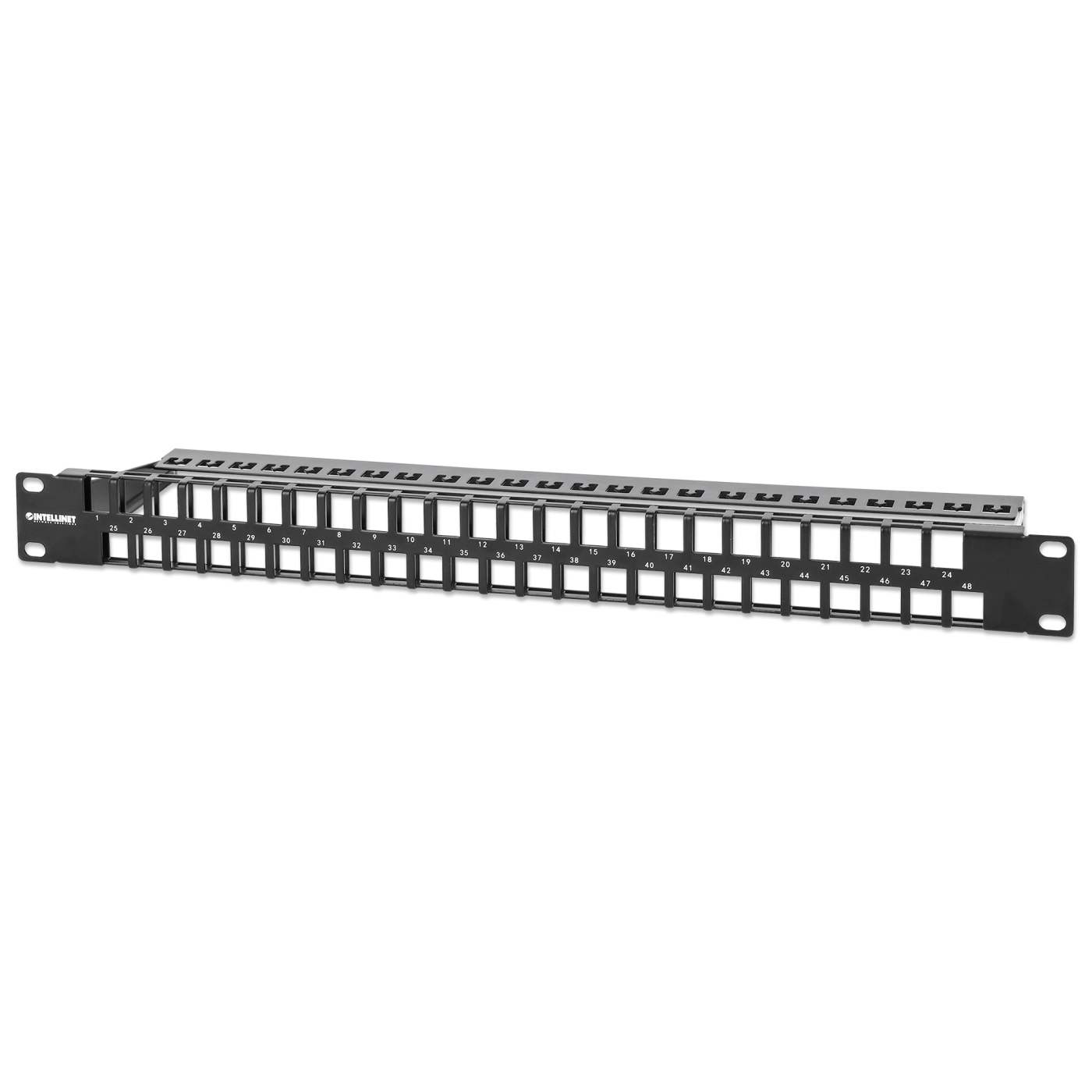

• Rackmount blank patch panel with numbered ports to accommodate unshielded keystone jacks
• 48 ports using only 1U of rack space for more connectivity

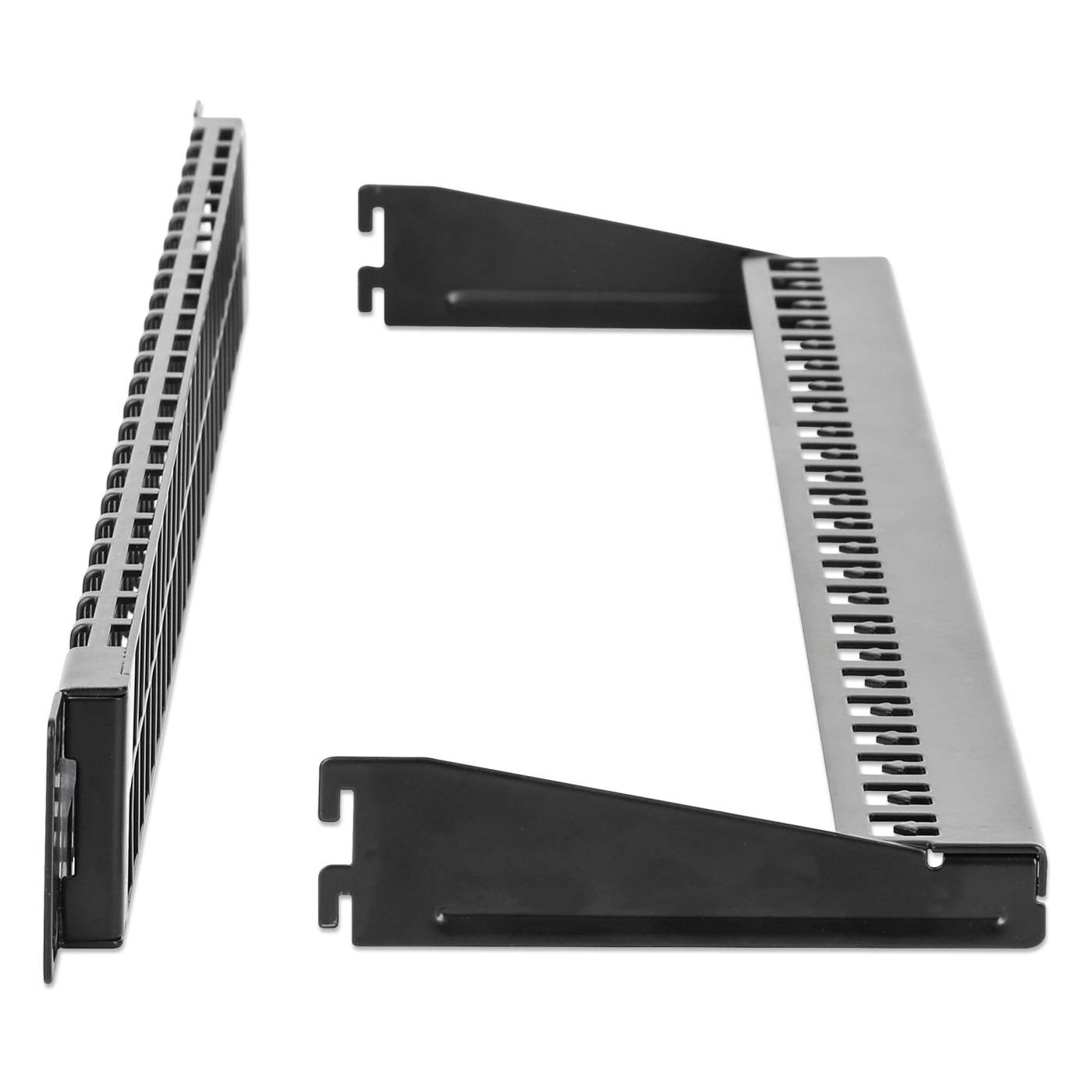

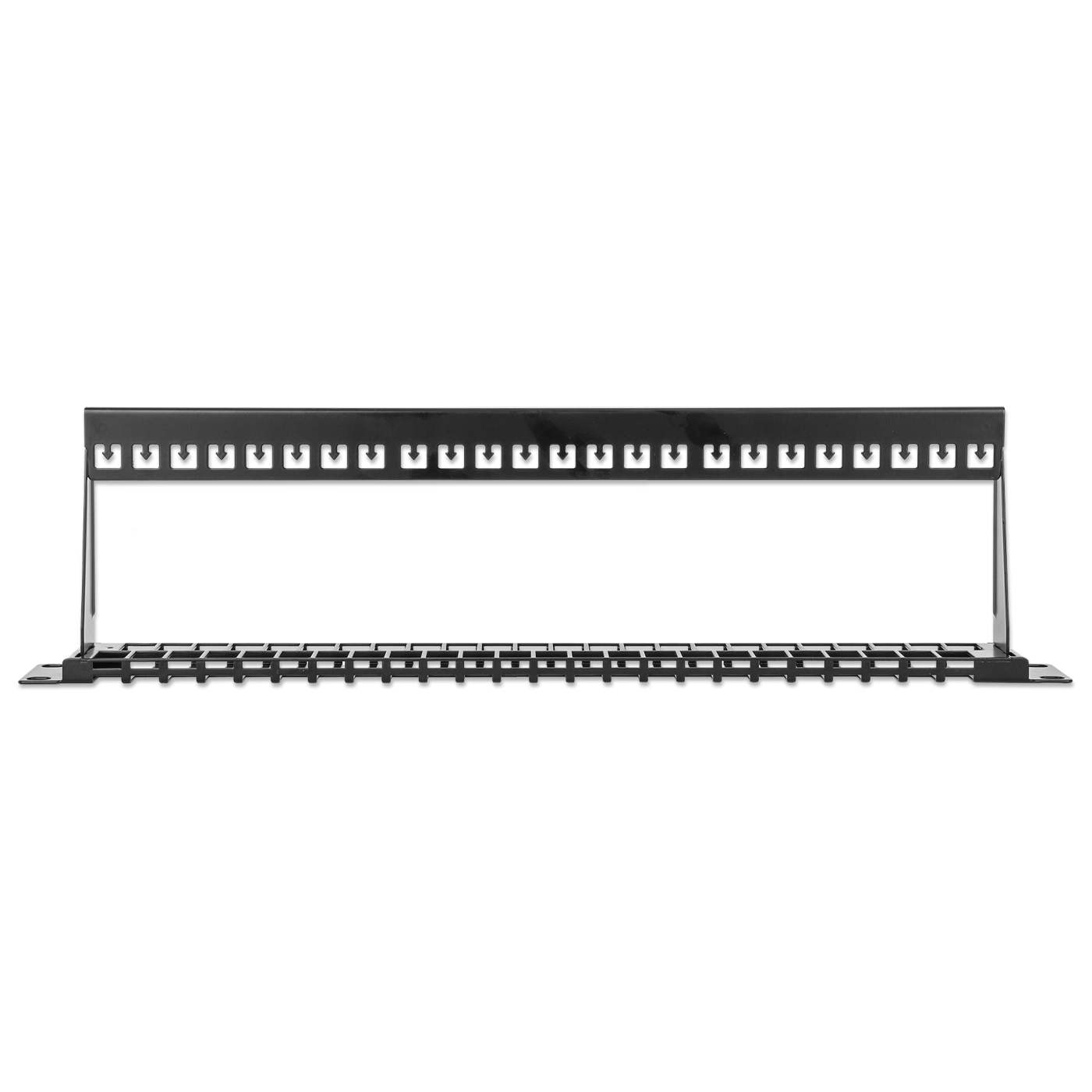

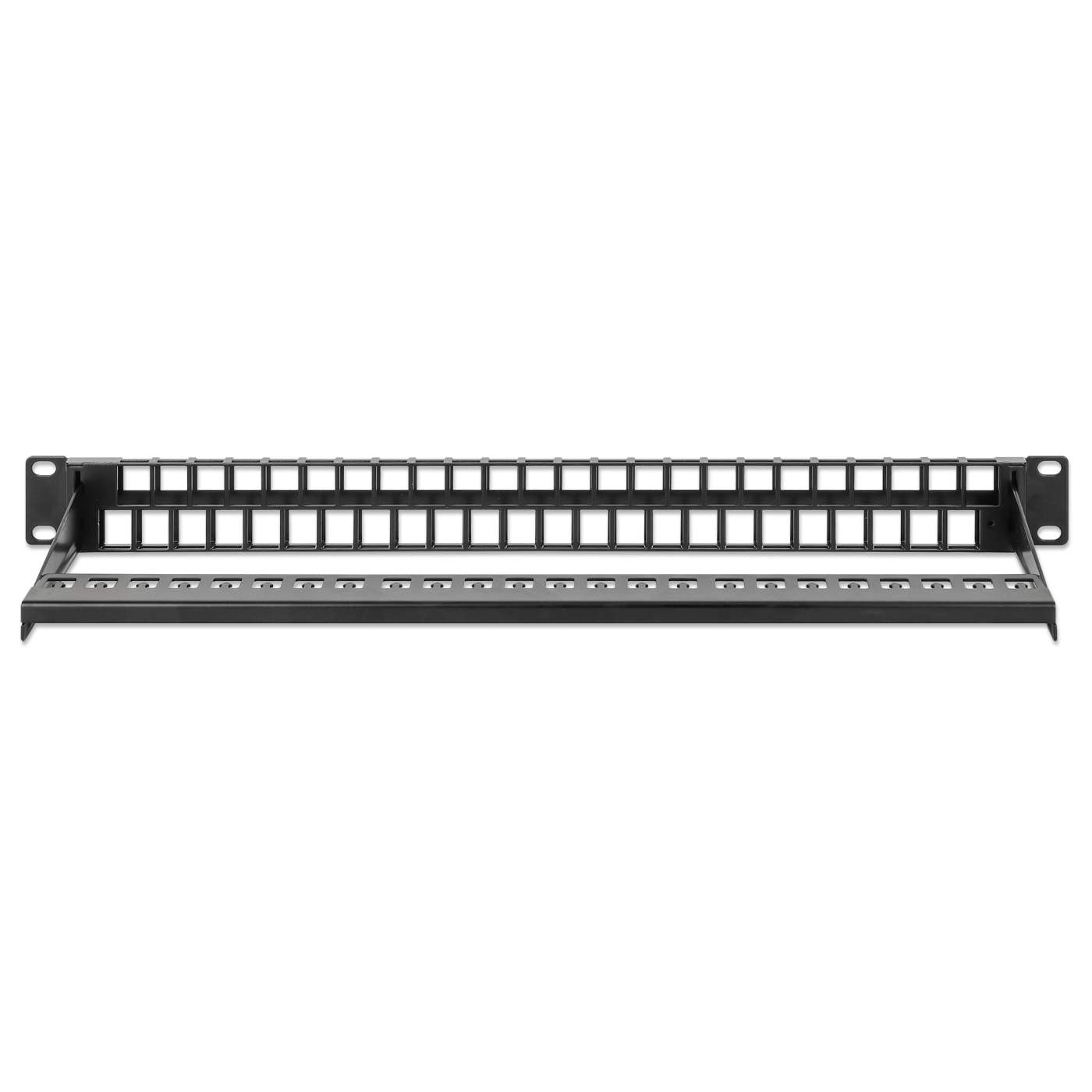

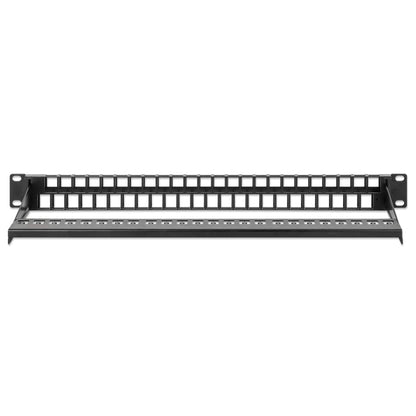

• Removable cable-management bar
• Sturdy, high-quality, cold-rolled SPCC steel construction
• IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm rack-mount equipment
• Includes 19" mounting material with four cage nuts, four M6 screws and four plastic washers
• Designed to support the distribution of voice, data, audio, video and fiber optic needs for commercial or residential applications
• Lifetime warranty

Standards and Certifications

• RoHS

• REACH

• ANSI/EIA 310-E

• IEC 60297-3

  Physical

• Dimensions (D x W x H): 125 x 482.6 x 44.4 mm (4.92 x 19 x 1.75 in.)

• Net weight: 450 g (0.99 lbs.)

• Gross weight: 620 g (1.37 lbs.)

  Environmental

• Operating temperature: -10 - 60ºC (14 - 140ºF)

• Storage temperature: -40 - 70°C (-40 - 158°F)

• Operating humidity (non-condensing): 10 - 90% RH

  Package Contents

• 48-Port Unshielded Blank Patch Panel, 1U

• Cage nut set (4 x cage nut, 4 x M6 screw, 4 x plastic washer)

• Additional SKUs

• Alphanumeric Model#: IPP-19B48UTP-1U-BK
• EAN: 0766623721097
• UPC: 766623721097



• Physical Specifications

• Weight: 0.45 kg
• Dimensions: 125 (L) x 482.6 (W) x 44.4 (H) [mm]
