Aetek

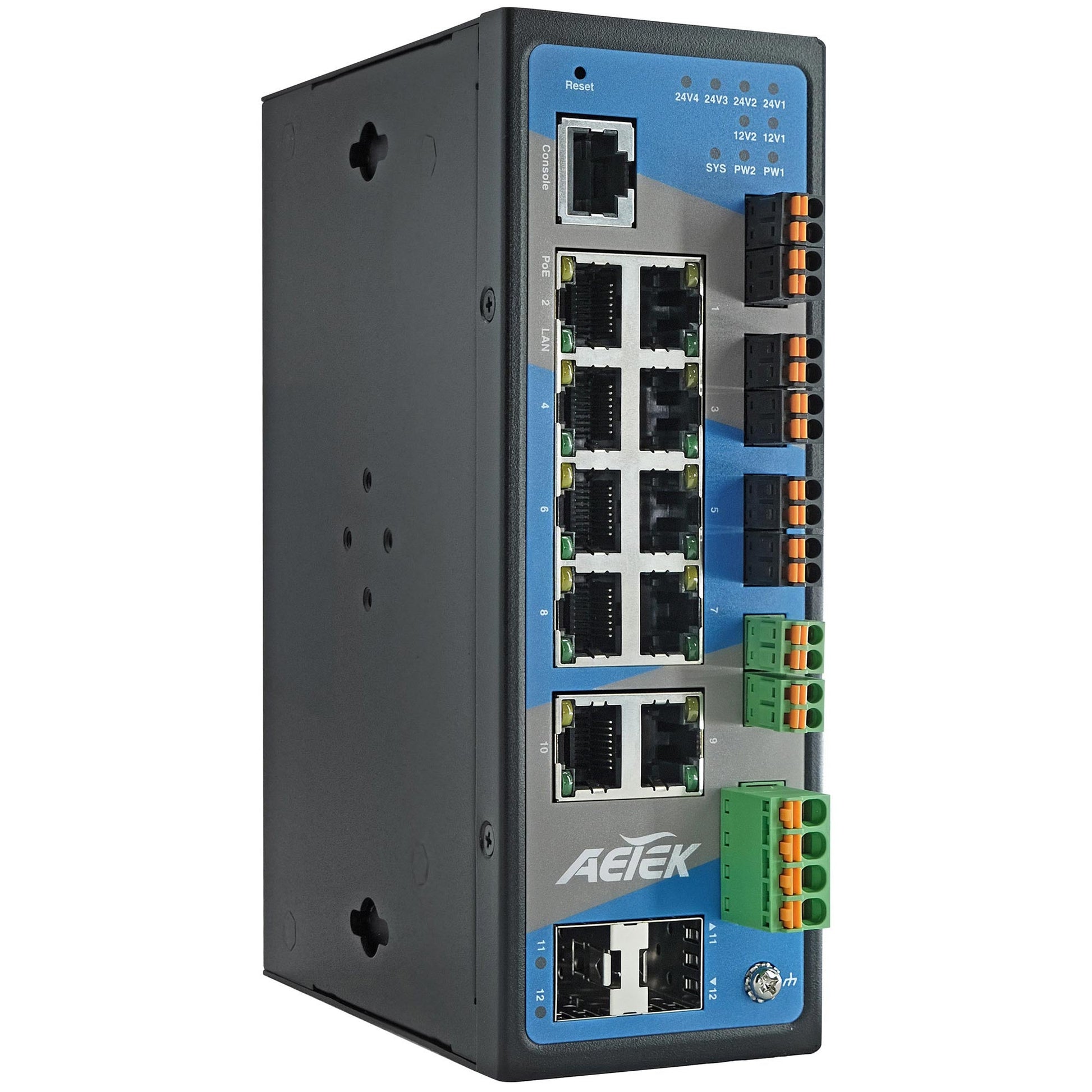

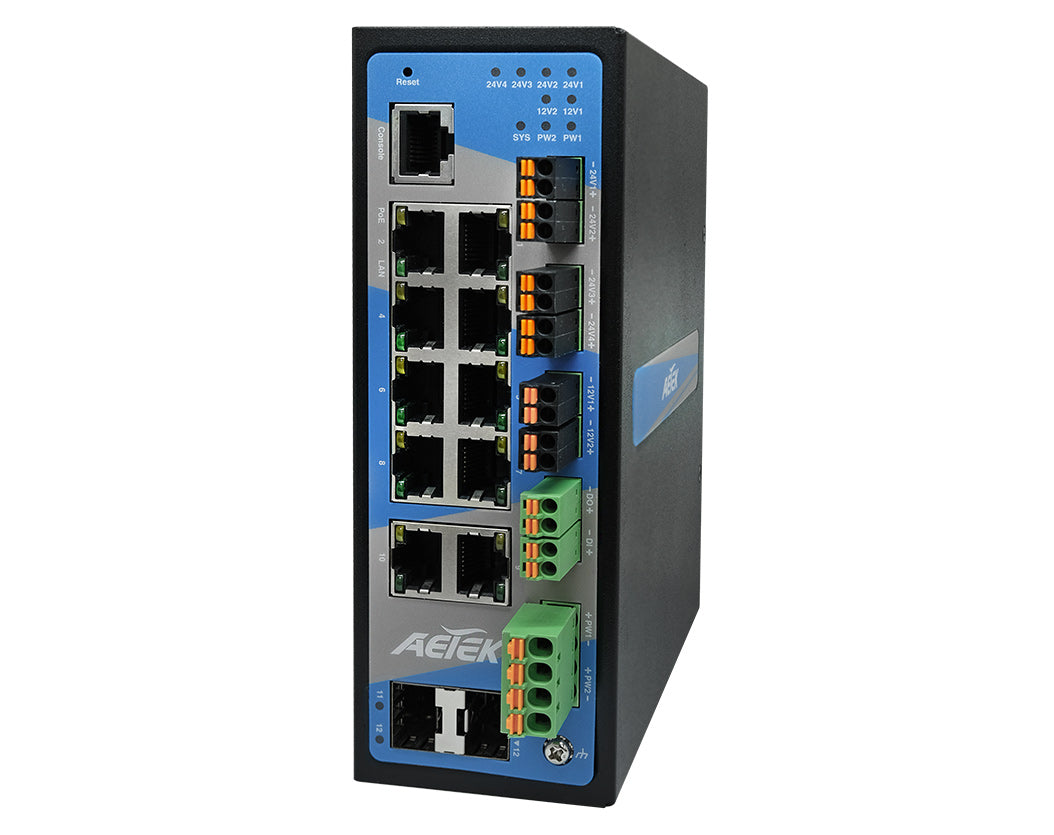

Industrial L2 Managed PRO 8-Port Gigabit PoE+ Switch with 2 SFP and 12V/24VDC Output, 12-48VDC Input | 240W

Industrial L2 Managed PRO 8-Port Gigabit PoE+ Switch with 2 SFP and 12V/24VDC Output, 12-48VDC Input | 240W

Network Topology System (NTS), Digital Input/Output, 6KV PoE surge protection, 240 W PoE Power Budget, IP30-Rated Metal Housing, DIN-Rail Mount

SKU: 643591 D62-084-30-DC

In stock

Highlights

  • Network Topology System: Automatic discovery for ONVIF cameras, topology view, E-MAP floor view, Google map, PoE management, cable diagnostic
  • IEEE 802.3af/at compliant with up to 30W per port
  • Dual 12-48VDC input

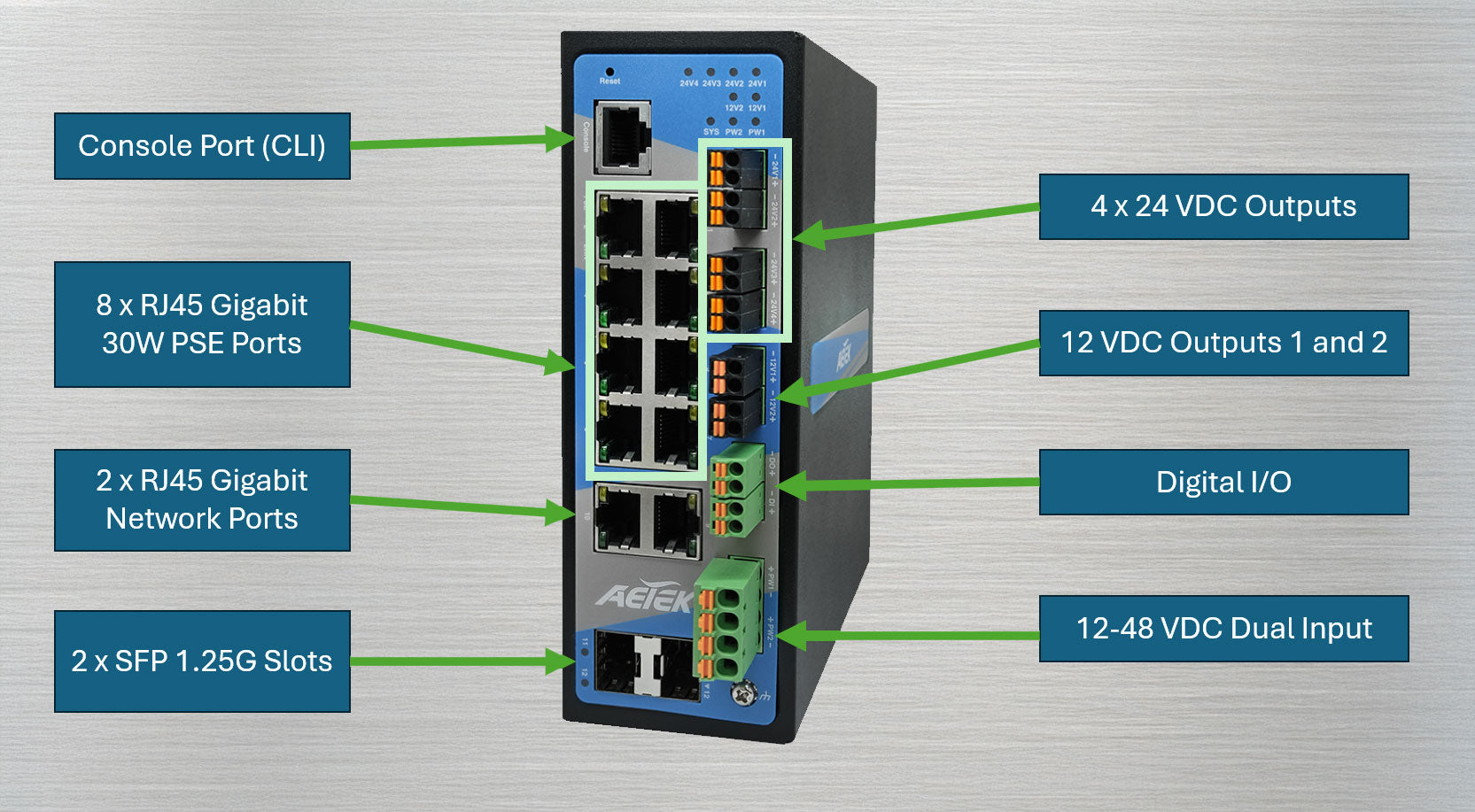

  • Outputs: 8 PoE+ Ports, 2 x 12VDC, 4 x 24VDC
Free shipping within the US
Regular price $727.99 USD
Regular price $800.00 USD Sale price $727.99 USD
Sale Sold out
Shipping calculated at checkout.

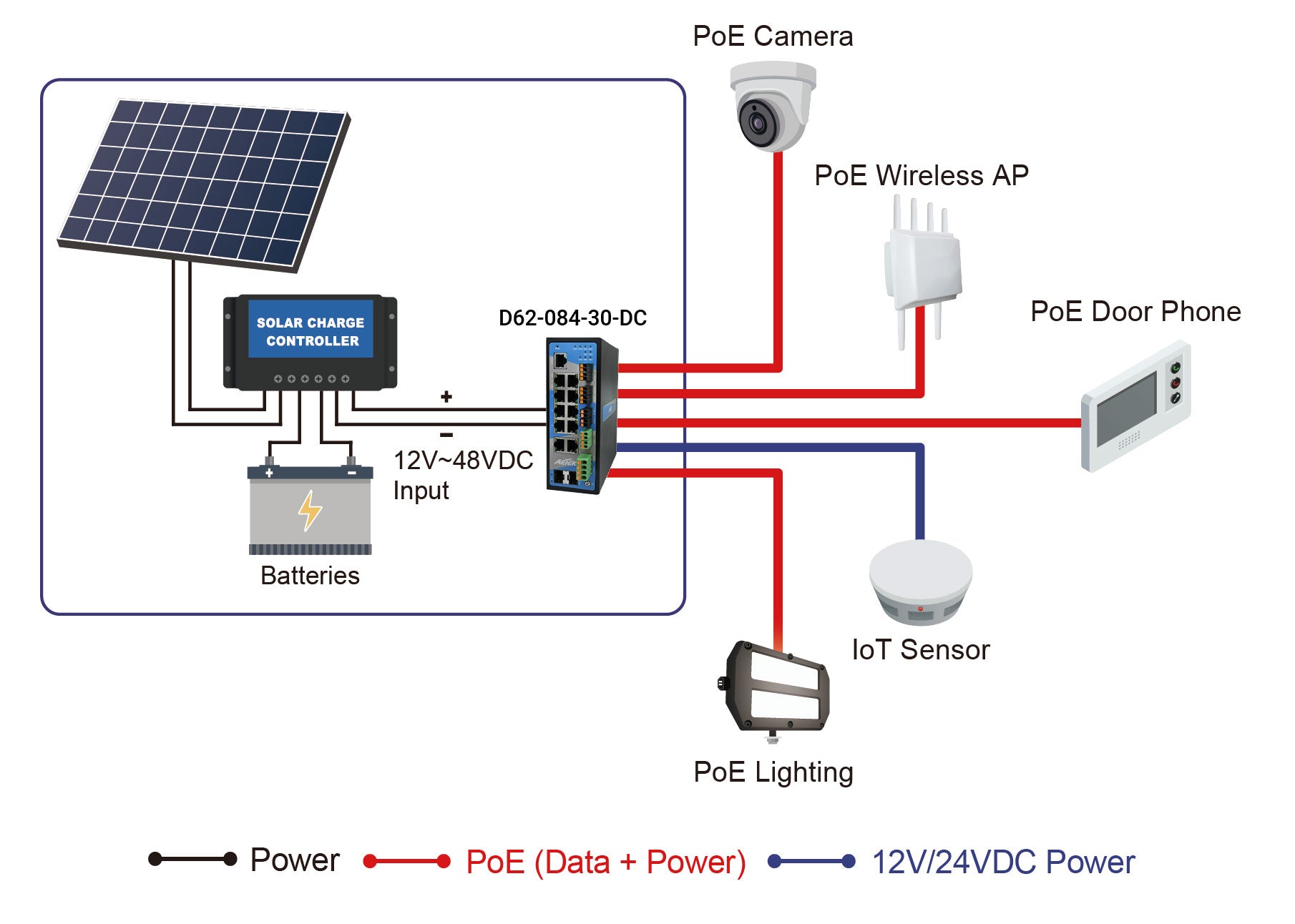

The D62-DC are industrial-grade L2 PRO PoE switches featuring 6KV PoE surge protection, ensuring exceptional durability in extreme weather conditions from -40°C to 75°C. These switches provide resilient outdoor connectivity, facilitating uninterrupted power and data transmission to PoE PDs, including outdoor IP cameras, wireless access points, and diverse outdoor industrial applications.

The D62-084-30-DC provides up to 30W PoE budget per port and additional 12v / 24v DC output ports to supply power to more networked devices. With multi-port Gigabit PoE (10M/100M/1G) capability, the D62-DC can efficiently transmit data and power to PoE PDs over a single network cable.

In addition to the standard features of an L2 switch, including QoS, security, spanning tree, cable diagnostics, and SNMP v1/v2c/v3 support, this switch offers an exclusive web-based graphic user interface for IP video surveillance, making it easy for users to configure and manage their video systems. The GUI automatically generates a device list, network topology maps, cable diagnostics, and PoE management, further enhancing the efficiency and convenience of network operations.

  • Layer 2 Switch
  • 802.1d (STP), 802.1w (RSTP), 802.1s (MSTP)
  • Loop protection
  • SNMP v1/v2c/v3, QoS, VLAN
  • Ethernet cable length measurement
  • DHCP Server
  • Network Topology System (NTS)
  • Automatic discovery for ONVIF camera
  • Generates camera topology map automatically
  • Cable diagnostic & reboot camera remotely
  • PoE management
  • Topology view / Floor view / Google map
  • Monitor / Configure / Manage ONVIF camera thru web
  • Operating temperature between -40°C and 75°C
  • Compliant IEEE 802.3at 30W per port
  • 12V / 24V DC output ports
  • Supports 10/100/1000Mbps data rates
  • 6KV PoE surge protection
  • IEEE 802.3az Energy Efficient Ethernet standard for green power

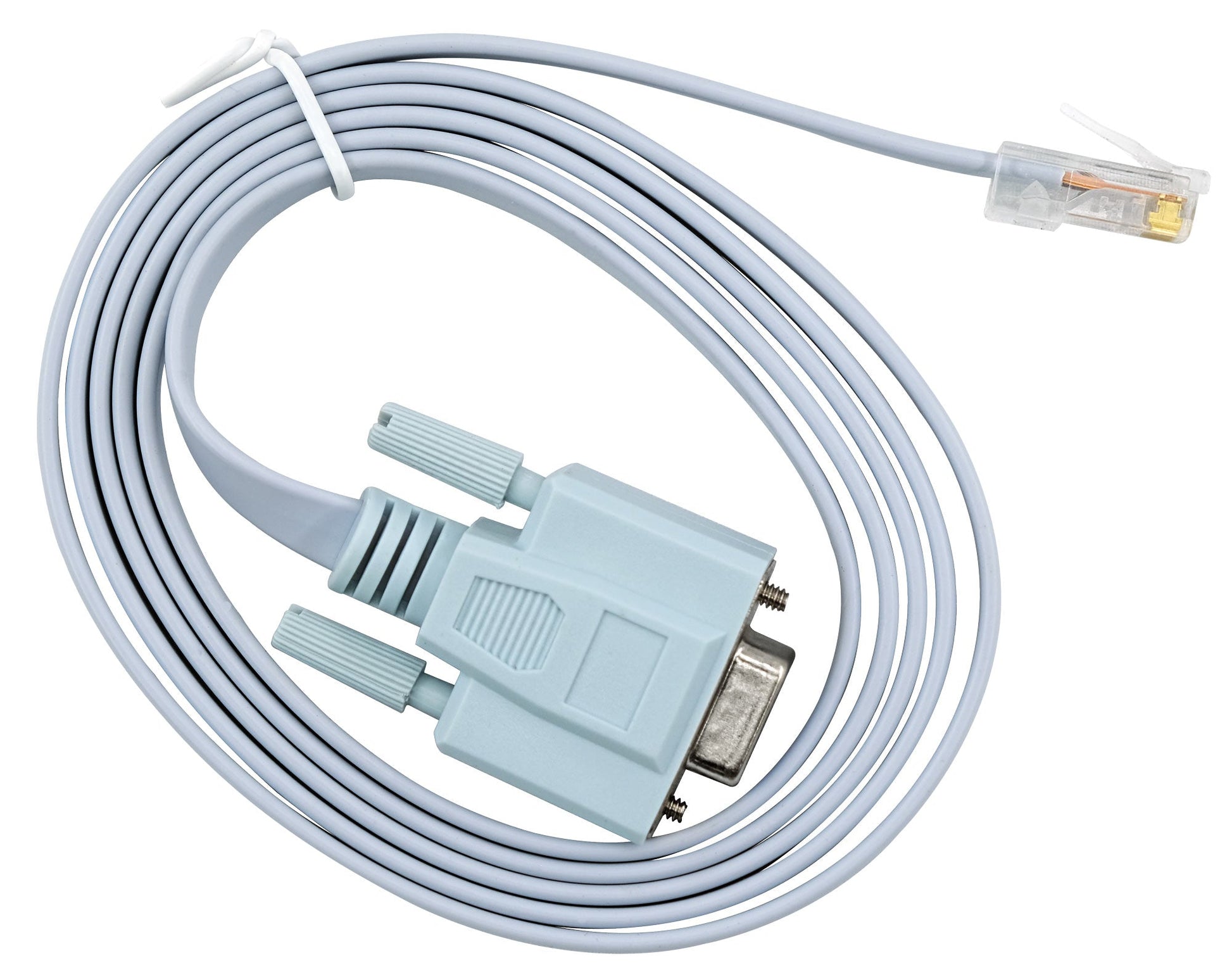

  • Web browser based management or CLI via console port
  • Two-year manufacturer warranty
