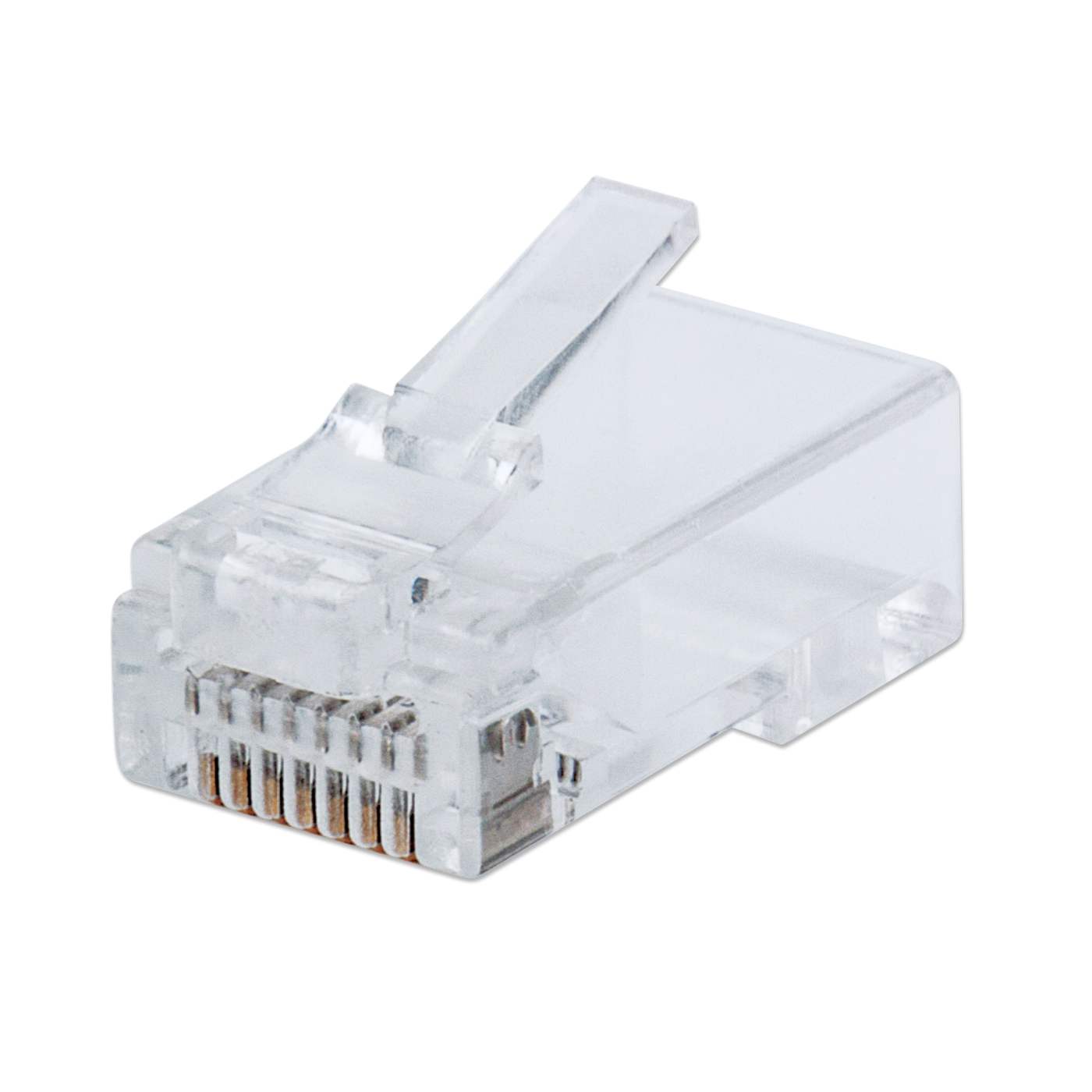

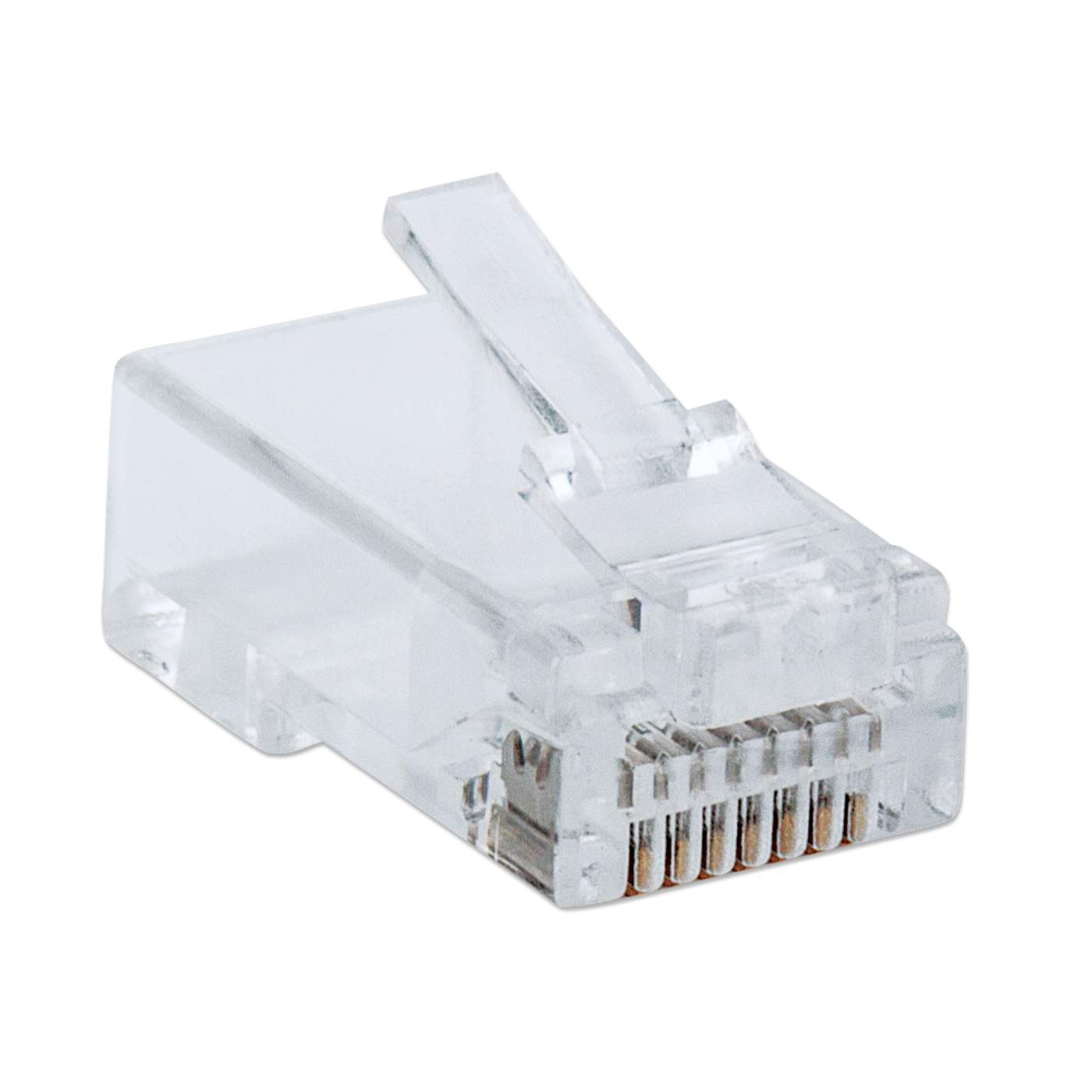

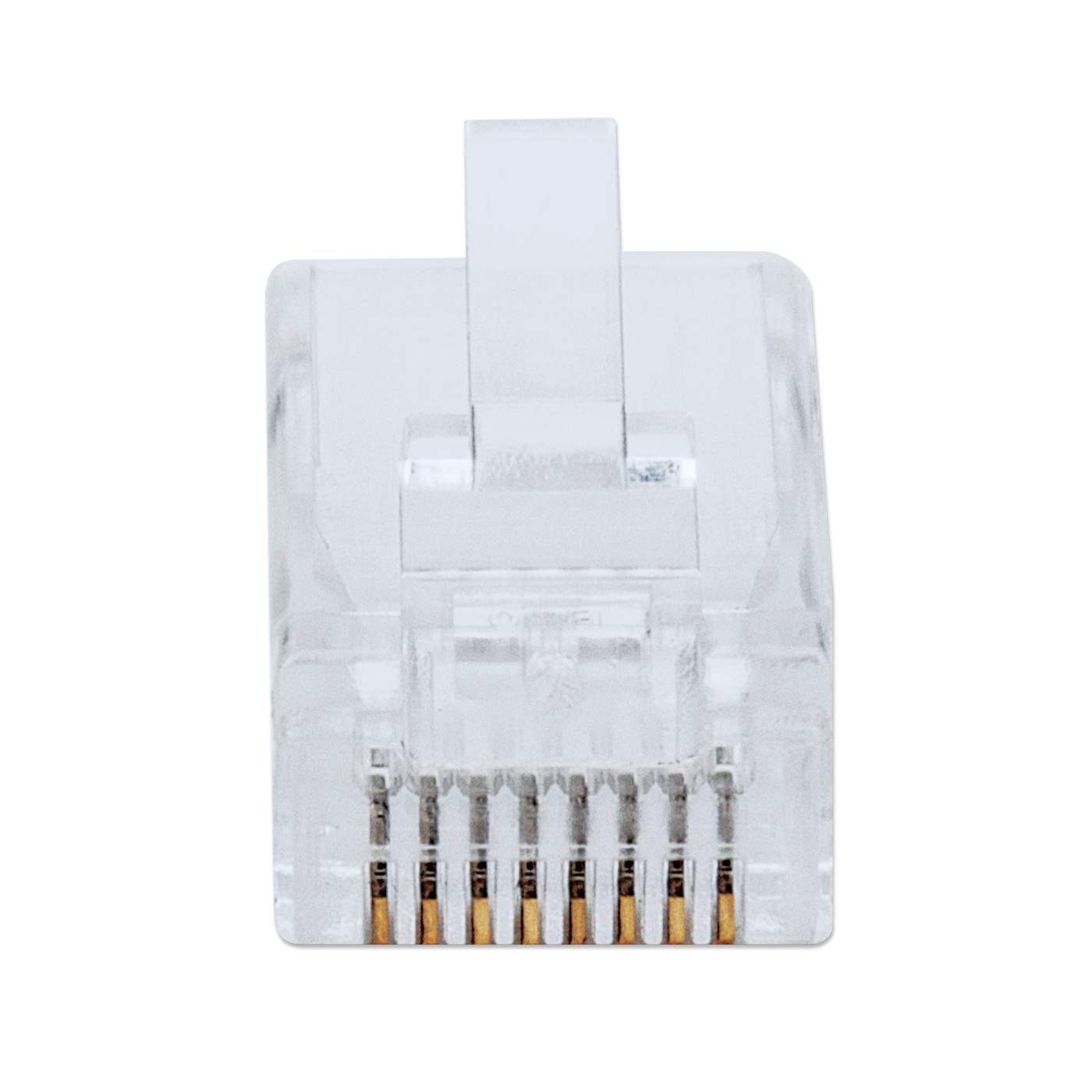

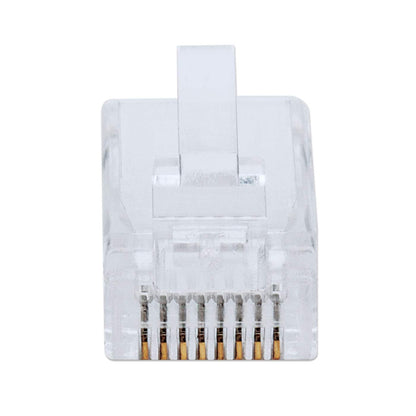

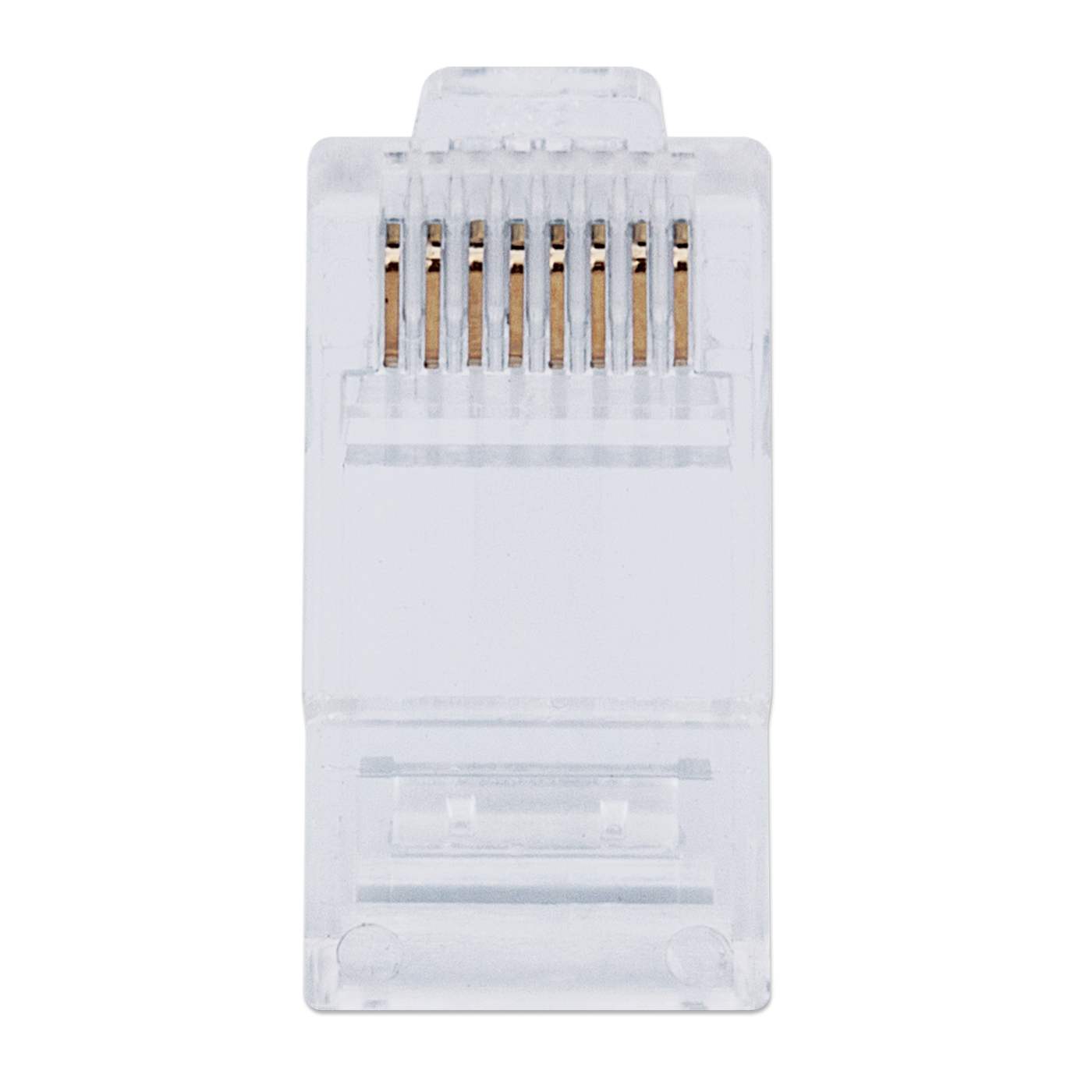

100-Pack Cat6 RJ45 Modular Plugs

Cat6 RJ45 Modular Plugs for solid and stranded wire to easily terminate your unshielded patch cables

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micro-inch gold contacts for our standard plugs or a high-quality 50 micro-inch standard in our Premium and Pro lines.

• Cat6 RJ45 modular plug with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
• Gold-plated contacts for corrosion-free connections
• Three-prong terminal for solid & stranded wire
• Supports 22 to 23 AWG
• Flame retardant rating in accordance with UL 94 V-2
• Suitable for extreme operating temperatures of -40 to 185ºF (-40 to 85ºC)
• Compatible and color-coded with T568A and T568B
• Fits round cable
• For unshielded twisted pair applications
• Standard 8P8C design, compatible with all network RJ45 connections
• Fully compatible with Category 3, 4, 5, 5e and 6 applications
• Lifetime warranty

Standards and Certifications

• RoHS

• ISO/IEC 11801

• IEC 60603-7-51

• Cat5 (ANSI/TIA/EIA-568-D)

• Cat5e (TIA/EIA-568-D)

• Cat6 (ANSI/TIA-568-D)

  General

• Supports transfer speeds up to 10 Gbps

• Max. operating frequency: 250 MHz

• Mating cycles: ≥750

• Insertion force: 30N max.

  Material

• Insulator: polycarbonate

• Contact plating: 15 micro-inch gold

• IDC: brass

• Flammability: tested and rated in accordance with UL 94 V-2

  Electrical

• Insulation resistance: ≥ 500 MOhm

• Dielectric withstanding voltage: 1,000 V AC

• Contact resistance: ≤20 MOhm

• Current rating: 1.5 A, 125 V AC

  Physical

• Dimensions per plug (L x W x H): 0.88 x 0.5 x 0.31 in. (22.45 x 11.68 x 8 mm)

• Net weight total: 0.35 lbs. (160 g)

• Gross weight total: 0.37 lbs. (170 g)

  Package Contents

• 100-Pack Cat6 RJ45 Modular Plugs

• Additional SKUs

• Alphanumeric Model#: IMP-C6-100
• EAN: 0766623791281
• UPC: 766623791281



• Physical Specifications

• Weight: 0.15 kg
• Dimensions: 22.45 (L) x 11.7 (W) x 8 (H) [mm]
