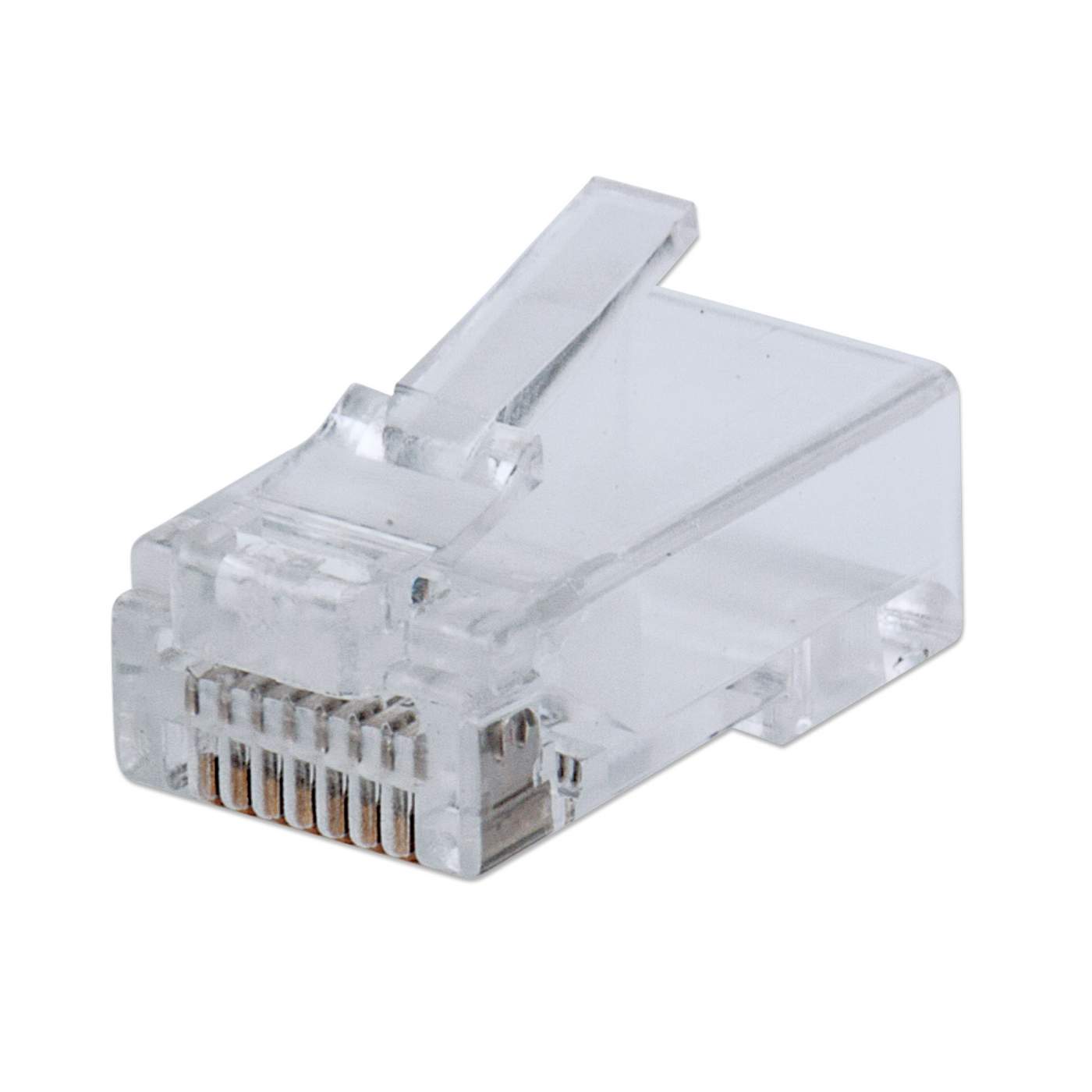

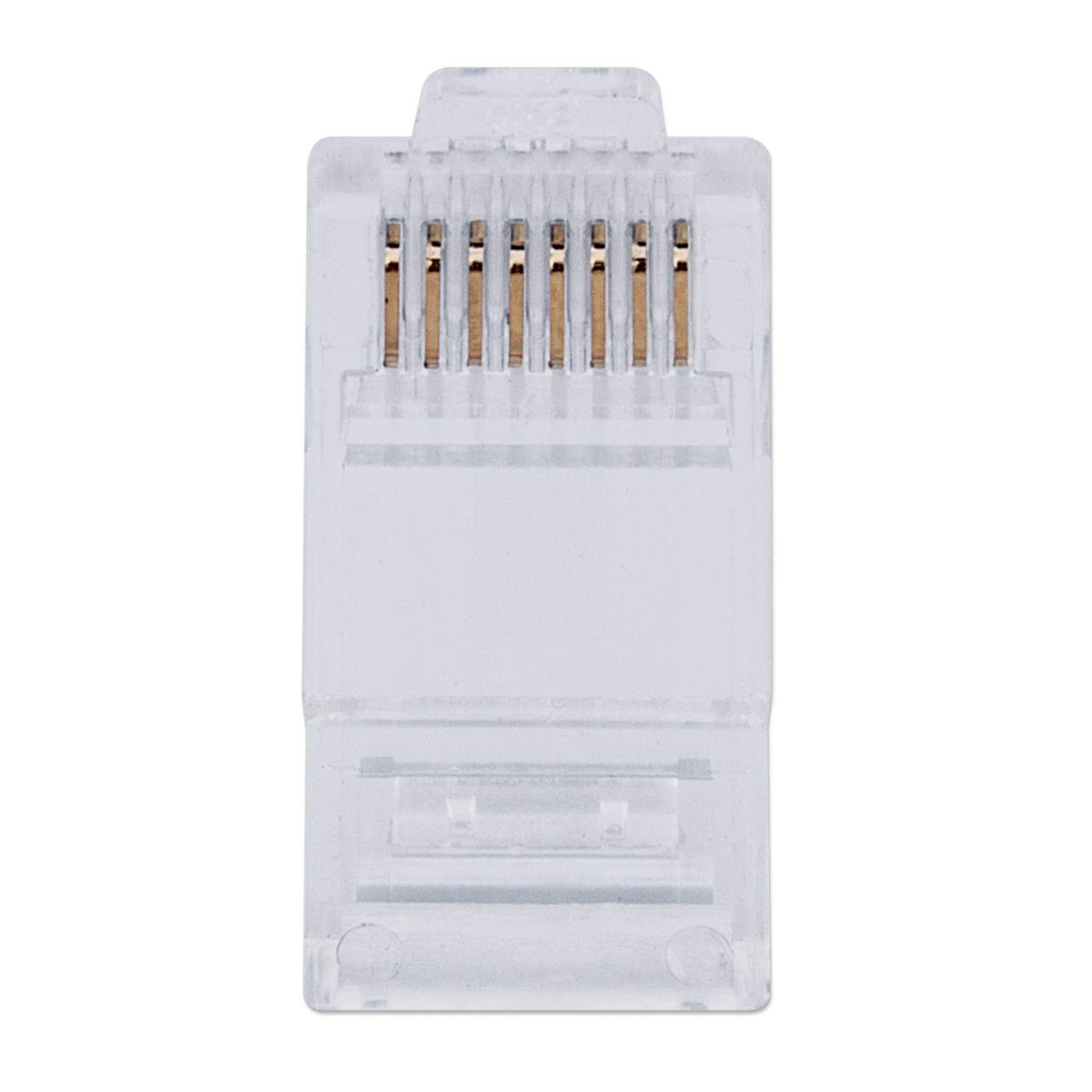

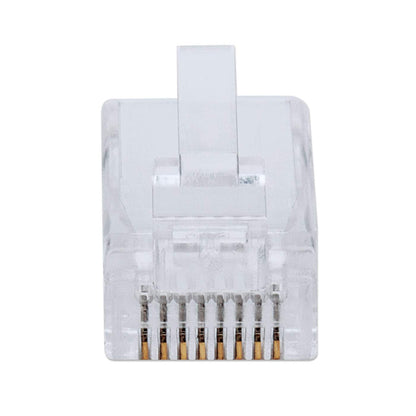

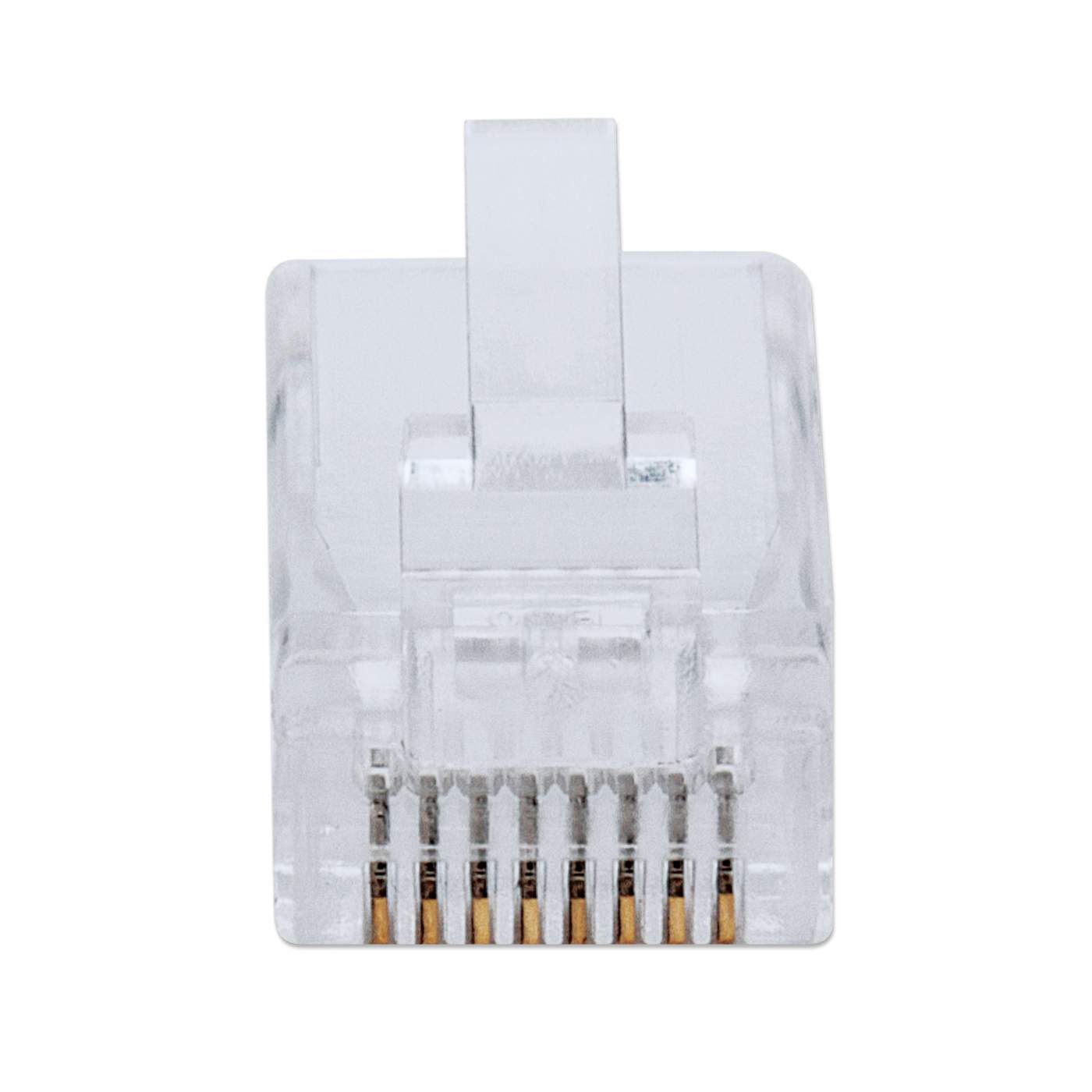

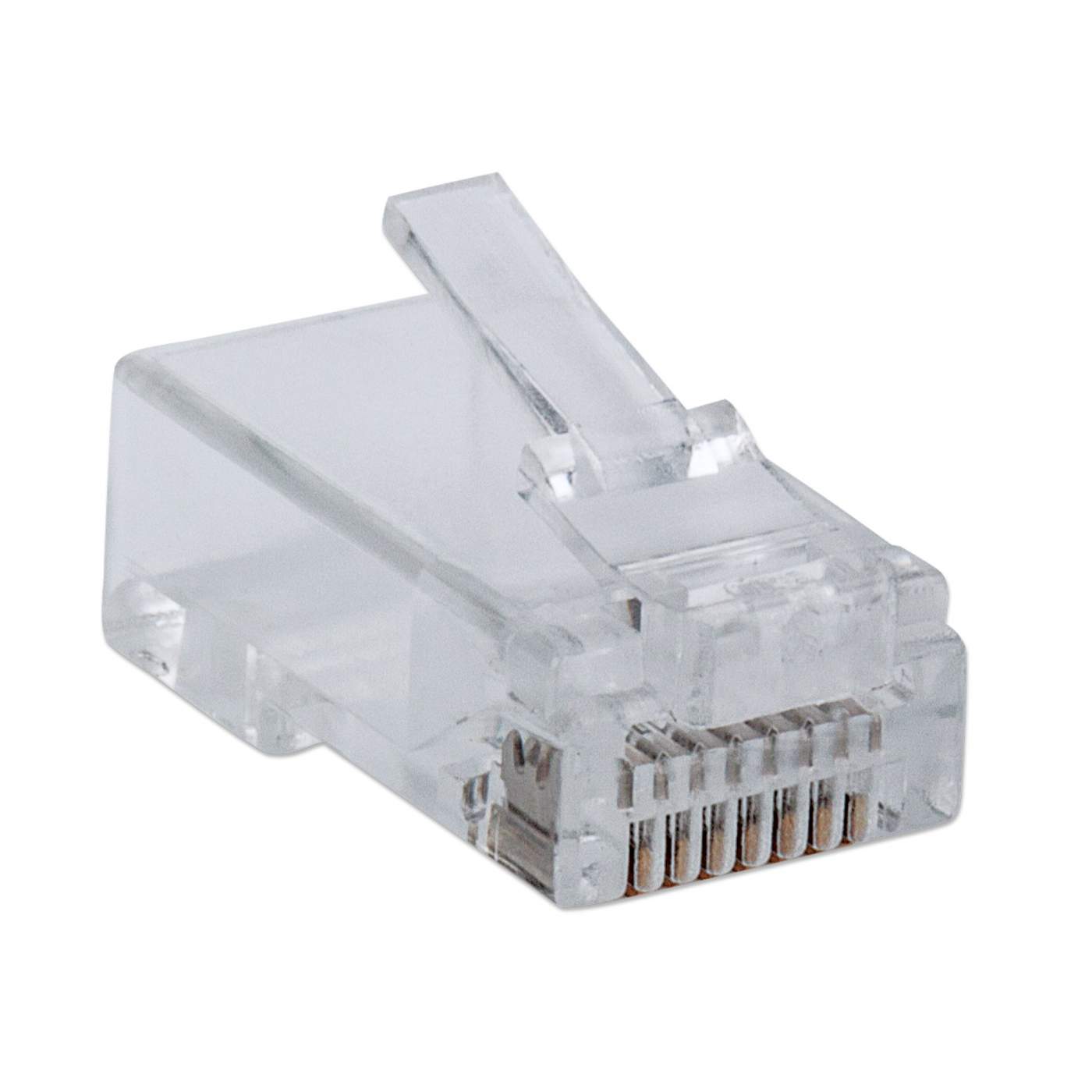

100-Pack FastCrimp Cat6 RJ45 Modular Plugs

An intuitive modular plug design for faster and easier terminations

FastCrimp RJ45 Modular Plugs from Intellinet Network Solutions help installers terminate RJ45 cables quickly and easily. Getting clean connections with the jacket at the crimp point sometimes requires an extra trimming step to get the wire lengths just right. With the intuitive design of the FastCrimp Modular Plugs, you run the wires all the way through the plug and out the front before you crimp and cut them with the Intellinet FastCrimp Modular Plug Crimping Tool (#790352). There’s no more wondering if the wires got crossed in the connector or if they are seated completely — you can easily check them for perfect positioning and additional peace of mind.

• Makes terminations fast and easy by feeding the wires through the plug and out the front
• 3-µ gold-plated contacts
• Supports 22 to 24 AWG stranded and solid wire
• Fits round cable
• For unshielded twisted pair applications
• Standard 8P8C design, compatible with all network RJ45 connections
• Cat6 performance, in compliance with ANSI/TIA/EIA 568-D standard
• Use with Intellinet FastCrimp Modular Plug Crimping Tool (#790352)
• Lifetime warranty

Standards

• Cat6 (ANSI/TIA/EIA 568-D)

  Material

• Insulator: polycarbonate rated 94V-2

• Contacts: brass

• Contact plating: 3-micron gold

  Physical

• Dimensions: 11.6 (L) x 22.6 (W) x 8.3 (H) [mm] / 0.5 (L) x 0.9 (W) x 0.3 (H) [in.]

• Weight (100 pcs.): 150 g (0.33 lbs.)

  Package Contents

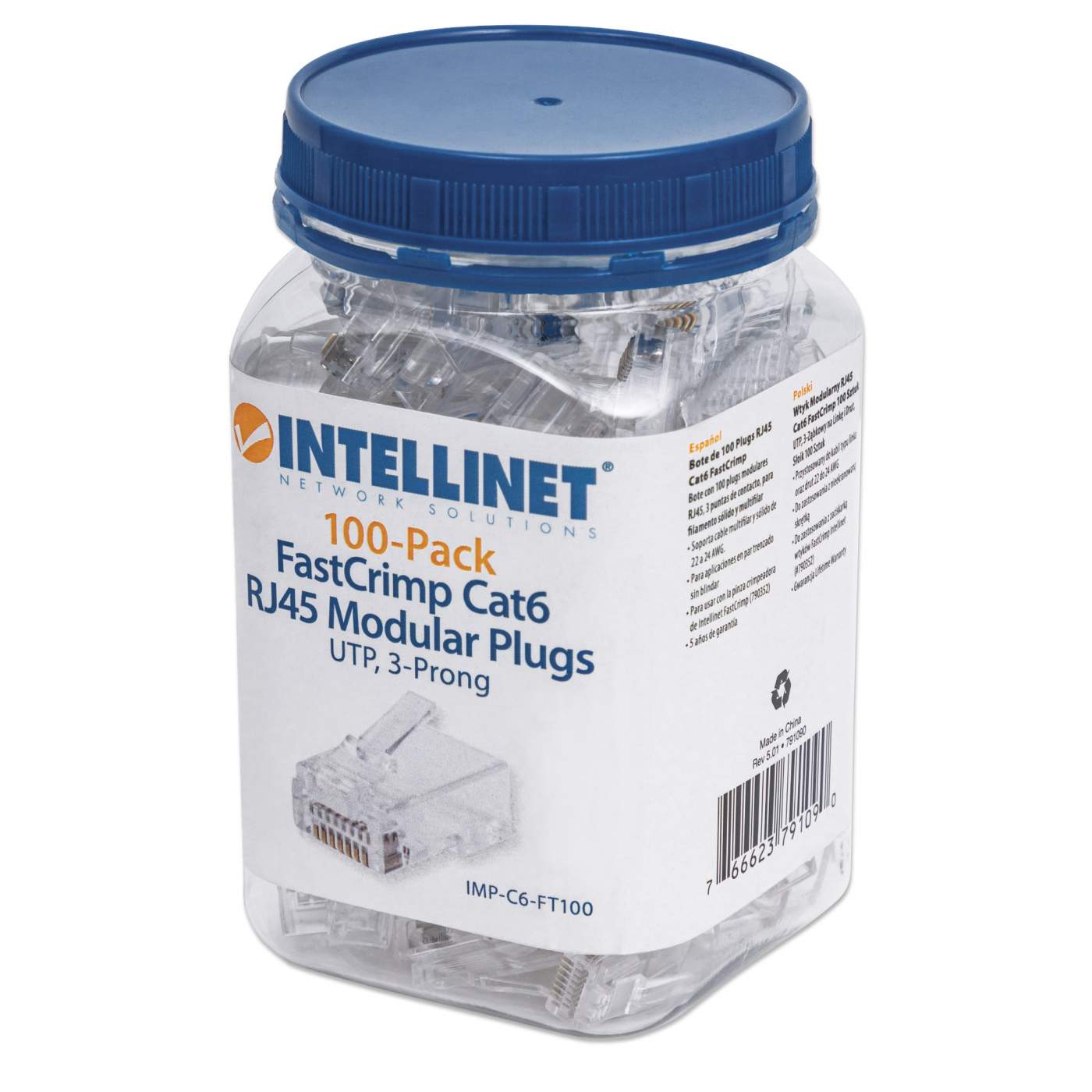

• 100-Pack FastCrimp Cat6 RJ45 Modular Plugs

• Additional SKUs

• Alphanumeric Model#: IMP-C6-FT100
• EAN: 0766623791090
• UPC: 766623791090



• Physical Specifications

• Weight: 0 kg
• Dimensions: 11.6 (L) x 22.6 (W) x 8.3 (H) [mm]

• Datasheet
• Datasheet     » Download
