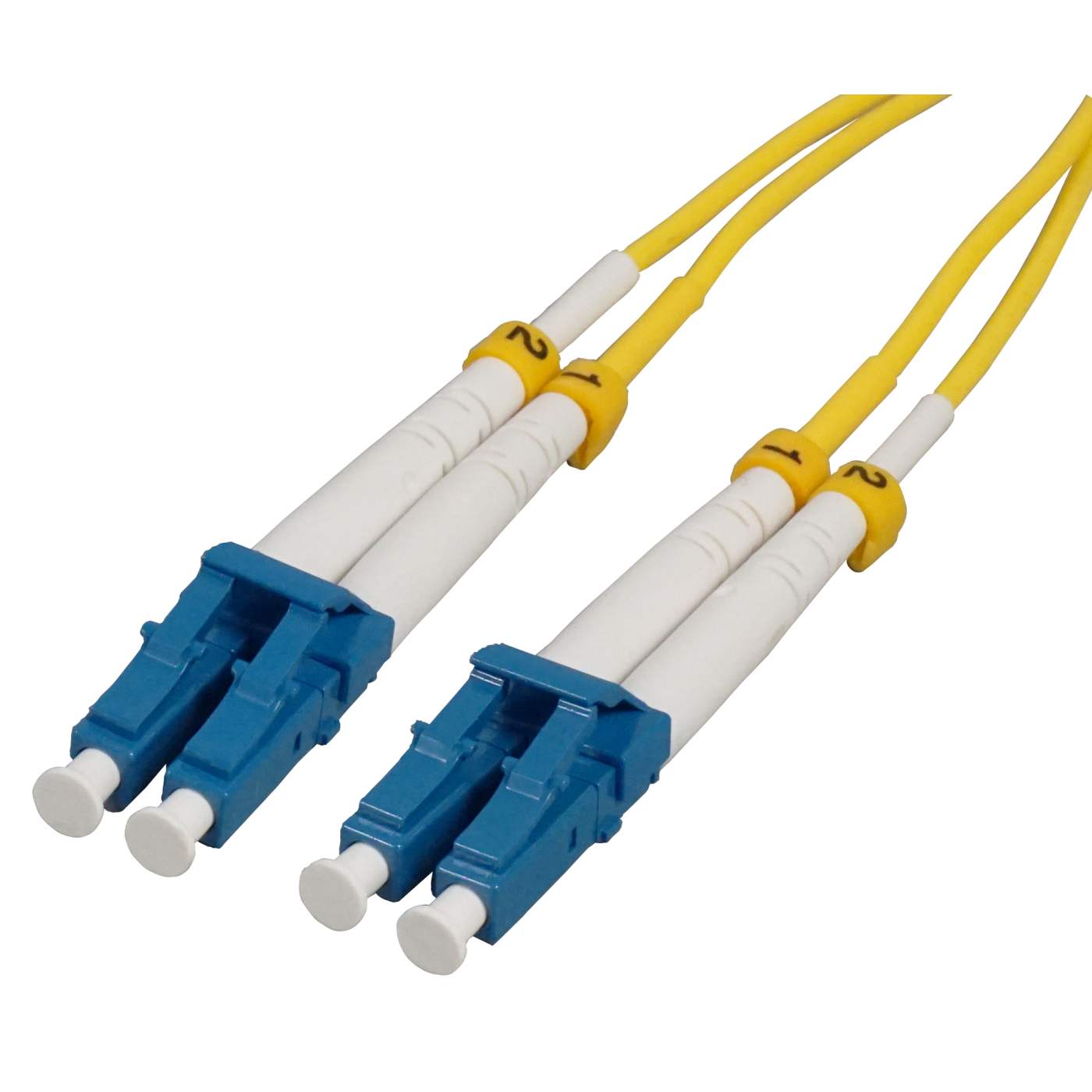

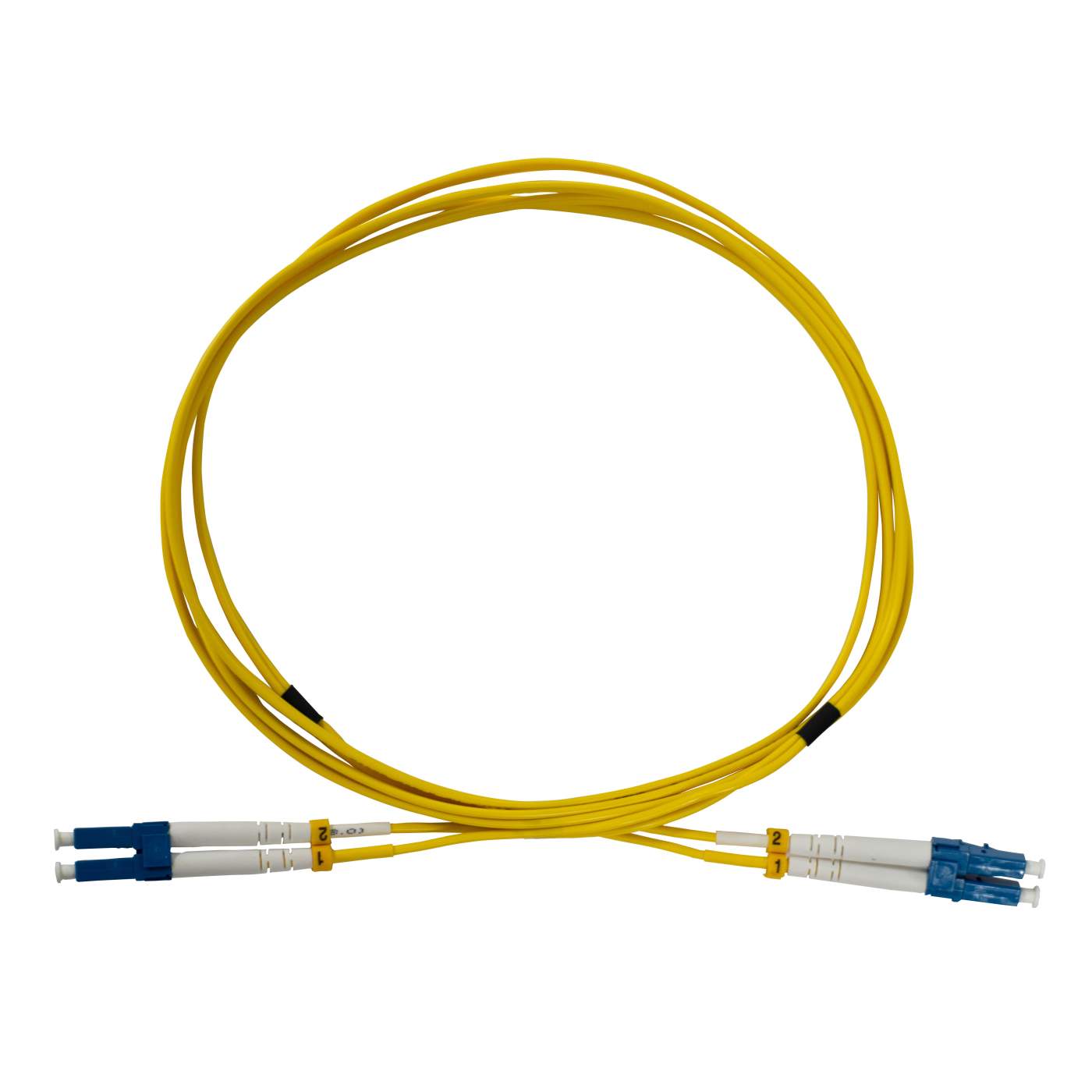

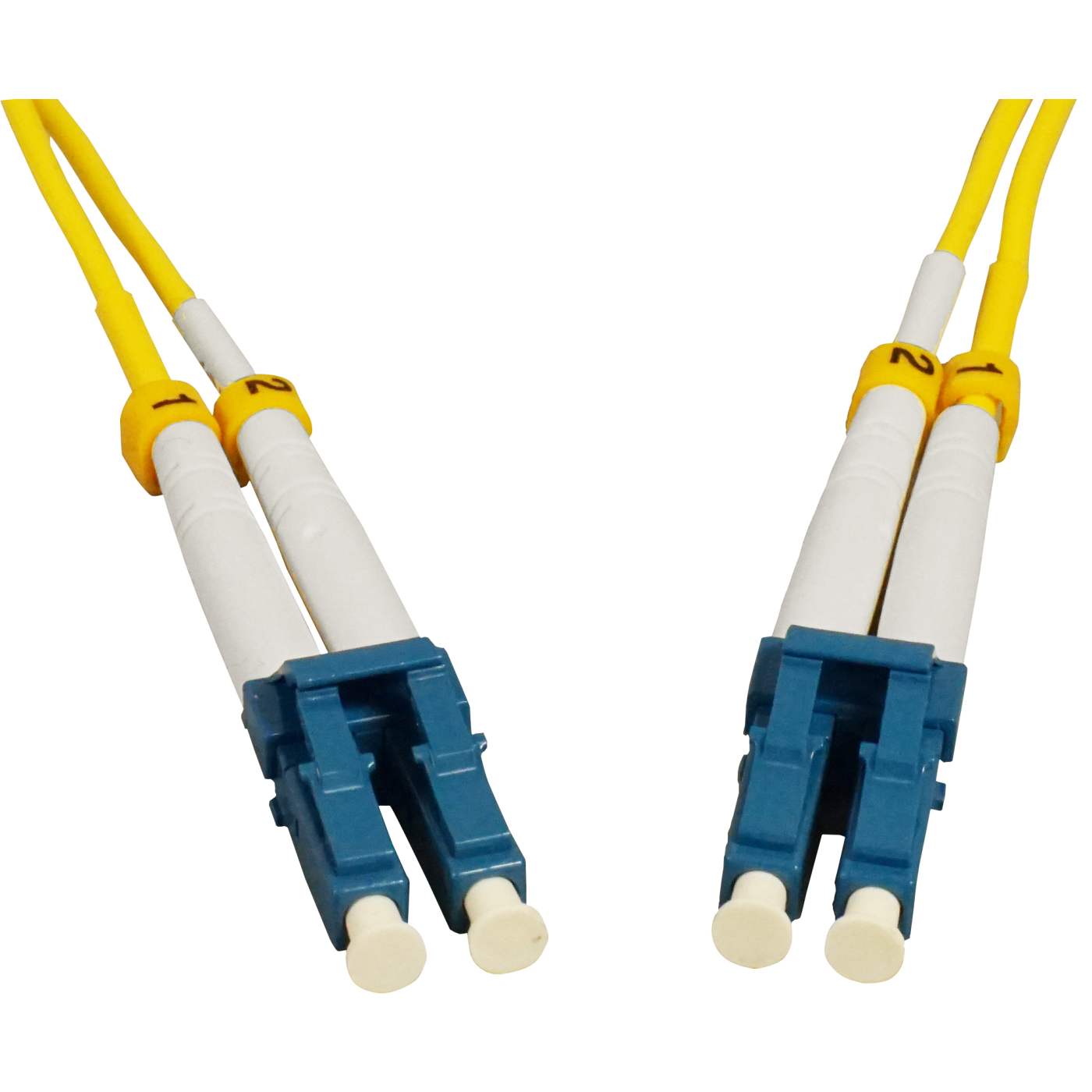

1.5 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, Singlemode BIF, Yellow

Our cutting-edge fiber optic solutions provide unmatched connectivity.

Our versatile connectivity options ensure optimal performance in entrance facilities, telecommunications rooms, data centers, and even at the desk for interconnect and cross-connect applications. We use UPC (Ultra Physical Contact) fiber connectors for better surface finish and return loss, improving network quality.

Our OS2 single mode fiber products are ideal for high-speed network connections due to their performance and durability. Our fiber optics are ideal for 40G Ethernet and beyond due to low signal loss and high data rates. The bend-insensitive design reduces cable attenuation when bent or twisted, improving installation and maintenance efficiency.

Our cables, made from Corning optical fiber ultra-pure glass, have low attenuation and high bandwidth for high-speed, long-distance communication. Furthermore, our products have a lifetime warranty, protecting your investment for years. Choose our fiber optic solutions for long-lasting, high-performance connectivity.

• Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
• UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
• OS2 Single Mode Fiber: Uses OS2 single mode fiber, providing superior performance and longevity for high-speed network connections.
• Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
• Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
• Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.
• Each cable ships with the test report included
• Lifetime Warranty

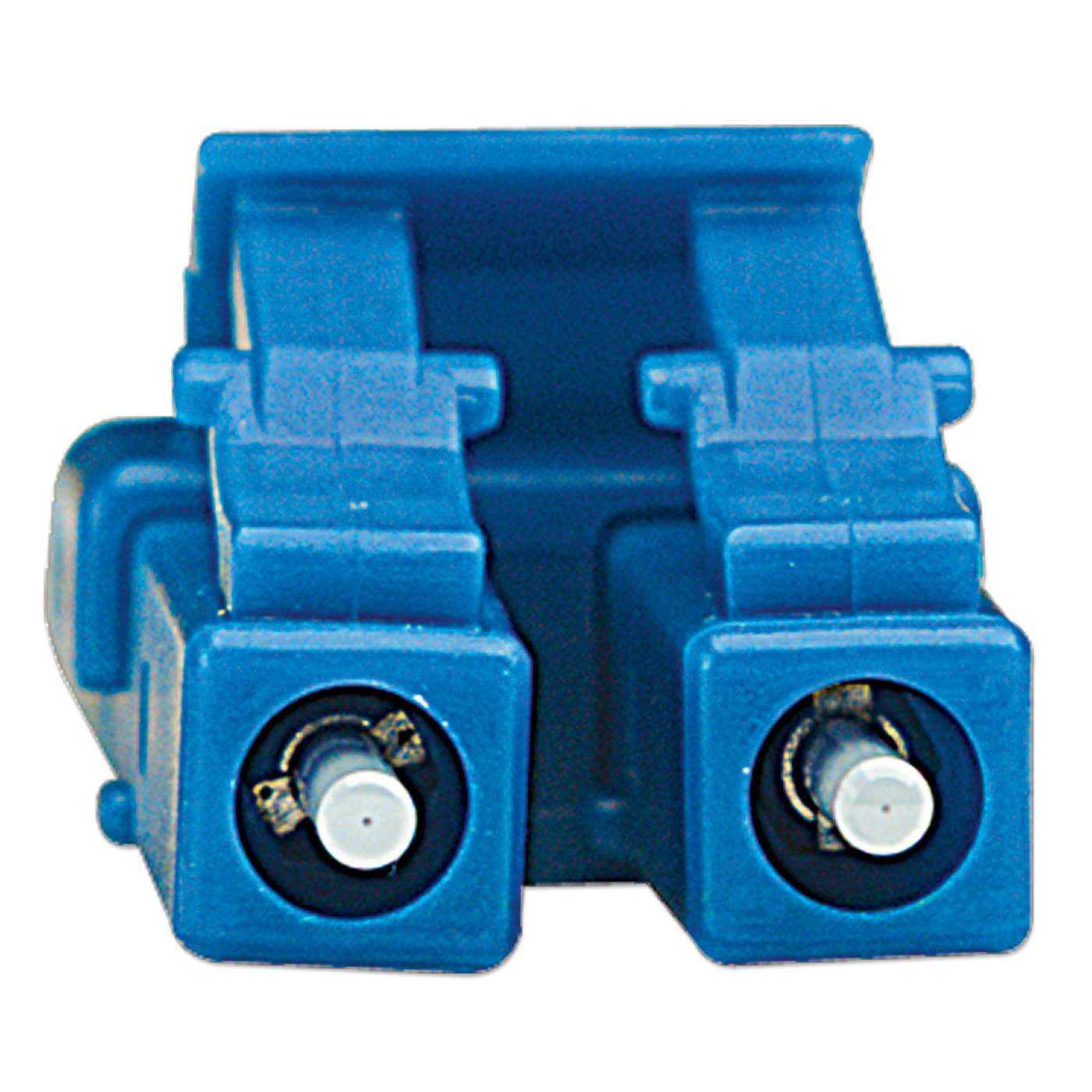

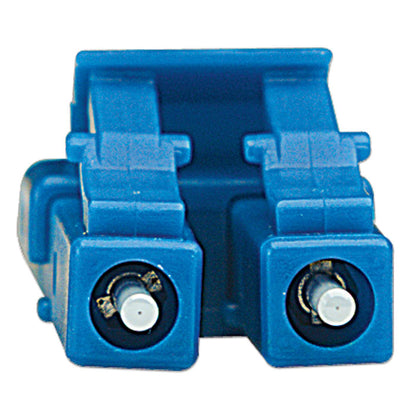

Connector type: LC UPC Duplex to LC UPC Duplex
Fiber count: 2 Fibers
Fiber grade: G.657.A1 (Compatible with G.652.D)
Bend Radius: 10.0mm
Fiber mode: Single Mode OS2 9/125μm
Wavelength: 1310/1550nm
Polarity: A (Tx) to B (Rx)
Cable outer diameter (OD): 2.0mm
Cable jacket: Riser (OFNR)
Ferrule material: Ceramic (zirconia)
Insertion loss: ≤0.3dB (1310nm/1550nm), typical ≤0.2dB
Return loss: ≥55dB (1310nm/1550nm)
Attenuation at 1310nm: ≤0.35dB/km
Attenuation at 1550nm: ≤0.25dB/km
Connector durability: 1000 insertion - extraction cycles min.
Operation temperature range: -40°C +85°C

• Additional SKUs

• EAN: 0766623751643
• UPC: 766623751643



• Physical Specifications

• Weight: 0.05 kg
• Dimensions: 1.5 m
