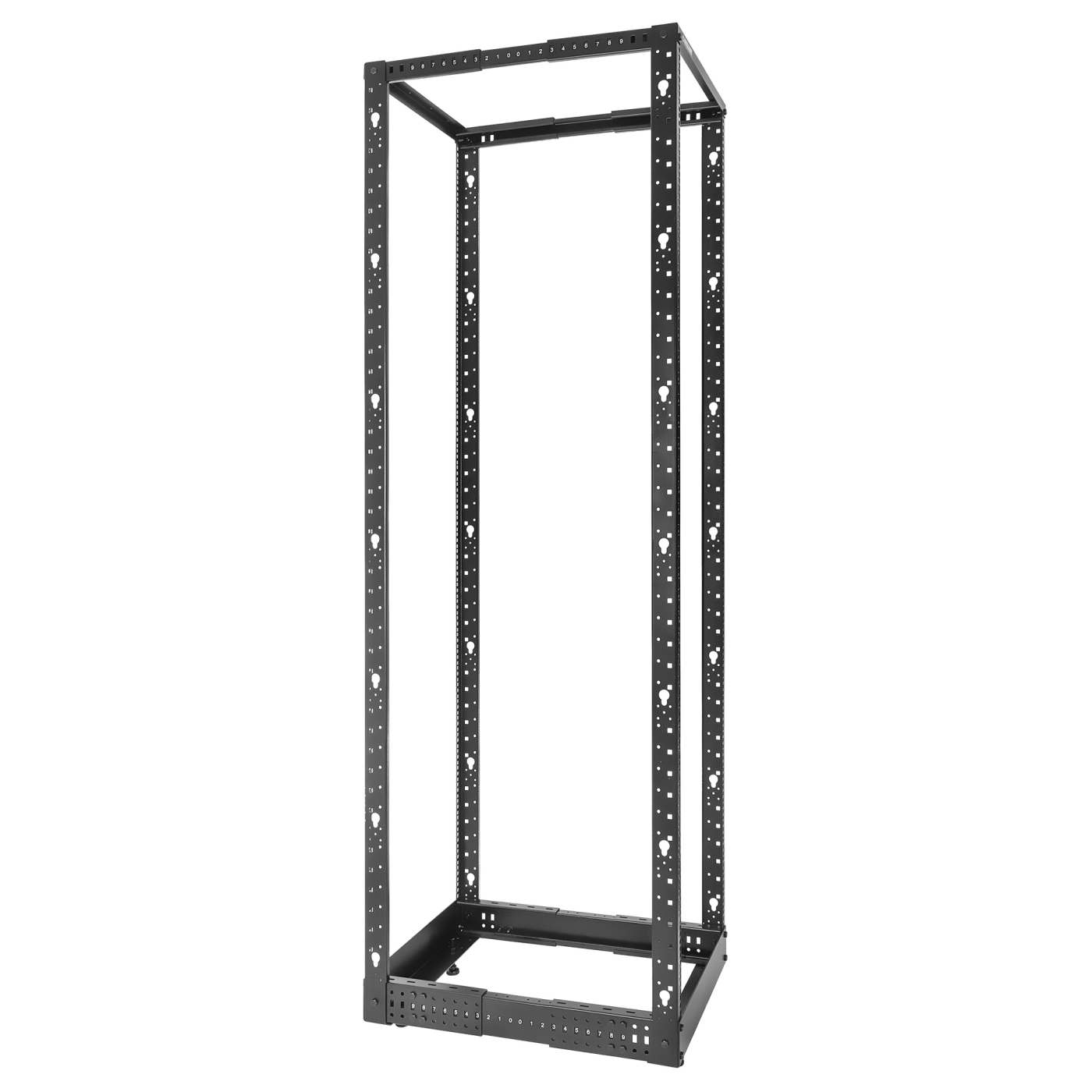

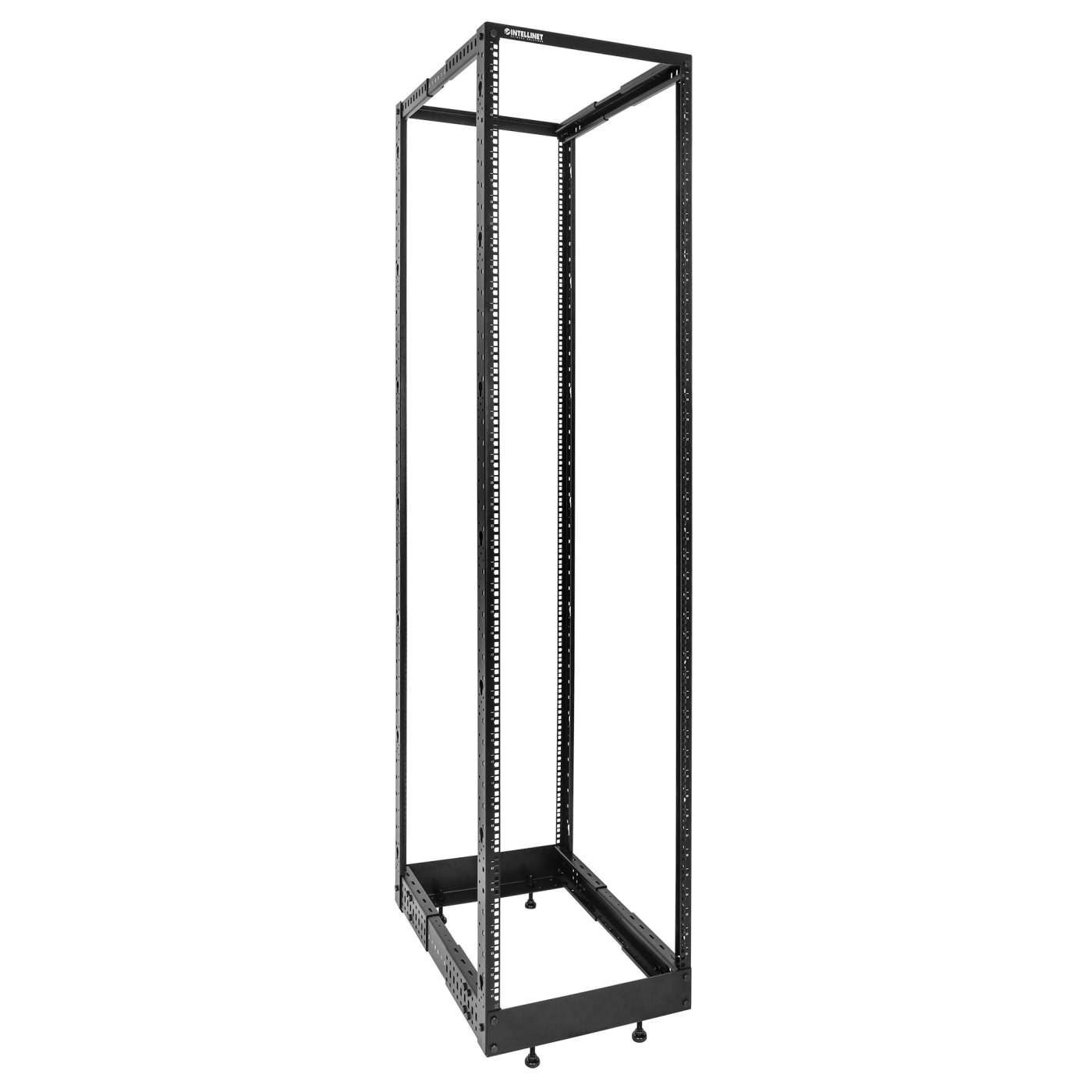

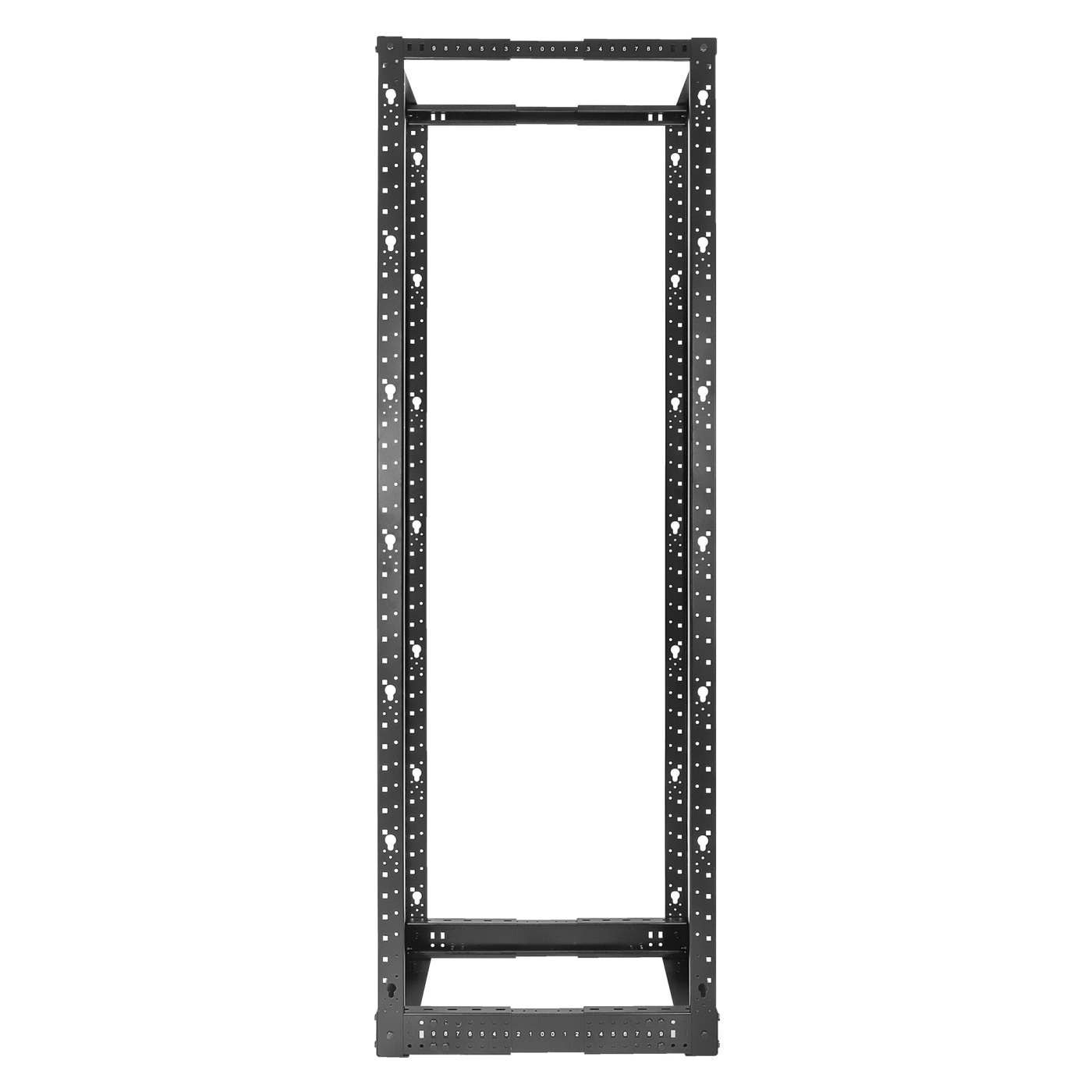

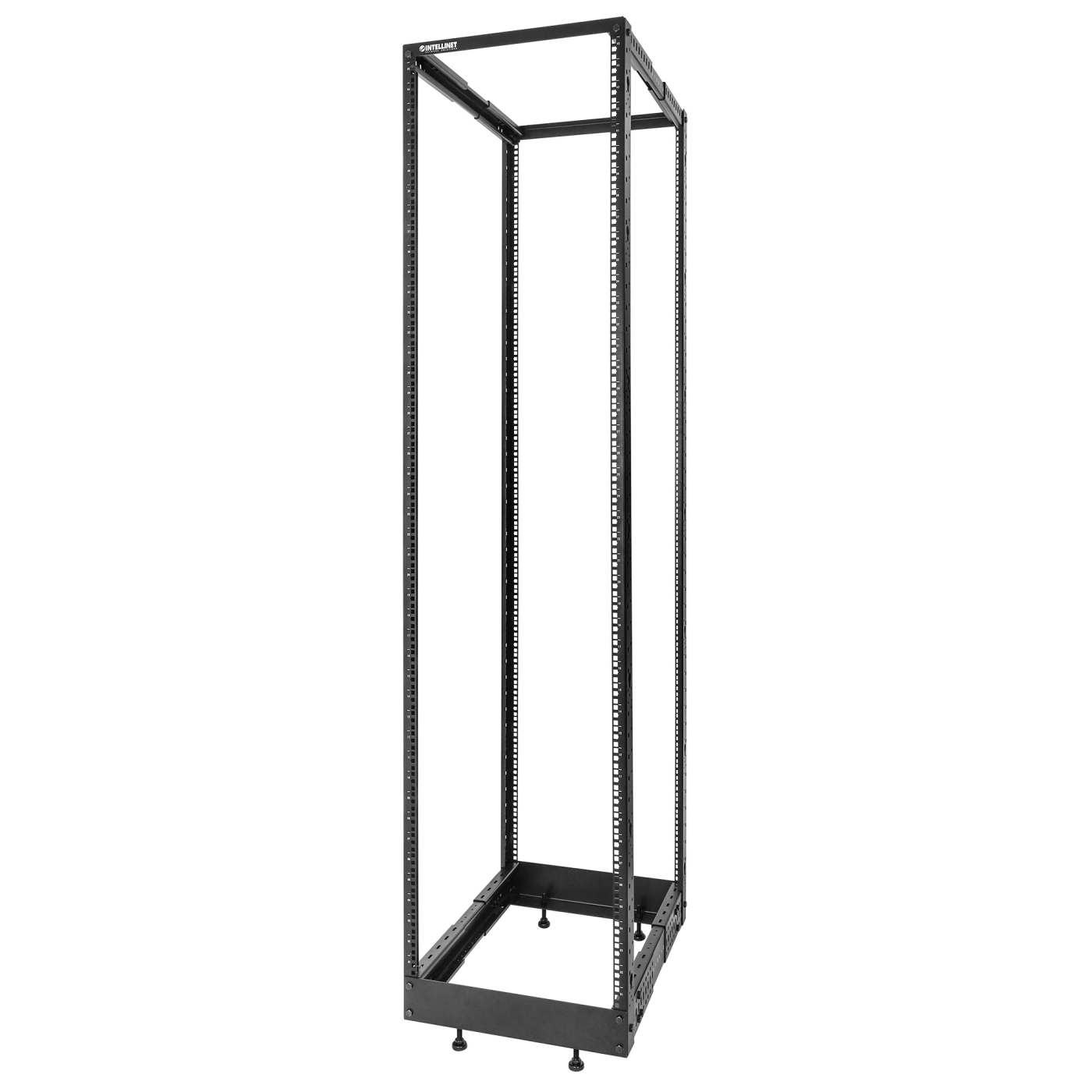

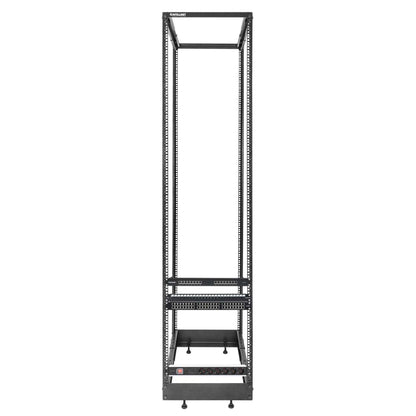

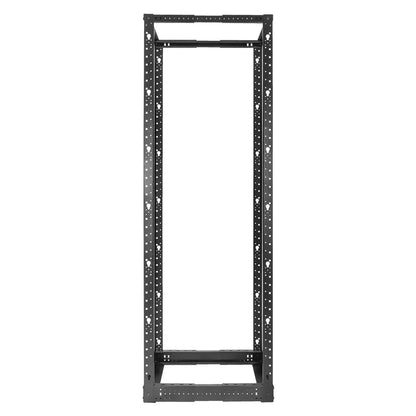

19" 4-Post Open Frame Network Rack, 45U

Depth-Adjustable Open Frame Rack 45U for 19 inch Network and Server Equipment in an Accessible, Heavy-Duty Rack-Mount Solution

The 45U 19" 4-Post Open Frame Network Rack from Intellinet Network Solutions is your simple, cost-effective way for housing IT equipment in secure environments that don't require a lockable rack solution. Its open-frame design offers unparalleled accessibility and superior airflow for optimal heat dissipation.

Unrestricted Access

The open frame allows easy access to your equipment from all sides, facilitating effortless installation and maintenance.

Maximum Airflow

The open design ensures efficient heat dissipation, keeping your equipment cool and running smoothly.

Robust Construction

Built with 2 mm (0.08 in.) thick, cold-rolled SPCC steel and finished with a durable powder coating, this rack is engineered for strength and longevity. With a maximum of 770 lbs. (350 kg), this rack supports even the heaviest of equipment. The base can be bolted securely to the floor.

Flexible Configuration

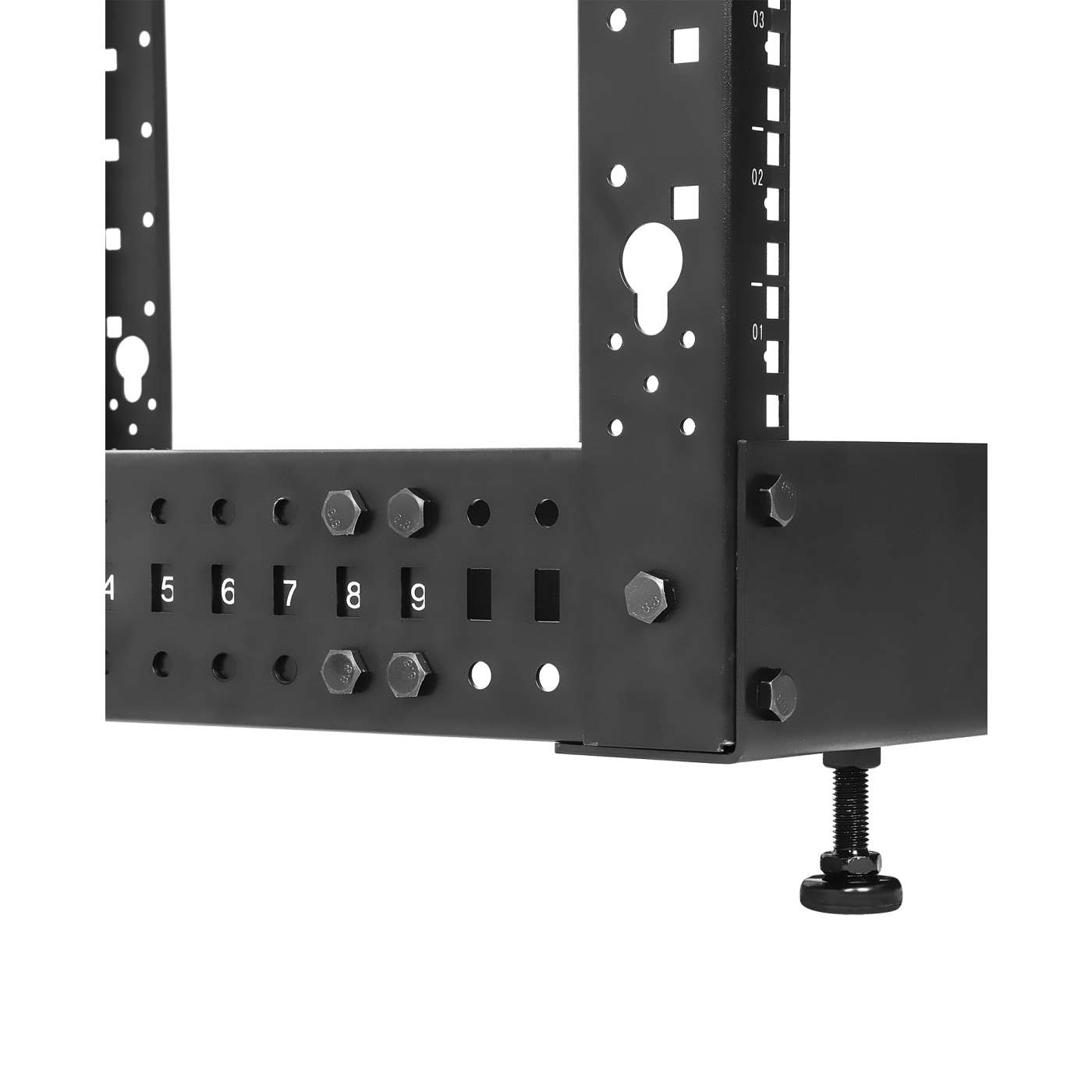

Four sturdy posts with numbered rackmount space height units and depth-adjustable from 22.2 to 40.4 in. (565 to 1025 mm) accommodate a wide range of equipment.

Comprehensive Rackmounting and Cable Management Kit

The packaging includes 40 M6x12 screws, 40 M6 cage nuts, and 40 M6 plastic washers for hassle-free mounting of your devices without additional accessory purchases. Plus, 28 plastic rings, attachable to the posts, keep your network cables neatly organized.

Space-Efficient Shipping

Its flat-packed shipping condition minimizes space requirements and reduces freight costs, making delivery and storage more convenient.

Lifetime Warranty

Enjoy peace of mind with a lifetime warranty, ensuring your investment is protected.

• Simple and cost-effective solution; great for testing IT equipment and for secure environments that do not require a lockable network cabinet
• Open frame for easy access to equipment from all sides and for maximum airflow with efficient heat dissipation
• Heavy-duty construction with 2 mm (0.08 in.) thick, cold-rolled SPCC steel and powder coating

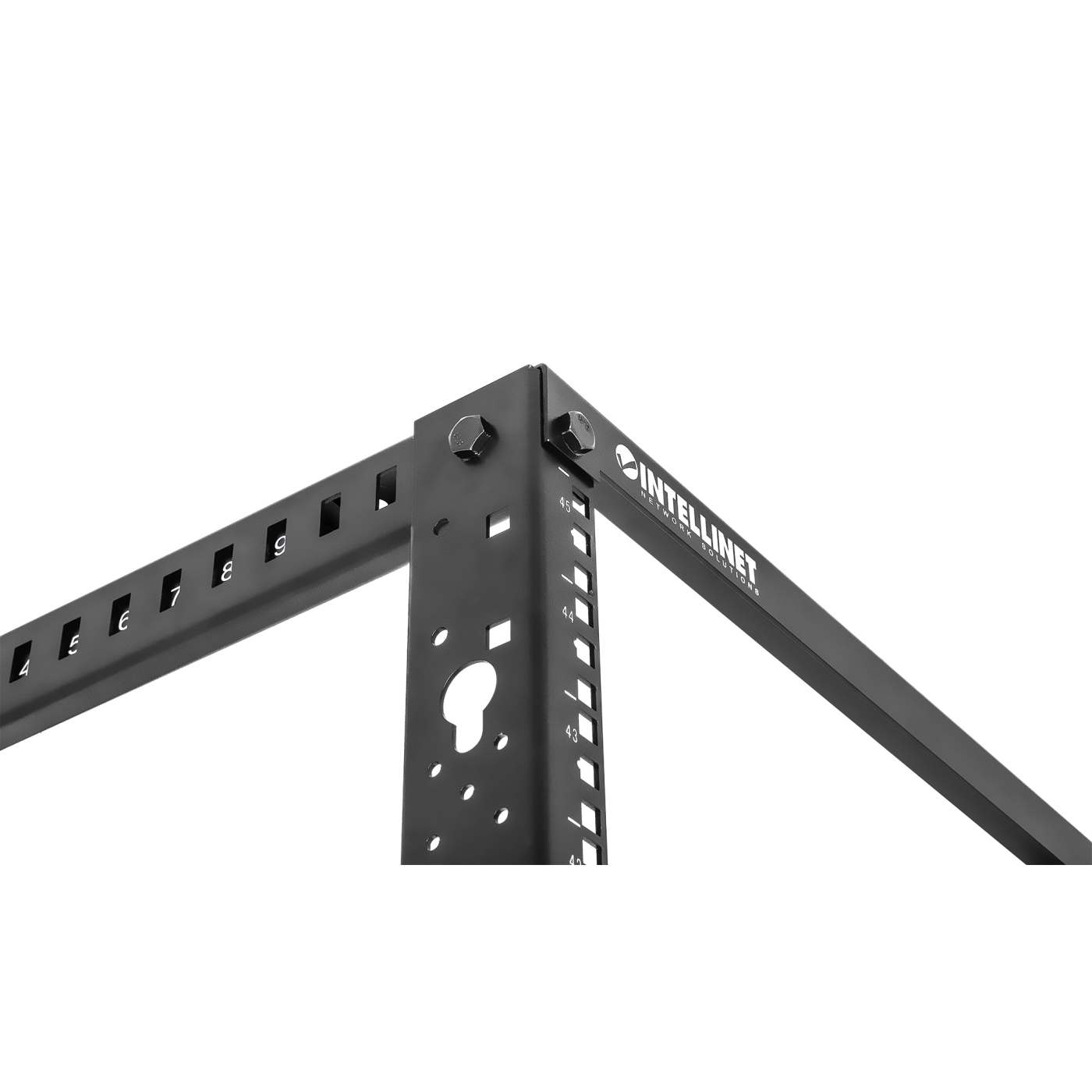

• Four posts with numbered rackmount space height units
• Depth-adjustable from 22.2 to 40.4 in. (565 to 1025 mm) to accommodate a wide range of products
• Maximum load capacity of 770 lbs. (350 kg)

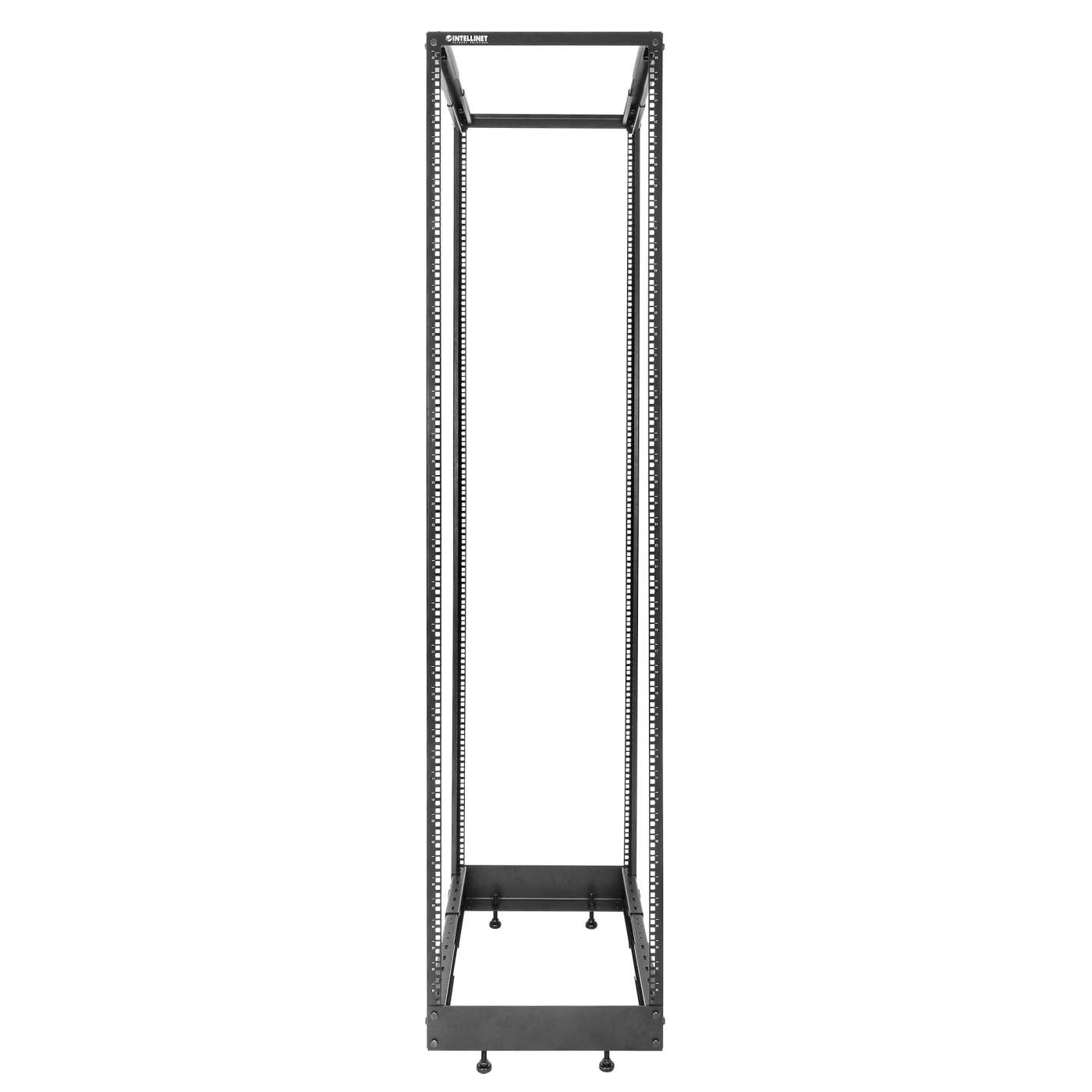

• Four adjustable levelling feet included for enhanced stability
• Can be secured to the floor with four bolts

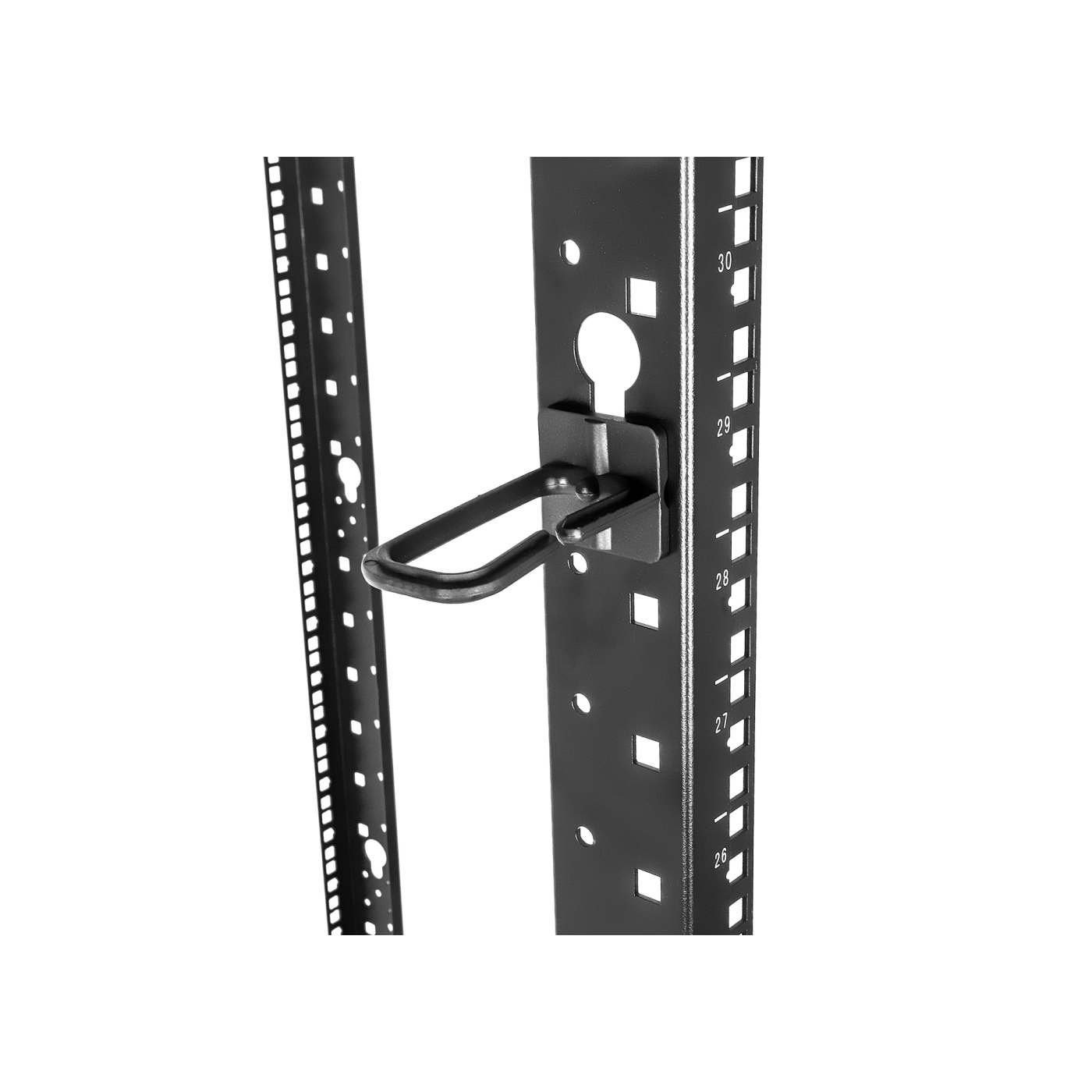

• Includes 28 attachable rings for clean and organized cable management

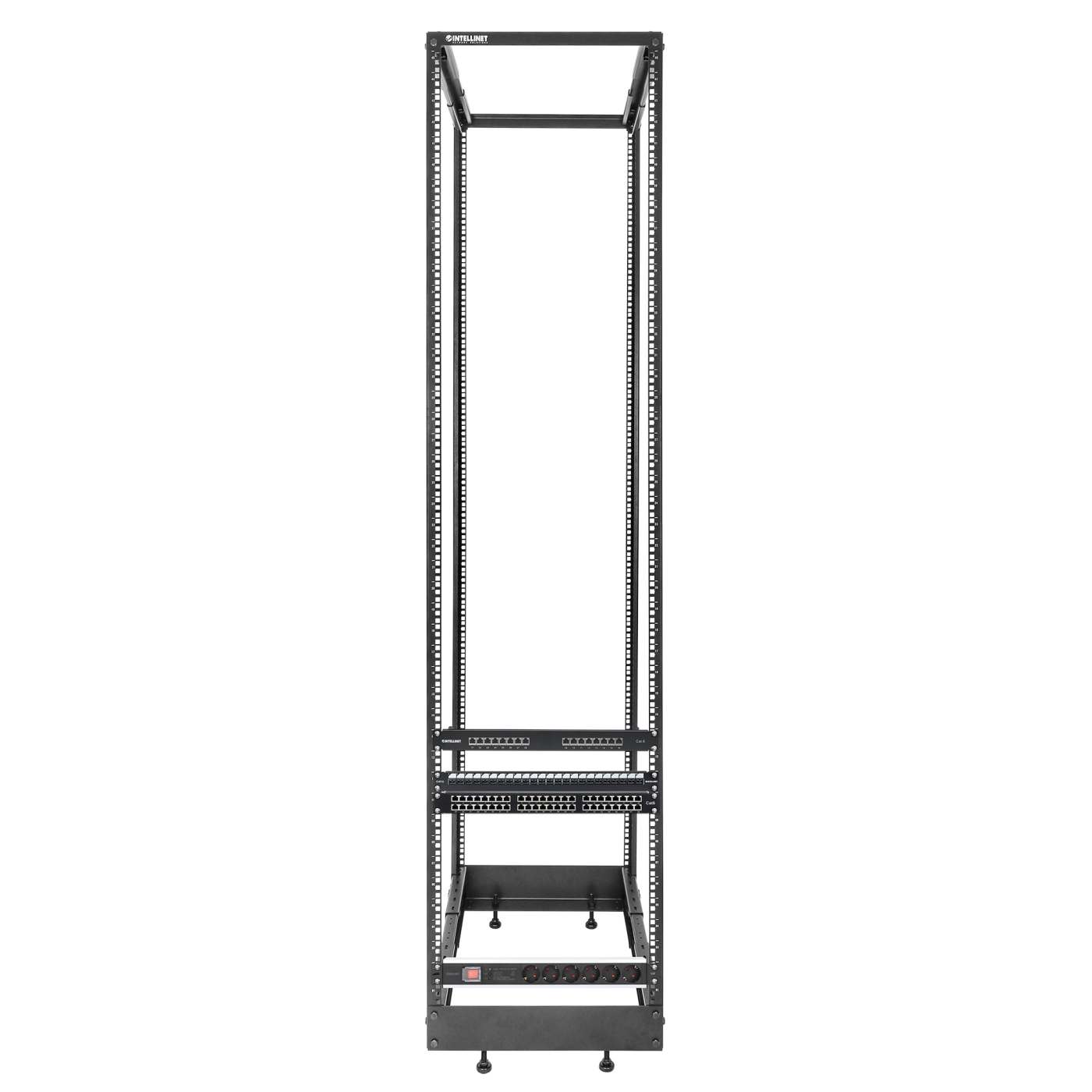

• IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm rack-mount equipment
• Includes 19" rackmounting material with 40 M6x12 screws, 40 M6 cage nuts, and 40 M6 plastic washers
• Ships flat-packed to save space and freight costs
• Lifetime warranty

Standards and Certifications

• RoHS

• ANSI/EIA 310-E

• IEC 60297-3

  General

• Dimensions (D x W x H): 22.2 - 40.4 x 20.28 x 84.25 in. (565 - 1025 x 515 x 2140 mm); 45U

• Net weight: 52.91 lbs. (24 kg)

• Gross weight: 63.05 lbs. (28.6 kg)

• Maximum load: 770 lbs. (350 kg)

• Material: powder-coated steel

• Color: black RAL 9005

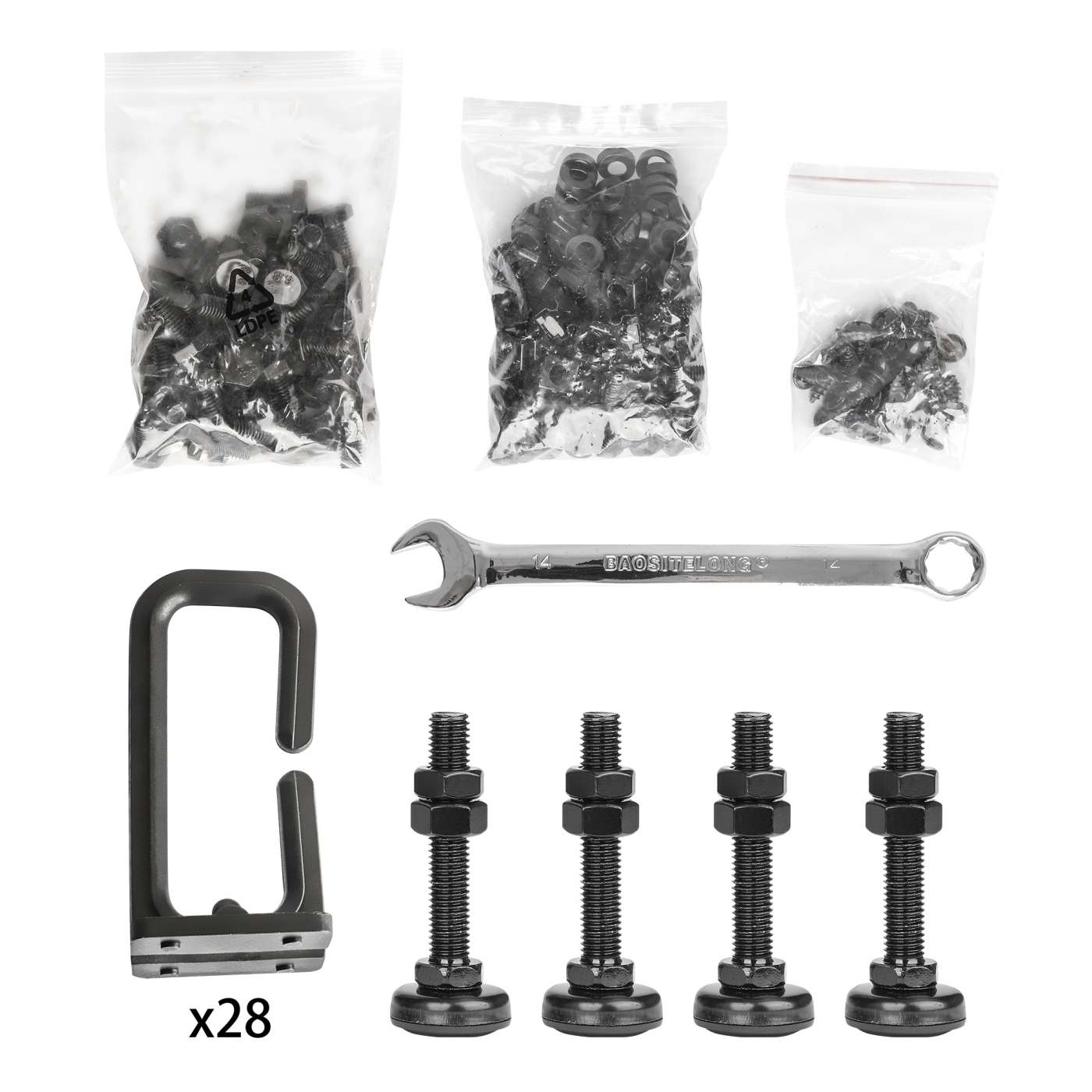

  Package Contents

• 19" 4-Post Open Frame Network Rack, 45U

• 40 x cage nut set for 19" rackmount equipment (M6 screw, M6 cage nut, plastic washer)

• 28 x cable management ring

• 4 x levelling foot

• Assembly material

• Assembly instructions

• Additional SKUs

• Alphanumeric Model#: IOFR-4PFS-45UB
• EAN: 0766623716406
• UPC: 766623716406



• Physical Specifications

• Weight: 24 kg
• Dimensions: 565 (D) x 515 (W) x 2140 (H) [mm]

• Datasheet
• Datasheet     » Download

• Manual
• Quick Installation Guide     » Download
