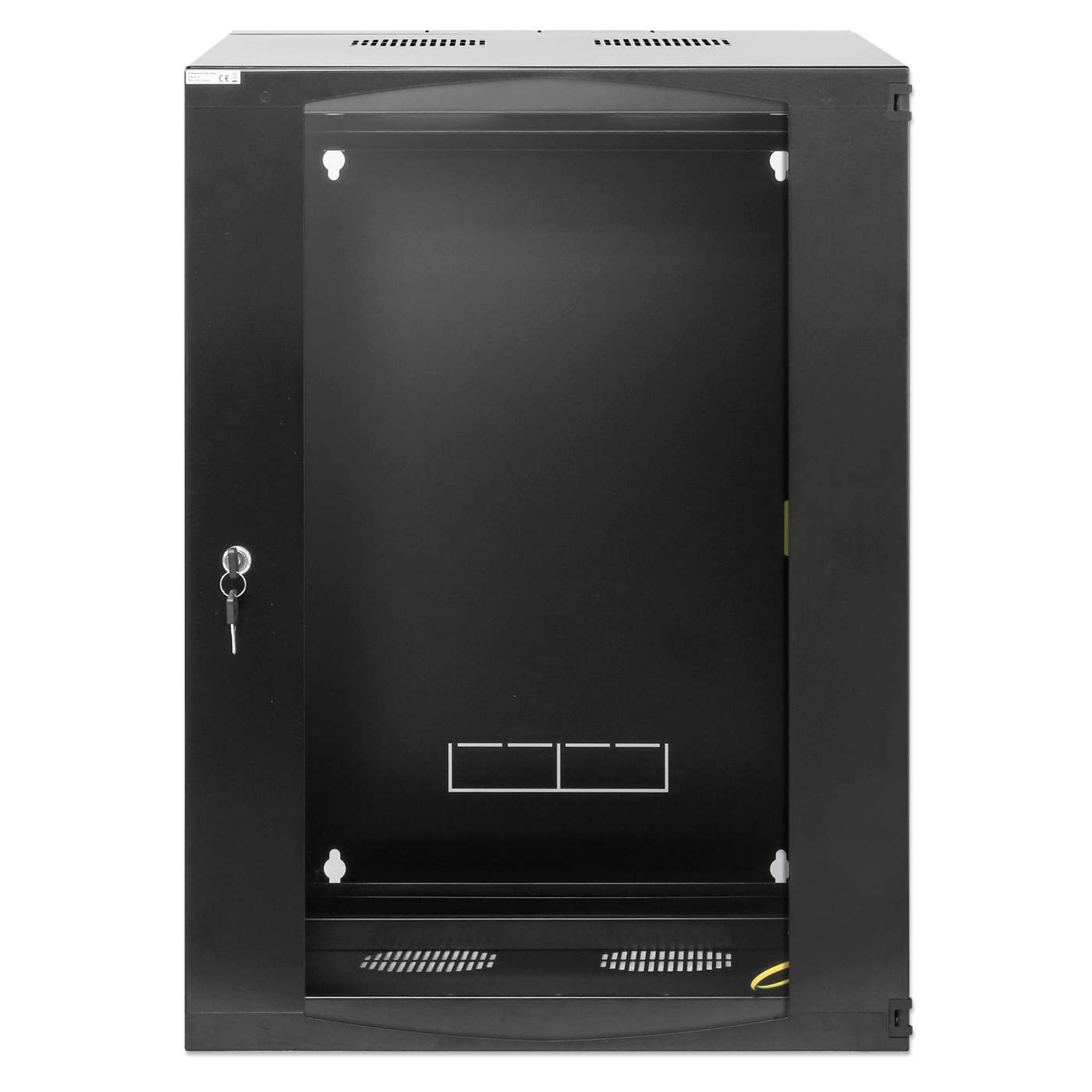

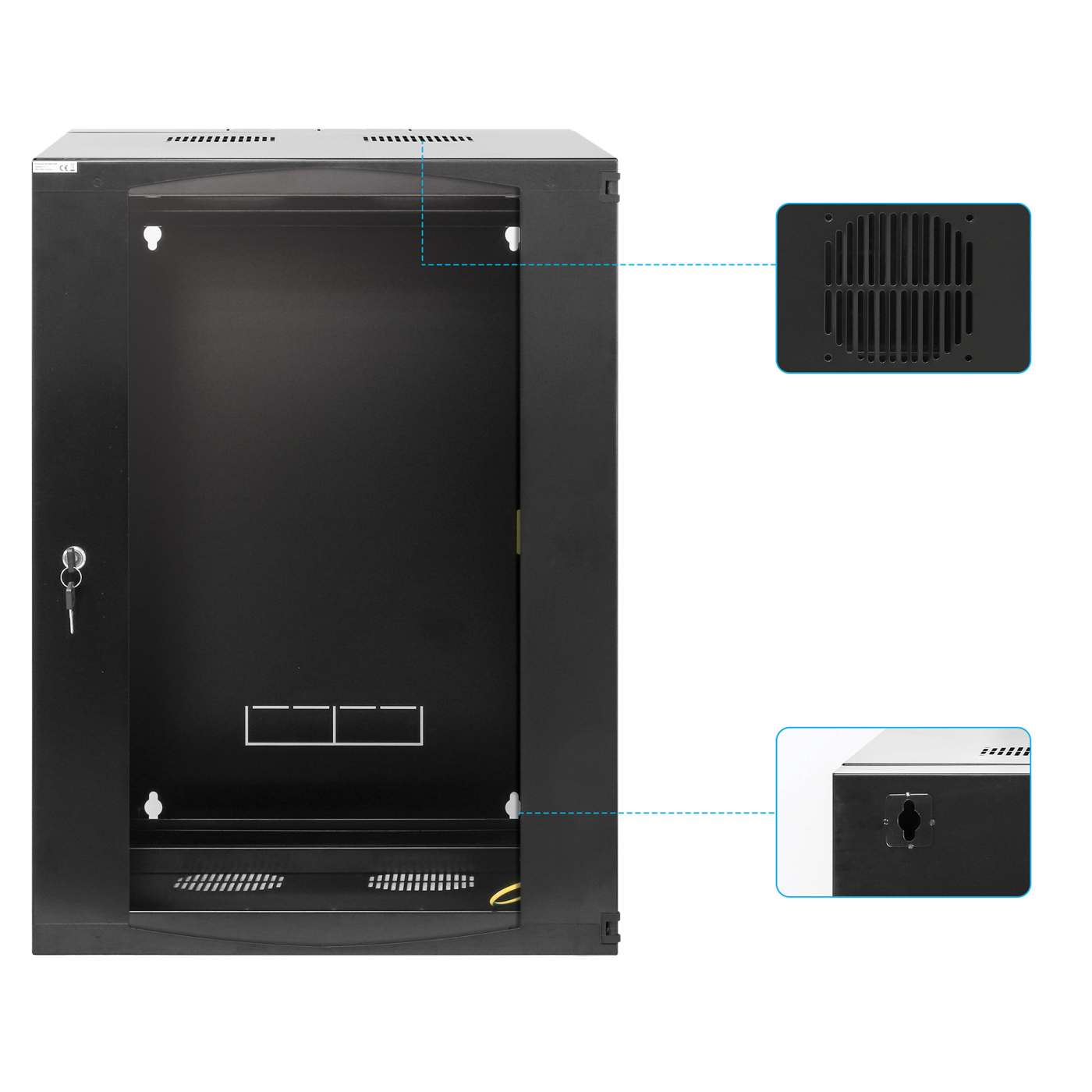

19" Double Section Wallmount Cabinet, 15U, 600 mm (23.6 in.) Depth, Black

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.
*Completely assembled versions are available in certain countries.

• Ideal for 19" rackmount applications
• Maximum static load of 30 kg
• Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)
• Cable entry via rear or top panel
• 4MM toughened glass door
• Rear door for easy access to back of cabinet
• Reversible Front door
• Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness
• Ships Flatpacked
• Three-Year Warranty

General

• 19"

• Height: 15U

• Color: Black RAL7021

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

  Physical

• 725 (h) x 540 (w) x 600 (d) mm

• 28.54 (h) x 21.26 (w) x 23.62 (d) in.

• Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)

• Maximum static load: 30 kg (66 lbs.)

  Package Contents

• 2 Rail frames

• Top, Bottom, Front, Back & Side Panels

• Installation hardware including 20x M6 Sets and 4x Keys

Warning

• Additional SKUs

• Alphanumeric Model#: INC-WMDF-24-15U
• EAN: 0766623713887
• UPC: 766623713887



• Physical Specifications

• Weight: 26.5 kg
• Dimensions: 600 (D) x 540 (W) x 725 (H) [mm]
