19" Double Section Wallmount Cabinet

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.

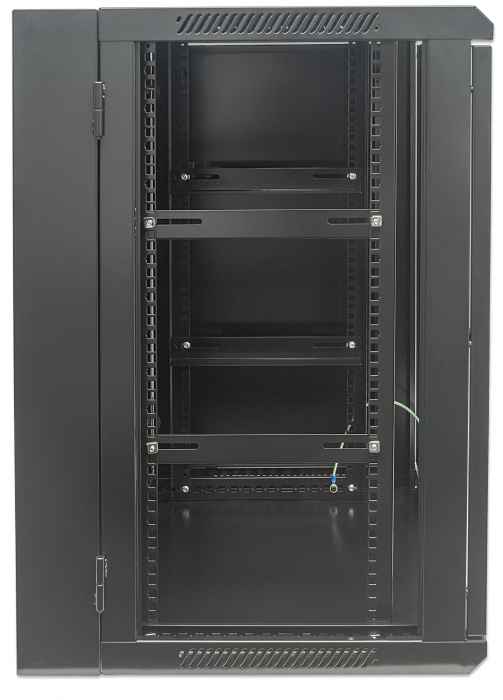

• Ideal for 19" rackmount applications
• Maximum static load of 30 kg (66 lb.)
• Usable depth: 425 mm (16.73 in.)

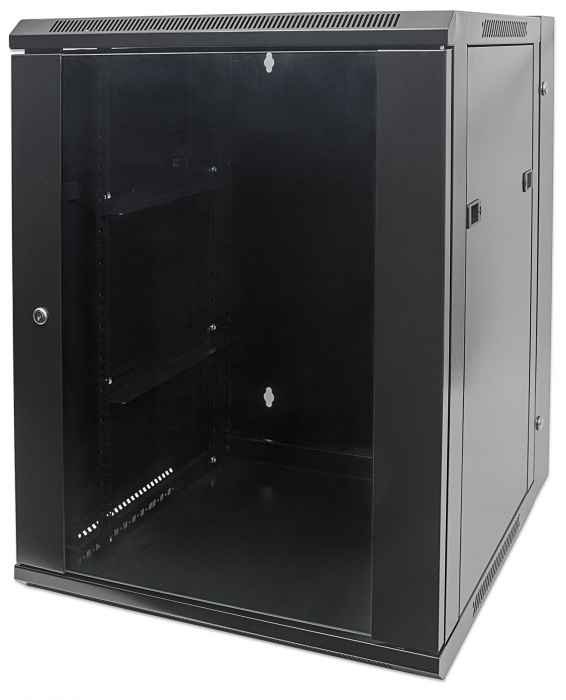

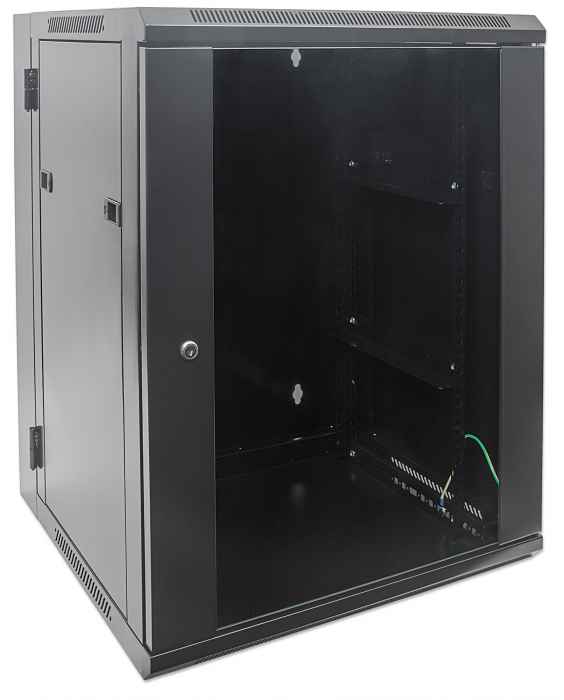

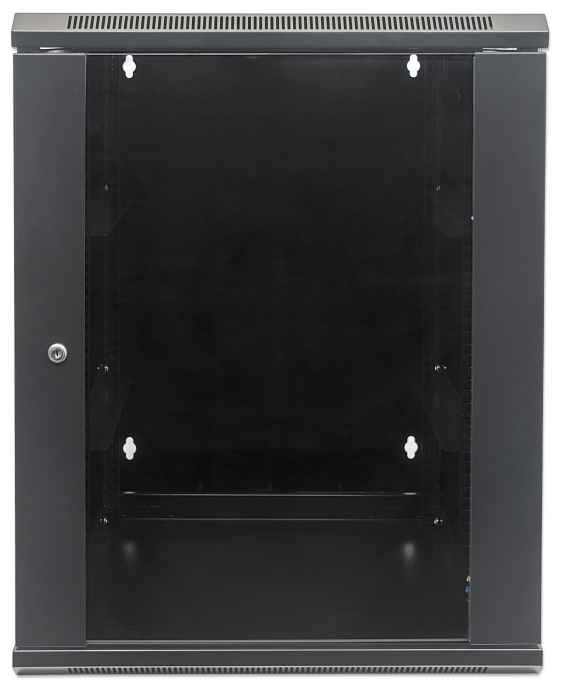

• Tempered-glass door can be opened more than 180°
• Cable entry via top panel

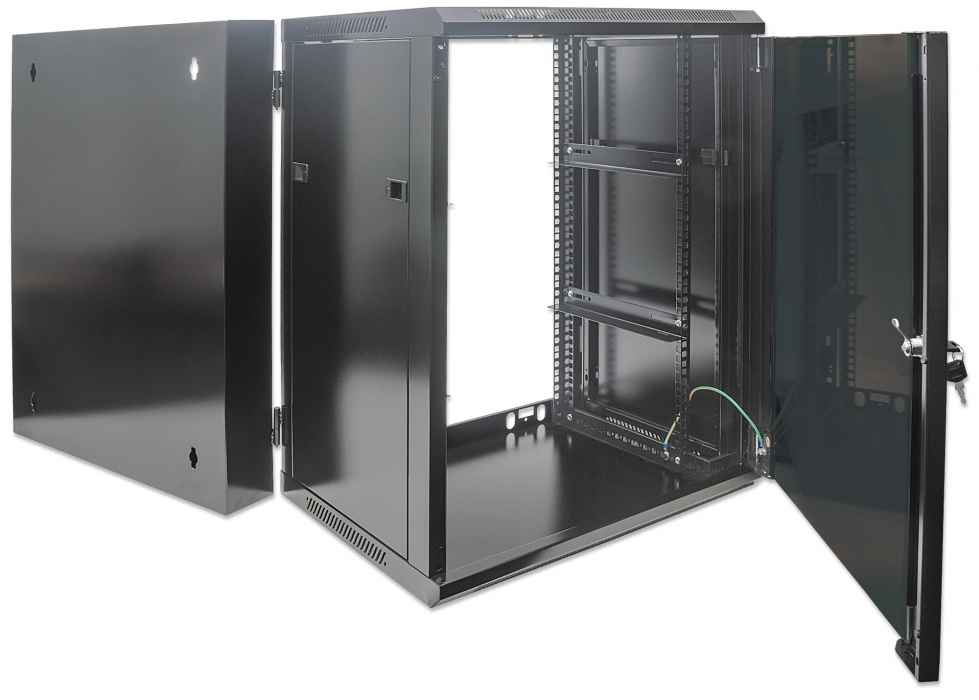

• Rear door for easy access to back of cabinet
• Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
• Reversible Front door

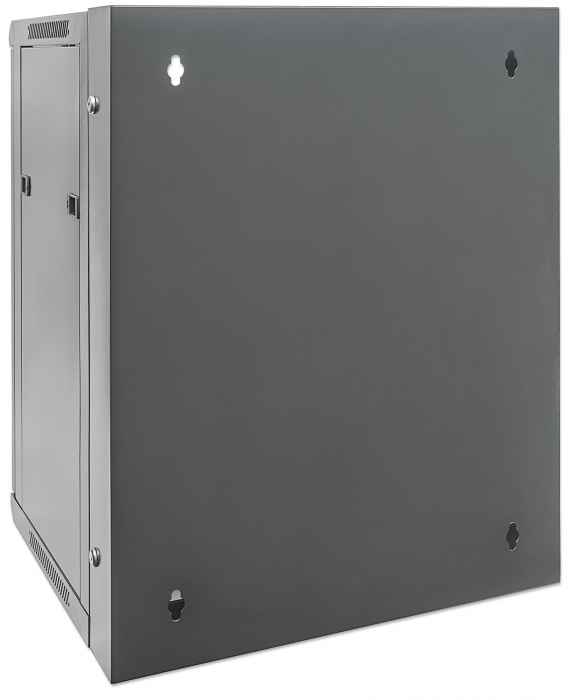

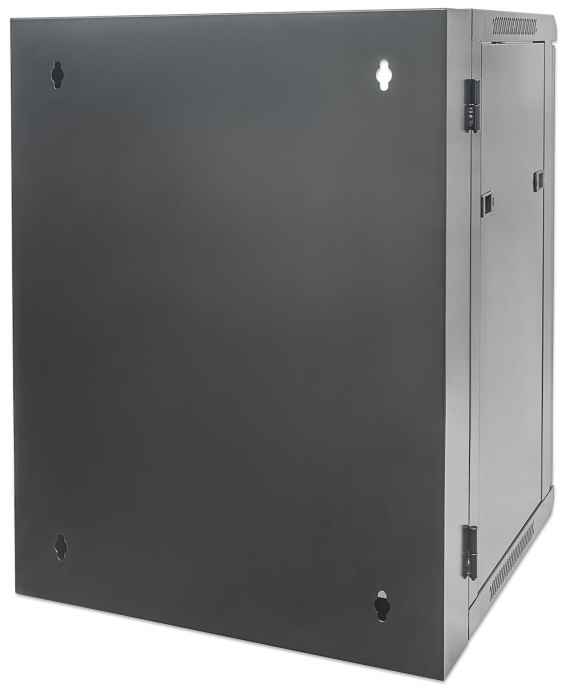

• Easily removable side panels
• Ships assembled
• Three-year warranty

General

• 19"

• Height: 9U

• Color: Black RAL9005

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

  Physical

• 500 (h) x 600 (w) x 550 (d) mm

• 19.7 (h) x 23.6 (w) x 21.7 (d) in.

• Usable depth: 425 mm (16.73 in.)

• Maximum static load: 30 kg (66 lbs.)

  Package Contents

• Double section wall mount

• Installation hardware including tool, 10x M6 Sets and 4x Keys

Warning

• Additional SKUs

• Alphanumeric Model#: INC-WMDA-20-9U
• EAN: 0766623711845
• UPC: 766623711845



• Physical Specifications

• Weight: 21 kg
• Dimensions: 500 x 600 x 550 (mm)

• Datasheet
• Datasheet     » Download


• Cabinet accessory compatibility chart EU
  Cabinet accessory chart for European Market

  English and German PDF Included     » Download


• Technical Drawing
  Cabinet     » Download


• Rack & Cabinet Accessory Chart
  Easy guide to show which accessories are appropriate for our cabinet range.There are many other accessories available, please contact our sales team for additional information. USA Market.     » Download

• Manual
• Double Section Wallmount Assembly Guide
  Assembly instructions for Double Section Wall-mount Cabinet.     » Download
