1
/
of
8
Intellinet

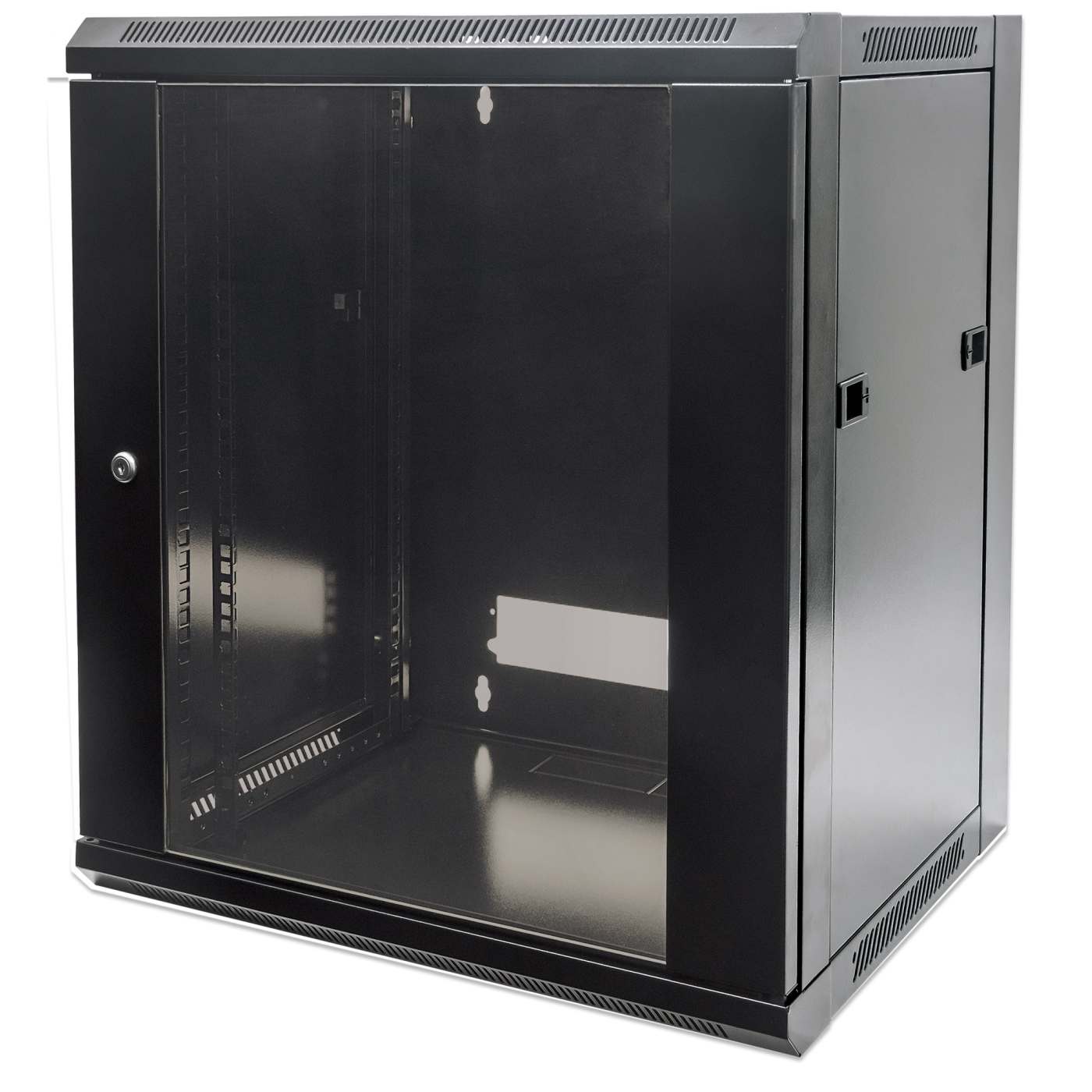

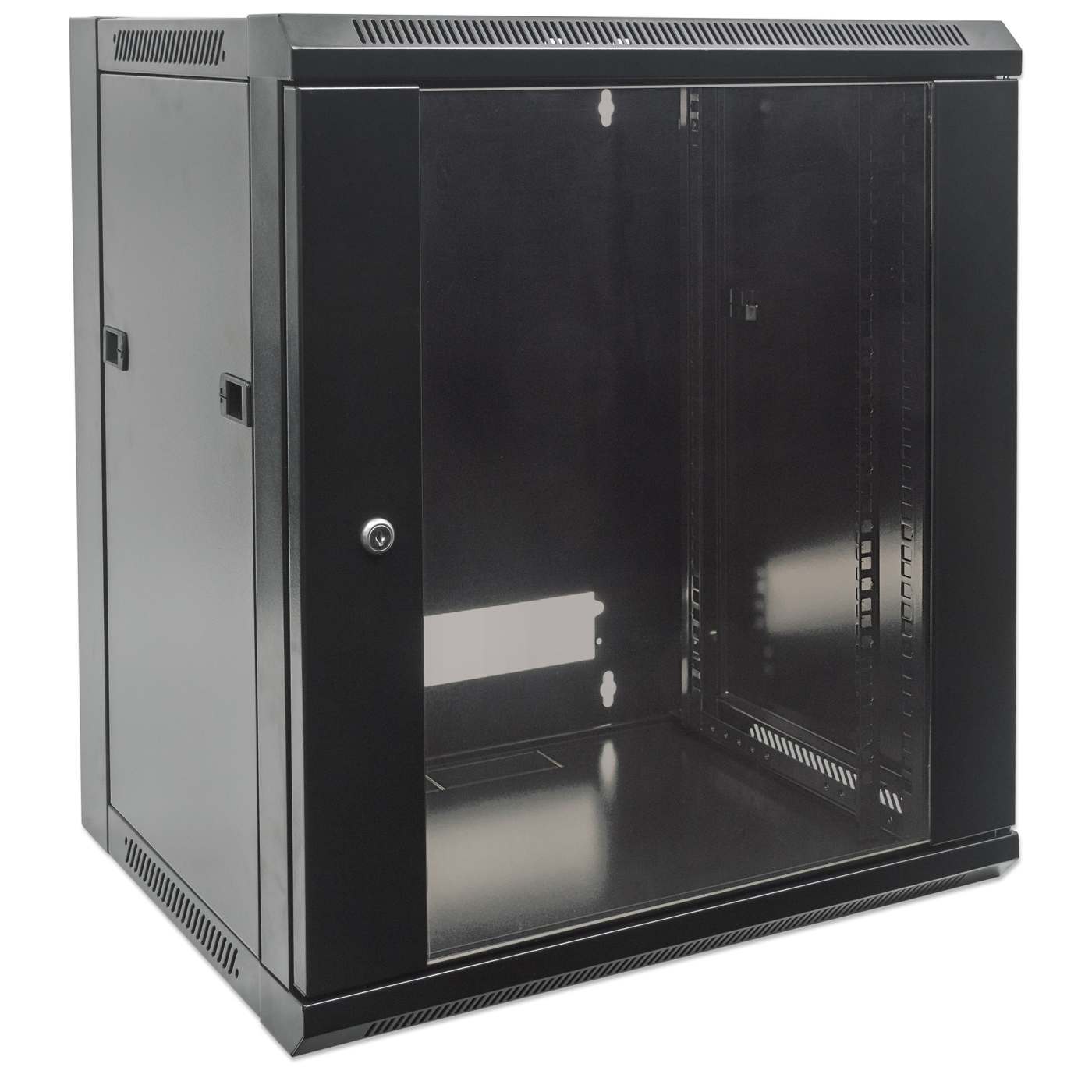

19" Wallmount Cabinet, 6U, 450 mm (17.7 in.) Depth, Black
19" Wallmount Cabinet, 6U, 450 mm (17.7 in.) Depth, Black
Flat Pack, Steel Panels, Maximum Static Load 60 kg, Reversible Front Door
SKU: 711715 INC-WMF-18-6U
In stock
Highlights
- Ideal for 19" rackmount applications
- Maximum static load of 60 kg
- Usable depth: 260 mm (10.24 in.)

Regular price
$143.99 USD
Regular price
Sale price
$143.99 USD
Unit price
/
per
Buy at discounted prices
Minimum Qty | Discount | New unit price |
---|---|---|
2 | 3% off | $139.67 per unit |
5 | 5% off | $136.79 per unit |
Couldn't load pickup availability
Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Top quality materials and workmanship include cold-rolled, galvanized steel frame and a tempered-glass door; while the flat-pack (unassembled) shipping* saves you space and money.
*Completely assembled versions are available in certain countries.
- Ideal for 19" rackmount applications
- Maximum static load of 60 kg (132 lbs)
- Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)

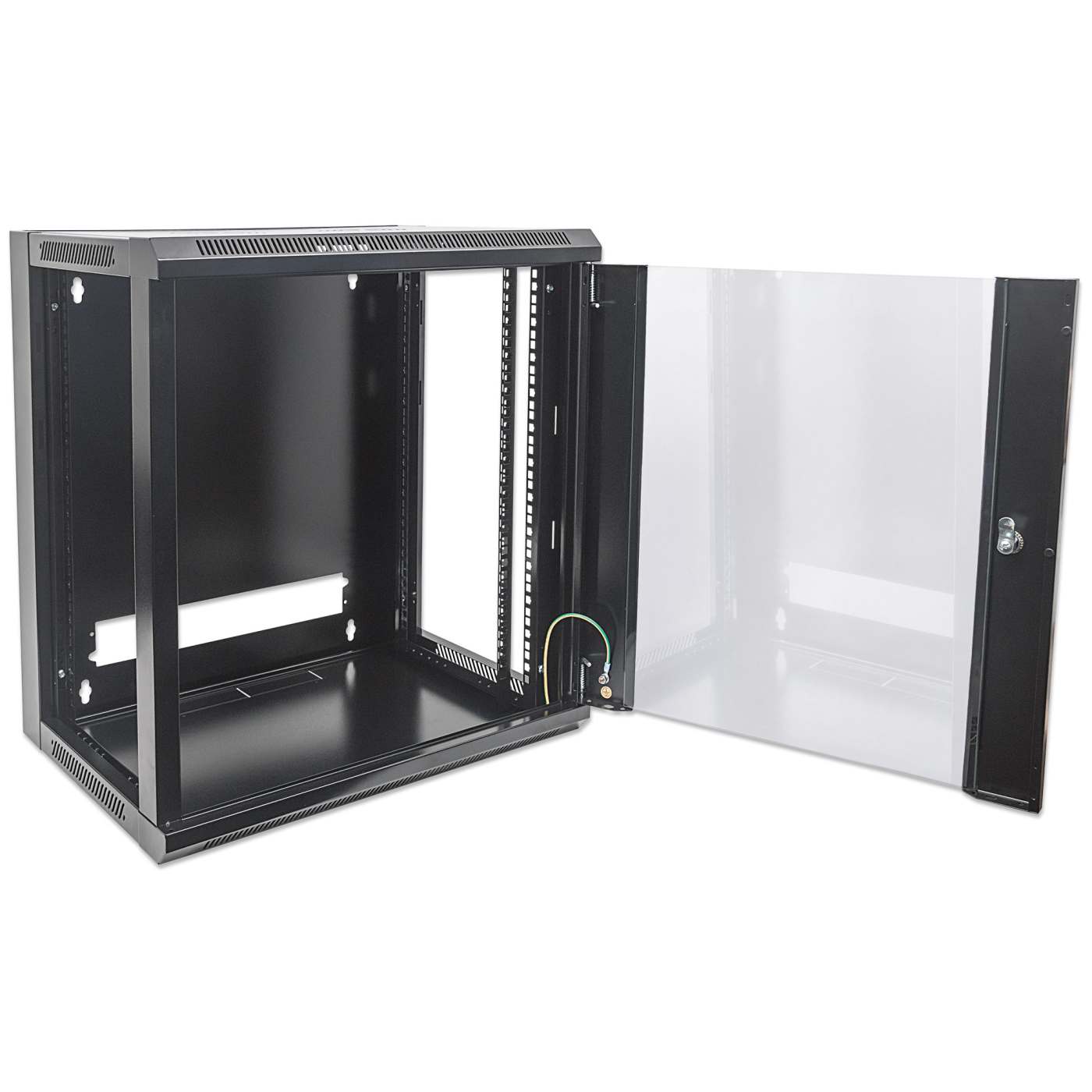

- Tempered-glass door can be opened more than 180°

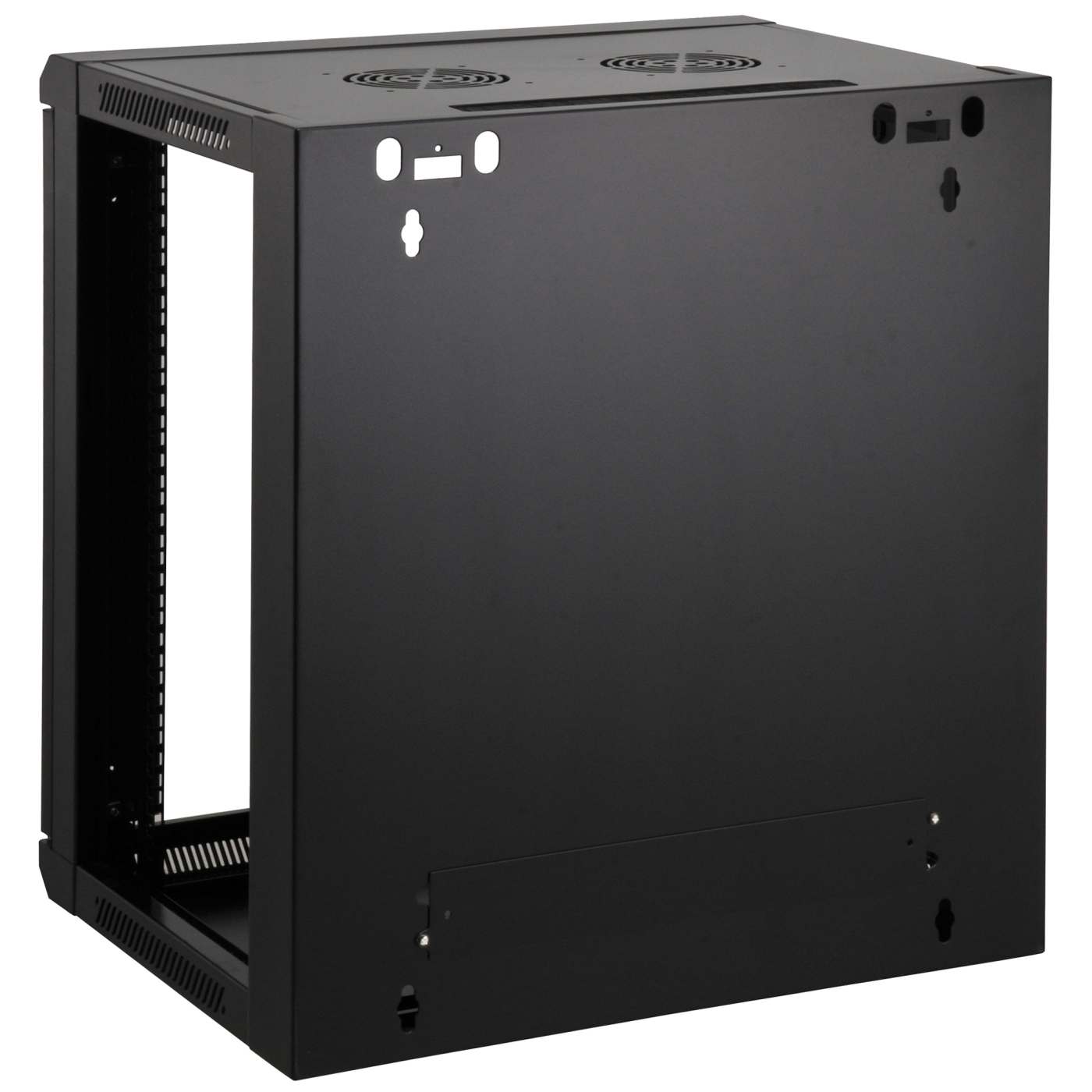

- Cable entry via rear or top panel
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Reversible Front door

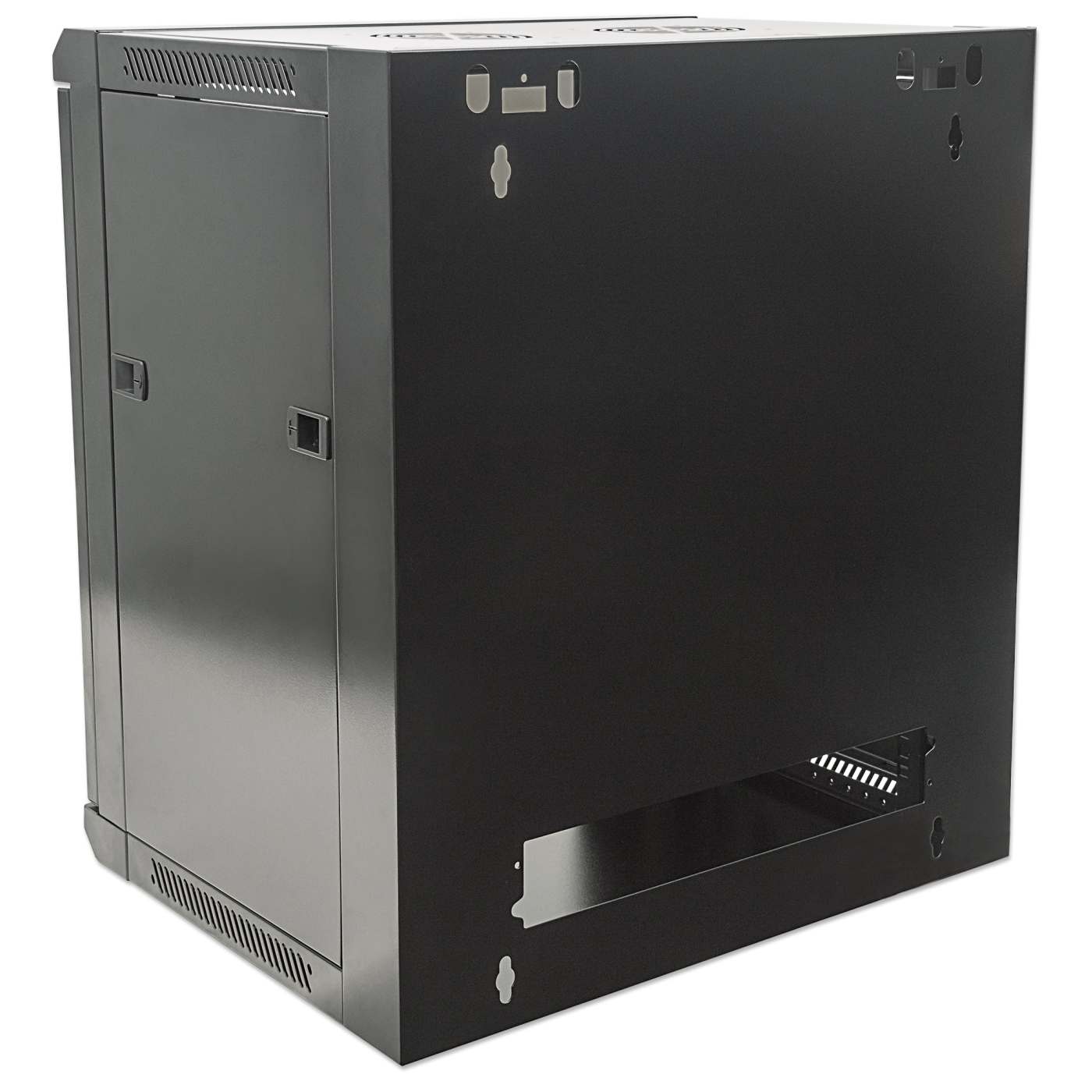

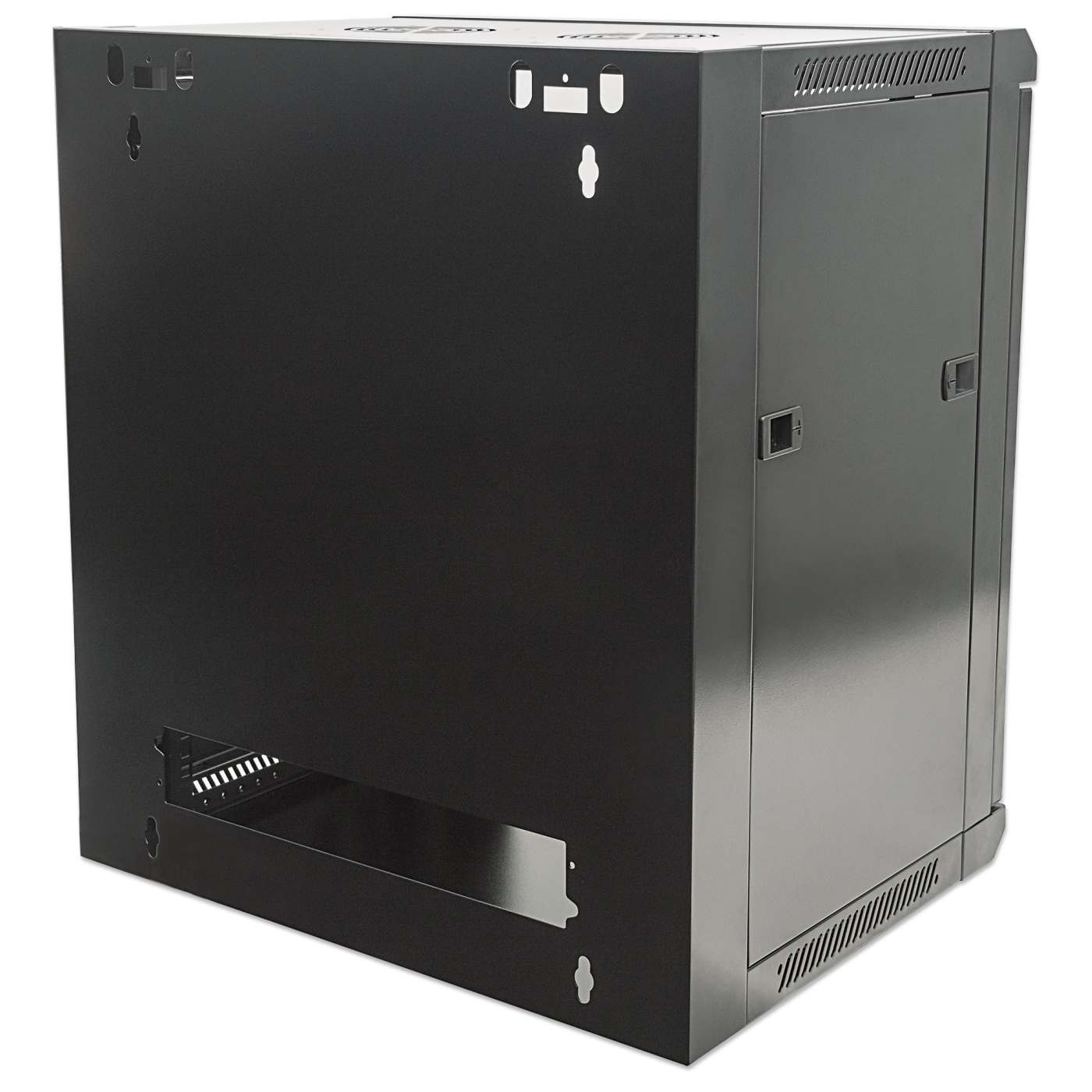

- Easily removable side panels

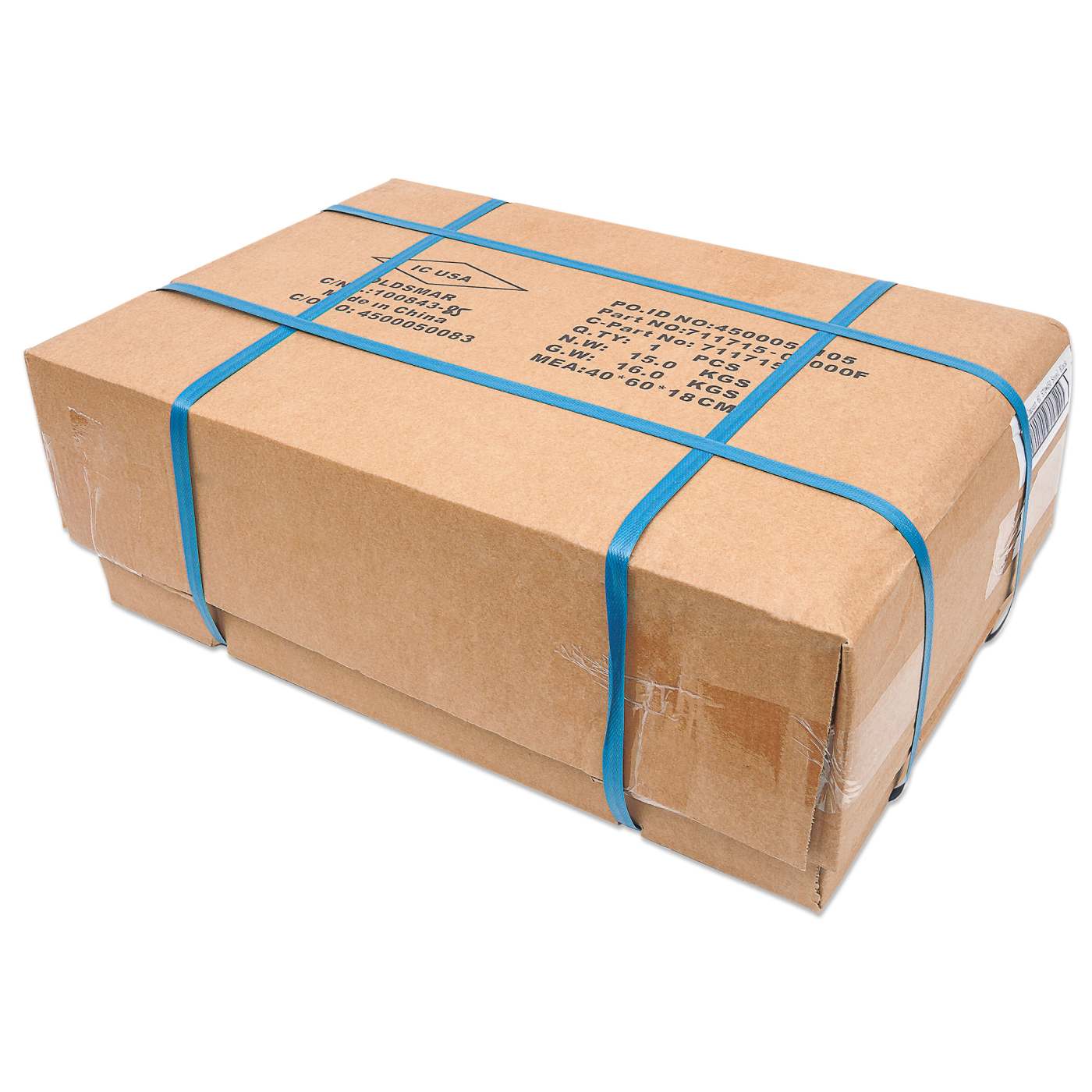

- Ships flatpacked
- Three-Year Warranty
- General
- 19"
- Height: 6U
- Color: Black RAL9005
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Dimensions
- 370 (h) x 570 (w) x 450 (d) mm
- 14.6 (h) x 22.4 (w) x 17.7 (d) in.
- Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)
Package Contents

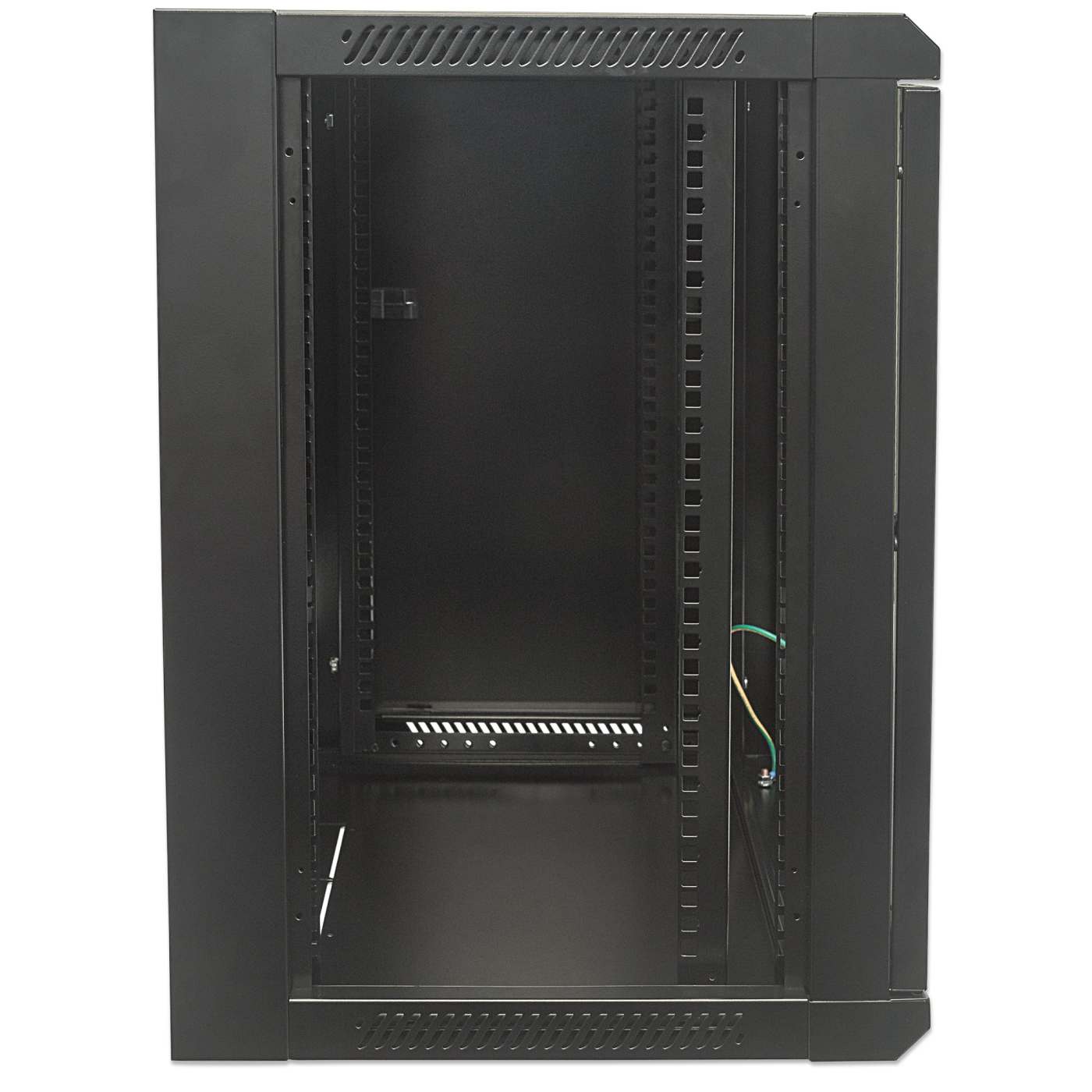

- 2 depth-adjustable mounting rails
- Installation hardware including tool, 10x M6 Sets and 2x Keys
There is a 2-piece set of spare rails available for this product by the model number shown:
- #712439
Warning
This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Additional SKUs
- Alphanumeric Model#: INC-WMF-18-6U
- EAN: 0766623711715
- UPC: 766623711715
Physical Specifications
- Weight: 14.5 kg
- Dimensions: 370 x 570 x 450 (mm)
