2-Fan Ventilation Unit for 19" Wallmount Cabinets

Keep Equipment Cool with our Roof Mount Fans for 19 inch Wall-Mount Cabinets

This 2-Fan Ventilation Unit from Intellinet Network Solutions offers reliable cooling and ideal air circulation in 19" wall mount cabinets, providing improved performance and longer life to your network equipment. It is mounted on the cut-outs in the roof of a cabinet, where it dissipates damaging heat at a noise level that is quieter than a whisper. As these cut-outs are standardized, this cooling unit is compatible with most 19" wall-mount cabinets, including all standard models from Intellinet Network Solutions.

• Roof-mount ventilation unit for reliable, energy-efficient cooling in wall-mount cabinets from Intellinet Network Solutions and other brands
• 6 ft. power cord with US NEMA 5-15P plug
• Efficient heat dissipation for a wide operating temperature up to 122°F
• Quiet fans with a noise level of only 24.9 db (A)
• Ground kit included
• UL approved
• Three-year warranty

Standards and Certifications

• UL

  General

• Air flow: 85 m³/h (50 cfm)

• Noise level: 24.9 db (A)

• Temperature range: 14 - 122°F (-10 - 50°C)

• Operating voltage: 110.0 VAC, 60 Hz, 0.1 A

  Physical

• Dimensions (L x W x H): 4.72 x 4.72 x 1.5 in. (120 x 120 x 38 mm) (per fan unit)

• Power cable length: 6 ft. (1.83 m)

• Net weight: 1.98 lbs. (0.9 kg)

• Gross weight: 2.54 lbs. (1.15 kg)

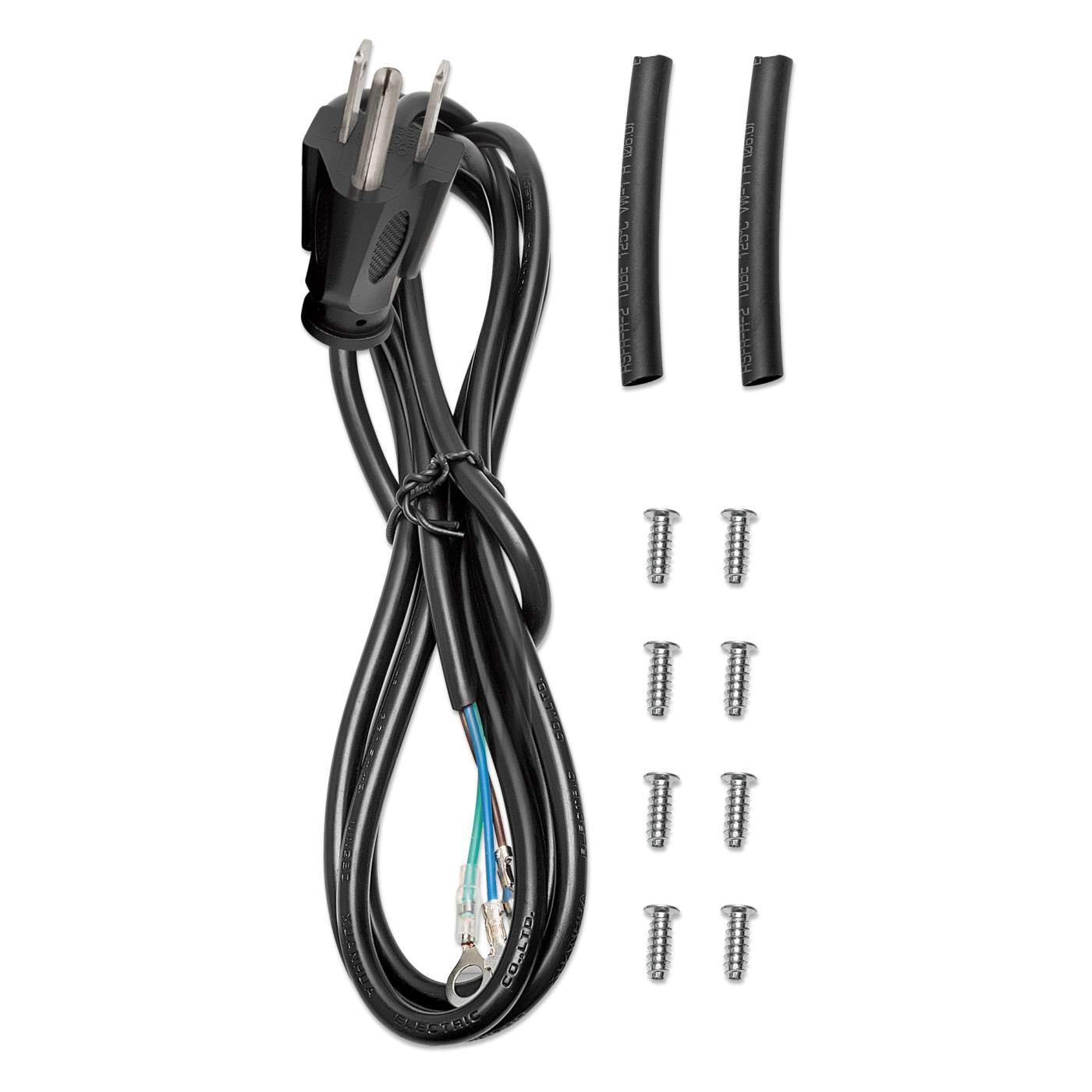

  Package Contents

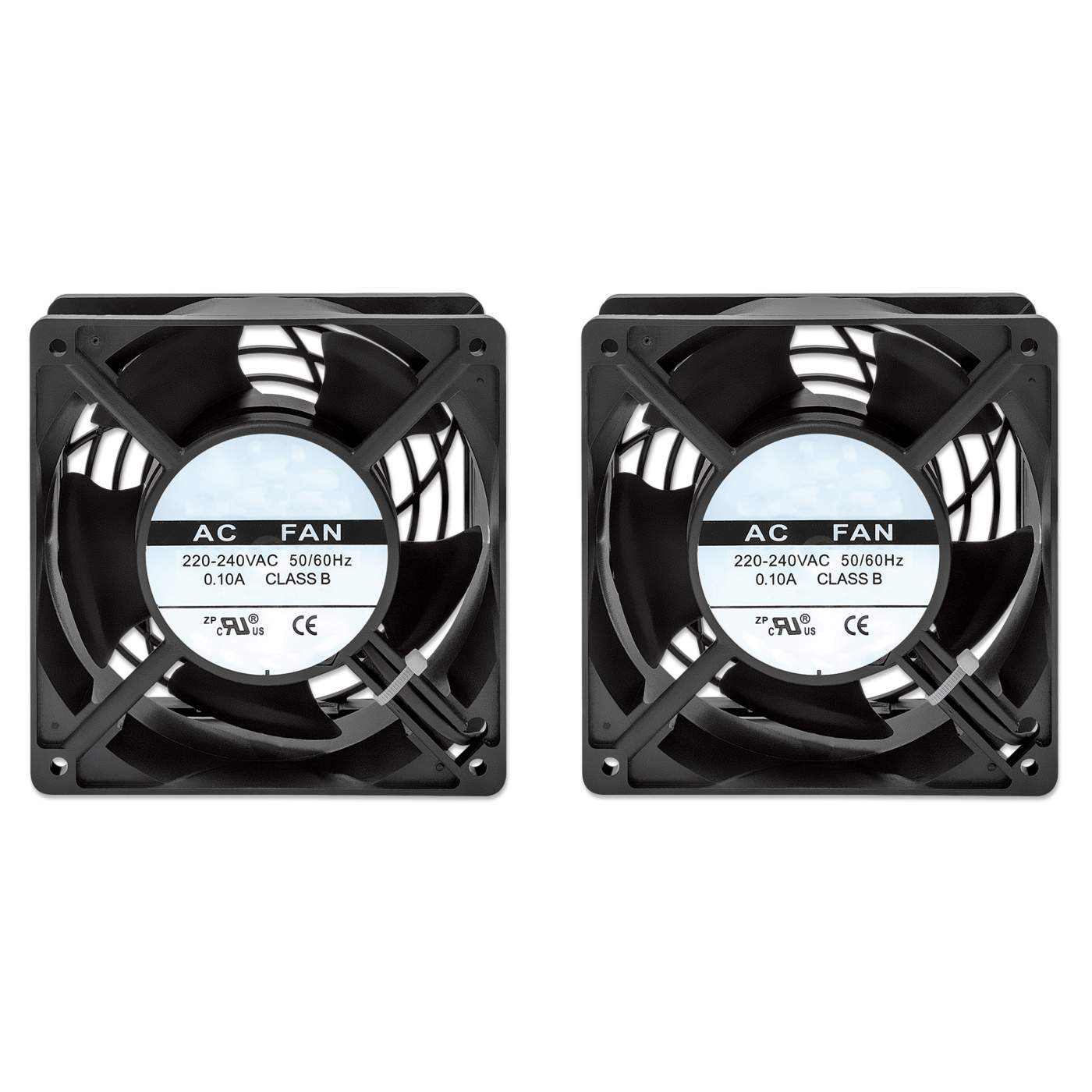

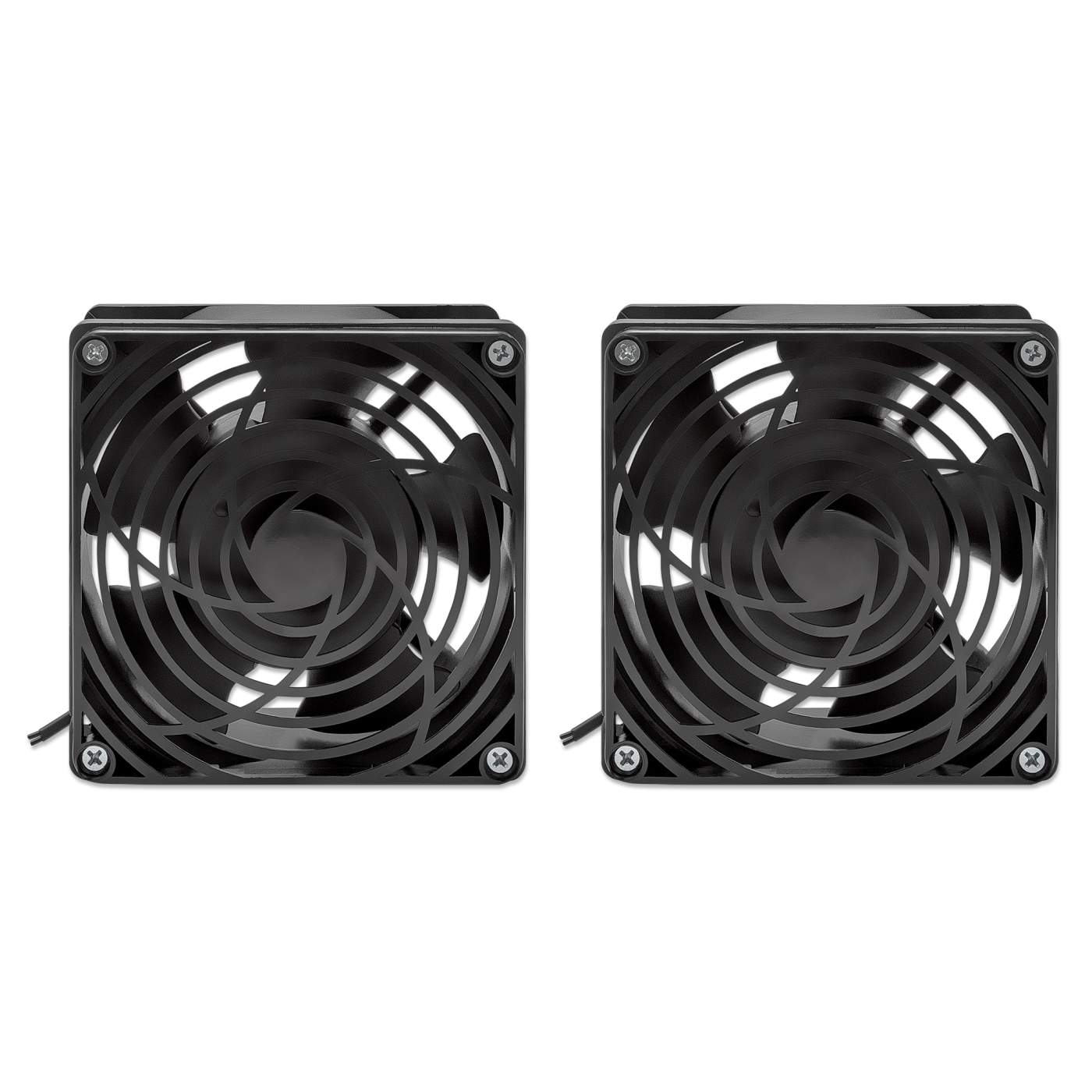

• 2-Fan Ventilation Unit for 19" Wallmount Cabinets

• Ground kit

• Power cable, 6 ft.

• Documentation

• Additional SKUs

• EAN: 0766623712415
• UPC: 766623712415



• Physical Specifications

• Weight: 0.9 kg
• Dimensions: 120 (L) x 120 (W) x 38 (H) [mm]

• Manual
• Warranty, Registration & Regulatory Information     » Download
