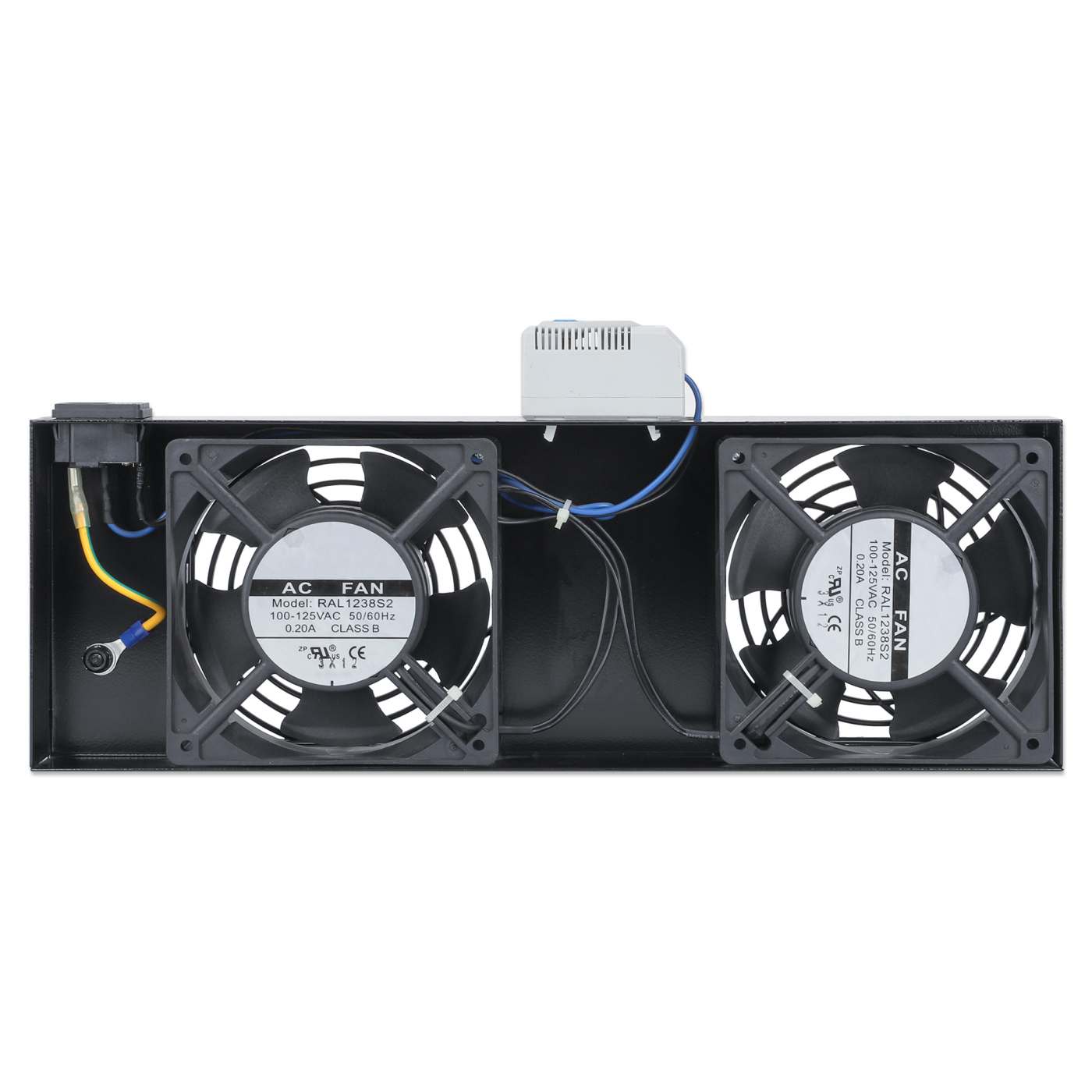

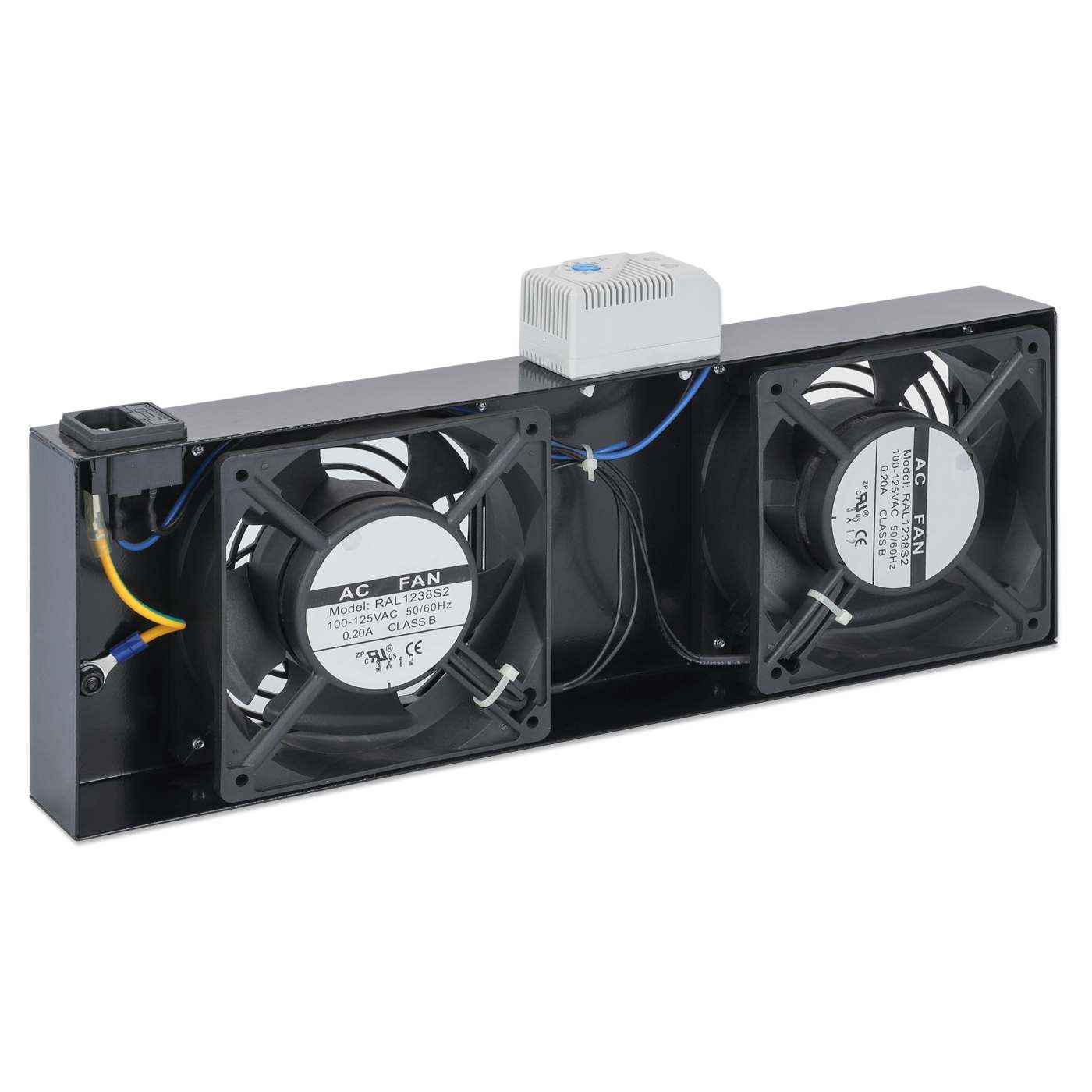

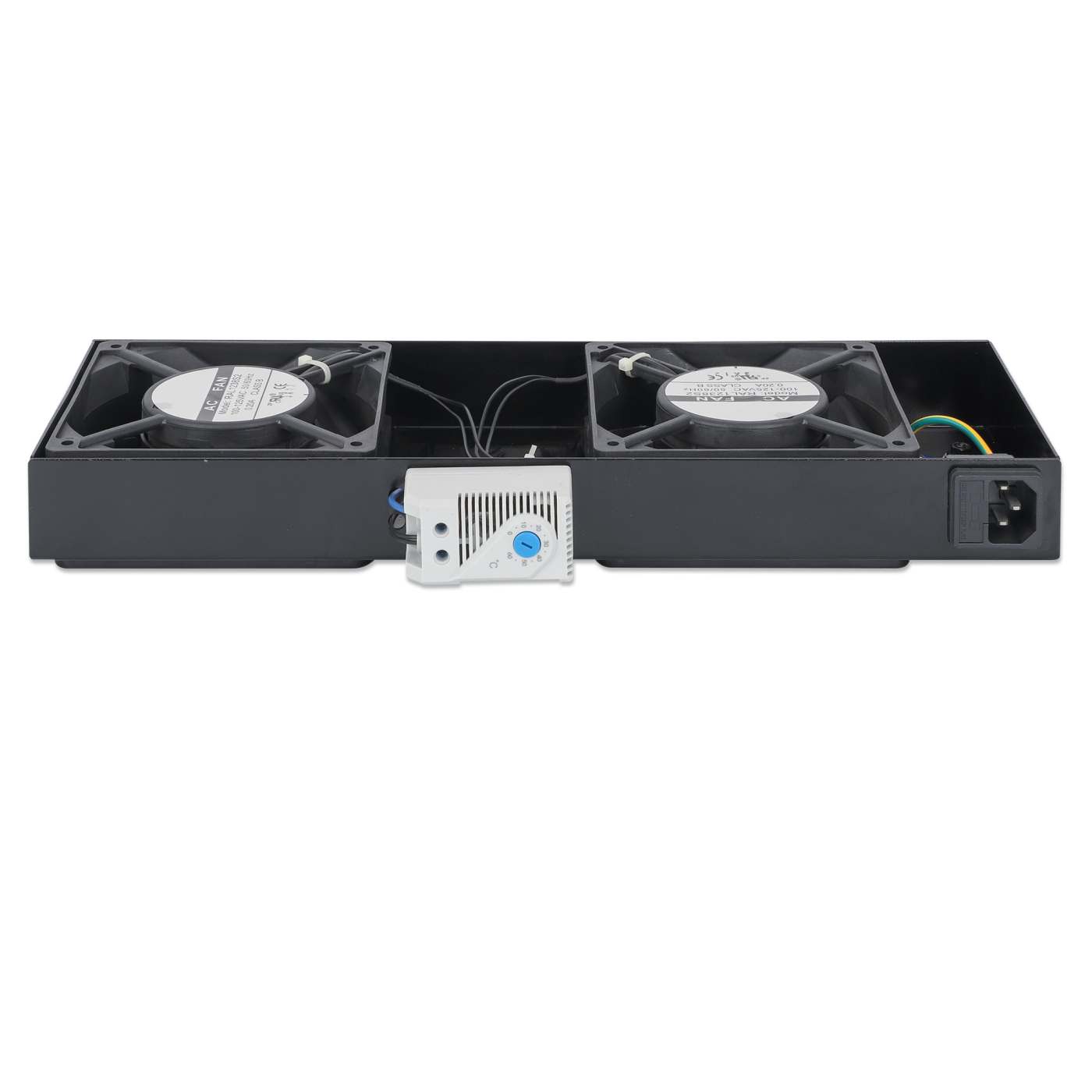

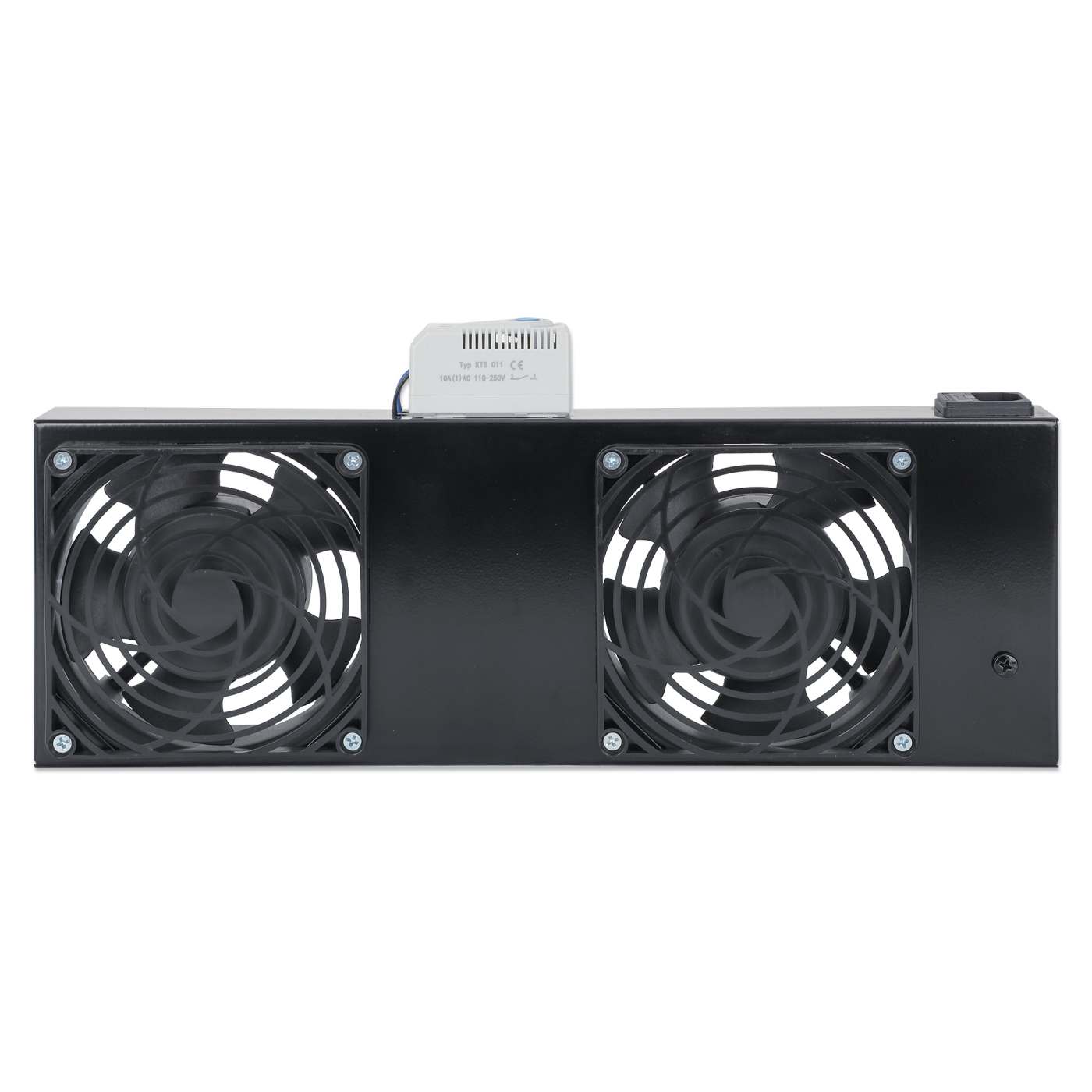

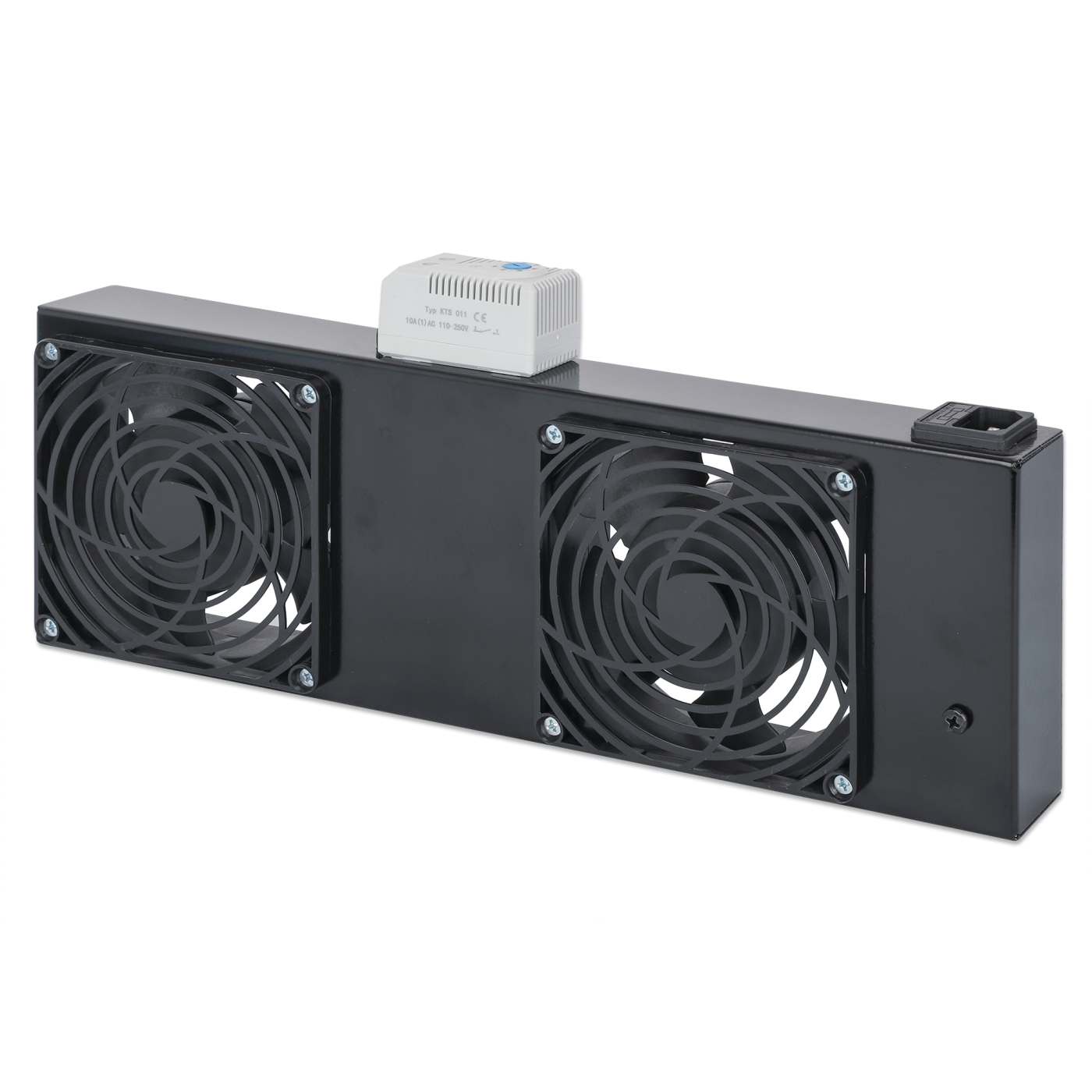

2-Fan Ventilation Unit with Thermostat for 19" Wallmount Cabinets

Keep Your Network Equipment Cool with Our Roof Mount Fans for 19" Wall-Mount Cabinets

The 2-Fan Ventilation Unit from Intellinet Network Solutions offers reliable cooling and ideal air circulation for 19" wall-mount cabinets, enhancing the performance and longevity of your network equipment. Mounted in the cut-outs on the roof of a cabinet, it effectively dissipates damaging heat at a noise level quieter than a whisper. These standardized cut-outs ensure compatibility with most 19" wall-mount cabinets, including all standard models from Intellinet Network Solutions.

Thermostat for Energy Efficiency

The built-in thermostat constantly monitors the temperature inside your network cabinet. Its rotary control allows you to easily select a temperature threshold for activating the ventilation fans, which turn off once the temperature drops to an acceptable level. This feature prevents unnecessary fan operation and conserves energy.

• Roof-mount ventilation unit for reliable, energy-efficient cooling in wall-mount cabinets from Intellinet Network Solutions and other brands
• Thermostat with a temperature monitoring range of 0 to 60˚C (32 to 140°F), prevents unnecessary operation and conserves energy
• UL approved
• Quiet fans with a noise level of only 24.9 db (A)
• Ground cable included

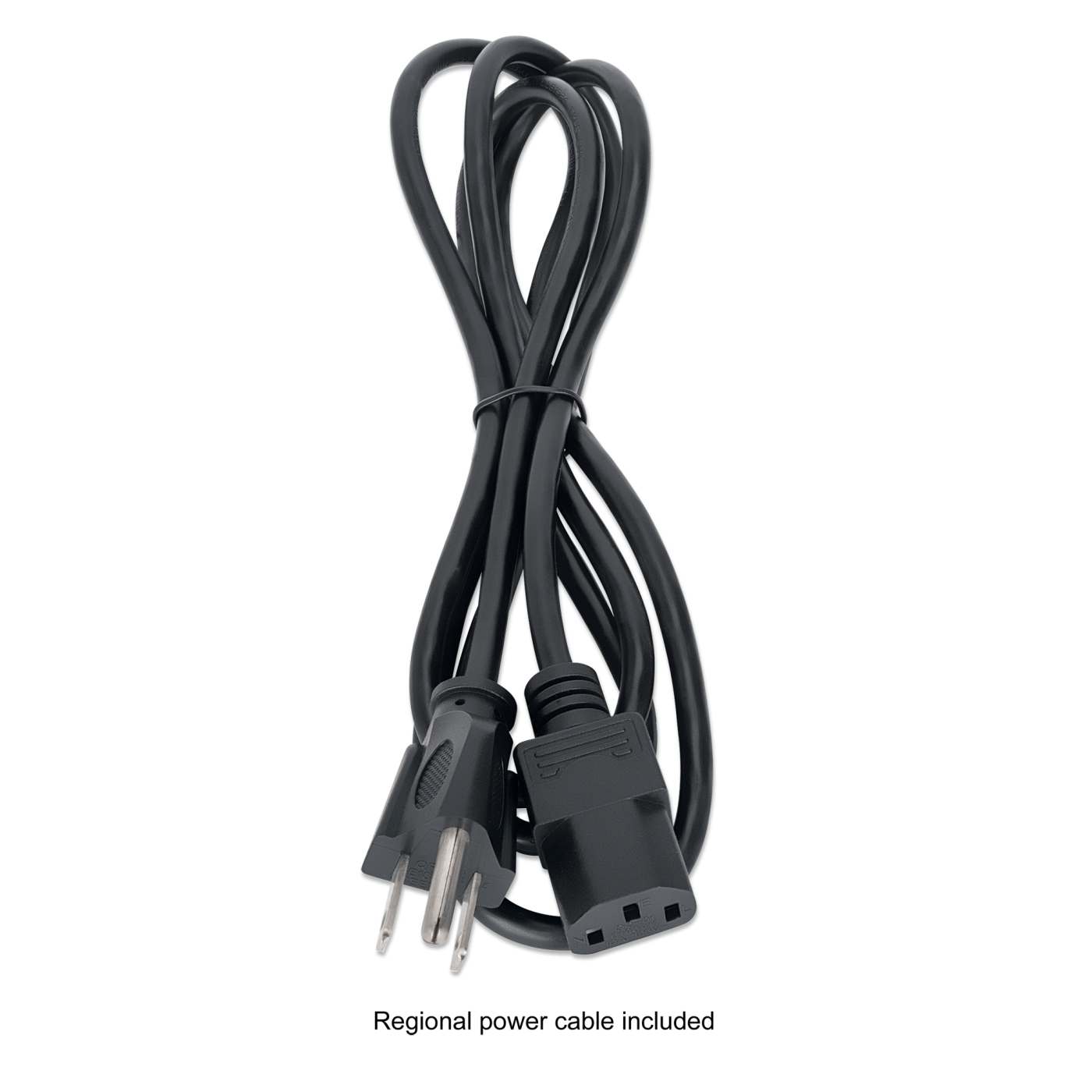

• Detachable 1.8 m (6 ft.) power cord with C13 to AC plug
• Three-year warranty

Standards and Certifications

• UL

• CE

• RoHS

• REACH

• UKCA

  General

• Two fans

• Air flow: 85 m³/h (50 cfm) per fan

• Noise level: 24.9 db (A)

• Power cable plugs: C13 to AC

• Rated power: 10.0 W

• MTBF: 30,000 hours

• Temperature range: 0 - 60°C (14 - 122°F)

• Operating voltage: 110.0 - 240.0 VAC, 50 - 60 Hz, 0.1 A

  Physical

• Dimensions per fan (L x W): 120 x 120 mm (4.72 x 4.72)

• Dimensions of complete unit (L x W x H): 373 x 130 x 40 mm (14.69 x 5.12 x 1.57 in.)

• Detachable power cable length: 1.8 m (6 ft.)

• Net weight: 1.9 kg (4.19 lbs.)

• Gross weight: 2 kg (4.41 lbs.)

  Package Contents

• 2-Fan Ventilation Unit with Thermostat for 19" Wallmount Cabinets

• Grounding cable

• Power cable, 1.8 m (6 ft.)

• Documentation

• Additional SKUs

• Alphanumeric Model#: IVU-2FT-RM-BK
• EAN: 0766623716383
• UPC: 766623716383



• Physical Specifications

• Weight: 1.9 kg
• Dimensions: 373 (L) x 130 (W) x 40 (H) [mm]

• Datasheet
• Datasheet     » Download

• Manual
• Quick Installation Guide     » Download
