20 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, Singlemode BIF, Yellow

Fiber Optic Solutions - Superior Connectivity

Our fiber optic cables offer top-notch connectivity and reliability. Whether you need connections for entrance facilities, telecommunications rooms, data centers, or even your desk, our versatile cables ensure optimal performance.

Key Features:

• Ultra Physical Contact (UPC) Connectors**: These connectors provide a smooth finish and reduce return loss, enhancing your network's quality.
• OS2 Single-Mode Fiber: Ideal for high-speed connections, perfect for 40G Ethernet and beyond, offering low signal loss and high data rates.
• Bend-Insensitive Design: Our cables maintain performance even when bent or twisted, making installation and maintenance easier.
• High-Quality Materials: Made with Corning's ultra-pure glass, our cables offer low attenuation and high bandwidth for long-distance communication.
• Lifetime Warranty: Our products come with a lifetime warranty, ensuring a secure investment.

Choose our fiber optic solutions for reliable, long-lasting, and high-performance connectivity that meets all your network needs.

• Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
• UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
• OS2 Single Mode Fiber: Uses OS2 single mode fiber, providing superior performance and longevity for high-speed network connections.
• Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
• Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
• Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.

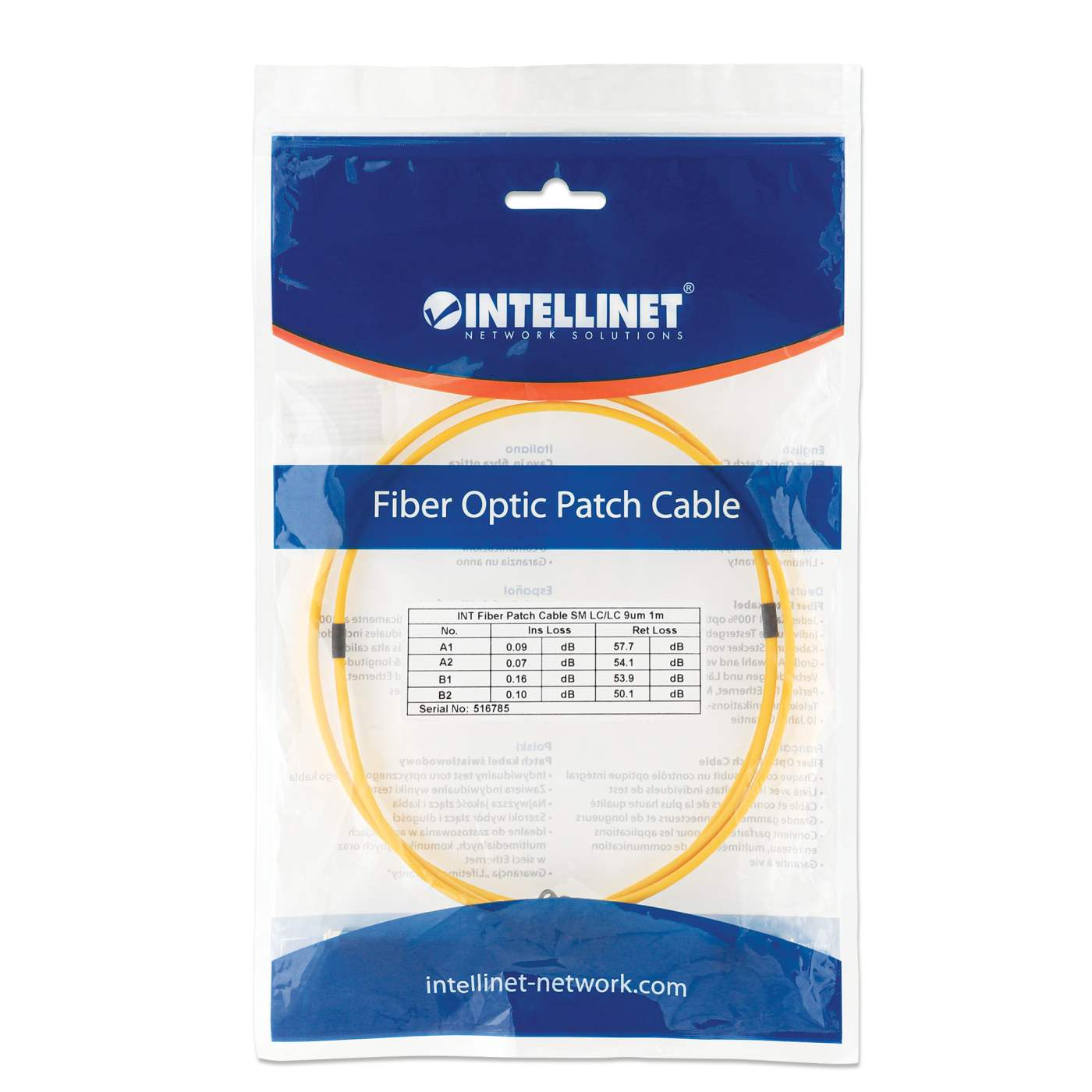

• Each cable ships with the test report included
• Lifetime Warranty

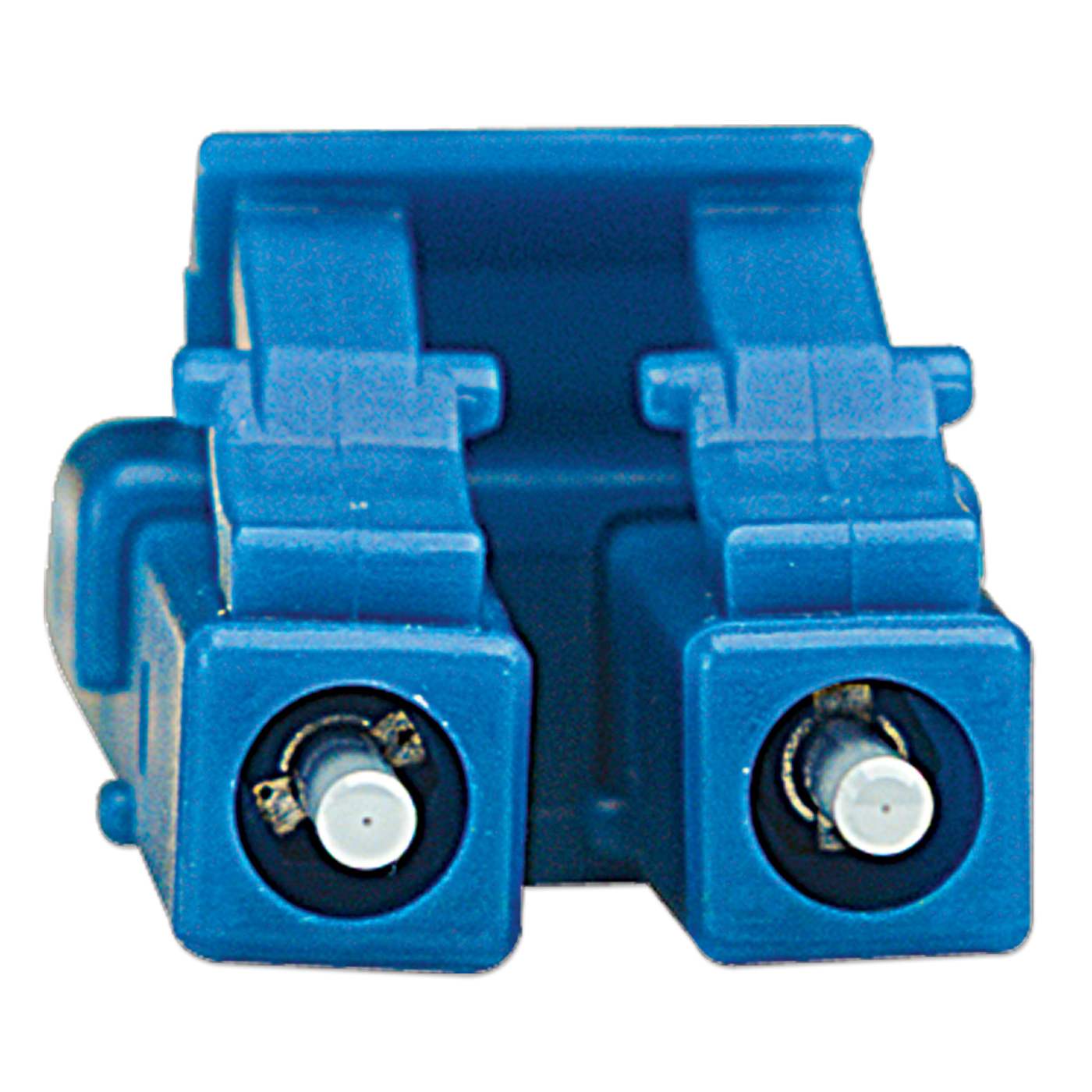

Connector type: LC UPC Duplex to LC UPC Duplex
Fiber count: 2 Fibers
Fiber grade: G.657.A1 (Compatible with G.652.D)
Bend Radius: 10.0mm
Fiber mode: Single Mode OS2 9/125μm
Wavelength: 1310/1550nm
Polarity: A (Tx) to B (Rx)
Cable outer diameter (OD): 2.0mm
Cable jacket: Riser (OFNR)
Ferrule material: Ceramic (zirconia)
Insertion loss: ≤0.3dB (1310nm/1550nm), typical ≤0.2dB
Return loss: ≥55dB (1310nm/1550nm)
Attenuation at 1310nm: ≤0.35dB/km
Attenuation at 1550nm: ≤0.25dB/km
Connector durability: 1000 insertion - extraction cycles min.
Operation temperature range: -40°C +85°C

• Additional SKUs

• EAN: 0766623751643
• UPC: 766623751643



• Physical Specifications

• Weight: 0.25 kg
• Dimensions: 20 m
