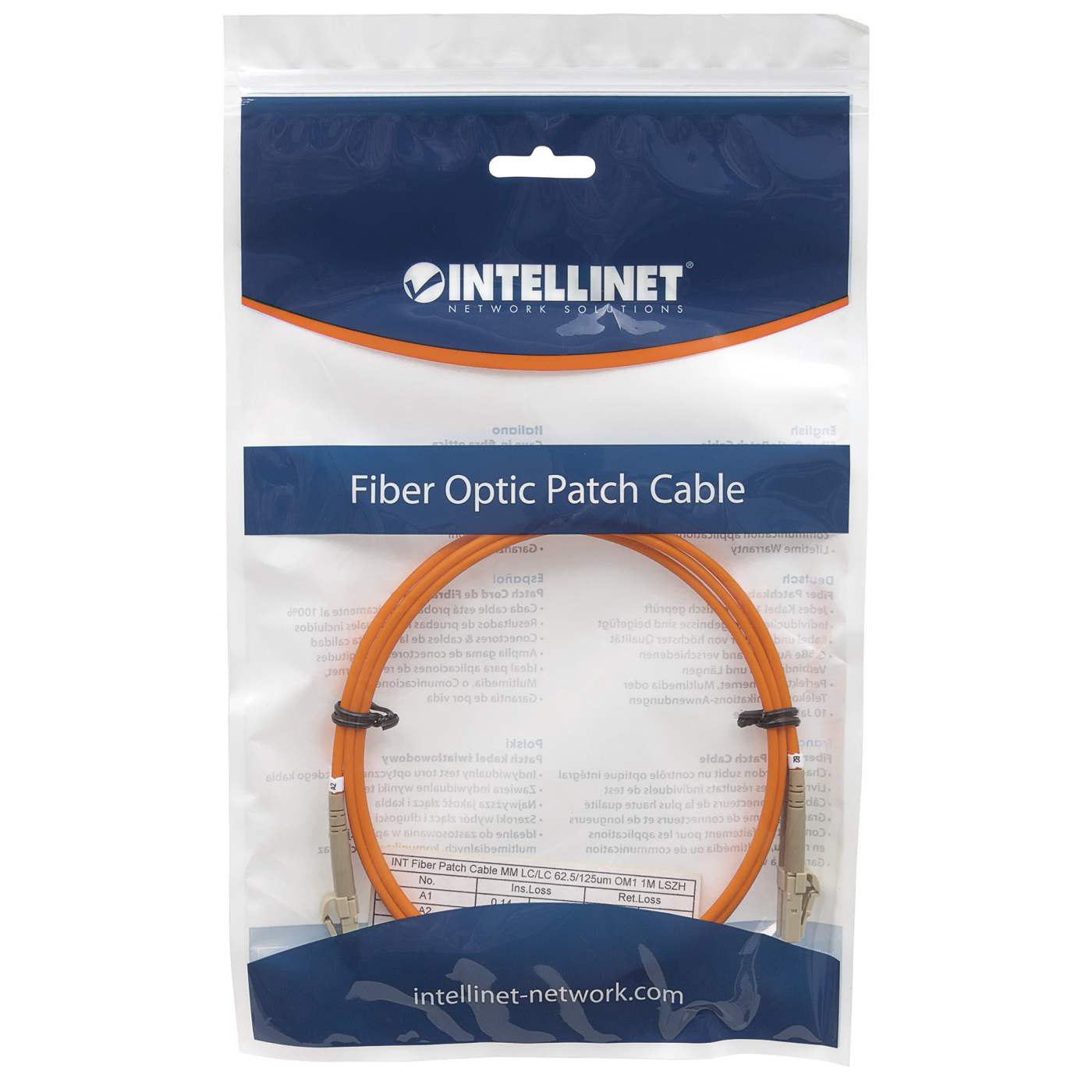

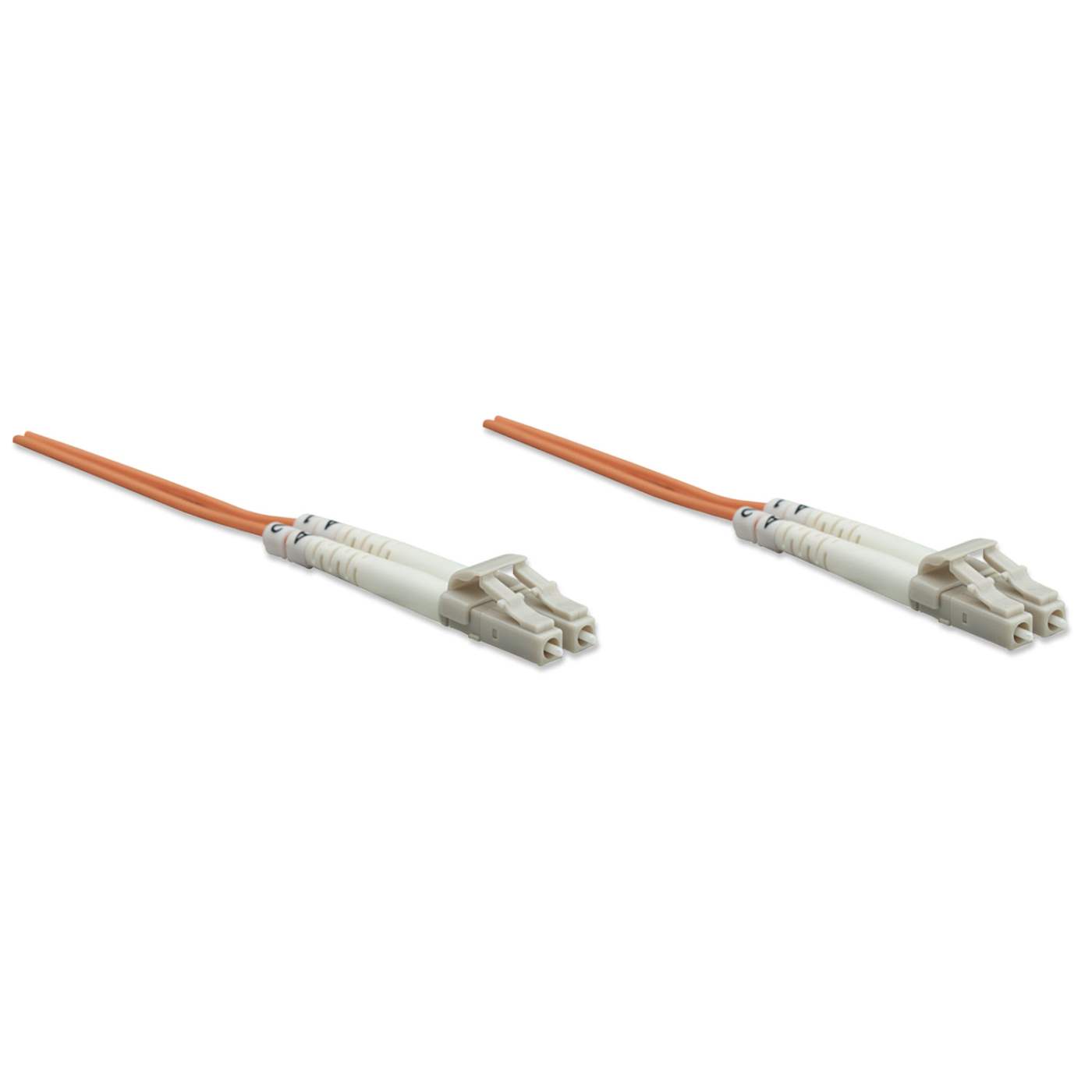

5 m LC to LC UPC Fiber Optic Patch Cable, 3.0 mm, Duplex, LSZH, OM1 Multimode, Orange

Benefit from UPC (Ultra Physical Contact) fiber connectors: These connectors are meticulously designed to ensure the highest level of precision in surface finish and alignment. This results in minimal signal loss and reflections, ultimately improving the overall performance and reliability of your fiber optic connections. Whether you're transmitting data, voice, or video signals, UPC connectors provide a consistently high-quality connection.

Enjoy versatility with compatibility across multimode fiber applications: Multimode fiber allows for the transmission of multiple signals simultaneously through different light modes. By being compatible with multimode fiber applications, your fiber optic system gains flexibility to handle various types of data transmission needs. This versatility ensures that your network infrastructure can adapt to evolving requirements and technologies.

Experience extended transmission distances supported by high bandwidth capabilities: High bandwidth capabilities enable fiber optic cables to transmit data over longer distances without degradation in signal quality. This is particularly beneficial for large-scale networks spanning across extensive geographical areas. With fiber optics, you can reliably transmit data over distances exceeding traditional copper cable limitations, ensuring connectivity even in challenging environments.

Opt for a cost-effective solution without compromising performance: Despite its advanced technology, fiber optics can be a cost-effective solution for your networking needs. While the initial investment may be higher compared to traditional copper cables, the long-term benefits, including lower maintenance costs and higher reliability, often outweigh the upfront expenses. Additionally, the scalability of fiber optic systems allows for future expansion without significant additional costs.

Seamlessly integrate into Gigabit Ethernet applications: Fiber optics are well-suited for Gigabit Ethernet applications, providing the necessary bandwidth and reliability to support high-speed data transmission. Whether you're deploying a local area network (LAN) or connecting multiple sites in a wide area network (WAN), fiber optics ensure consistent and efficient data transfer, enhancing overall network performance and productivity.

Ensure safety with LSZH (Low Smoke Zero Halogen) construction: LSZH cables are designed to minimize the emission of smoke and toxic gases in the event of a fire, making them safer for use in enclosed spaces such as data centers, office buildings, and transportation systems. By choosing LSZH fiber optic cables, you prioritize the safety of your personnel and infrastructure while maintaining high-performance networking capabilities.

Rest assured with a lifetime warranty: A lifetime warranty provides peace of mind, assuring you of the quality and reliability of your fiber optic infrastructure. With a lifetime warranty, you can trust that your investment is protected against defects and malfunctions, allowing you to focus on your business operations without worrying about potential downtime or repair costs.

• UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss
• Compatible with multimode fiber applications
• High bandwidth supporting longer distances
• Cost-effective solution
• Perfect for use in Gigabit Ethernet applications
• Lifetime Warranty

• Diameters:
  - Core: 62.5 µm
  - Cladding: 125 µm

• Fiber type: multimode

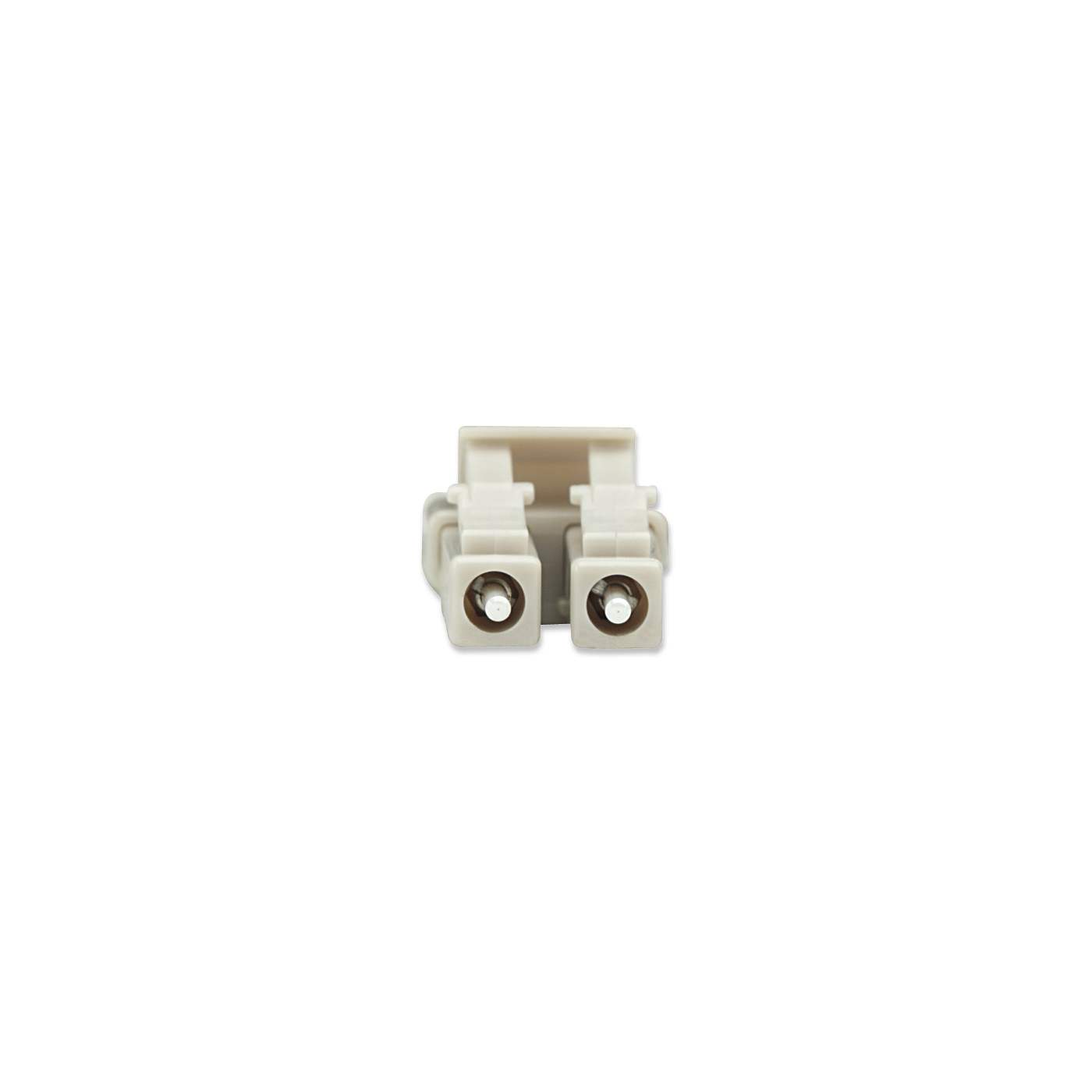

• Connectors: LC to LC

• Duplex

• Jacket material: LSZH

• Jacket OD: 3.0 mm

• Jacket color: orange

• Ferrule Material: Ceramic

• Polishing: UPC

• Operation Temperature Range: -40°C to +75°C

• Bending radius: 30 mm

• Return loss: ≥35dB

• Insertion loss: ≤ 0.25 dB

Warning

• Additional SKUs

• EAN: 0766623471237
• UPC: 766623471237



• Physical Specifications

• Weight: 0.08 kg
• Dimensions: 5.0 m

• Datasheet
• Datasheet (English)     » Download


• Technical Drawing
  Technical drawing of Fiber cable and adapter.     » Download


• Datasheet     » Download
