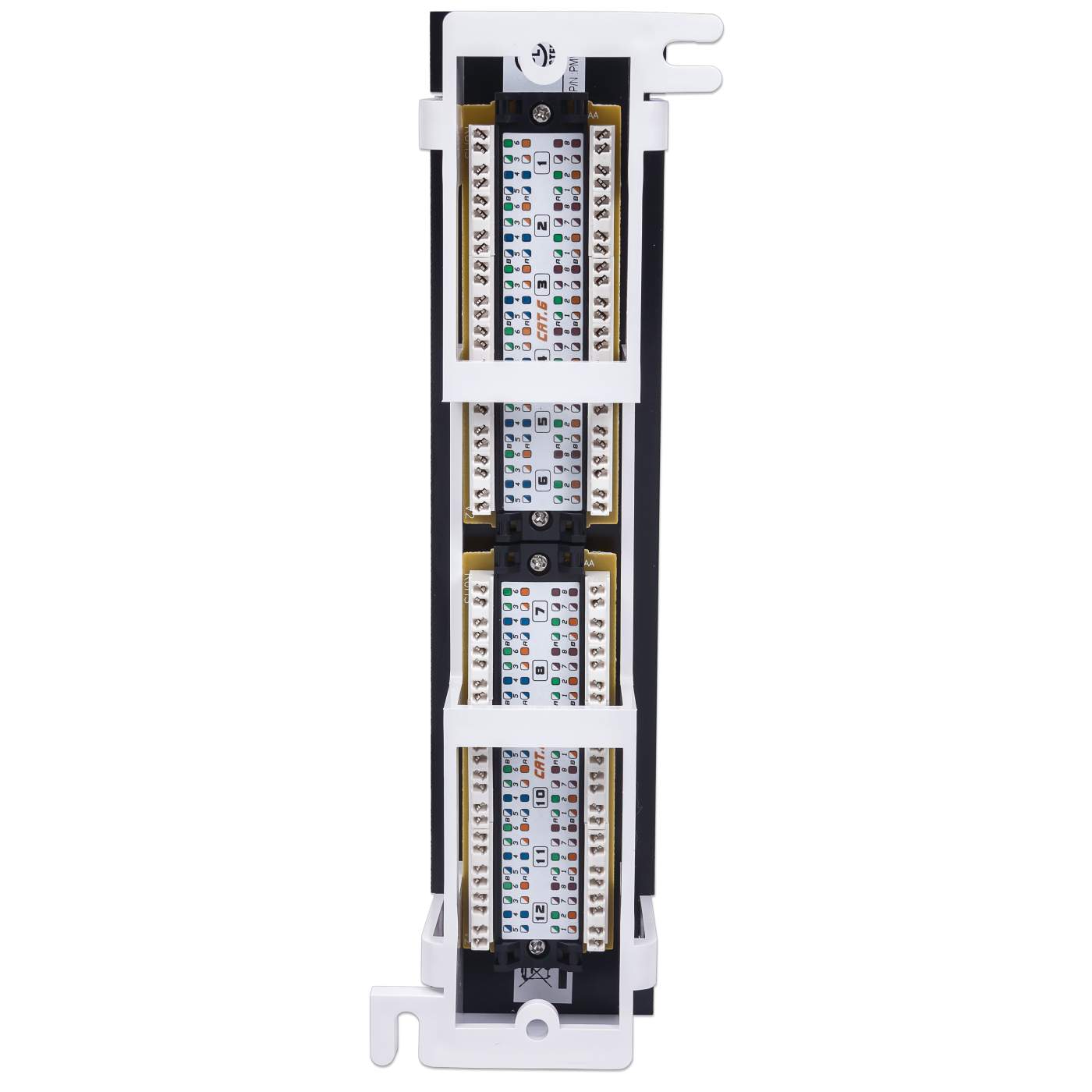

Cat6 Wall-mount Patch Panel

Wall-mount Patch Panel

The Intellinet Network Solutions Wall-mount Patch Panel helps maintain the integrity of your data and enables you to quickly change the port assignment of any piece of equipment that's attached to your network. This patch panel offers convenient access to ports and can be mounted to a wall, desk or any appropriate place where a rack is not able to be set up. With Cat6 performance that complies with the ANSI/TIA/EIA 568 B.2-1 standard and supporting unshielded Cat6 cable, this patch panel meets current industry standards for enhanced support of what's possible in your network.

• Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold plated jack contacts
• Compatible with both 110 and Krone punch down tools
• Supports 22 to 26 AWG stranded and solid wire
• For use with unshielded twisted pair (UTP) Cat6 network cable
• Cat6 performance is in compliance with the ANSI/TIA/EIA 568 B.2-1 standard
• Ideal for Ethernet, Fast Ethernet, and Gigabit Ethernet network applications
• Connects RJ45 ports to a network
• Lifetime Warranty

Specifications

Standards

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3ab (1000Base-T Gigabit Ethernet)

  Certifications

• UL E157358

• RoHS Compliant

  Environmental

• Dimensions: 254 mm (W) x 82 mm (H) x 47 mm (D)
  (10 x 3.2 x 1.9 in.)

• Weight: .337 kg (11.9 oz.)

• Operating temperature: -40°C to 80°C (-40°F to 176°F)

  Package contents

• Cat6 Mini Patch Panel

• 2 mounting screws

• Quick Installation Guide

Warning

• Additional SKUs

• Alphanumeric Model#: IPP-WMC612
• EAN: 0766623560269
• UPC: 766623560269



• Physical Specifications

• Weight: 0.29 kg
• Dimensions: 254 (L) x 82 (W) x 47 (H) [mm]
