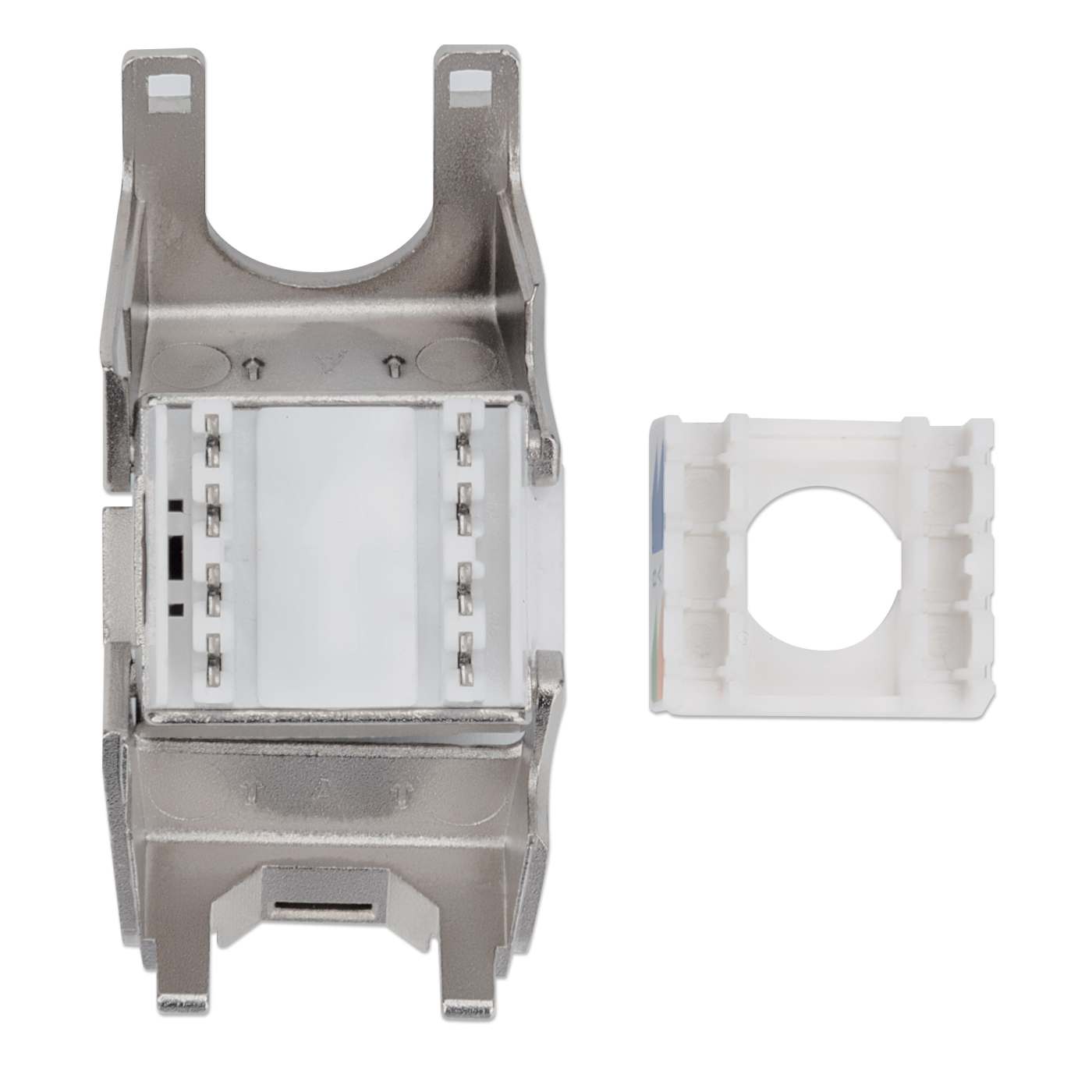

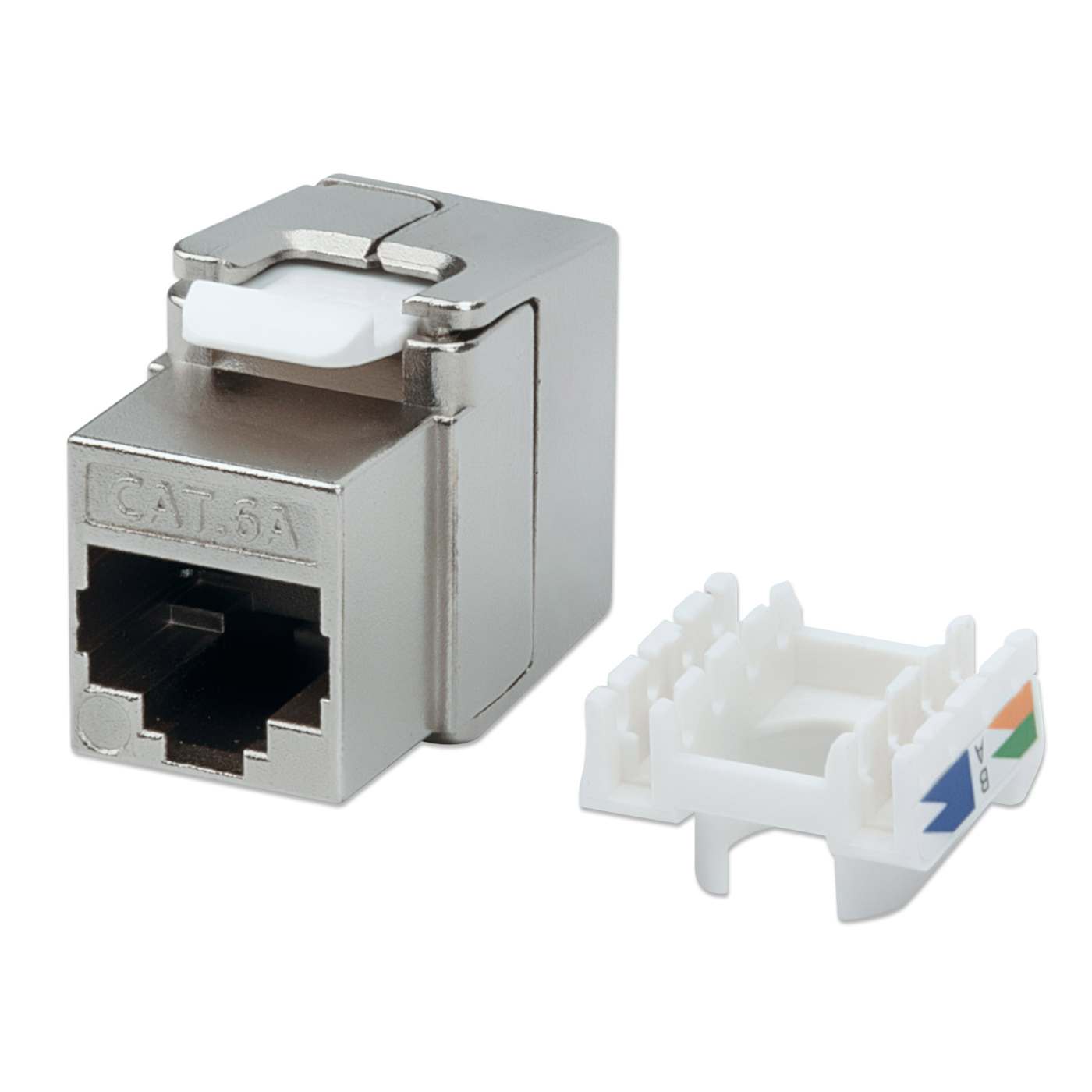

Cat6a 10G Shielded Toolless Keystone Jack, Silver

High-quality materials in a tool-less design

With a zinc die-cast housing and full shielding, the Intellinet Cat6a Keystone Jack ensures premium quality connections for 10-Gigabit Ethernet networks. Its tool-less design makes termination fast and easy.

• Toolless design for easy termination in standard wall plates or blank patch panels
• Superior shielding and zinc die-cast housing to minimize signal crosstalk
• Cat6a performance compliant with ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51
• Up to 10 Gbps data transfer rate, ideal for 10GBASE-T networks
• Fully backward compatible with all the previous cable categories including Category 6, 5e and 5
• Supports 23 to 26 AWG stranded and solid wire
• UL listed
• GHMT certified
• Lifetime warranty

General

• For use with 23 to 26 AWG stranded and solid wire

• Connection type: IDC

• Certifications: CE, RoHS, UL, GHMT

  Physical

• Nickel plated zinc housing

• Dimensions: 38.1 (L) x 16 (W) x 22.8 (H) mm / 1.5 (L) x 0.63 (W) x 0.9 (H) in.

• Weight: 21 g (0.74 oz.)

  Environmental

• Operating temperature: 0 – 40°C (32 – 104°F)

• Operating humidity: 20 – 85% RH, non-condensing

• Storage temperature: -10 – 70°C (14 – 158°F)

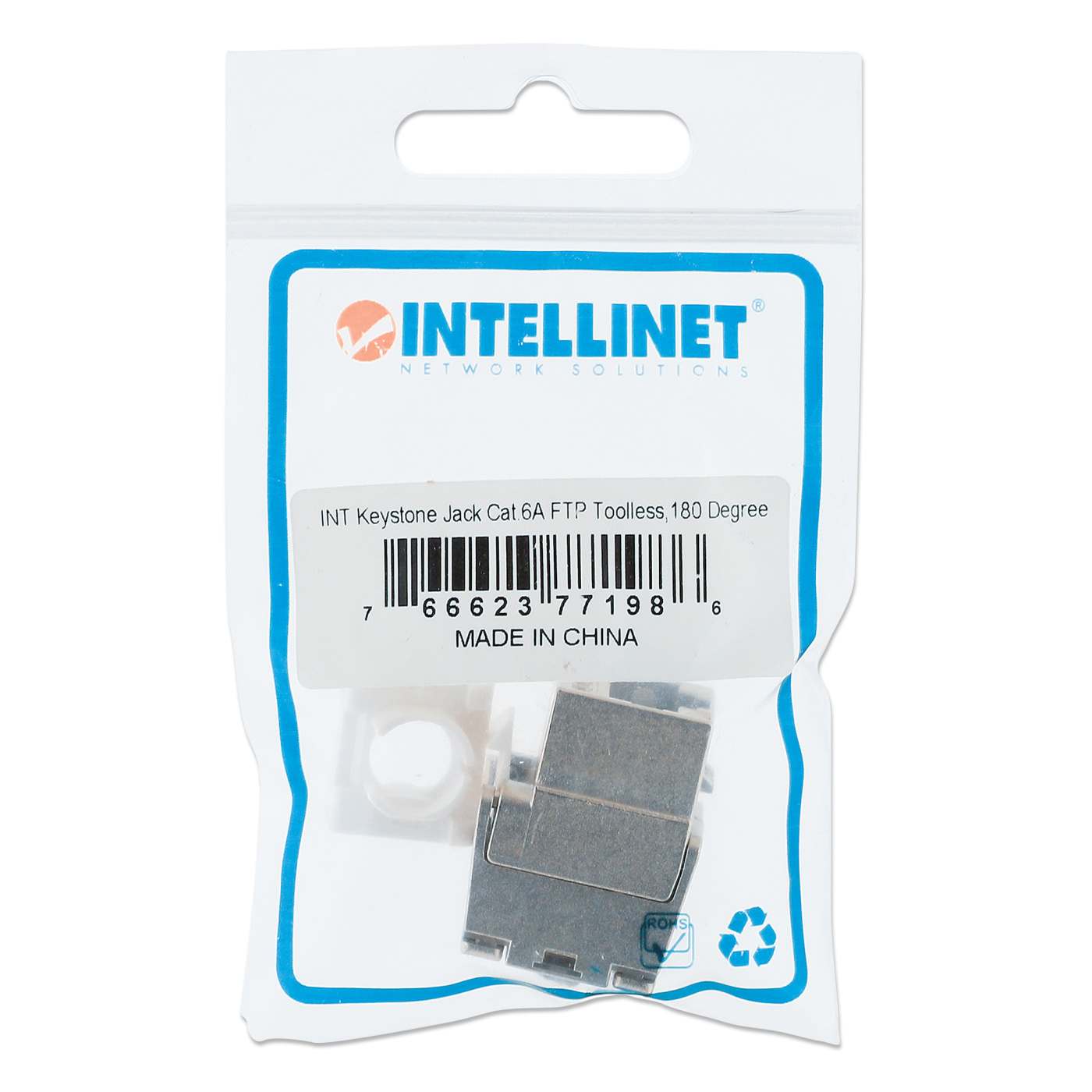

  Package Contents

• Cat6a Keystone Jack

• Cable tie

• Instructions

• Additional SKUs

• EAN: 0766623771986
• UPC: 766623771986



• Physical Specifications

• Weight: 0.02 kg
• Dimensions: 38.1 (L) x 16 (W) x 22.8 (H) [mm]

• Datasheet
• Datasheet     » Download
