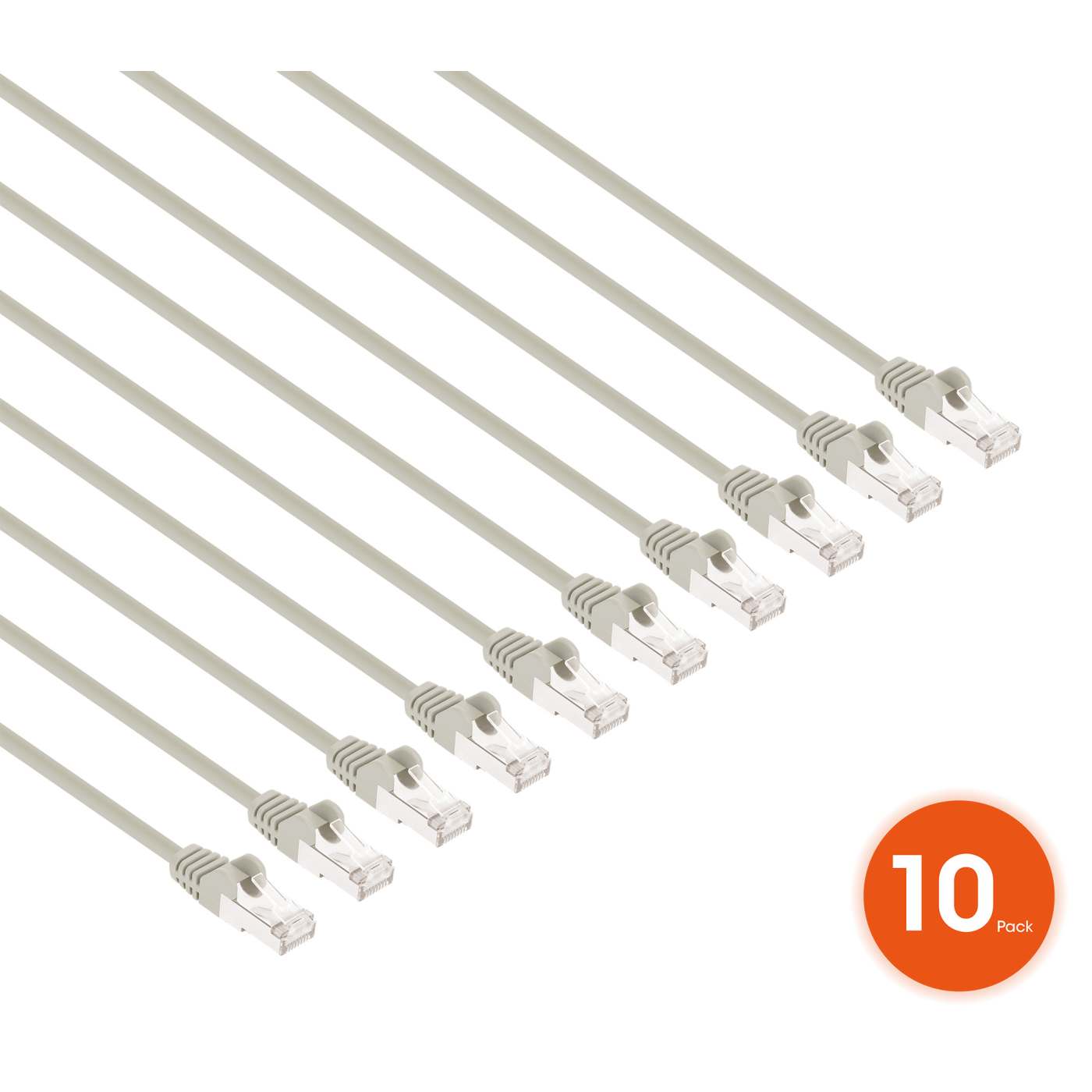

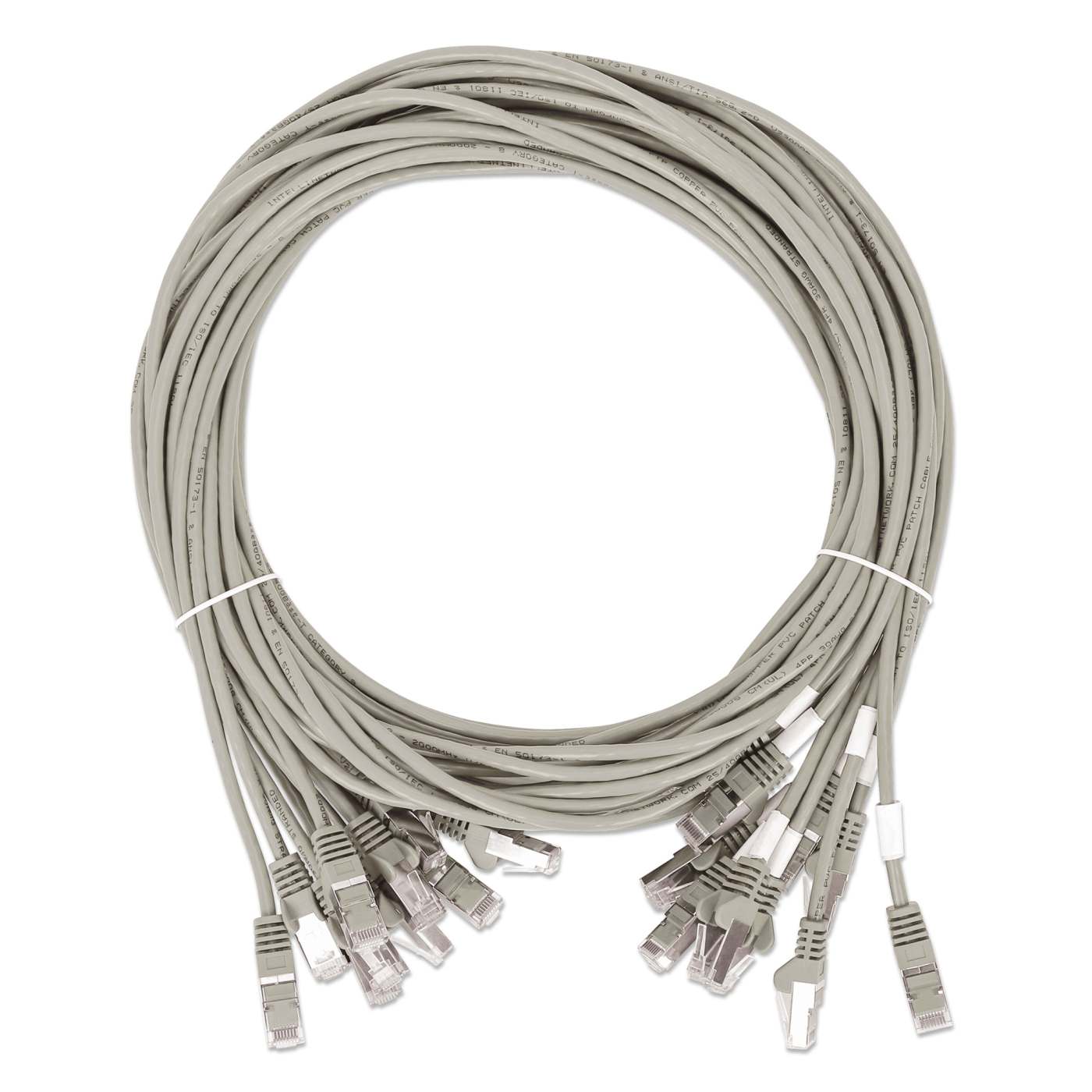

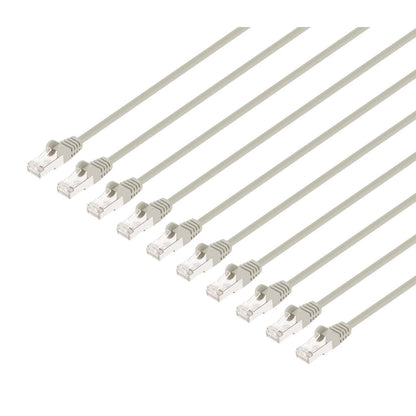

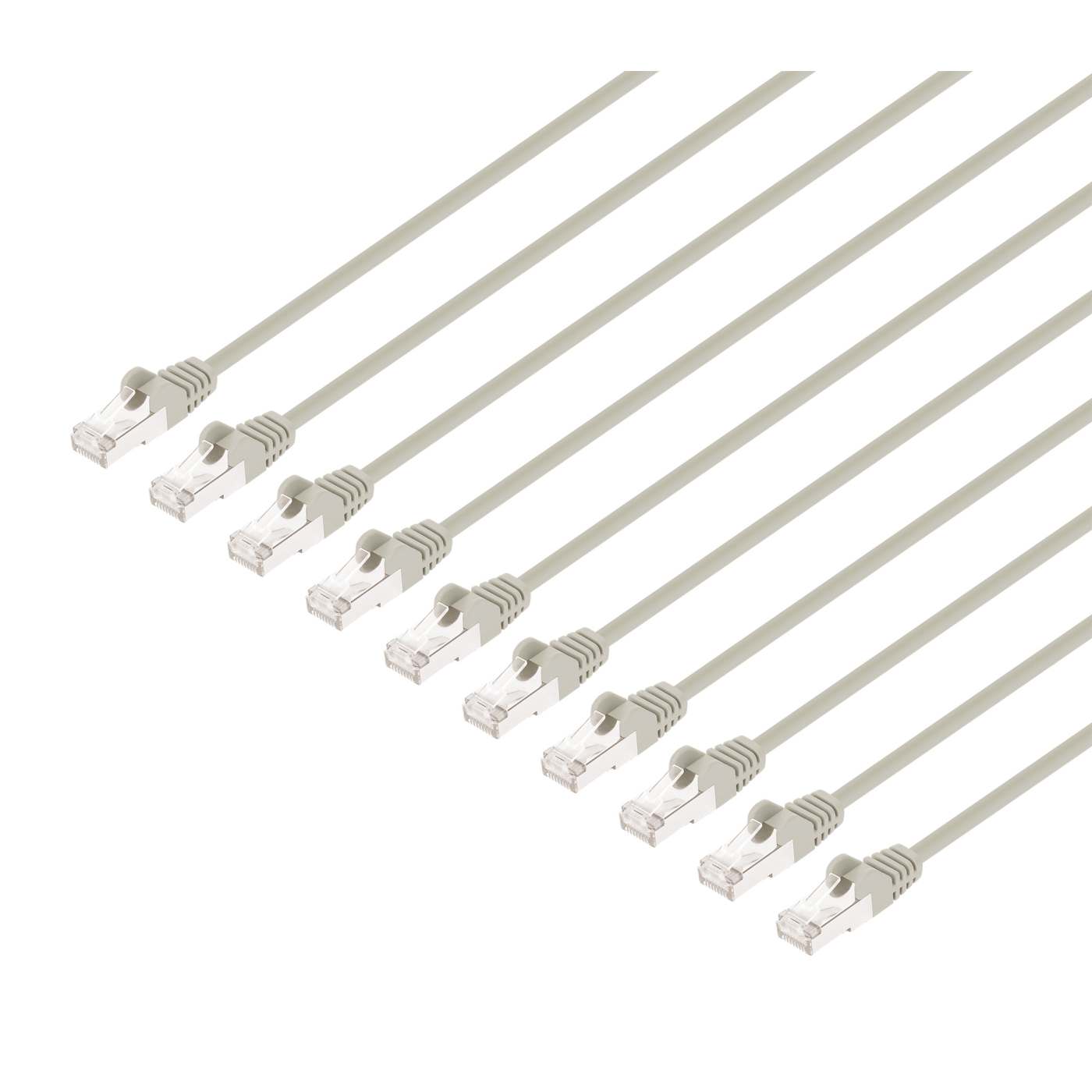

Cat8.1 U/FTP Slim Network Patch Cable, 1.5 ft., Gray, 10-Pack

Cat 8 Ethernet Cable, 10 pcs - 40G, 2000 MHz LAN patch cord, ultra-thin - future-proof high-end connections in data centers and more

Establish your high-performance network connections, especially for Top of Rack (ToR) and Middle of Row (MoR) installations in data centers, with this Cat8.1 U/FTP Network Patch Cable from Intellinet Network Solutions. Our Cat8 Ethernet cable speeds can reach as high as 40 Gbps, with frequencies supported up to 2 GHz. It's a clear winner in achieving future-proof network connections.

Strong, yet slim, space-saving design

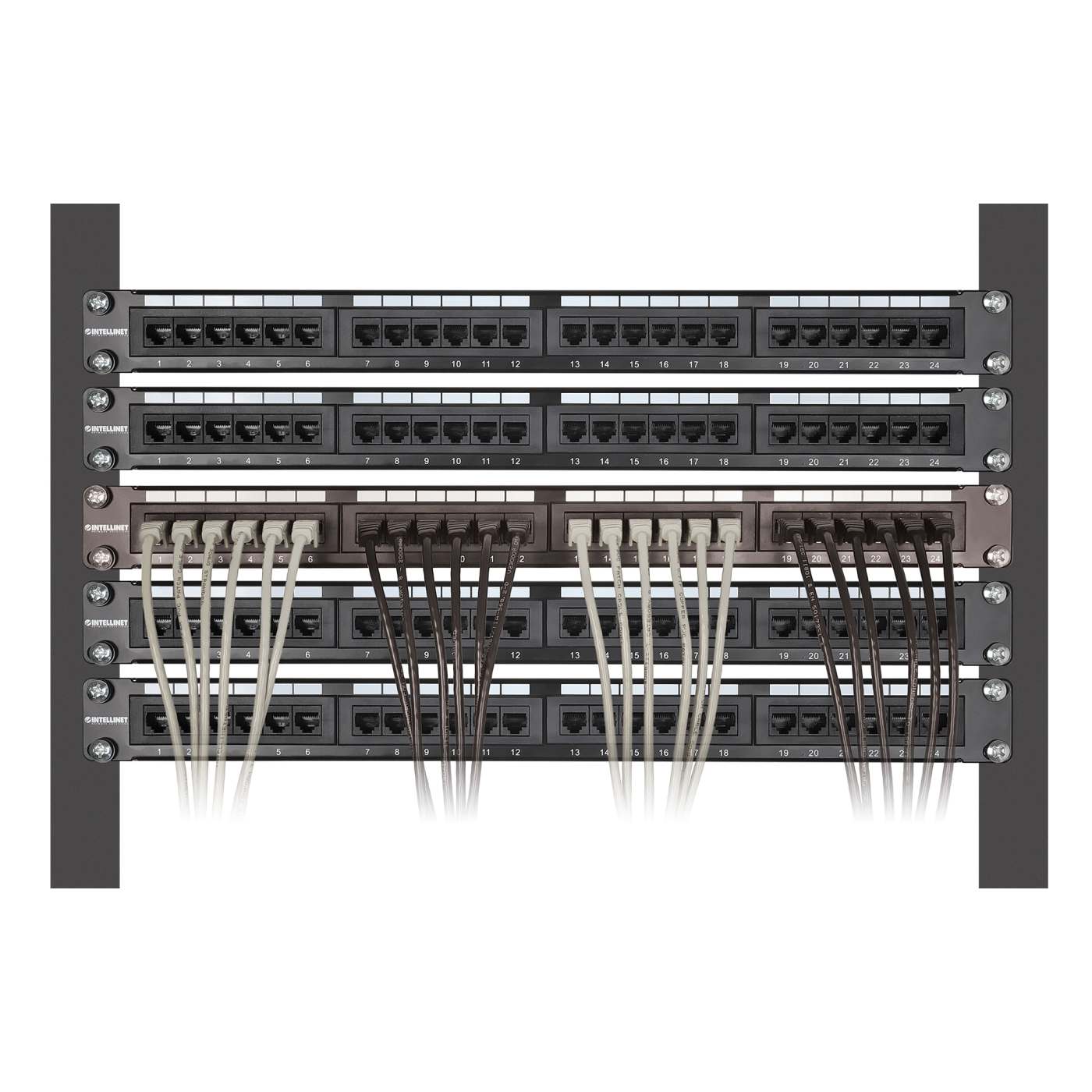

This stranded-copper Cat8 cable offers all the benefits of a standard Cat8.1 network cable but with a diameter that's considerably smaller. In dense cable installations, the cable creates a tidier and more-organized look, and its thinner size helps promote better air circulation to equipment in a network cabinet. The cable's reduced size also means it is more flexible, which makes it a perfect choice for installation around corners and in tight-space cable runs.

Aluminum foil shielding for good signal quality and low noise

This Cat8 patch cable is ideal for ultra-high performance network applications up to 25GBase-T and 40GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. Its U/FTP design has the inner cable wrapped in an overall aluminum braid. The result is great data transfer because it helps prevent interference such as near-end crosstalk (NEXT) if cables run parallel to each other.

Pure copper cable with gold-plated contacts for perfect conductivity

As opposed to other cables that are manufactured with copper-clad aluminum (CCA) or even copper-clad steel (CCS), this Cat 8 Ethernet cable contains 100% pure bare copper for perfect conductivity. Gold plating on the contacts makes them corrosion-resistant in every environment. Such quality construction makes our Cat8 patch cable compliant with the highest data-cable requirements.

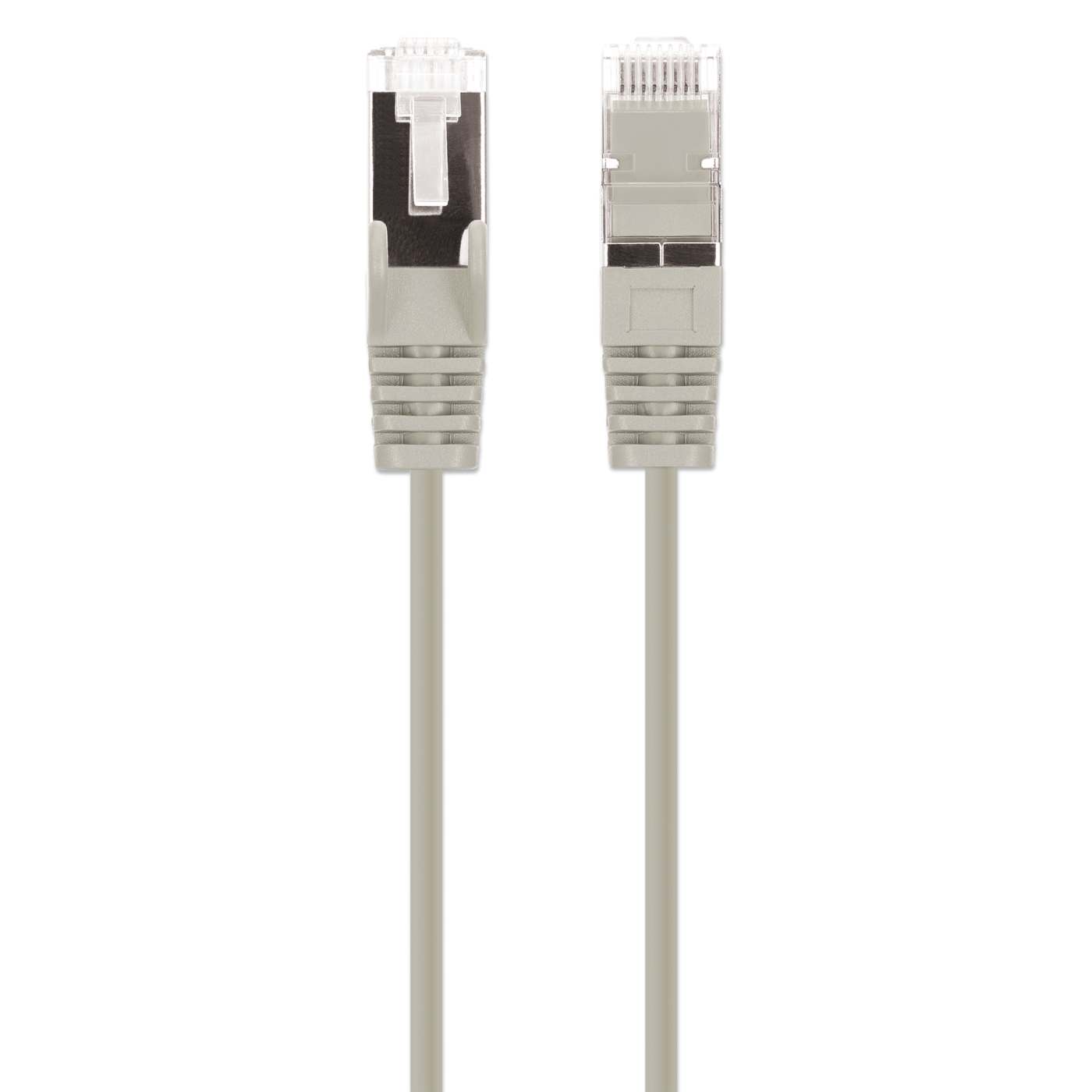

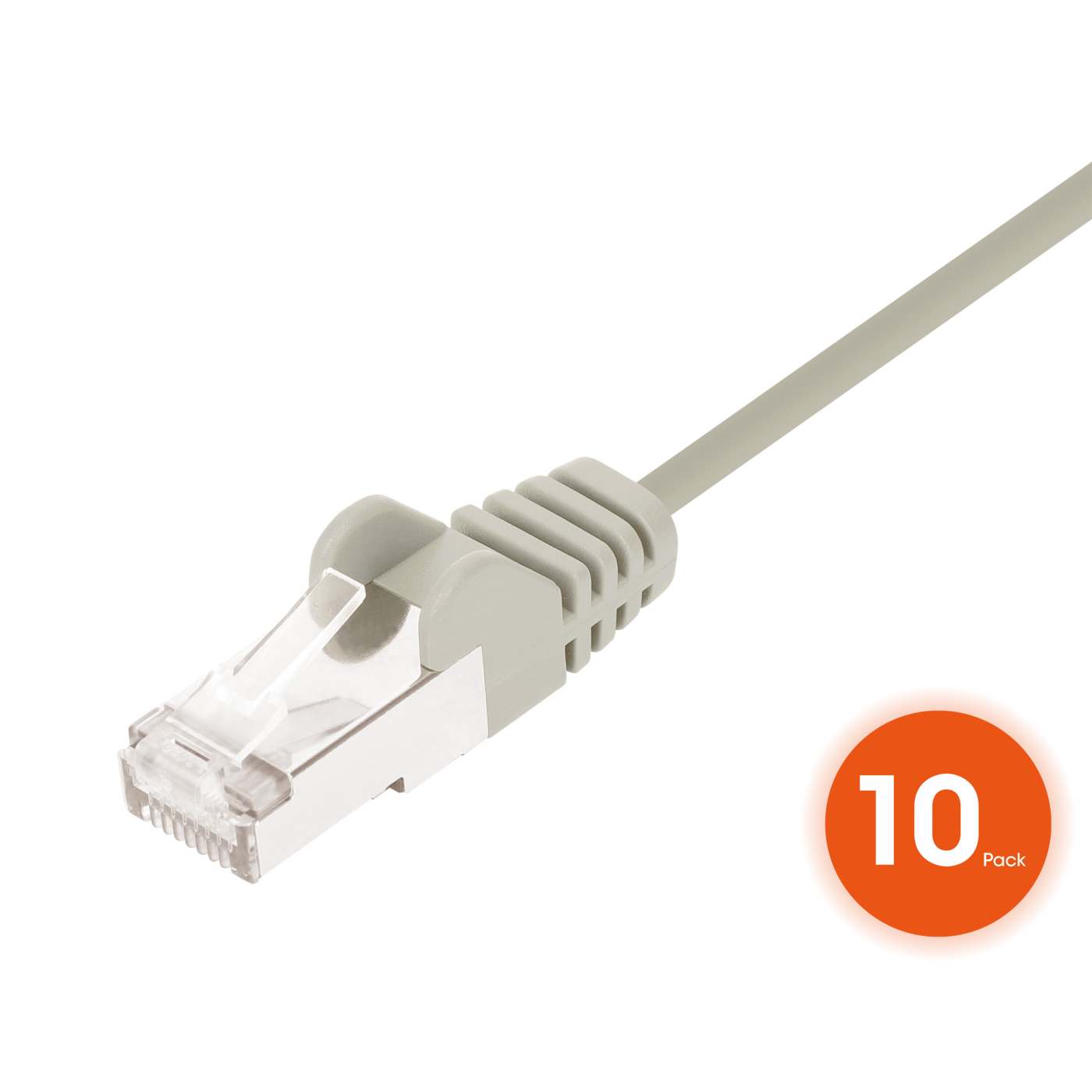

Snag-free Boot Design

The snag-free boot design makes all patch cables from Intellinet Network Solutions the perfect choice for high-density environments, like data centers or server rooms. The cable plugs are equipped with strain relief and a molded boot for protection that makes it easy to safely connect and disconnect the latch without breaking it.

• Cat8.1 Class I with 40G / 25G and 2000 MHz in accordance with ISO/IEC 11801 and EN 50173-1
• Pure bare copper wire for maximum conductivity
• U/FTP with aluminum foil shielding around each pair

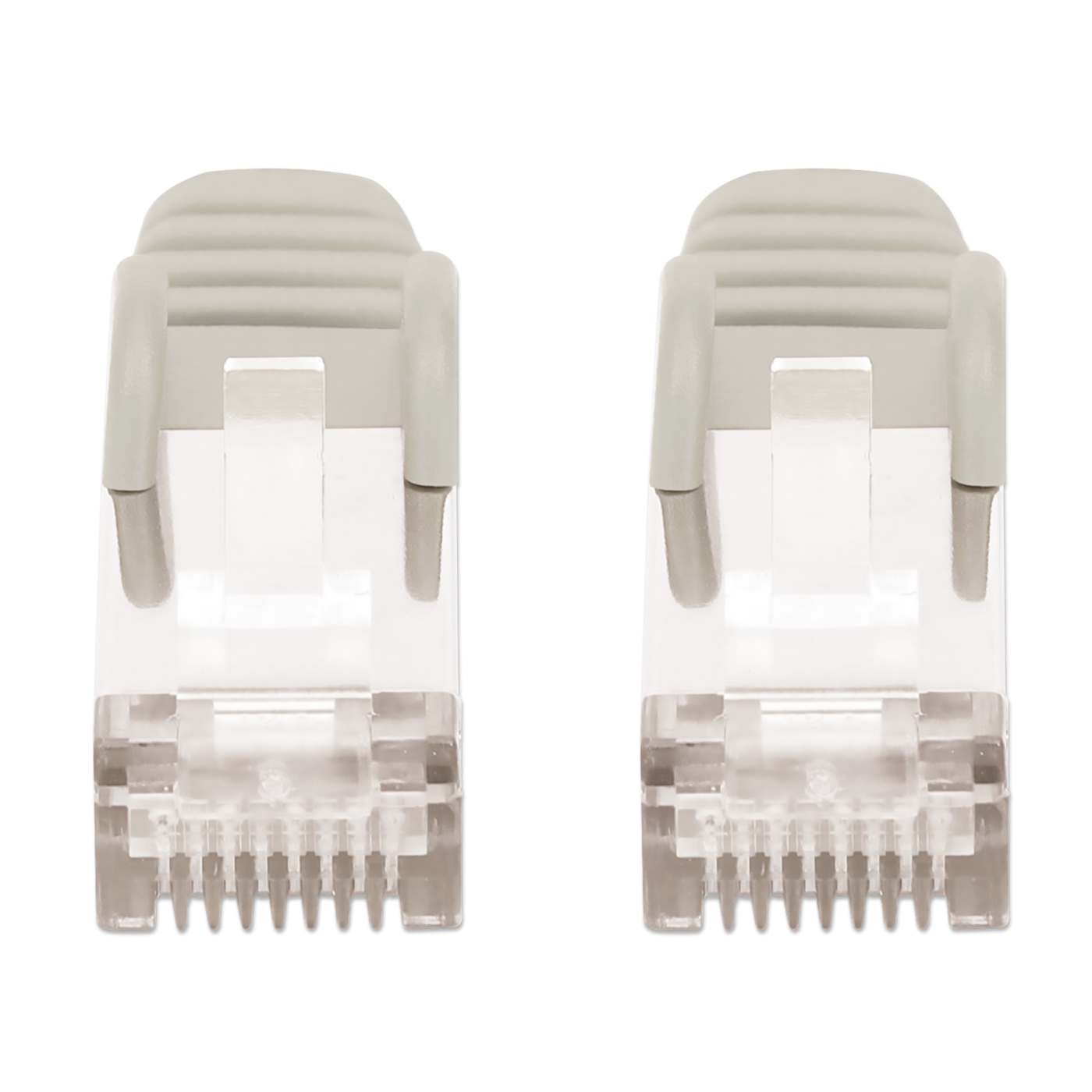

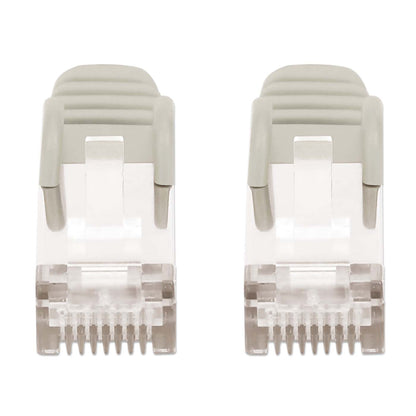

• 50 micro-inch gold-plated contacts for corrosion-free connections
• Snag-free boots to smoothly and easily pull the cable without damaging the RJ45 connectors
• Future-proof high-end connection; ideal for ToR and MoR cabling installations in data centers
• Ultra-thin format for more flexibility and simplified cable management in dense installations
• Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Heavy-duty strain relief
• UL approved
• CM rating for in-wall Ethernet installations to safeguard against potential fire risks
• Compatible and color-coded with T568A and T568B
• Standard 8P8C design, compatible with all network RJ45 connections
• Fully backward compatible with previous cable categories, including Category 6a, 6, 5e and 5
• Lifetime warranty

Standards and Certifications

• UL

• ISO/IEC 11801

• EN 50173-1

• CE

• RoHS

• REACH

• 25GBase-T/40GBase-T

• ANSI/TIA-568.2-D

  General

• Supported transfer speeds: up to 40 Gbps

• Max. operating frequency: 2000 MHz

• Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE

• Mating cycles: ≥750

  Connectors

• Two RJ45 male

• 50 micro-inch gold-plated contacts

  Cable

• 30 AWG

• Shielding: U/FTP with aluminum foil shielding around each pair

• CM-rated jacket

• Wire: 100% pure bare copper (Cu)

• Jacket OD: 0.19 in. ±0.01 in. (4.8 mm ±0.3 mm)

• Conductor type: stranded

• Cable type: round

• Length: 1.5 ft. (0.5 m)

• Net weight per cable: 0.49 oz. (14 g)

• Gross weight 10-pack: 5.29 oz. (150 g)

  Electrical

• Insulation resistance: ≥10 MOhm

• Dielectric withstanding voltage: 300 VDC

  Environmental

• Operating temperature: 32 - 113°F (0 - 45°C)

• Storage temperature: 14- 158°F (-10 - 70°C)

• Operating humidity (non-condensing): 10 - 90% RH

  Package Contents

• 10 x Cat8.1 U/FTP Slim Network Patch Cable

Warning

• Additional SKUs

• Alphanumeric Model#: IEC-C8-GY-1.5-SLIM-10P
• EAN: 0766623745383
• UPC: 766623745383



• Physical Specifications

• Weight: 0.14 kg
• Dimensions: 0.5 (L) x 0.01 (W) x 0.015 (H) [m]
