Intellinet

Gigabit Fiber SFP Optical Transceiver Module

Gigabit Fiber SFP Optical Transceiver Module

1000Base-SX (LC) Multi-Mode Port, 550 m

SKU: 545006 ISFP-1G-LCMM-550M

Out of stock

Highlights

  • Data transfer rate: 1000 Mbps
  • One 1000Base-SX multi-mode fiber LC duplex port
  • Distance support: up to 550 m (50/125 µm cable) or 220 m (62.5/125 µm cable)
Regular price $18.99 USD
Regular price Sale price $18.99 USD
Sale Sold out
Shipping calculated at checkout.

Buy at discounted prices

Minimum Qty Discount New unit price
2 3% off $18.42 per unit
5 5% off $18.04 per unit

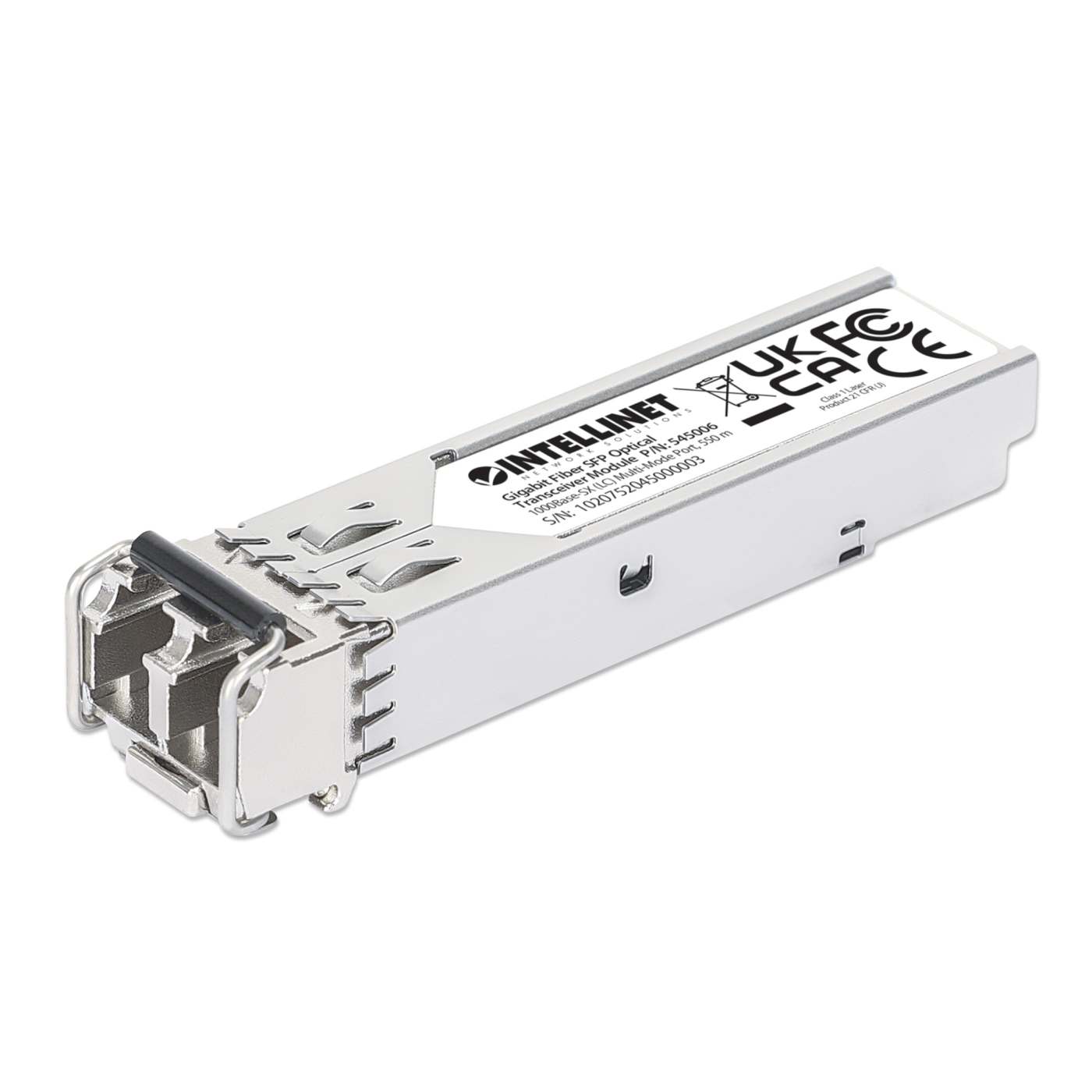

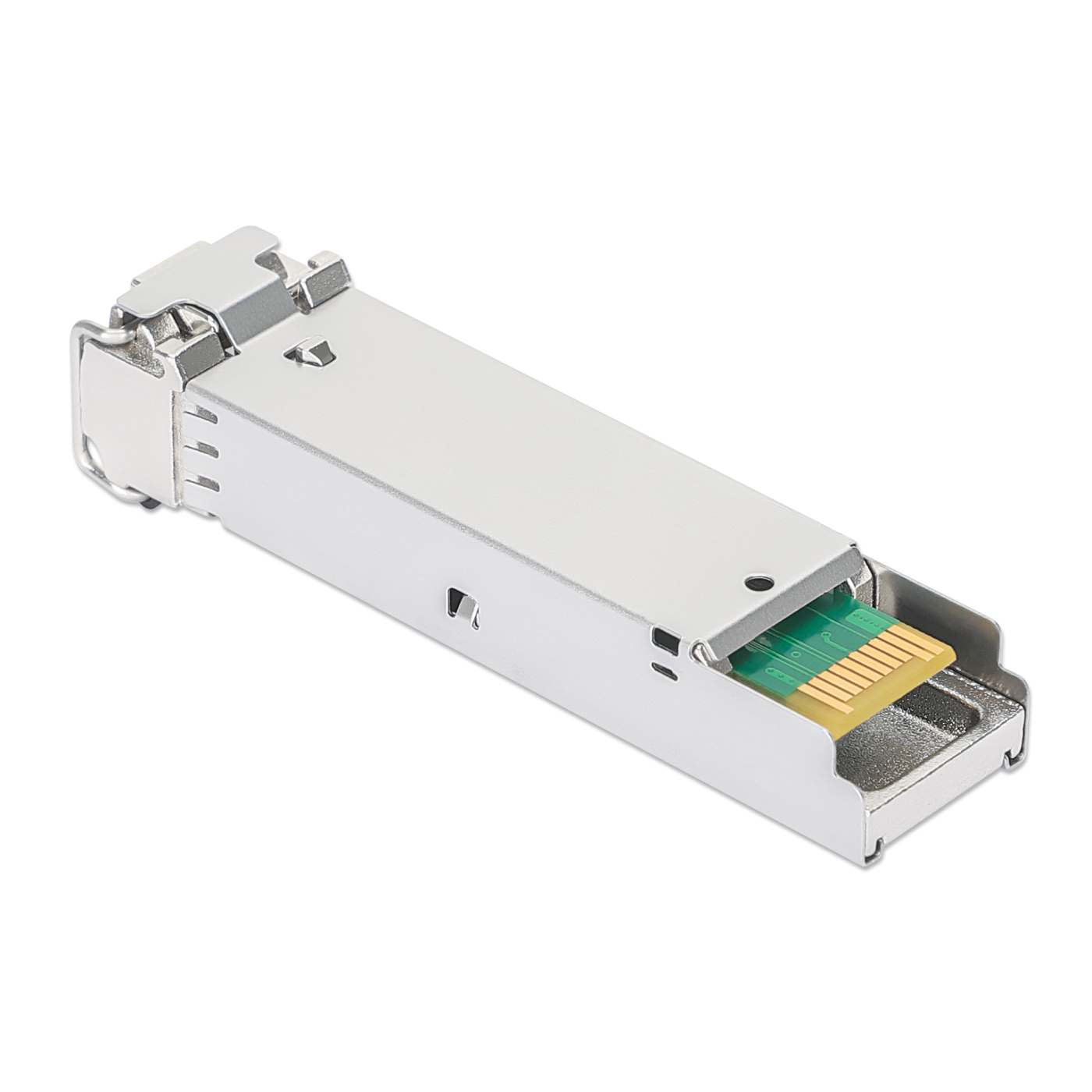

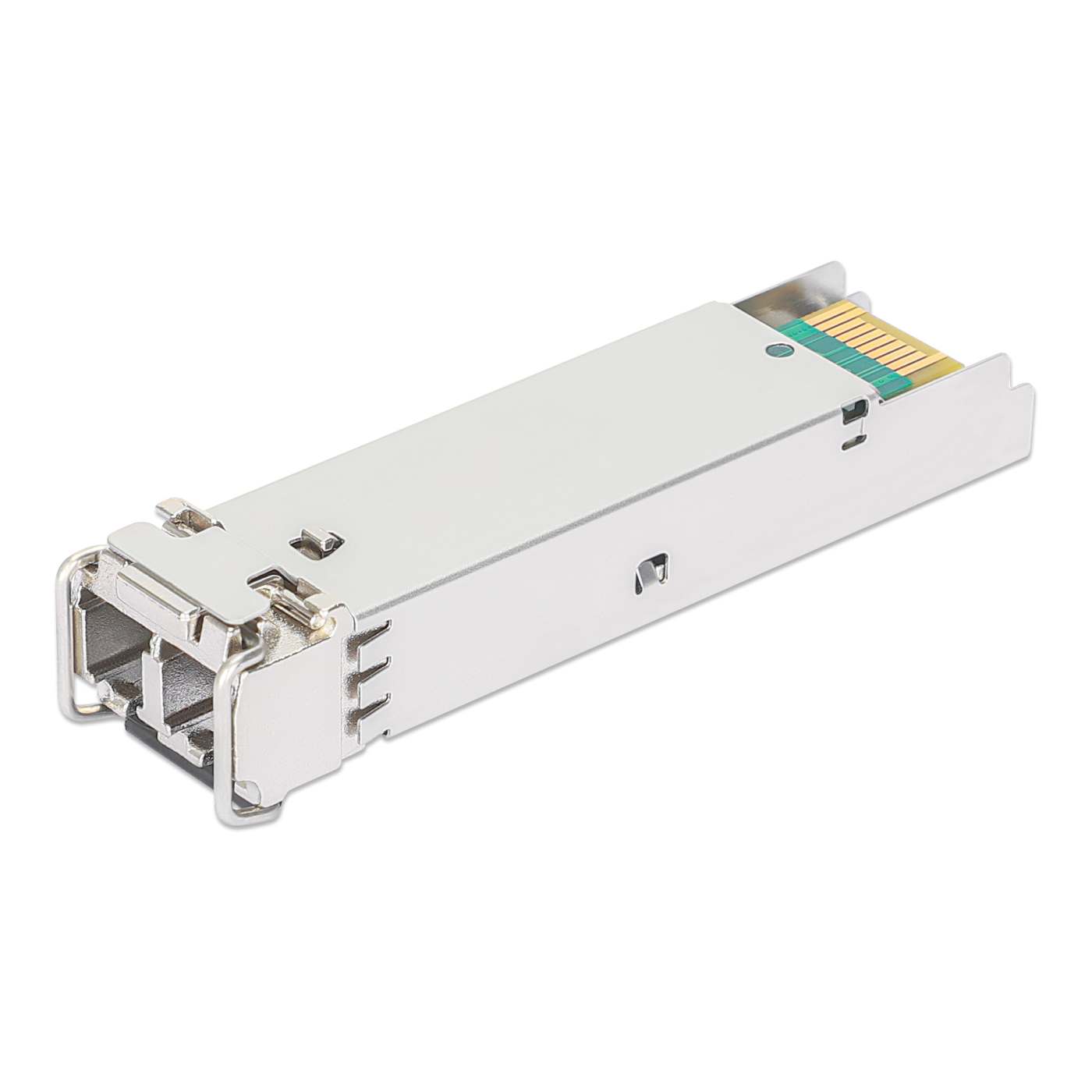

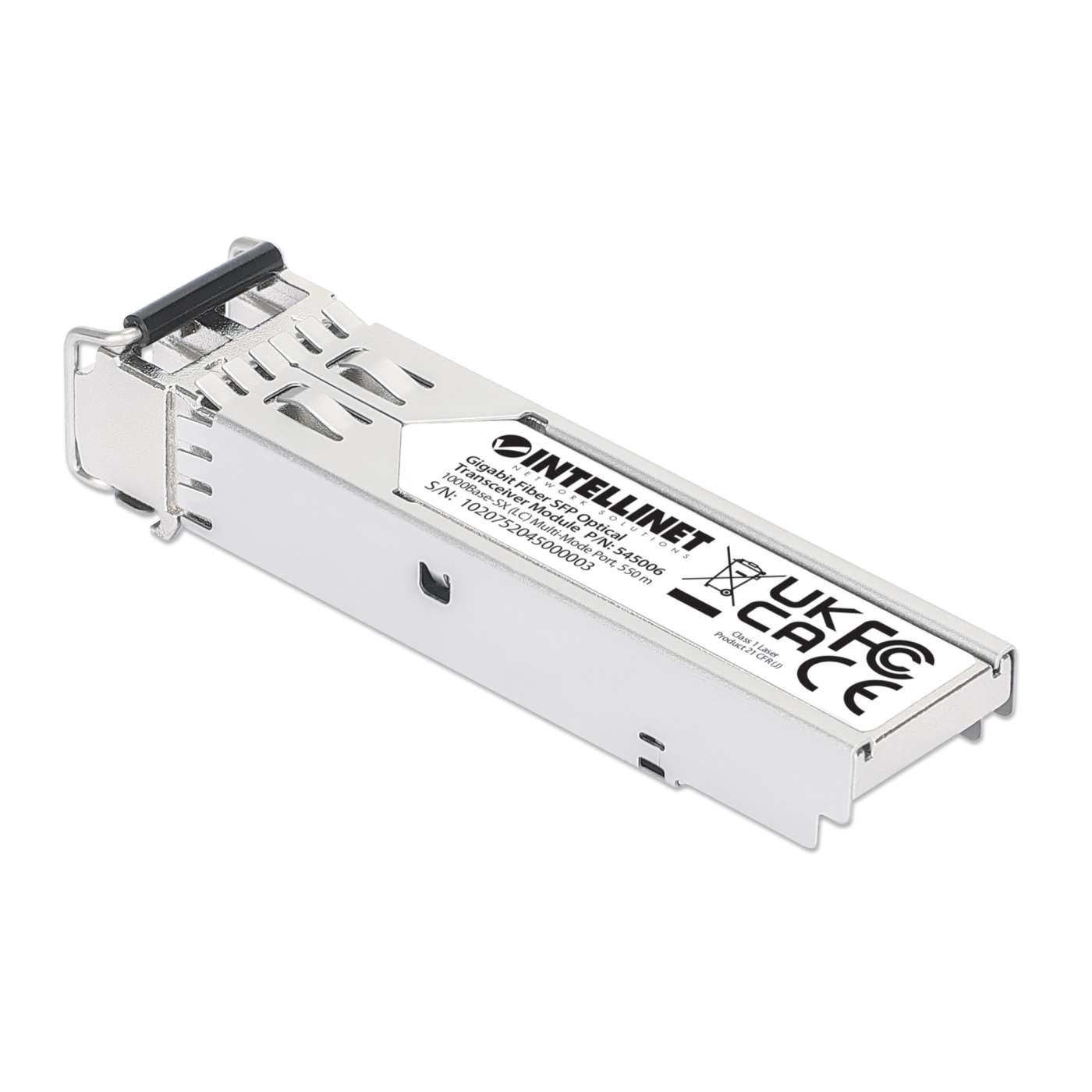

Gigabit Fiber SFP Optical Transceiver Module

The line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability.

Small Size for High-Density Fiber Connections

The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fiber connections by taking up less space in your cabinet and/or computer room.

Multi-Vendor Compatible

Compatibility in your network is everything, and the Intellinet SFP Transceiver Module (model 545006) delivers. Use it with any Intellinet SFP equipped network switch or any other MSA (multi source agreement) compliant SFP enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor pn GLC-SX-MMD, compatibility to your Cisco gear is provided.

Hot-Pluggable

No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market.

  • Data transfer rate: 1000 Mbps
  • One 1000Base-SX multi-mode fiber LC duplex port
  • Distance support: up to 550 m (50/125 µm cable) or 220 m (62.5/125 µm cable)
  • Wavelength: 850 nm
  • SFP standard form factor
  • Compliant with SFP Transceiver MSA specifications
  • Equivalent to the Cisco GLC-SX-MMD transceiver
  • Supports hot-plugging
  • Fully NDAA-compliant
  • Three-Year Warranty
    Standards
  • IEEE 802.3z (Fiber Optic Gigabit Ethernet)

    General
  • Media support:
    - 1000Base-SX multi-mode 50/125 µm fiber
    - 1000Base-SX multi-mode 62.5/125 µm fiber
  • Connector: fiber LC duplex port, 1000Base-SX
  • Distances:
    - 550 m (50/125 µm fiber cable)
    - 220 m (62.5/125 µm fiber cable)
  • Wavelength: 850 nm
  • Fiber power budget
    - Maximum TX power: -3 dBm
    - Minimum TX power: -8 dBm
    - Sensitivity: -20 dB
    - Power budget: 8 dB
  • Design: SFP (small form factor pluggable)
  • Certifications: FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA

    Compatible Brands
  • Cisco, Intellinet Network Solutions, ZyXEL, Linksys, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more

    Power
  • Power requirement: 3.3 V
  • Power consumption: 1.0 watt (maximum)

    Environmental
  • Dimensions: 55 (L) x 13 (W) x 12 (H) mm (2.2 x 0.5 x 0.5 in.)
  • Weight: 15 g (0.5 oz.)
  • Operating temperature: 0 – 70°C (32 – 158°F)
  • Typical operating temperature: 34.8°C (94.64°F)
  • Operating humidity: 5 – 95% RH, non-condensing
  • Storage temperature: -40 – 85°C (-40 – 185°F)

    Package Contents
  • Gigabit Fiber SFP Optical Transceiver Module
  • Additional SKUs

    • Alphanumeric Model#: ISFP-1G-LCMM-550M
    • EAN: 0766623545006
    • UPC: 766623545006

  • Physical Specifications

    • Weight: 0.02 kg
    • Dimensions: 55 (L) x 13 (W) x 12 (H) mm
  • Datasheet
    • Datasheet     » Download

    • Compliance     » Download

    • Intellinet SFP Transceiver Compatibility Chart
      December 2017     » Download


  • Manual
    • Declaration of Conformity     » Download
