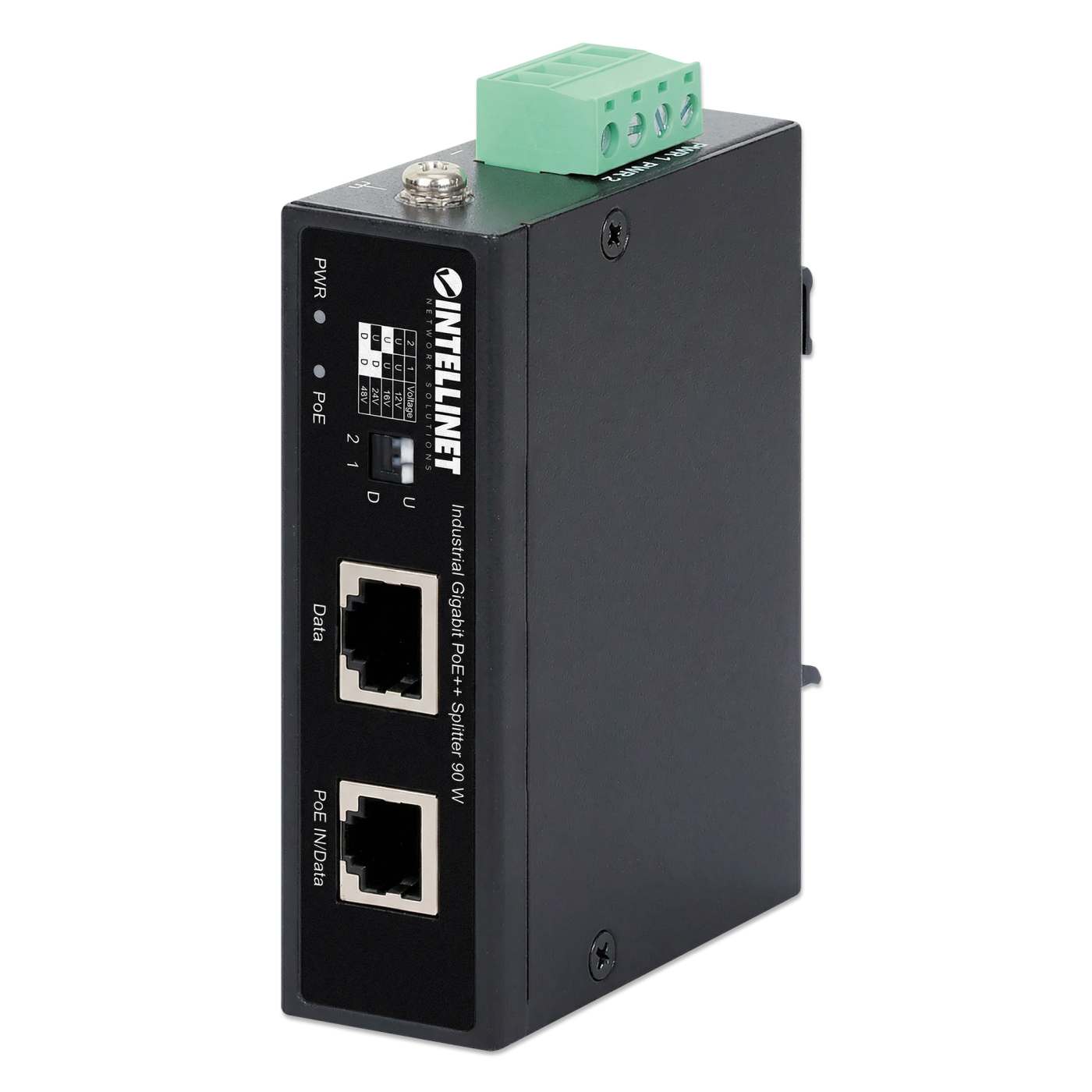

Industrial Gigabit PoE++ Splitter 90 W

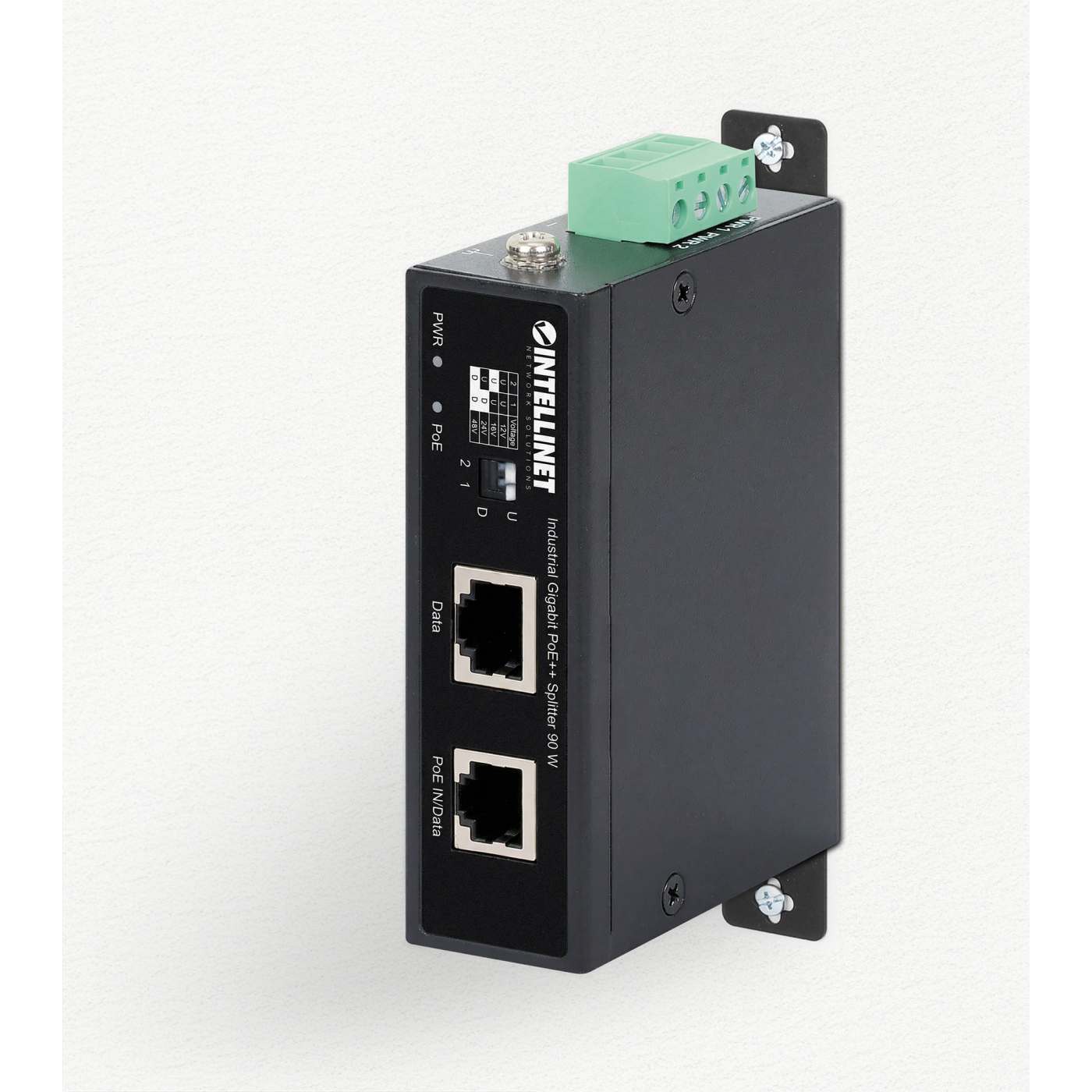

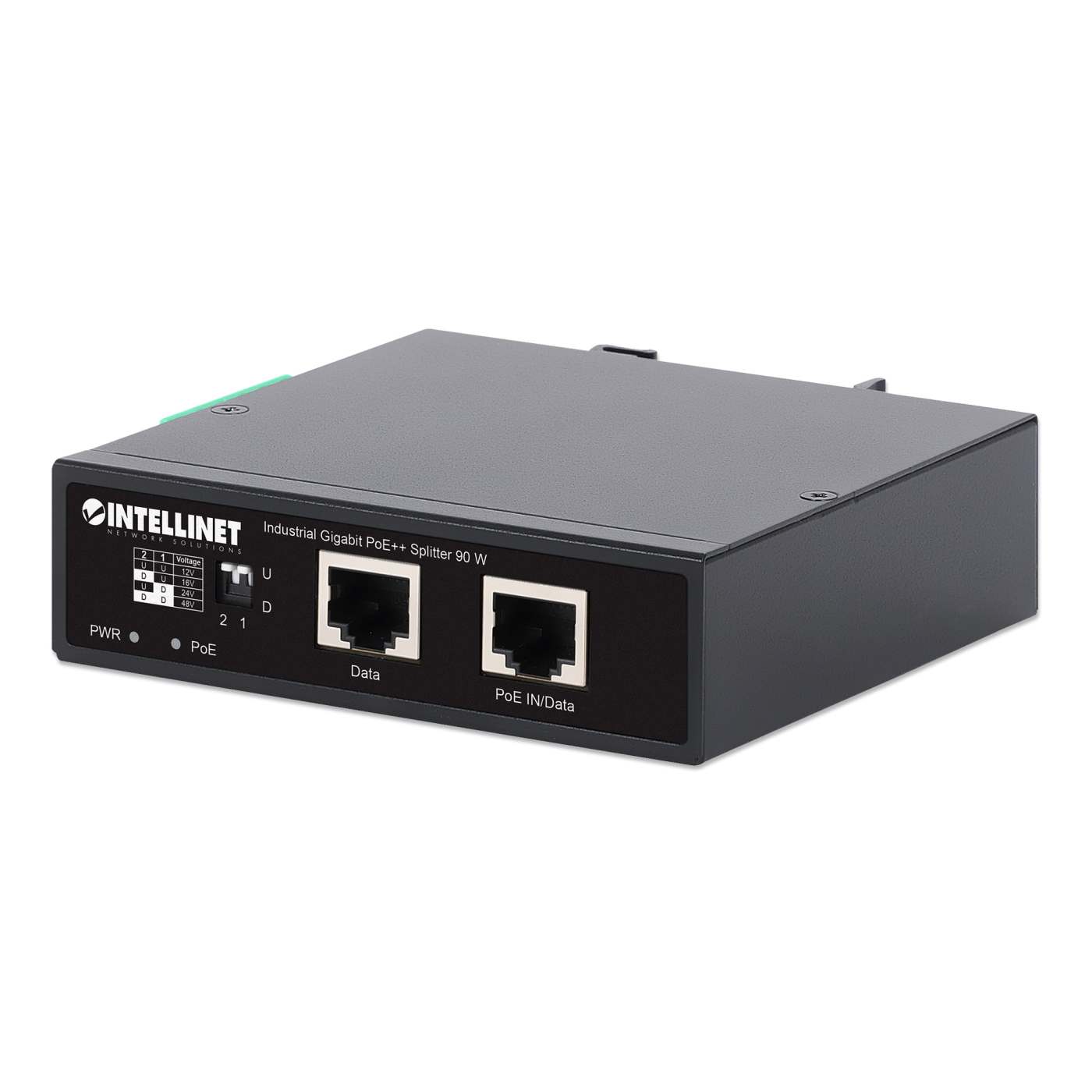

Tough PoE Splitter 12V / 16V / 24V / 48V -  Turn a high-power PoE link into separate terminal-block power and Gigabit data connections

The Industrial Gigabit PoE++ Splitter 90 W from Intellinet Network Solutions is built to bridge the gap between high-power PoE infrastructure and non-PoE devices in demanding environments. Compliant with IEEE 802.3bt (4PPoE), it accepts up to 90 watts of input power and splits it into Gigabit Ethernet and selectable DC output. This makes it ideal for powering devices like IP cameras, industrial PCs, sensors, or media converters that require a stable DC voltage but aren’t PoE-enabled.

Flexible DC Output for Maximum Compatibility

Offering selectable output voltages of 12 V, 16 V, 24 V (2.3 A), or 48 V (1.25 A) via a secure 4-pin terminal block, this splitter adapts easily to the needs of various devices. It supports a wide range of applications without the need for additional power converters or wiring changes. The Gigabit Ethernet output ensures uninterrupted high-speed data transmission alongside the power delivery.

Built to Withstand Harsh Environments

Housed in an IP50-rated metal casing, the splitter is engineered for durability and resilience. It operates reliably in extreme temperatures ranging from -40 to 75ºC (-40 to 167ºF), making it ideal for use in industrial automation, outdoor enclosures, or temperature-sensitive locations. The compact design supports DIN-rail mounting for easy integration into control cabinets or network panels.

Intelligent Protection and Surge Resistance

To safeguard connected equipment, the splitter includes comprehensive protection features such as short-circuit, overload, and high-voltage protection. ESD protection up to 8 kV (air) and 6 kV (contact), along with port surge protection up to 6 kV, ensures reliable performance in electrically noisy environments. An integrated grounding point provides additional shielding against electrical surges.

Standards-Compliant and Easy to Deploy

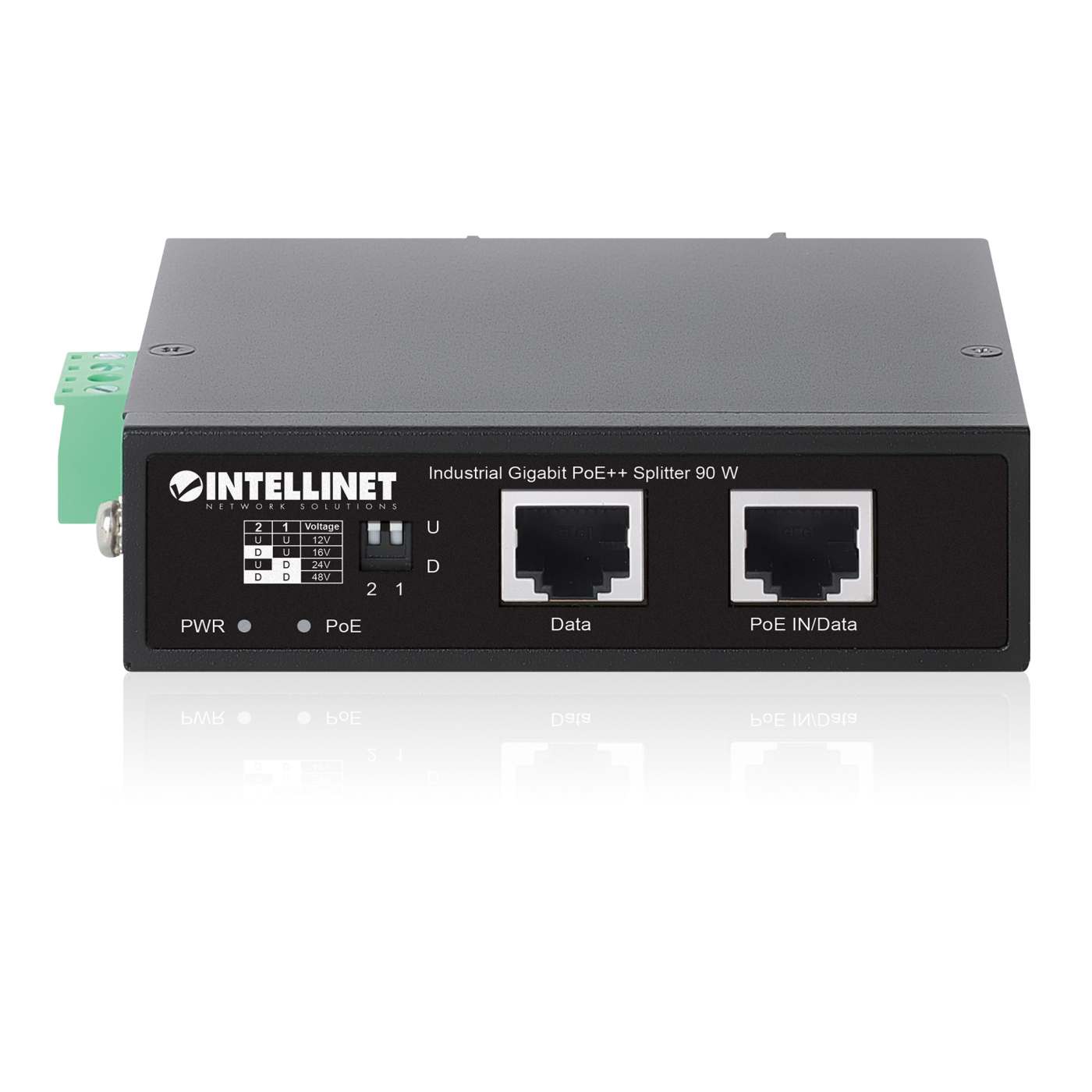

With one RJ45 PoE input port compatible with IEEE 802.3bt/at/af injectors or switches and one RJ45 data-only output port supporting 10/100/1000 Mbps, the unit covers a full range of networking requirements. It also supports standard Ethernet distances up to 100 meters (328 ft.), offering flexible placement. Fully TAA-compliant, it’s ready for deployment in government and enterprise projects where compliance matters.

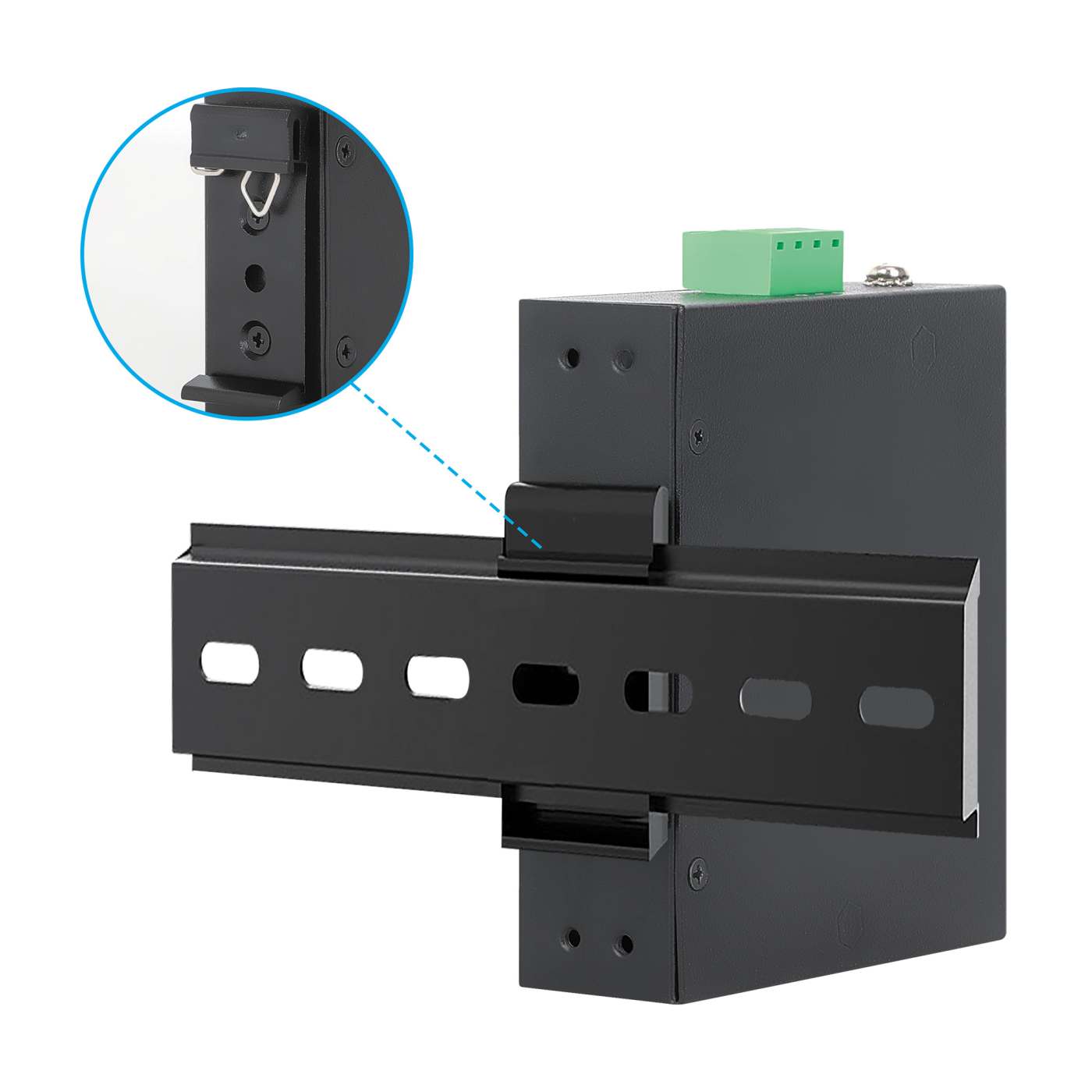

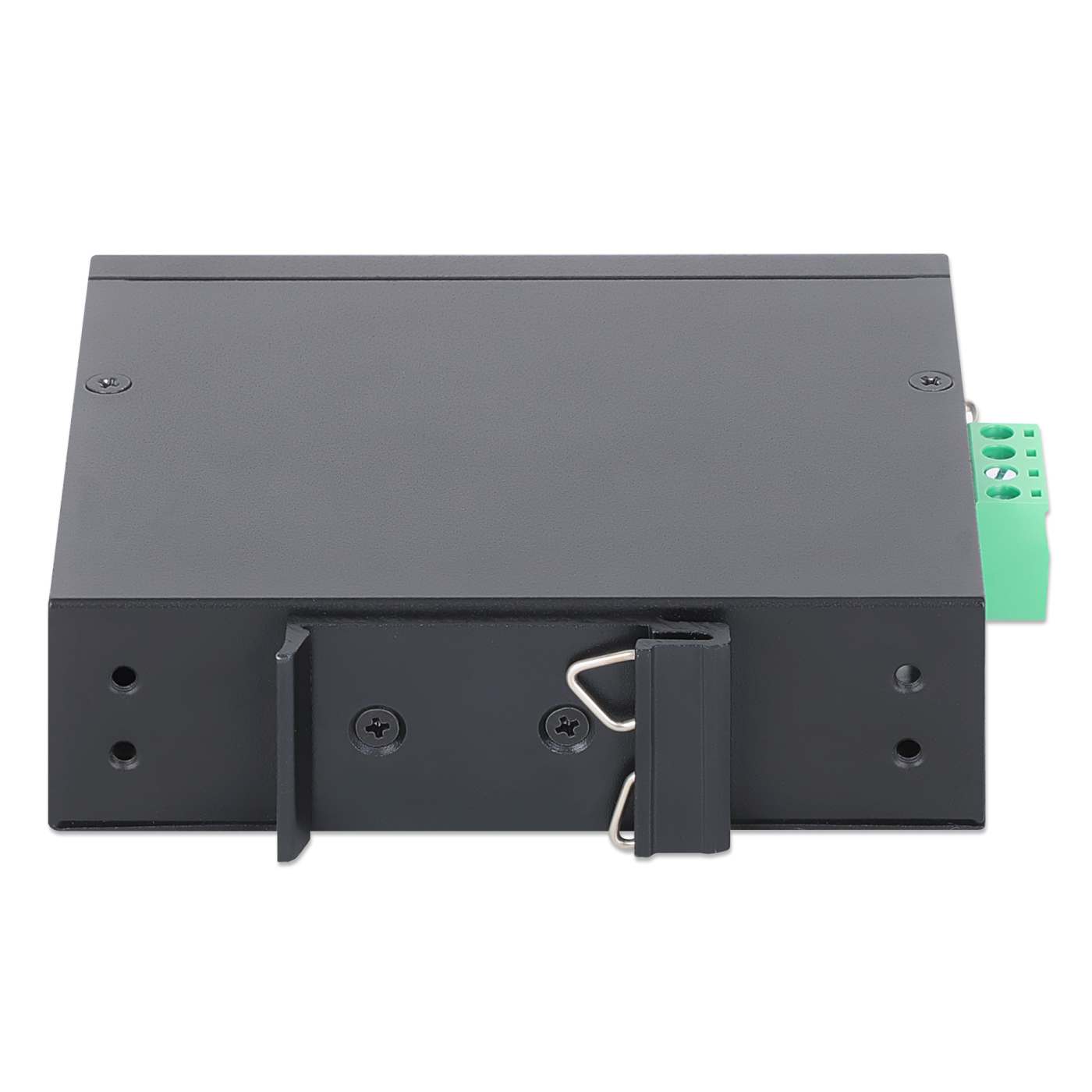

Wall-mount option

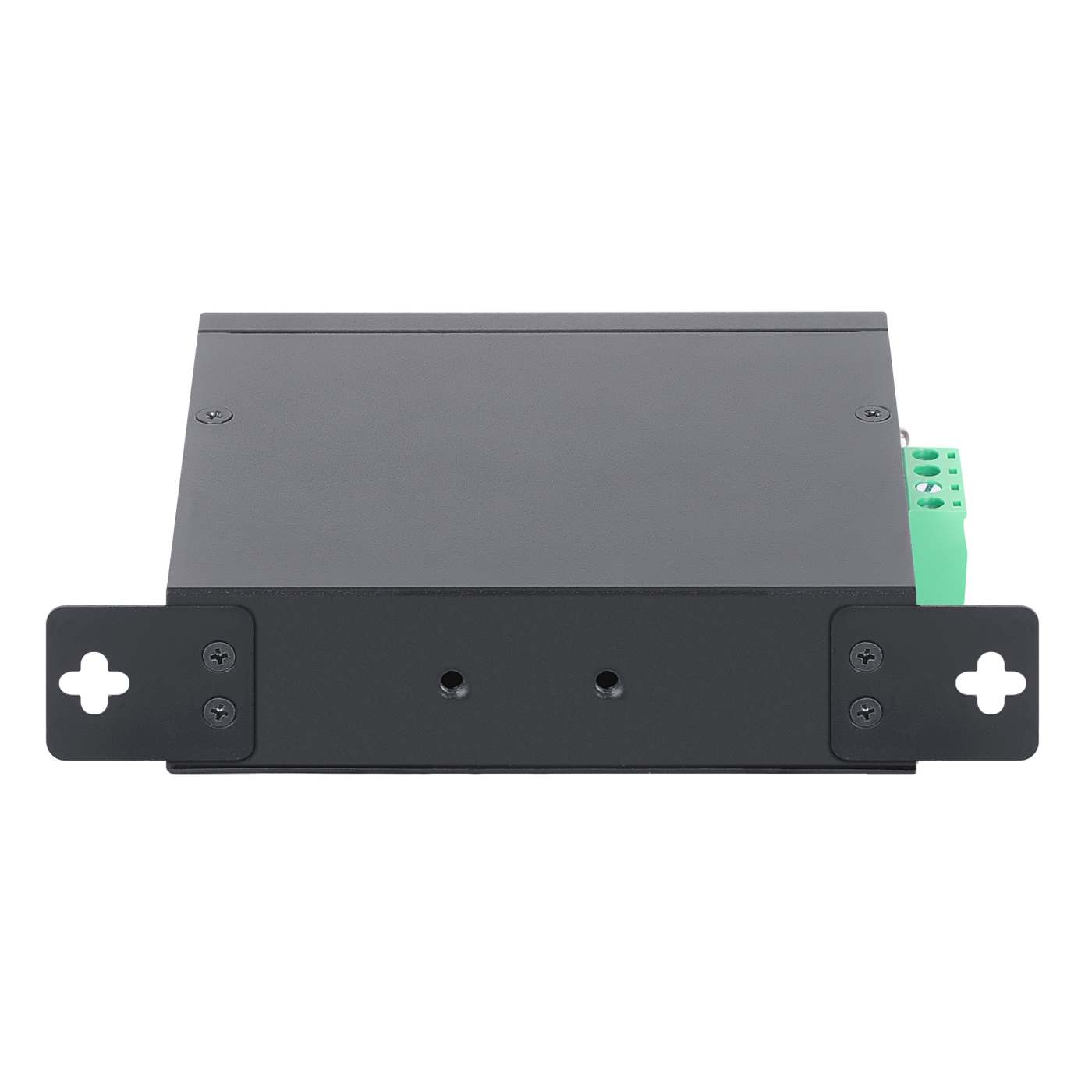

For full installation flexibility, you can mount the injector on the wall through four built-in fixing points on the back panel.

• Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
• Selectable DC outputs with 12, 16, or 24 V (2.3 A) or 48 V (1.25 A) via 4-pin terminal block
• One RJ45 input port up to 90 W from an IEEE 802.3bt/at/af-compliant PoE injector or PoE switch (PSE)
• One RJ45 output port with 10/100/1000 data rates
• IP50 slim-type metal housing to withstand harsh industrial conditions
• Suitable for extreme operating temperatures of -40 to 75ºC (-40 to 167ºF)
• Option for DIN-rail installation
• Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-31) and vibration (IEC 60068-2-6)
• Distance support: up to 100 m (328 ft.)
• Short-circuit, overload and high-voltage protection
• Grounding point to protect equipment from external electrical surges
• ESD protection up to 8 kV (air) and 6 kV (contact)
• Port surge protection up to 6 kV
• Wall-mountable for network areas with limited floor space (wall-mounting hardware not included)
• Fully TAA-compliant
• Three-year warranty

Standards

• IEEE 802.3af (Power over Ethernet)

• IEEE 802.3at (High-Power PoE+ Power over Ethernet)

• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3ab (1000BASE-T Gigabit Ethernet)

  General

• Media support:
  - 10Base-T Cat5e/6/6a UTP/STP RJ45
  - 100Base-TX Cat5e/6/6a UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a UTP/STP RJ45

• Ports:
  - One RJ45 10/100/1000 Mbps PoE input port
  - One RJ45 10/100/1000 Mbps data output port
  - One DC output with 4-pin terminal block

• Certifications: FCC, CE, RoHS, REACH, UKCA, TAA

• MTBF: 1M hours

  Power

• Input power: IEEE 802.3bt/at/af compliant PSE, 90.0 W max., 42.5 - 57.0 V DC

• Max. output power:
  - 12.0 V DC, 2.3 A, 27.6 W (max.)
  - 16.0 V DC, 2.3 A, 36.8 W (max.).
  - 24.0 V DC, 2.3 A, 55.2 W (max.)
  - 48.0 V DC, 1.25 A, 60.0 W (max.)

• Power consumption: 90.0 W (max.)

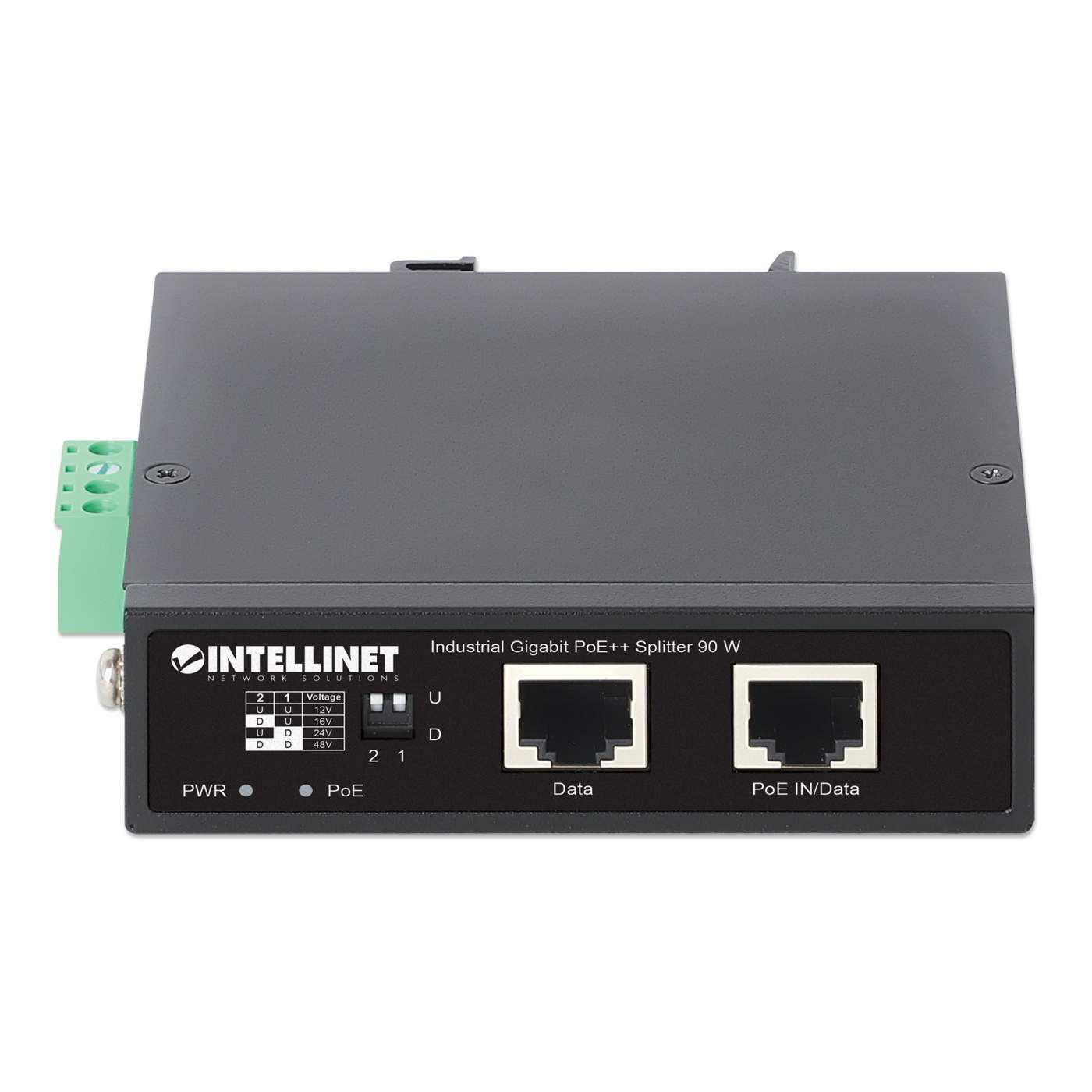

  DIP switch settings

• DIP2: U, DIP1: U - 12.0 V output (2.3 A max.)

• DIP2: D, DIP1: U - 16.0 V output (2.3 A max.)

• DIP2: U, DIP1: D - 24.0 V output (2.3 A max.)

• DIP2: D, DIP1: D - 48.0 V output (1.25 A max.)

  PoE Pinout
  Pin1: DC(-)
  Pin2: DC(-)
  Pin3: DC(+)
  Pin4: DC(+)
  Pin5: DC(+)
  Pin6: DC(+)
  Pin7: DC(-)
  Pin8: DC(-)

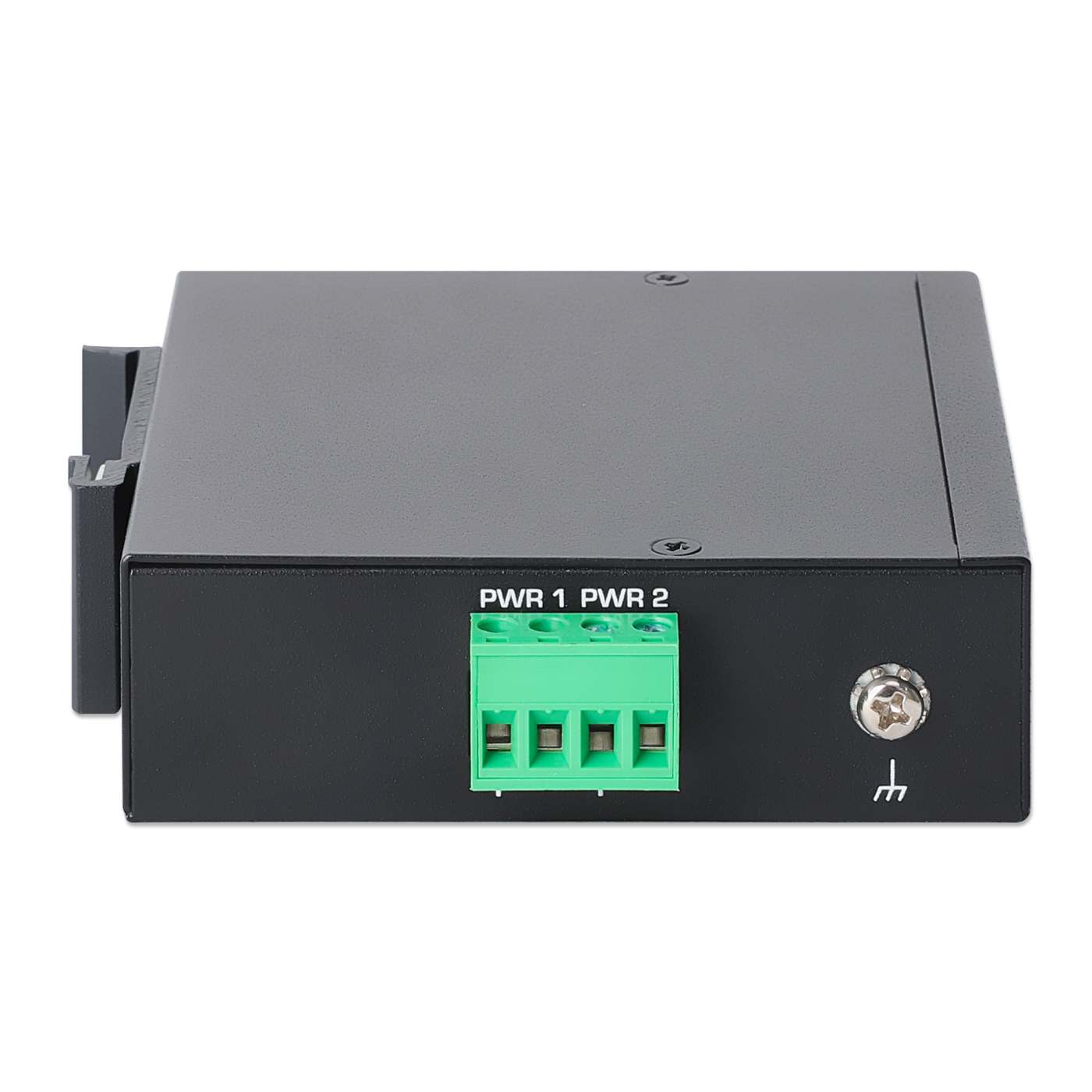

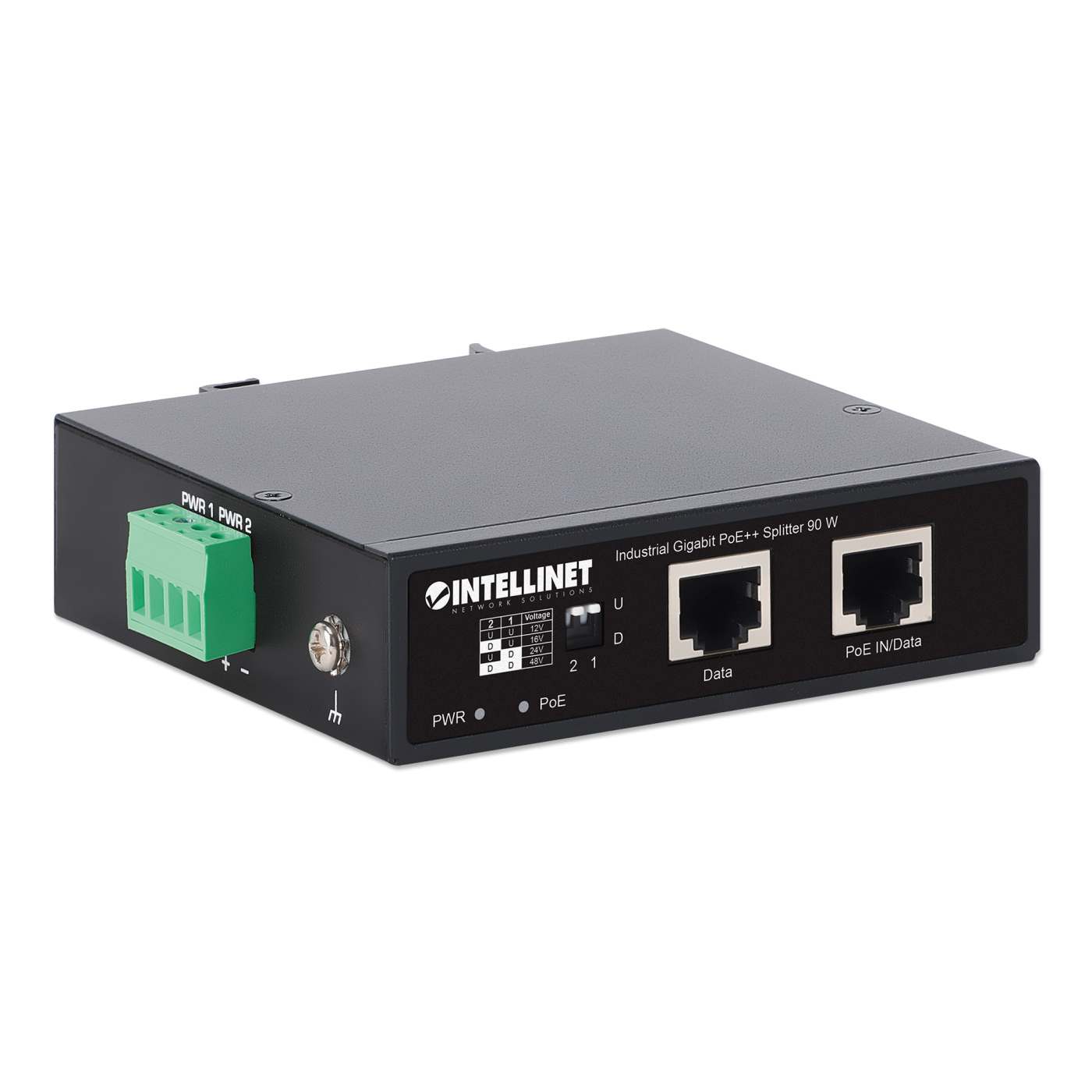

  Terminal block Pinout
  - Pin 1: V+
  - Pin 2: V-
  - Pin 3: V+
  - Pin 4: V-

  LED

• PD Power In

• DC Power Out

  Physical

• IP50-rated metal housing

• DIN-rail: In accordance with IEC/EN 60715 (top hat)

• Dimensions (L x W x H): 99 x 90 x 28 mm (3.9 x 3.54 x 1.1 in.)

• Net weight: 404 g (0.89 lbs.)

• Gross weight: 484 g (1.07 lbs.)

• Operating temperature: -40 - 75°C (-40 - 167°F)

• Storage temperature: -40 - 85°C (-40 - 185°F)

• Operating humidity: 5 - 95% RH, non-condensing

• Storage humidity: 5 - 95% RH, non-condensing

• Recommended AWG for terminal block: 12 - 18

  Package Contents

• Industrial Gigabit PoE++ Splitter

• DIN-rail mount bracket

• Instructions

Warning

• Additional SKUs

• Alphanumeric Model#: IPIK-90G
• EAN: 0766623509626
• UPC: 766623509626
