Intellinet

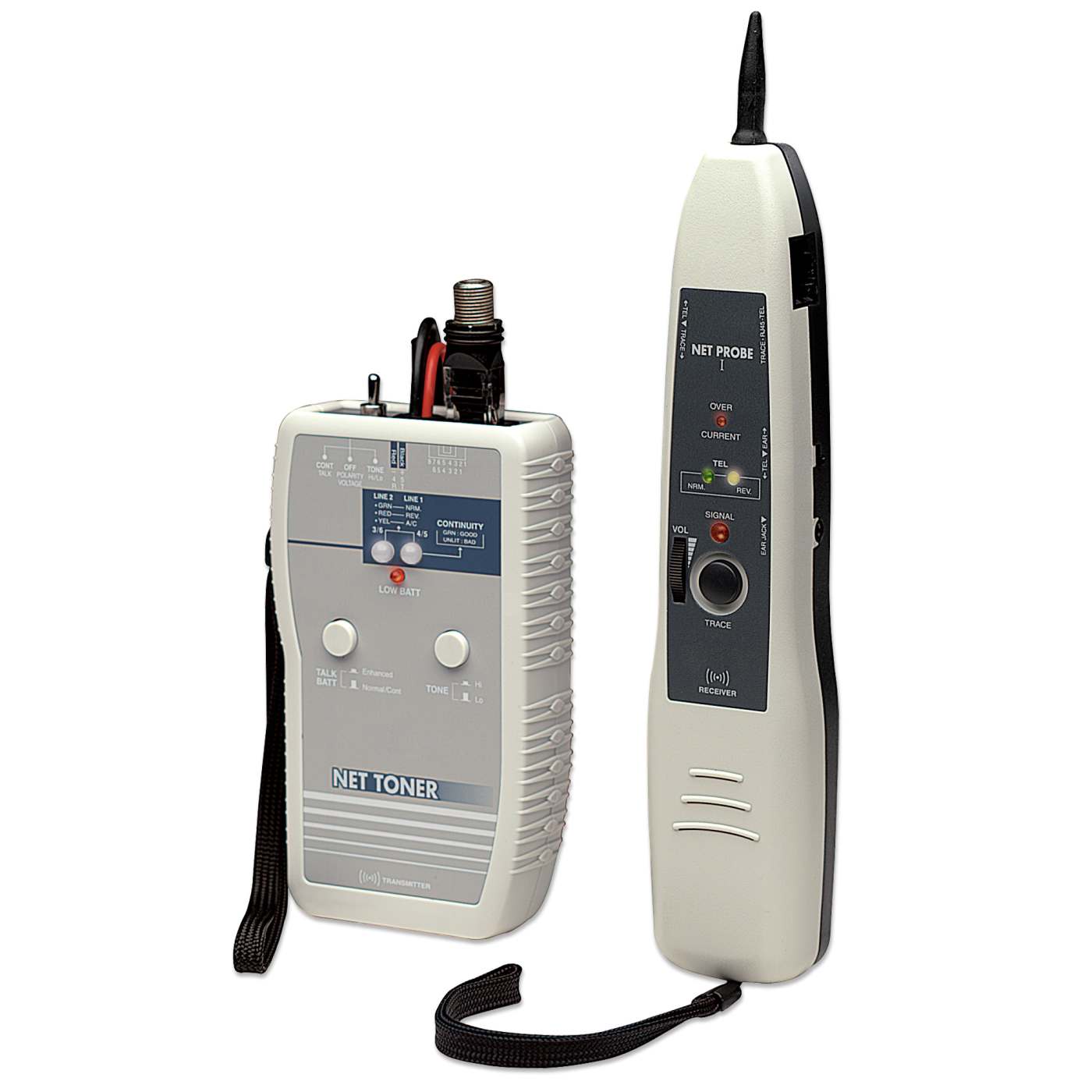

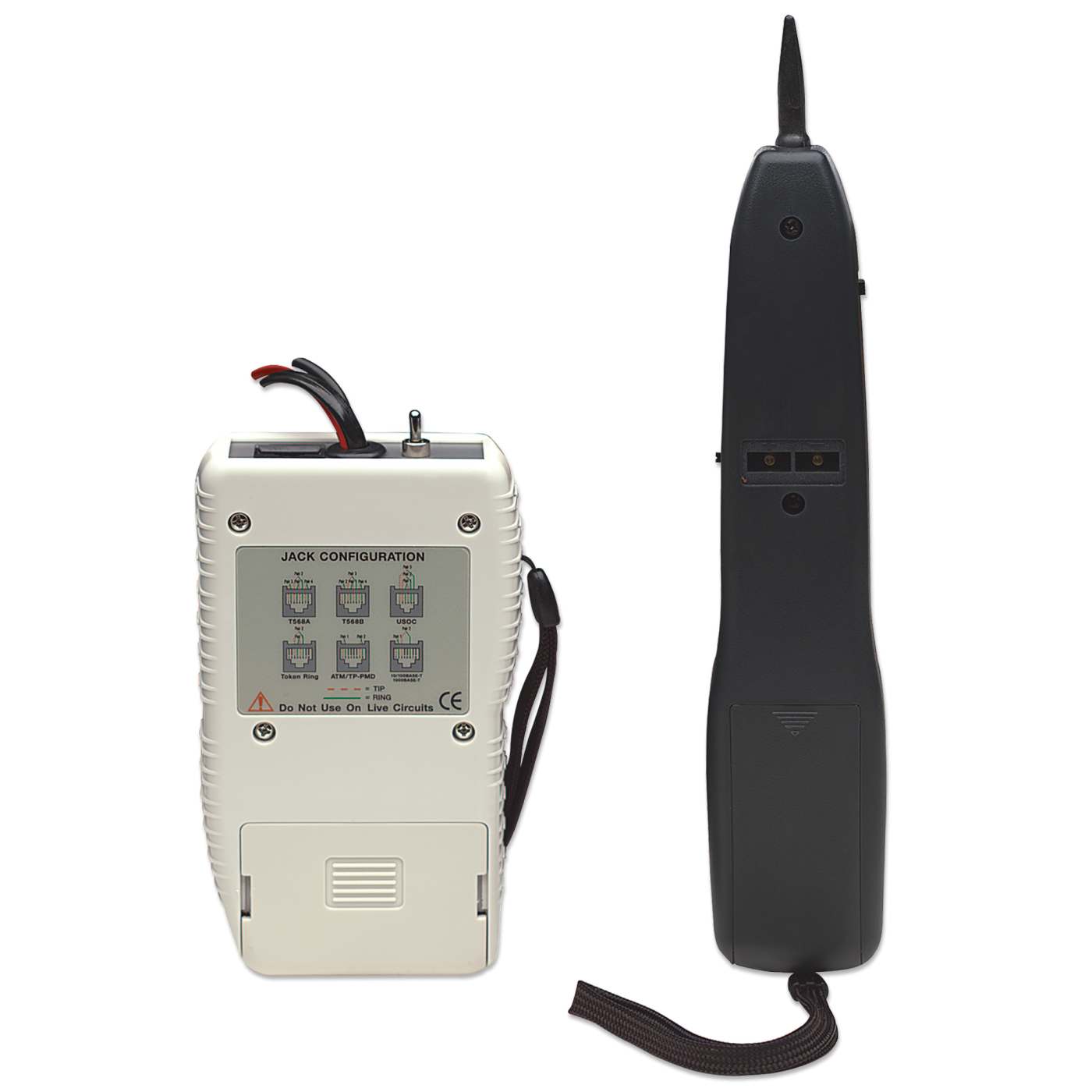

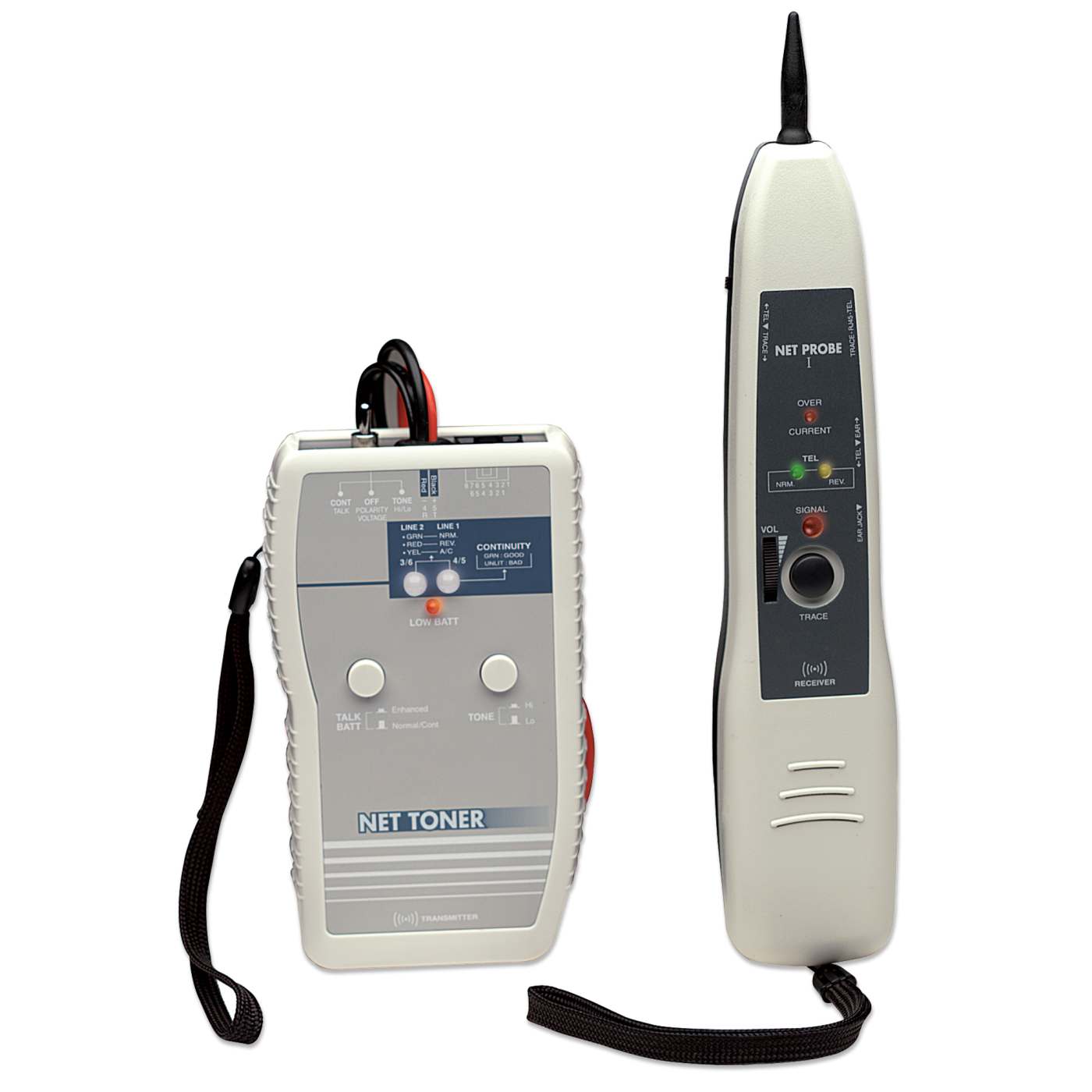

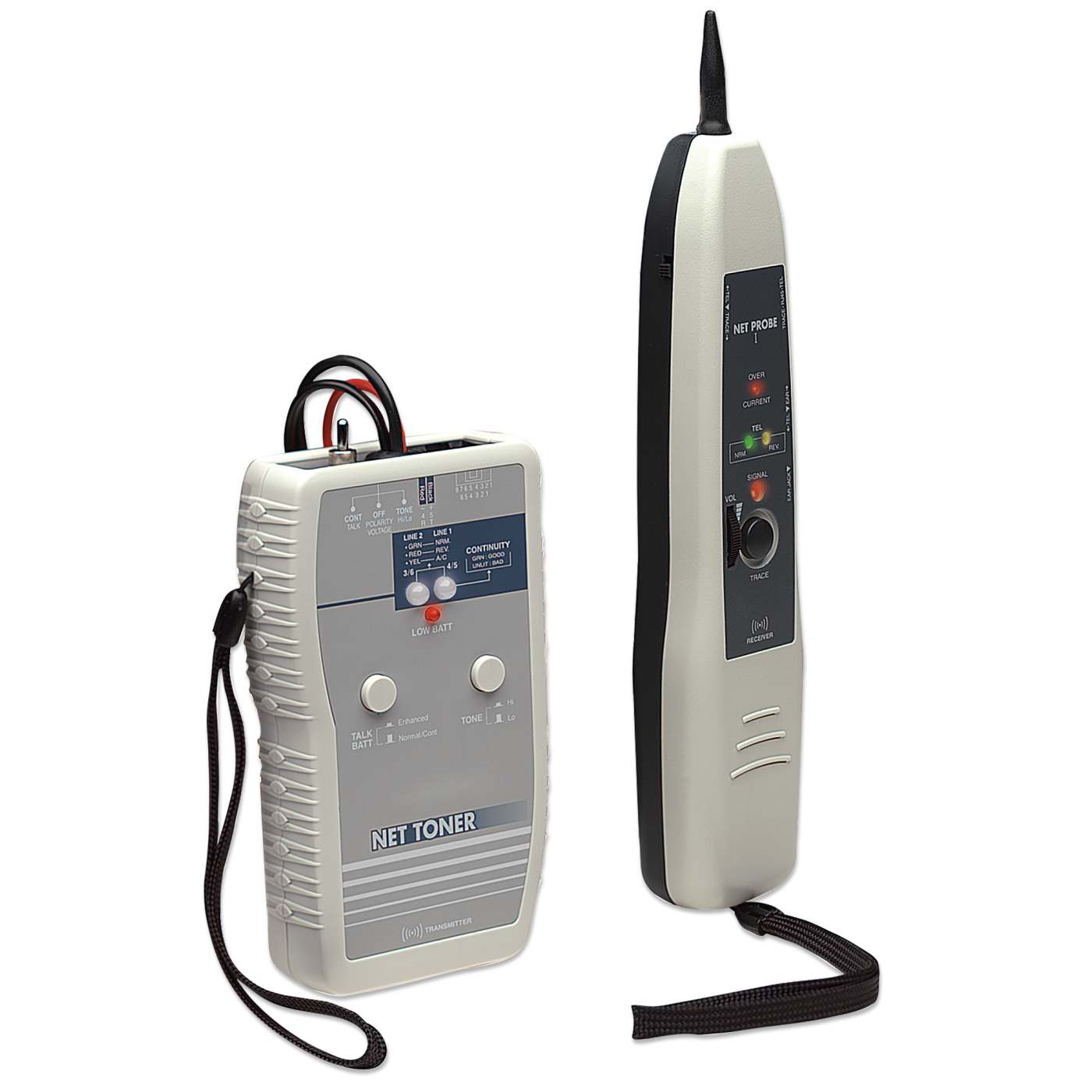

Net Toner and Probe Kit

Net Toner and Probe Kit

Tone Generator, Tests Datacom, Telecom, Security, Video, and Audio Networks

SKU: 515566 ICT-TG1

Highlights

  • Tests datacom, telecom, security, video, and audio networks
  • Two position switch for single or multi-tone signal
  • LEDs for line polarity, continuity and voltage
Regular price $79.59 USD
Regular price Sale price $79.59 USD
Sale Sold out
Shipping calculated at checkout.

  • Tests datacom, telecom, security, video, and audio networks
  • Two position switch for single or multi-tone signal
  • LEDs for line polarity, continuity and voltage
  • Enhanced talk battery mode provides power for voice communications over inactive pairs
  • Testing leads and modular cables for individual wire tests or modular jack tests
  • Replaceable plastic tip to prevent accidental shorts
  • Trace or identify wire or cables in a bundle or group

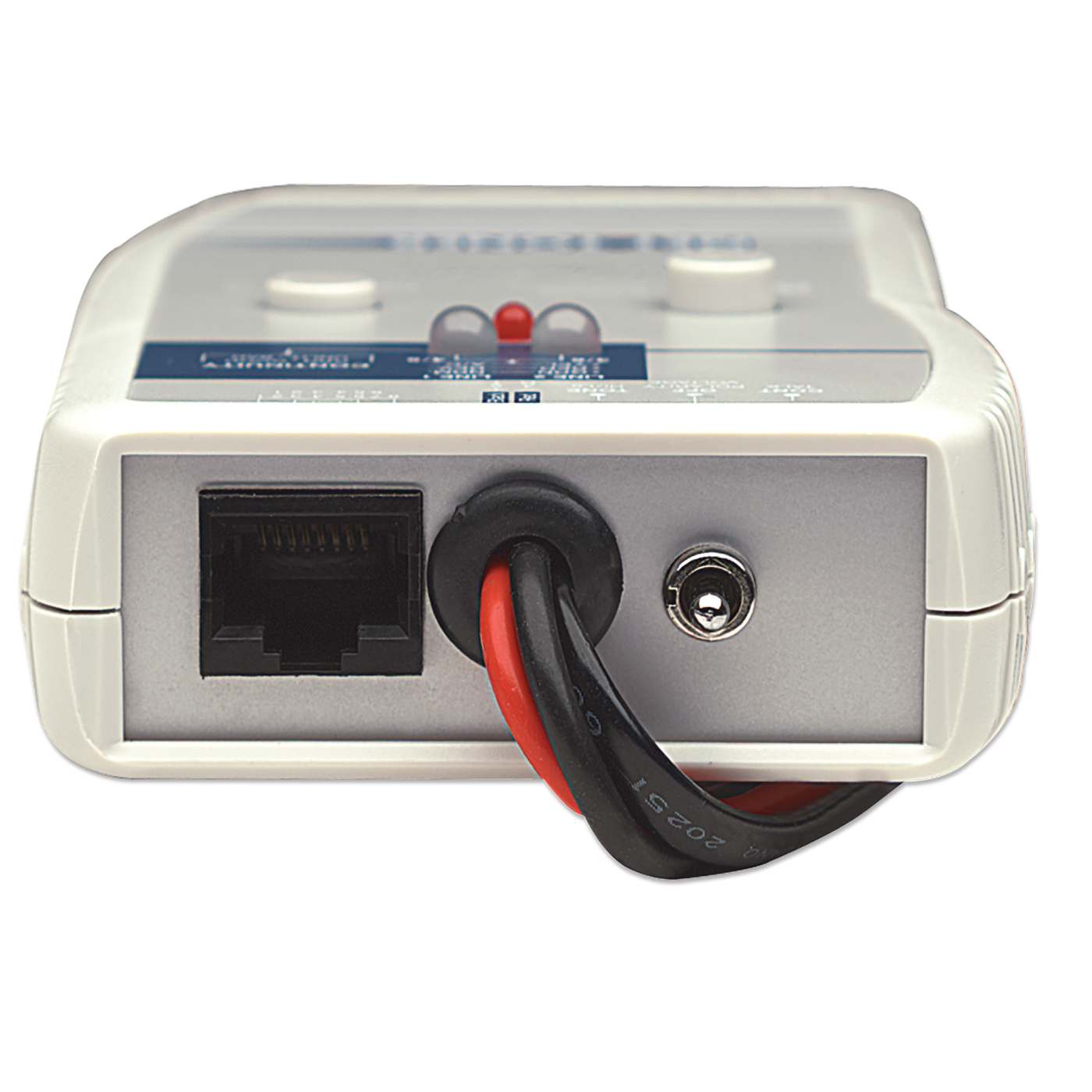

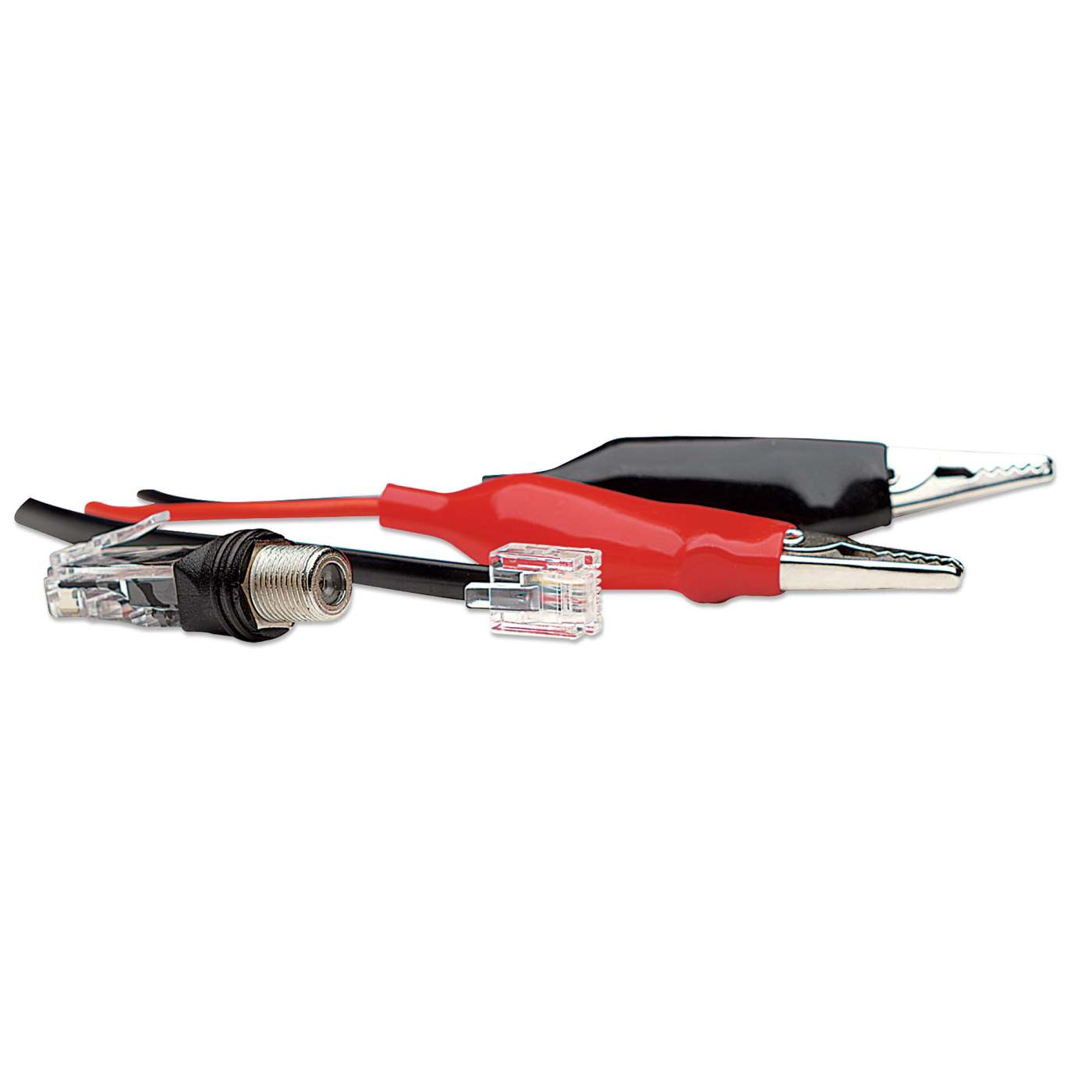

  • Alligator clips, RJ45 jack, RJ12 plug, optional F-connector
  • Three-year warranty
    Net Toner
  • Toner Frequency: High alternating 500-781 Hz ; Low alternating 446-657 Hz
  • Talk Battery: 9V into a 600 ohms circuit
  • Voltage protection: 50 VDC or 24 VAC

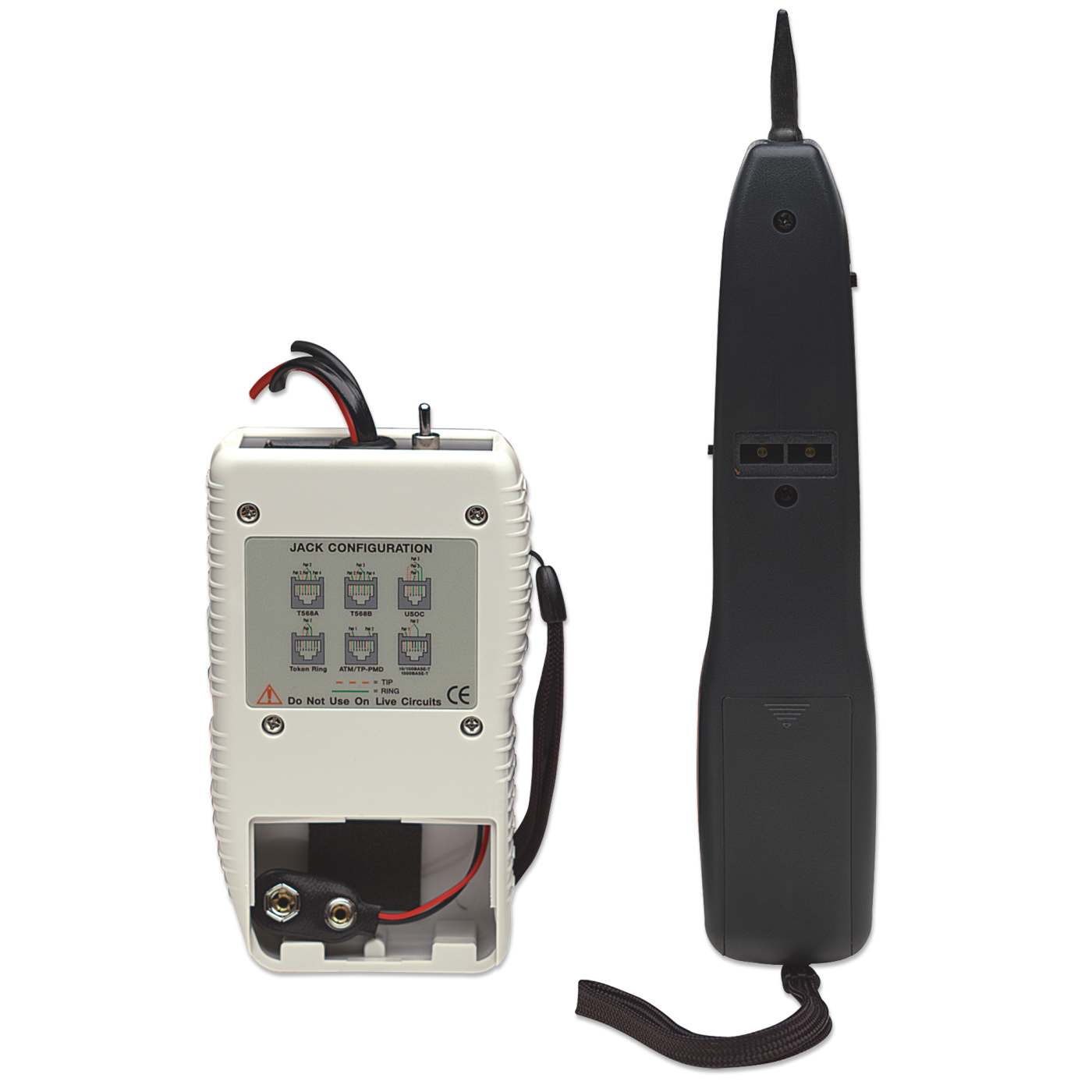

  • Battery: 9V DC standard or alkaline
  • CE Approved: EN 55022 Class B for ITE and EN 55024
  • Size: 125 (L) x 68 (W) x 26 (H) mm (4.9 x 2.7 x 1.2 in.)
  • Weight: 120g (.37 lb)

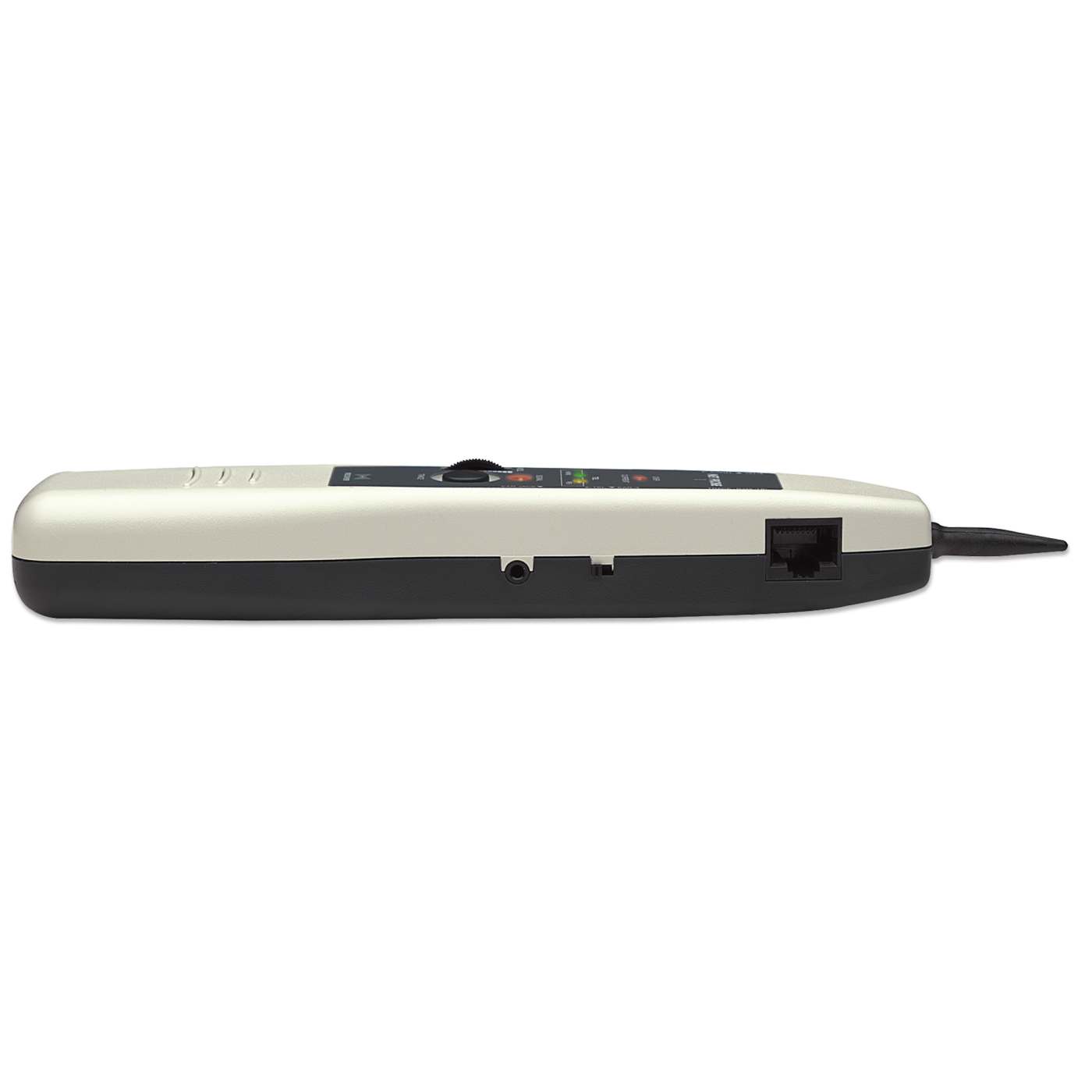

    Net Probe
  • Gain: 30 db
  • Tip resistance: 30 ohms (Plastic tip)
  • Battery: 9V DC standard or alkaline
  • CE Approved: EN 55022 Class B for ITE and EN 55024
  • Size: 210 (L) x 40 (W) x 28 (H) mm (8.1 x 1.6 x 1 in.)
  • Weight: 140g (.30 lb)

    Environmental:
  • Operating temperature: 0 – 40°C (32 – 104°F)

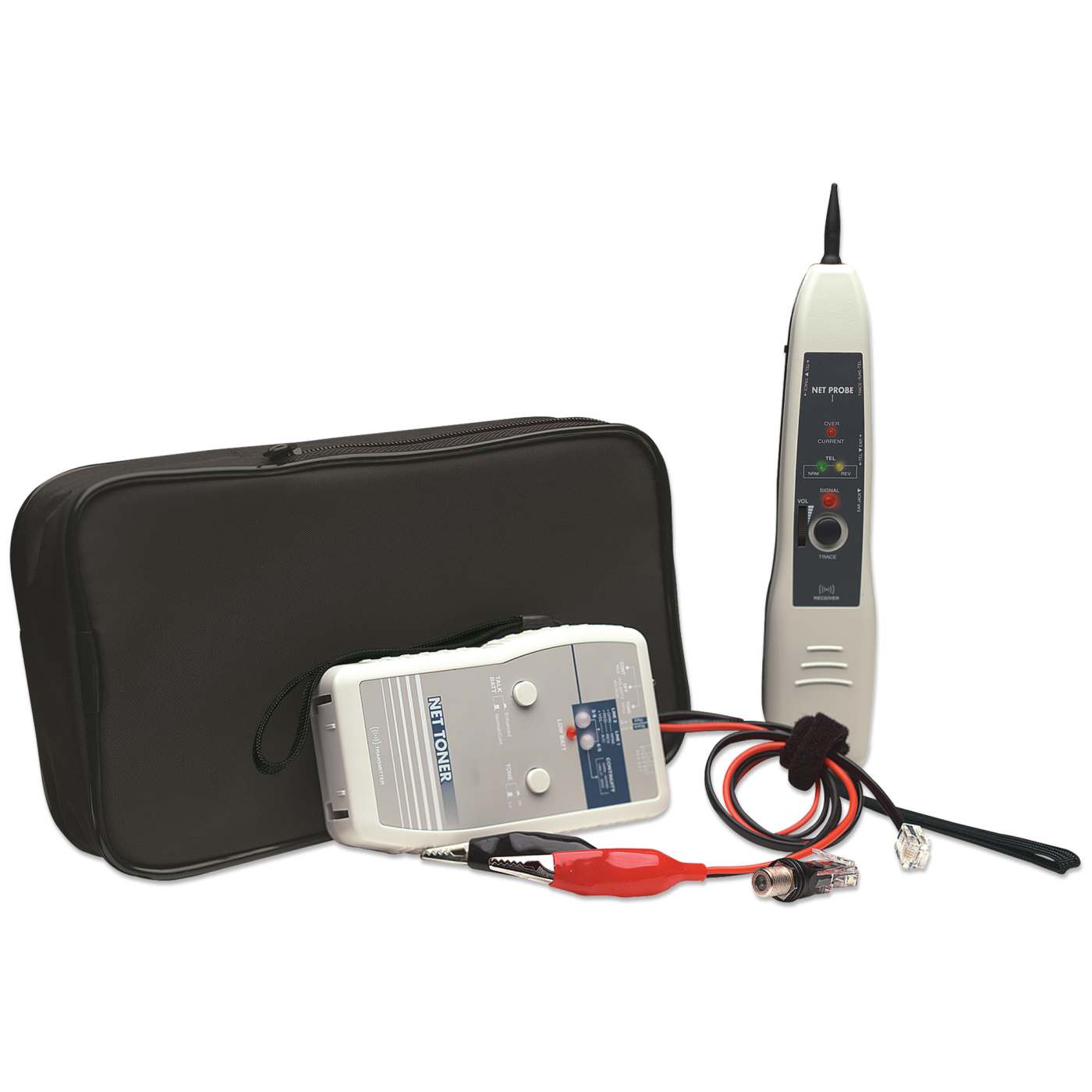

    Package Contents
  • Net Probe
  • Net Toner w/ Alligator clips and RJ12 connector
  • Female F-connector to RJ45 adapter
  • Carrying pouch
  • User Manual

California Proposition 65 Warning Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Additional SKUs

    • Alphanumeric Model#: ICT-TG1
    • EAN: 0766623515566
    • UPC: 766623515566

  • Physical Specifications

    • Weight: 0.48 kg
  • Datasheet


  • Manual

    • User Manual     » Download

    • Instrukcja ObsÅ‚ugi     » Download
