7-Port USB 3.0 Type-C / Type-A Combo Hub 3+4

7-Port USB-C / USB-A Hub with Combo Plug: More Ways to Connect Your USB Devices to Your Laptop

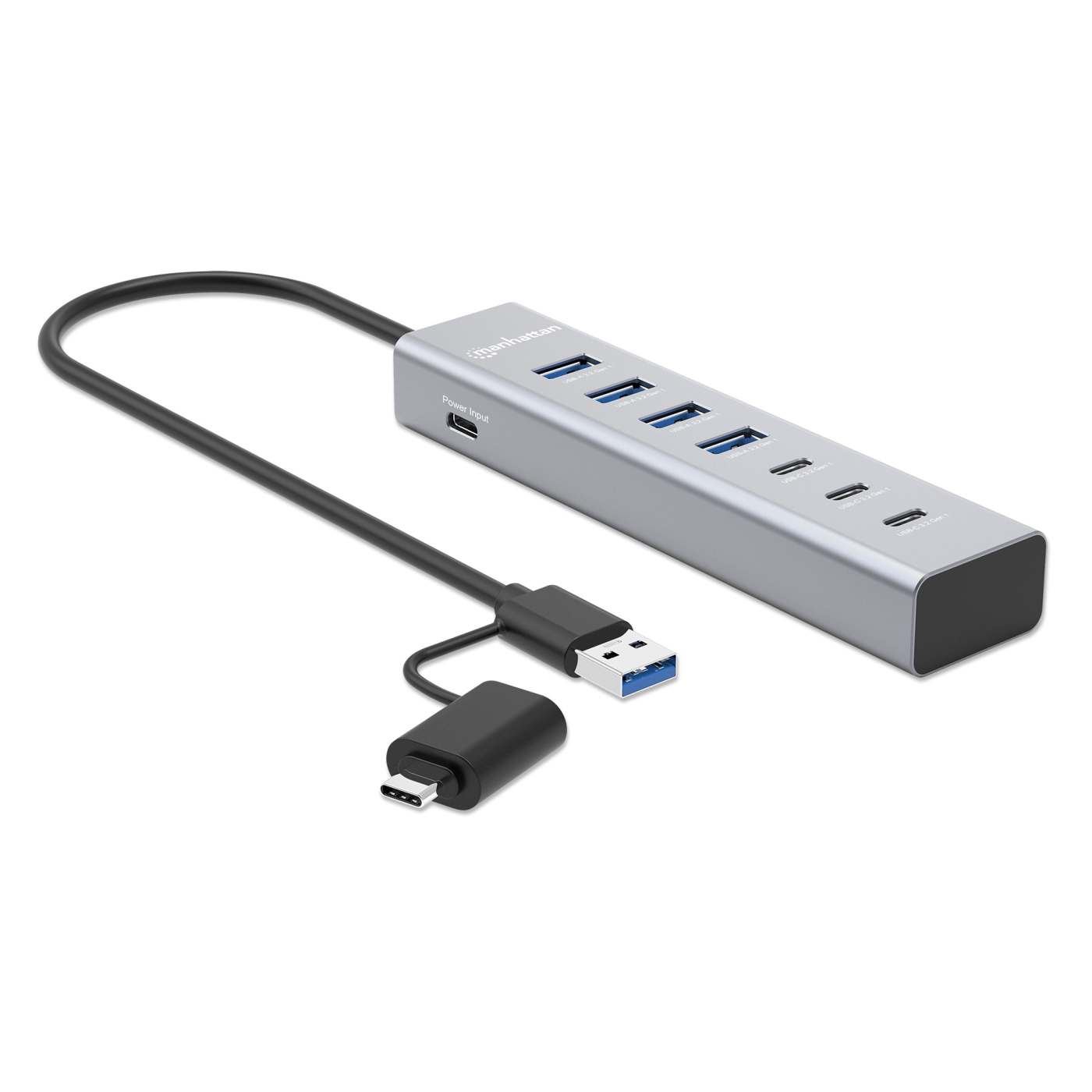

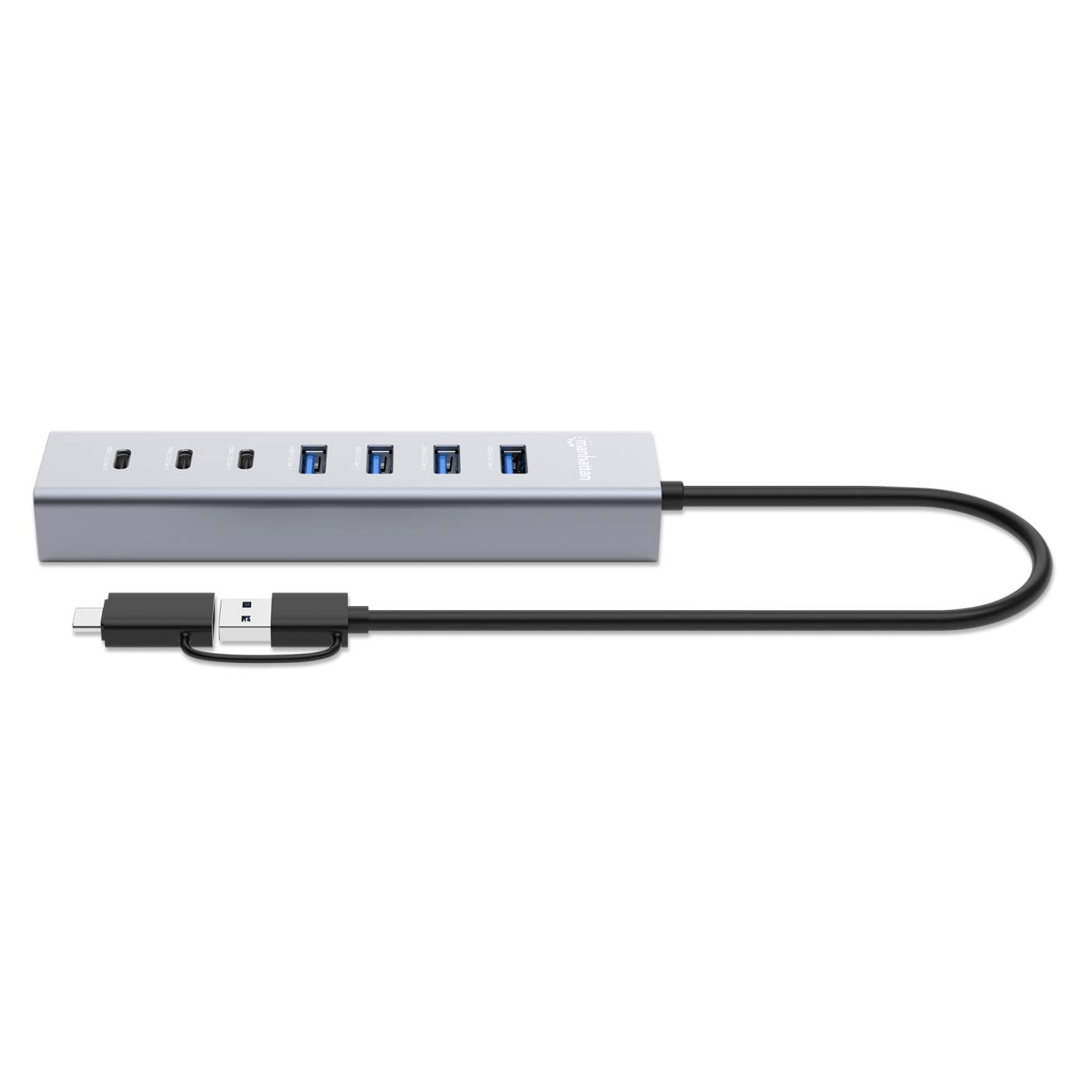

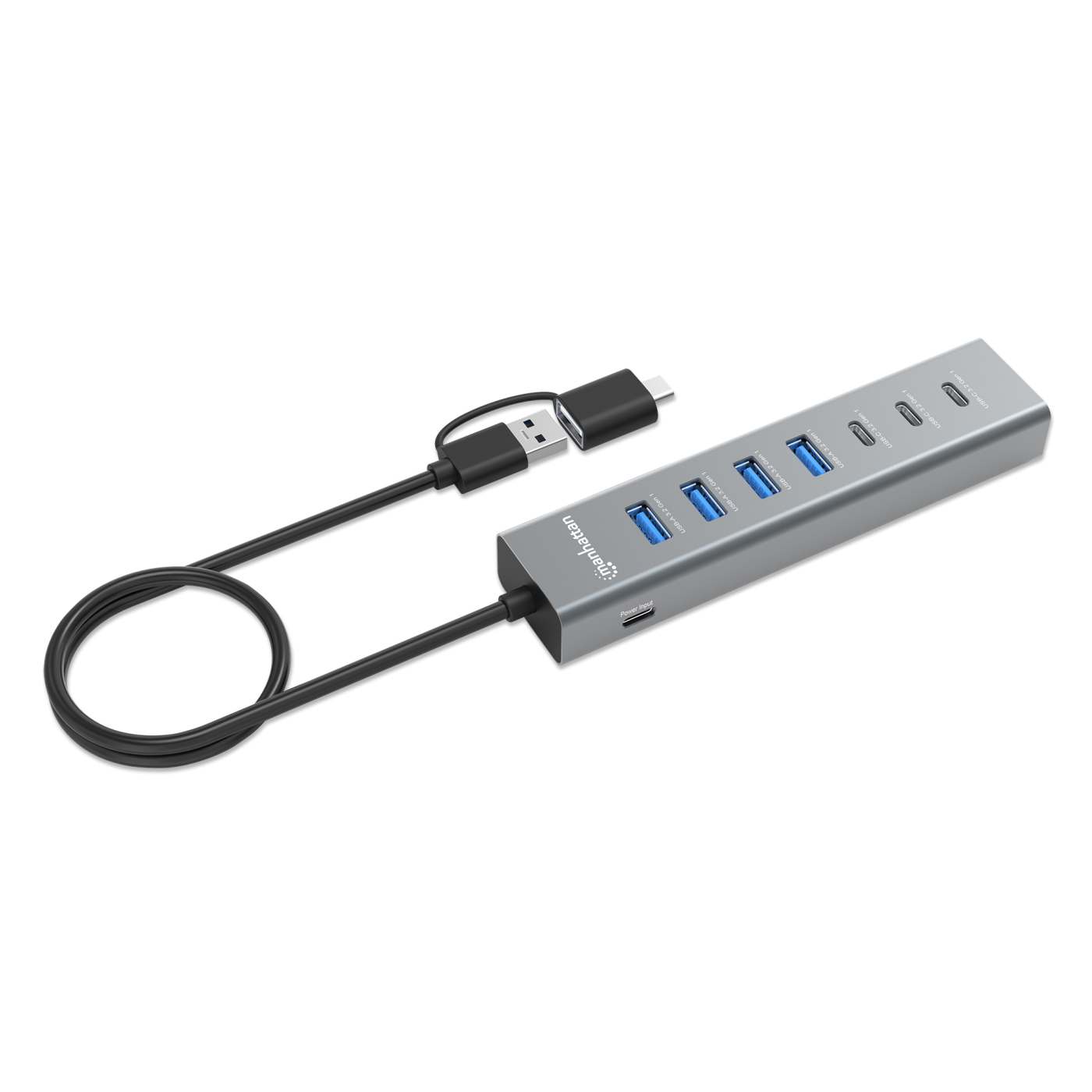

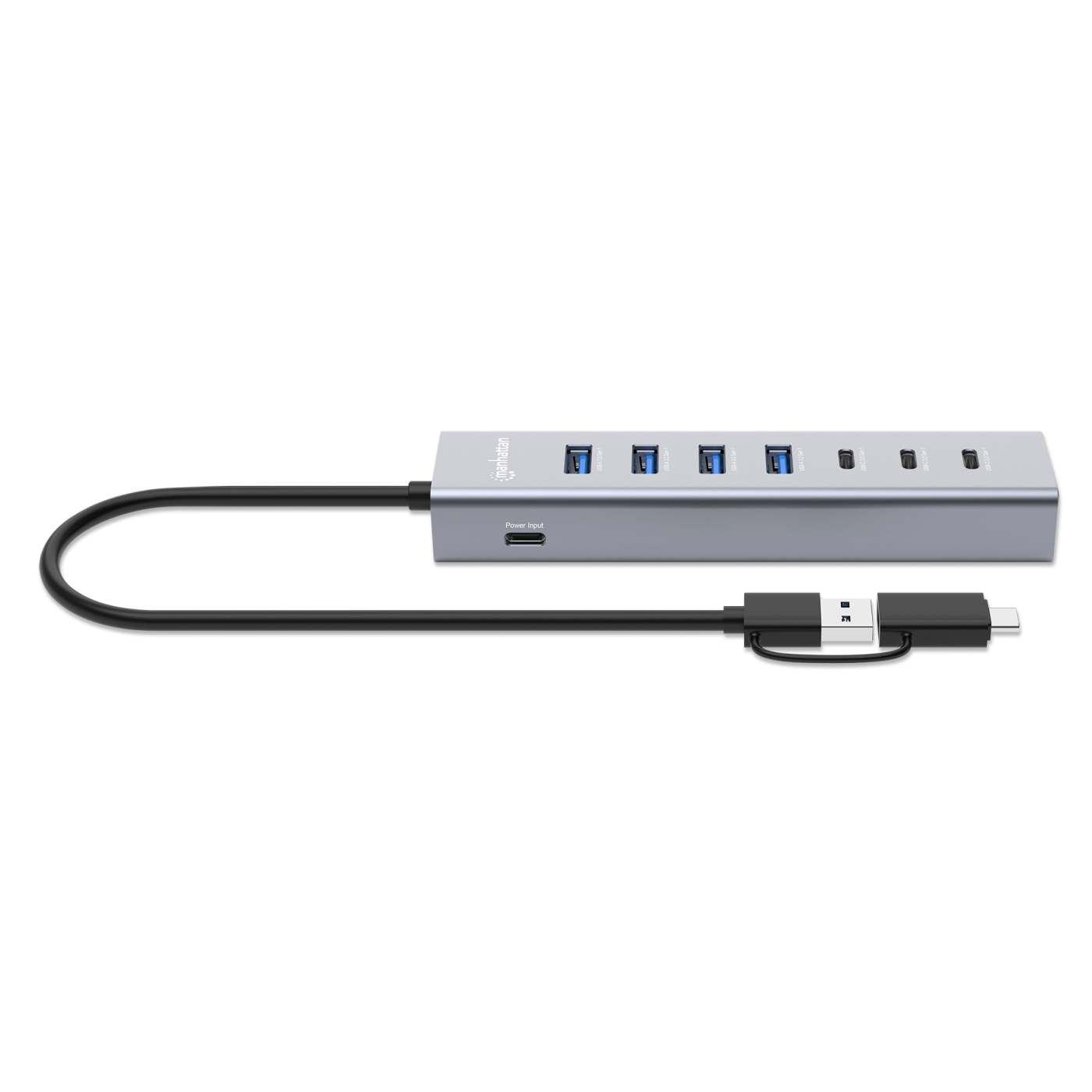

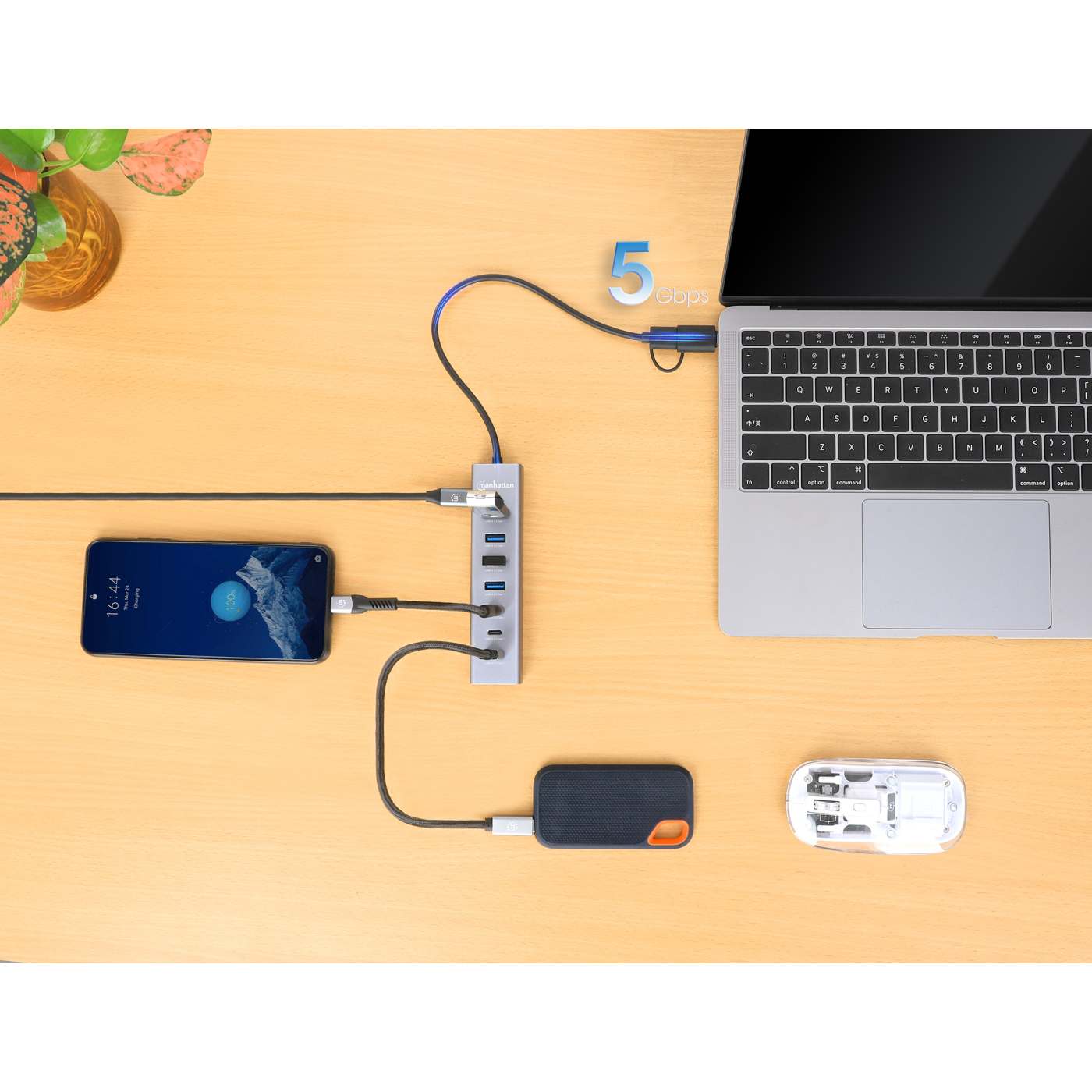

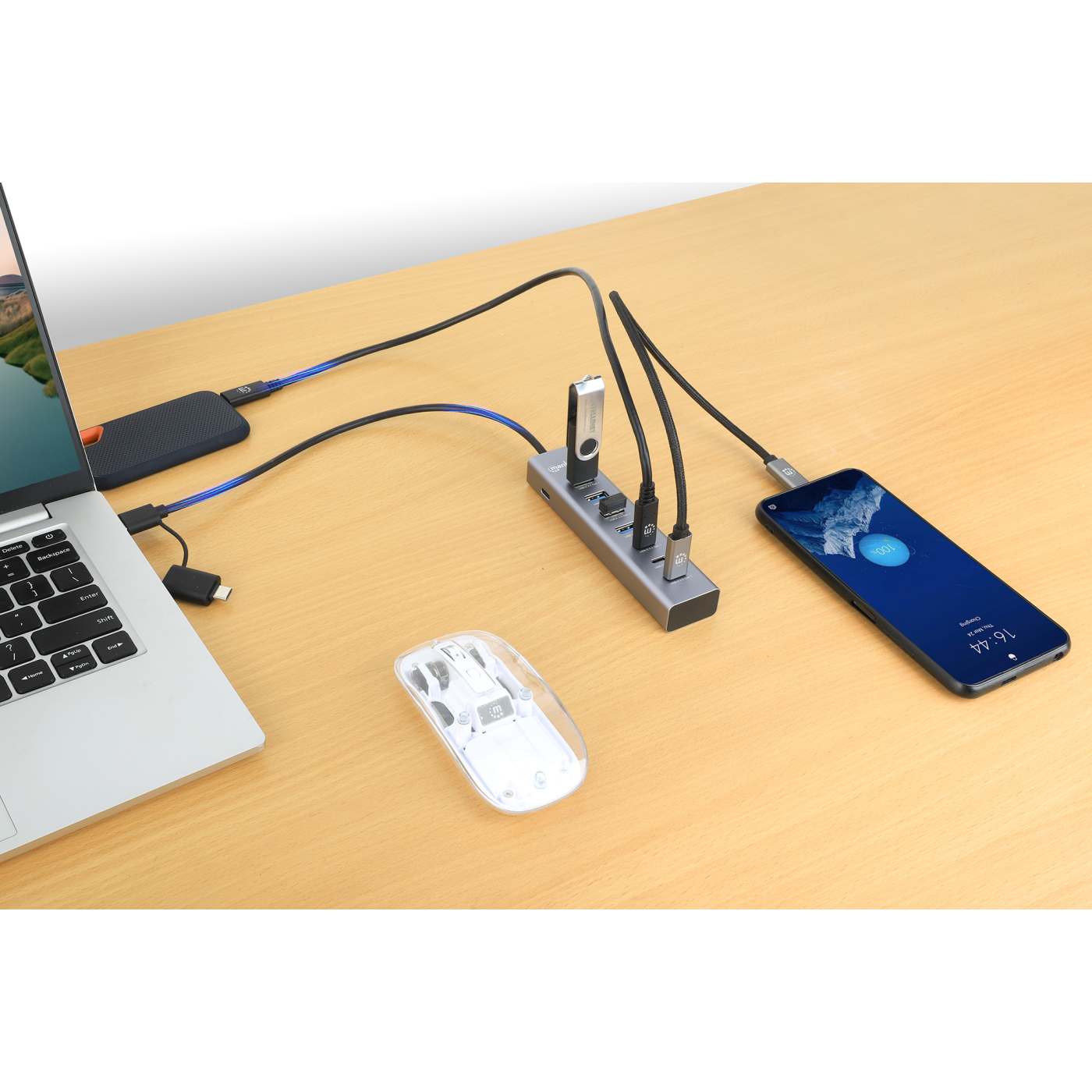

The Manhattan 7-Port USB 3.0 Type-C / Type-A Combo Hub 3+4 expands one of your device's USB ports into four USB-A ports and three USB-C ports, so you can easily connect a keyboard, mouse, flash drive or phone. Devices that support the USB 3.2 Gen 1 spec (formerly known as USB 3.0) can reach transfer speeds up to 5 Gbps for external storage, printing and more. The Hub's SuperSpeed ports are backward compatible with USB versions 2.0 or even 1.1. You can also charge your phone or tablet since the Hub supplies up to 7.5 W of power.

Versatile 2-in-1 USB-A and USB-C connection for many operating systems

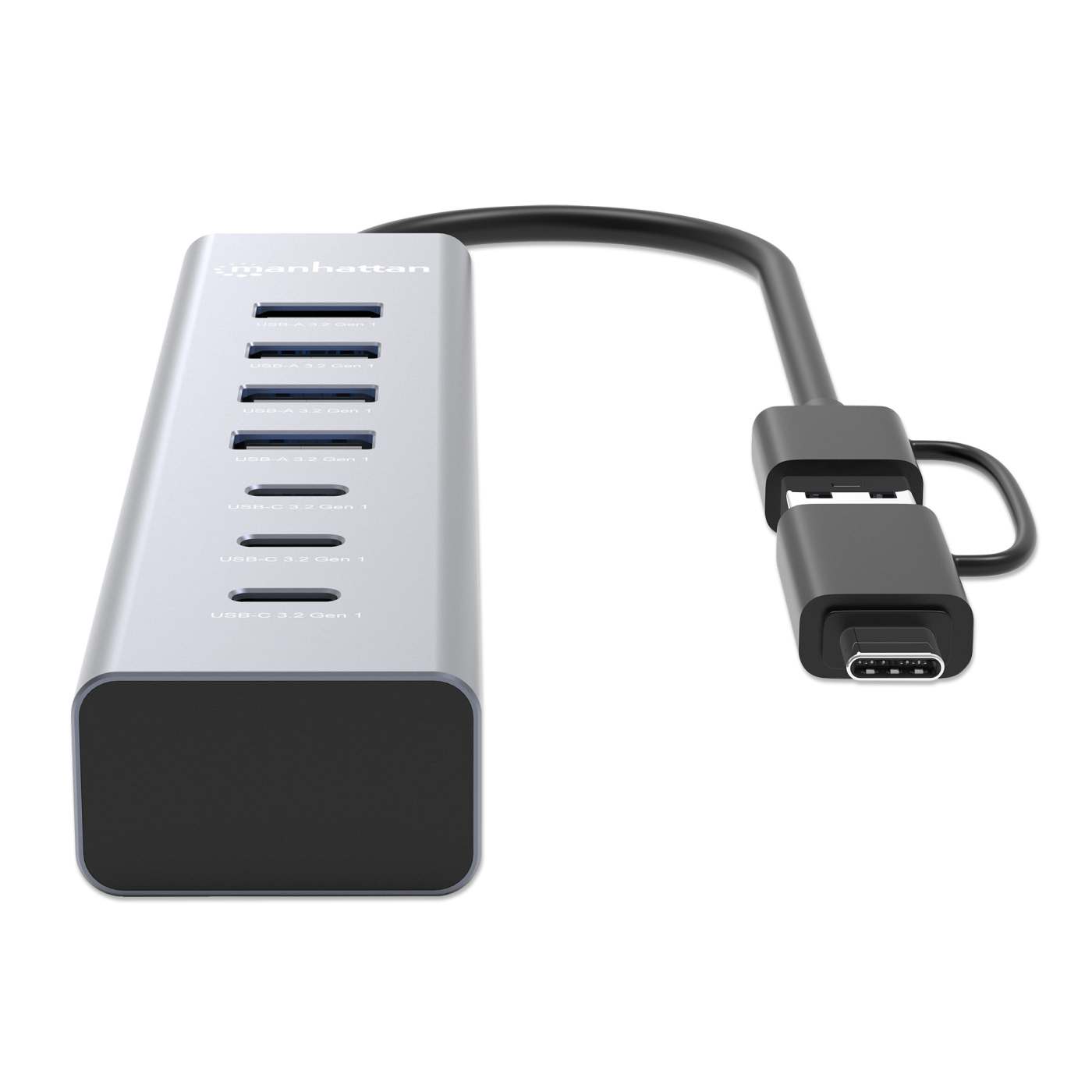

This hub has a built-in USB-C cable with an attached USB-A adapter plug for enhanced connectivity to more devices. Thanks to this versatile combination, you can connect it to a maximum variety of USB host devices. Pick the connector that works with your PC, laptop, tablet, MacBook®, Chromebook™ and Surface®, and plug right in.

Sleek aluminum housing and bus power for connectivity you can take with you

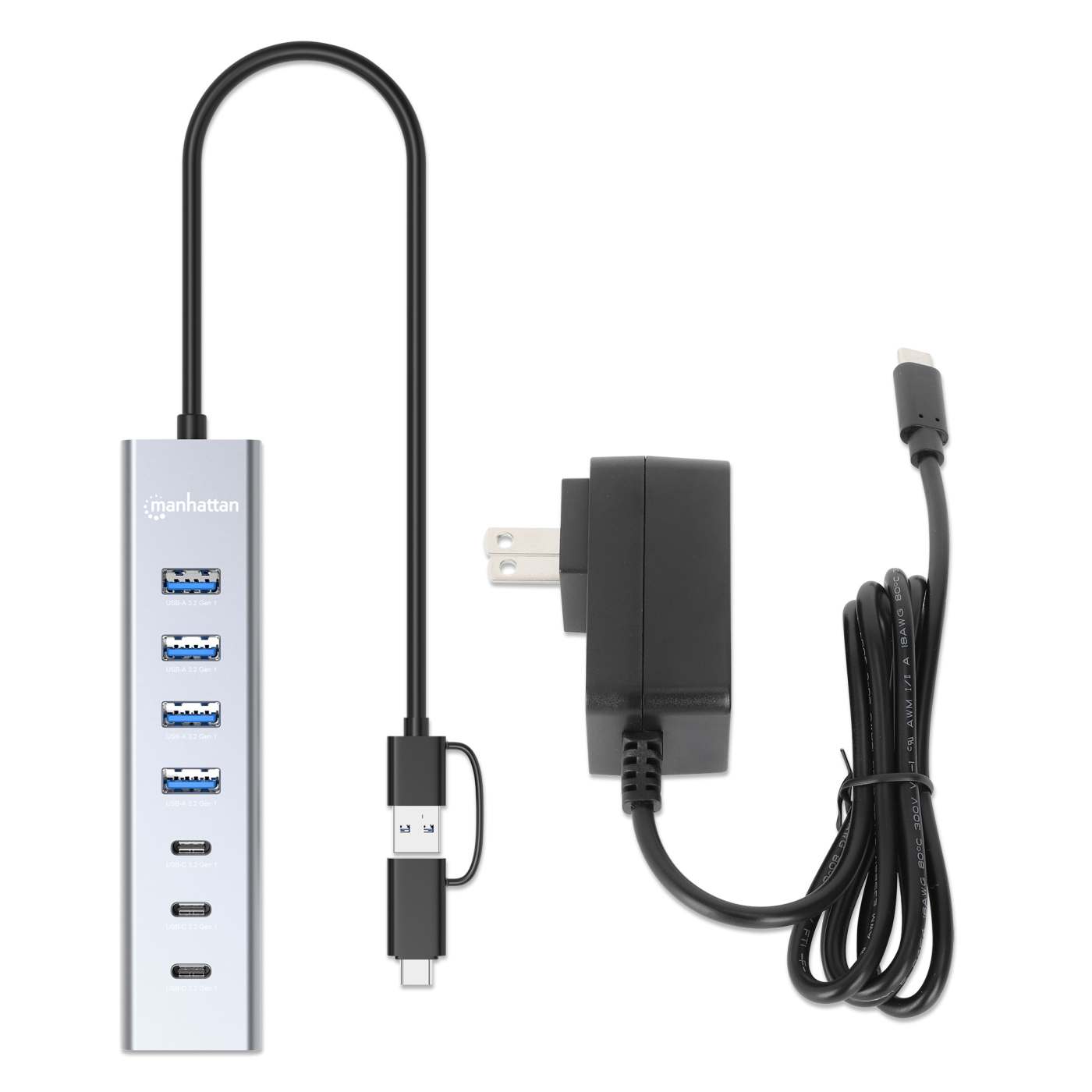

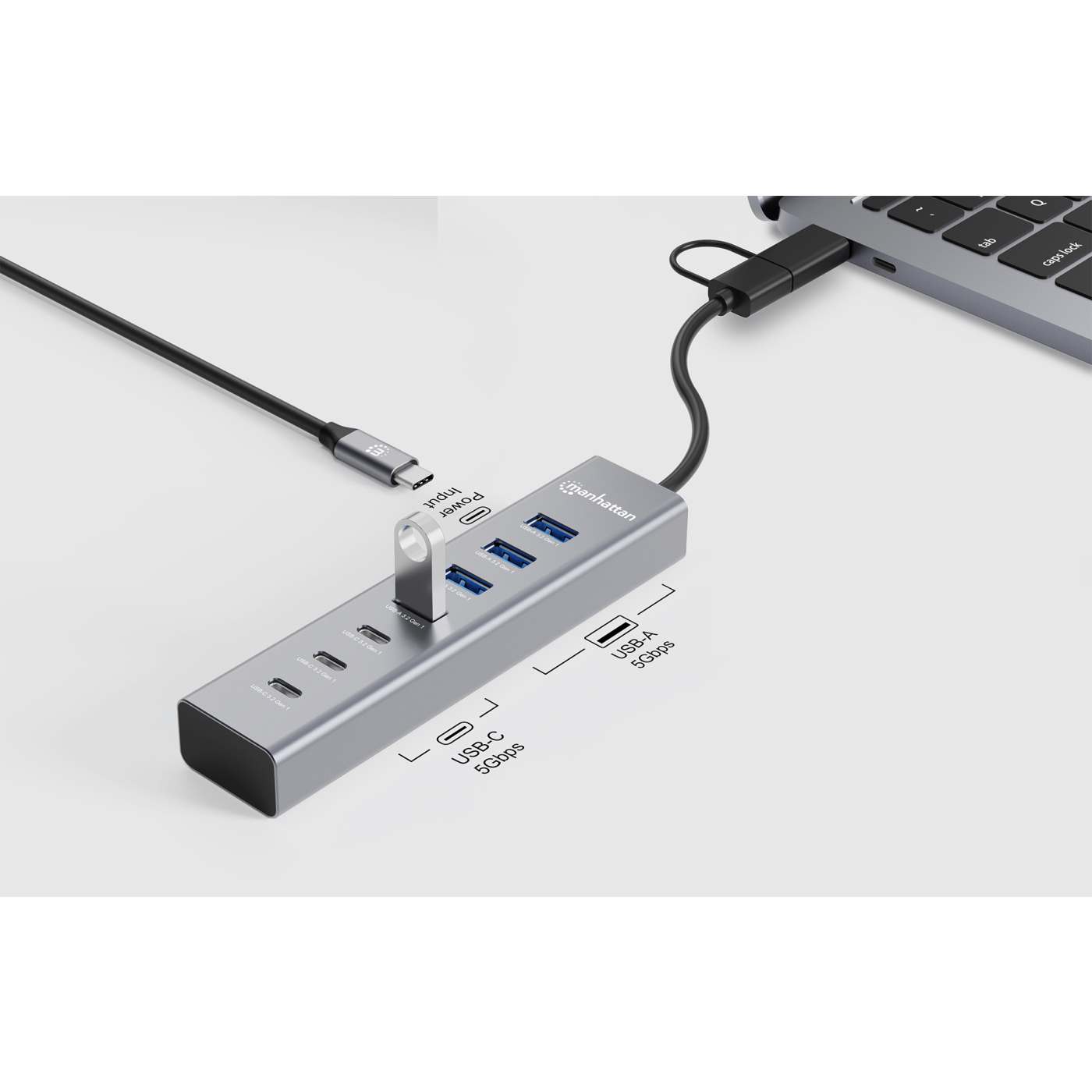

The USB hub's durable case, compact size and bus power mean greater portability for you when you have to pack up and go. You don't have to worry about carrying an additional power supply, which makes the hub an ideal travel companion. Simply unplug it from your upstream device, disconnect your peripherals and put what you need in your laptop bag to be on your way. Alternatively, if you find that you need more power for your devices, the hub includes a USB-C input to connect a 20 W power adapter (included).

Universal compatibility for easy installation

This universal USB 3.0 hub will work with a wide range of computers because it requires no additional software or drivers. It installs automatically when you connect it to your laptop or desktop, so you can be up and running quickly. It also works with a range of operating systems such as Windows®, macOS®, Linux and Chrome OS, so it’s multi-platform compatible.

• Adds three USB-C and four USB-A ports to connect mice, keyboards, flash drives and more or to charge and sync mobile devices
• USB 3.2 Gen 1 (formerly USB 3.0) USB ports with SuperSpeed transfer rates up to 5 Gbps and charging up to 7.5 W (5 V / 1.5 A)
• 2-in-1 combo cable with USB-C and USB-A plugs
• Great for desktop PCs, Ultrabooks™, laptops, Chromebooks™, MacBooks®, Surface® devices and more
• Compatible with Windows®, macOS®, Linux® and Chrome OS™
• Plug-and-play installation; no configuration or drivers required
• Bus powered, external power supply optional
• Optional 5 V / 4 to 6 A USB-C jack to connect included 20 W power adapter for maximum power on all USB output ports
• Backward compatible with USB 2.0 and USB 1.1
• Supports Hot Swapping
• Built-in, sturdy 30 cm (1 ft.) cable
• Sleek aluminum housing with small footprint, great for desktop placement and travel
• Portable, compact and lightweight design that easily fits into laptop bag pockets
• Three-year warranty

Standards and Certifications

• USB 3.2 Gen 1 (USB 3.0)

• FCC

  General

• Data transfer speeds: 5 Gbps

• USB charging power output:
  - 4.5 W (5.0 V at 0.9 A) max. with bus power
  - 7.5 W (5.0 V at 1.5 A) max. with connected 20 W power adapter

• Withstanding voltage: 300.0 V DC

• Insulation resistance: 10 MΩ

• Conductive resistance: 5 Ω

  Connections

• One USB-C 24-pin, male

• One USB-A 9-pin, male

• Four USB-A 9-pin, female

• Three USB-C 24-pin, female

• One USB-C 6-pin, female (optional input power port, 5.0 V, 3.0 - 6.0 A, 20.0 W)

  Physical

• Dimensions (L x W x H): 138 x 32 x 19 mm (5.43 x 1.26 x 0.75 in.)

• Net weight: 193 g (0.43 lbs.)

• Gross weight: 250 g (0.55 lbs.)

• Cable length: 30 cm (1 ft.)

• Cable OD: 4.5 mm (0.18 in.)

• Housing: aluminum

  Operating Environment

• Operation Temperature: 0 - 50°C (32 – 122°F)

• Storage Temperature: -20 - 60°C (-4 – 140°F)

• Humidity (non-condensing): 30 - 85%

  System Requirements

• Windows XP/Vista/7/8.1/10/11, Linux, Chrome OS or macOS

  Package Contents

• 7-Port 3xUSB-C / 4xUSB-A Hub with Type-C/Type-A combo plug

• Optional power adapter, AC to USB-C, 20.0 W/4.0 A, 1 m (3 ft.) cable

• Instructions

Warning

• Additional SKUs

• EAN: 0766623181136
• UPC: 766623181136



• Physical Specifications

• Weight: 0.19 kg
• Dimensions: 138 (L) x 32 (W) x 19 (H) [mm]
