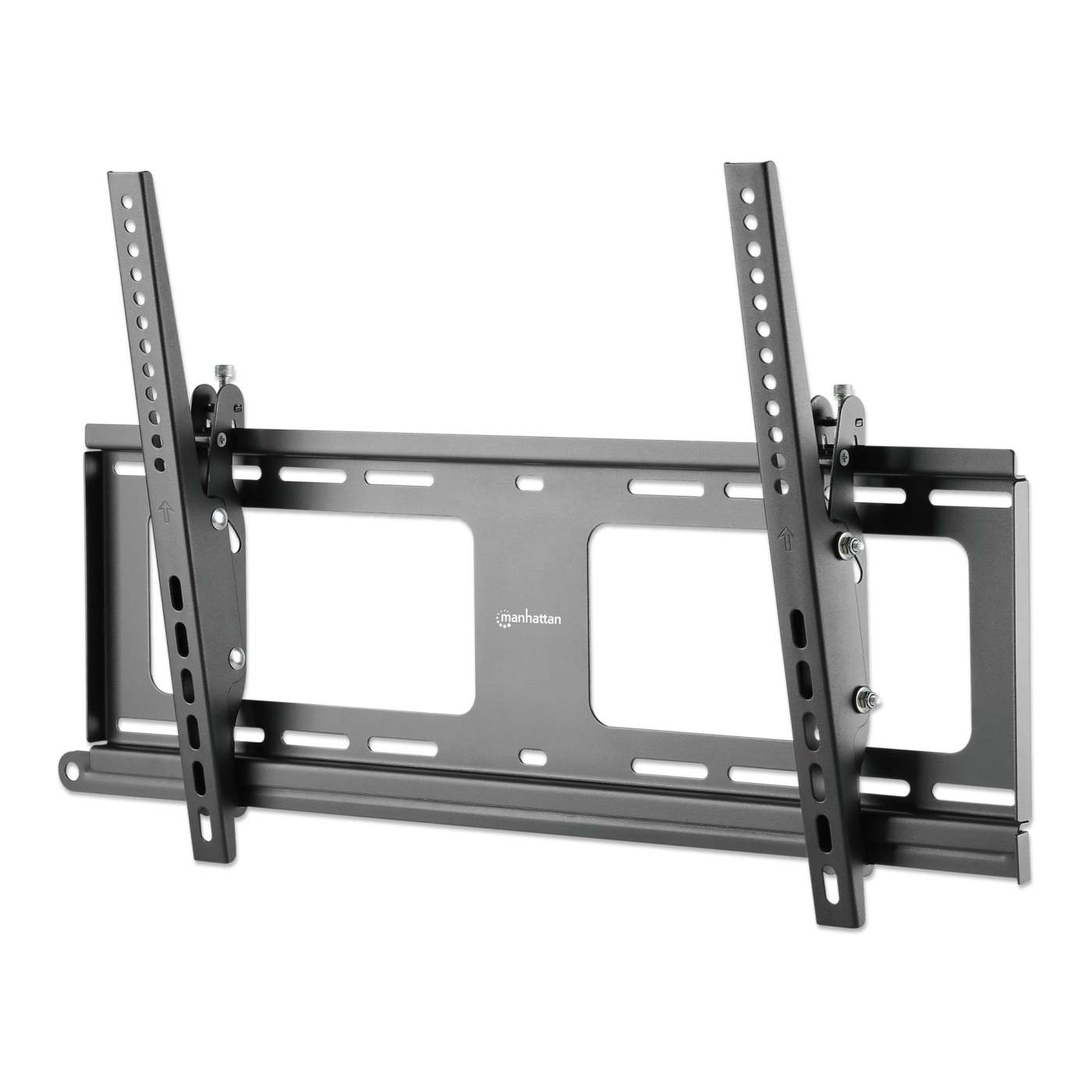

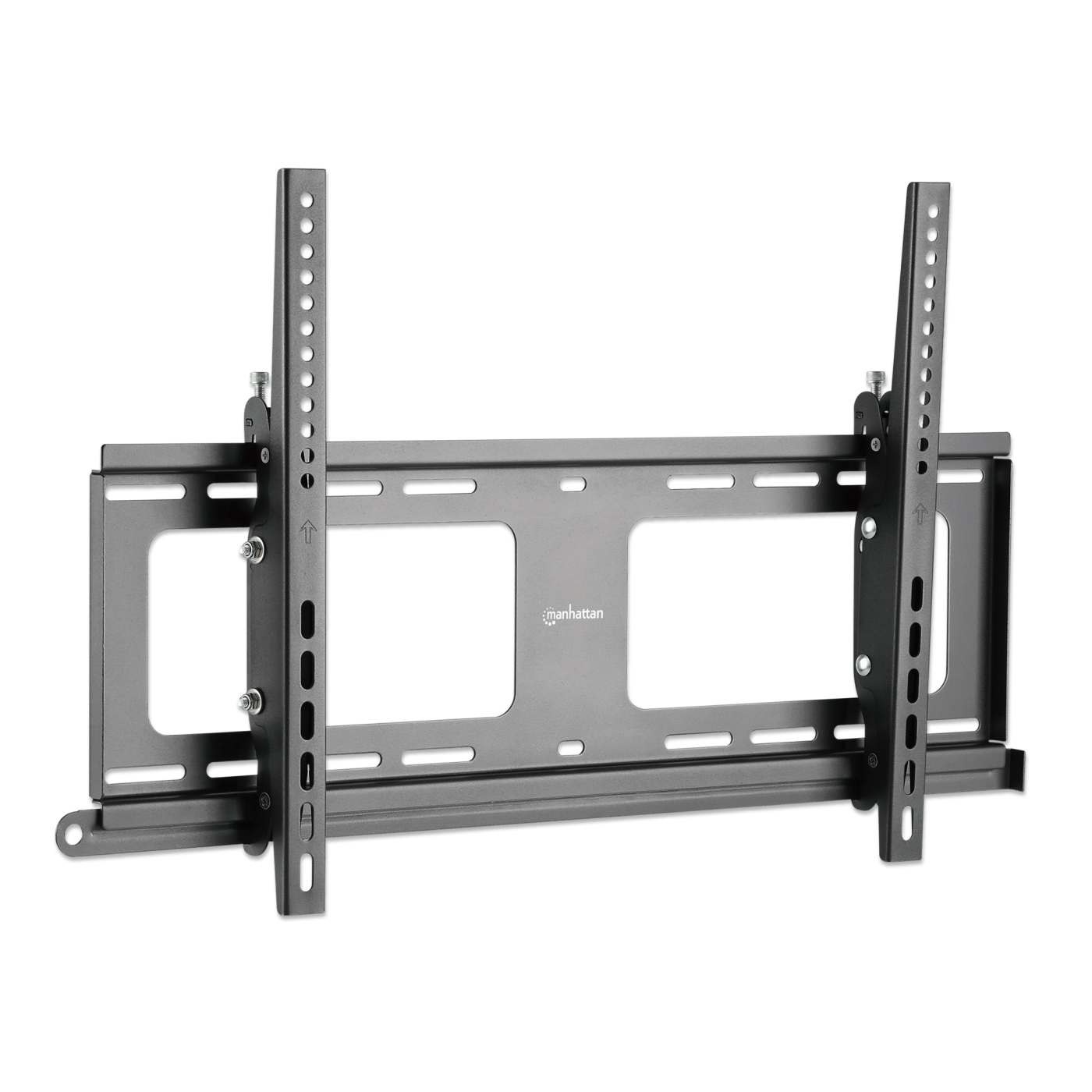

Outdoor Anti-Theft Tilting TV Wall Mount, for 37" to 86" Displays

Secure Weatherproof Outdoor TV Mount - Engineered for the Elements, Built for the Best View

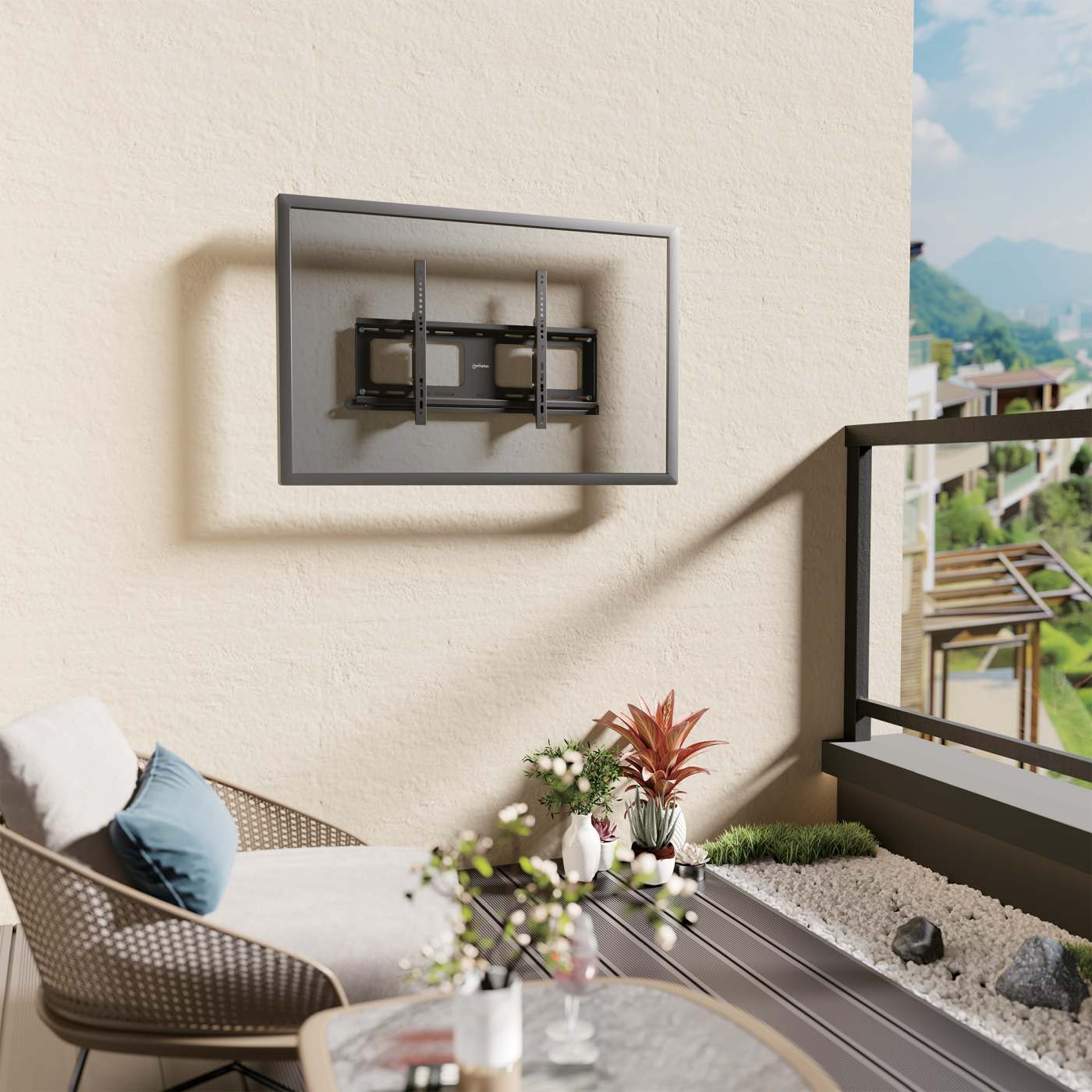

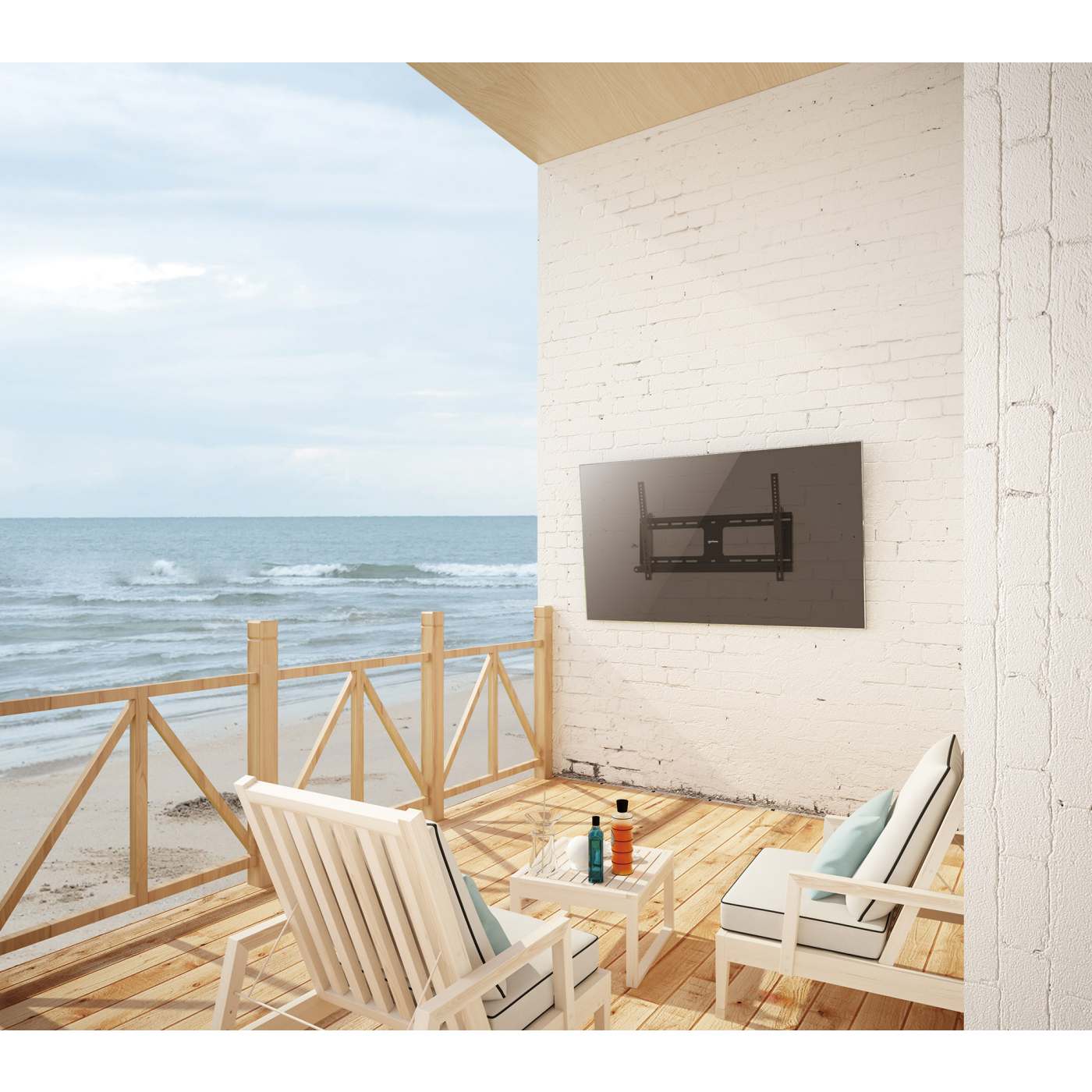

From patios to poolside, this Manhattan Outdoor TV Wall Mount lets you enjoy your favorite sports and other entertainment in the open air.

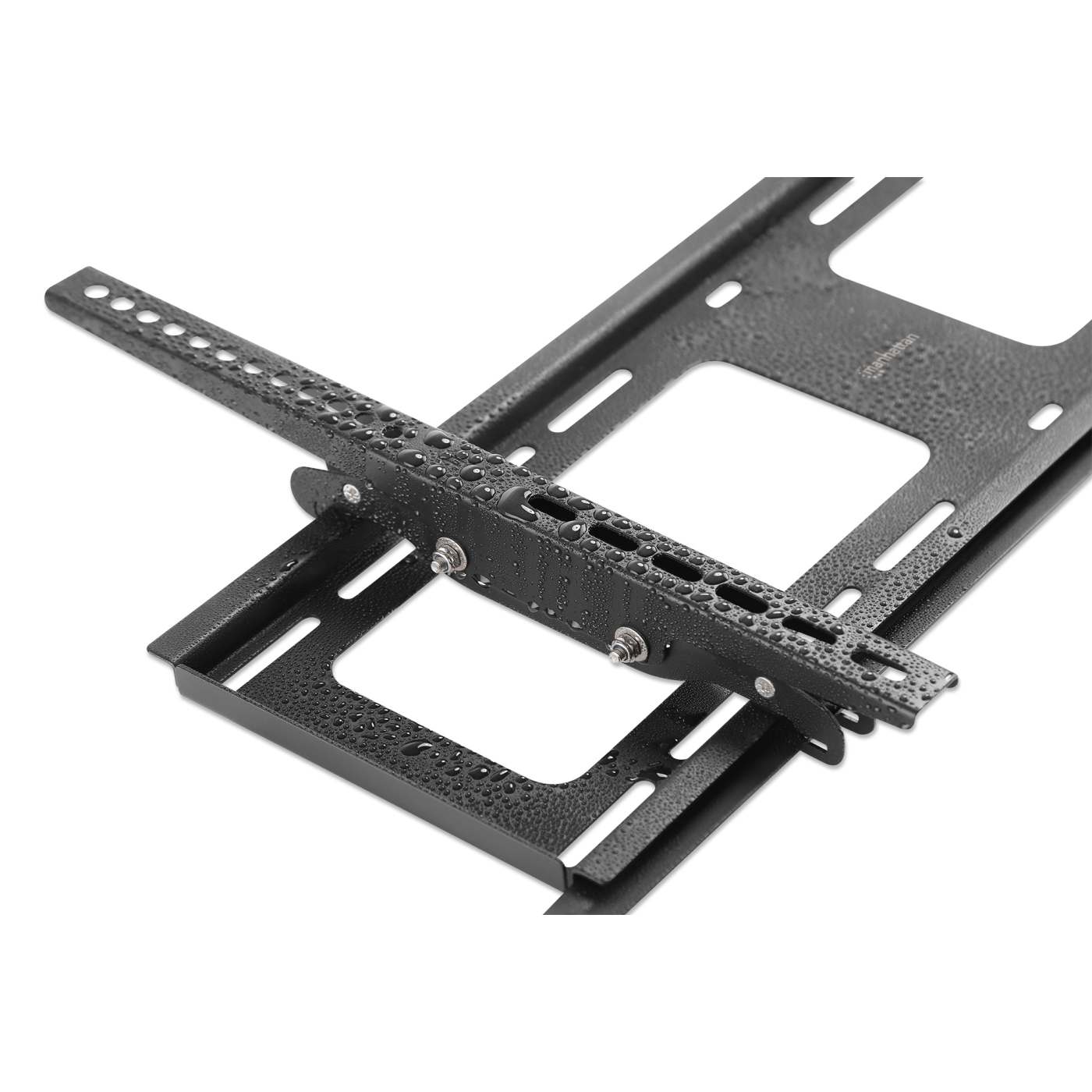

Weather-Friendly Construction

Crafted for long-lasting durability, this mount features electroplating, extended powder coating, and stainless-steel hardware to stand up to the elements. Its weatherproof design resists corrosion, rain, and humidity, making it a solid choice even in coastal environments.

Flexible Viewing Angles

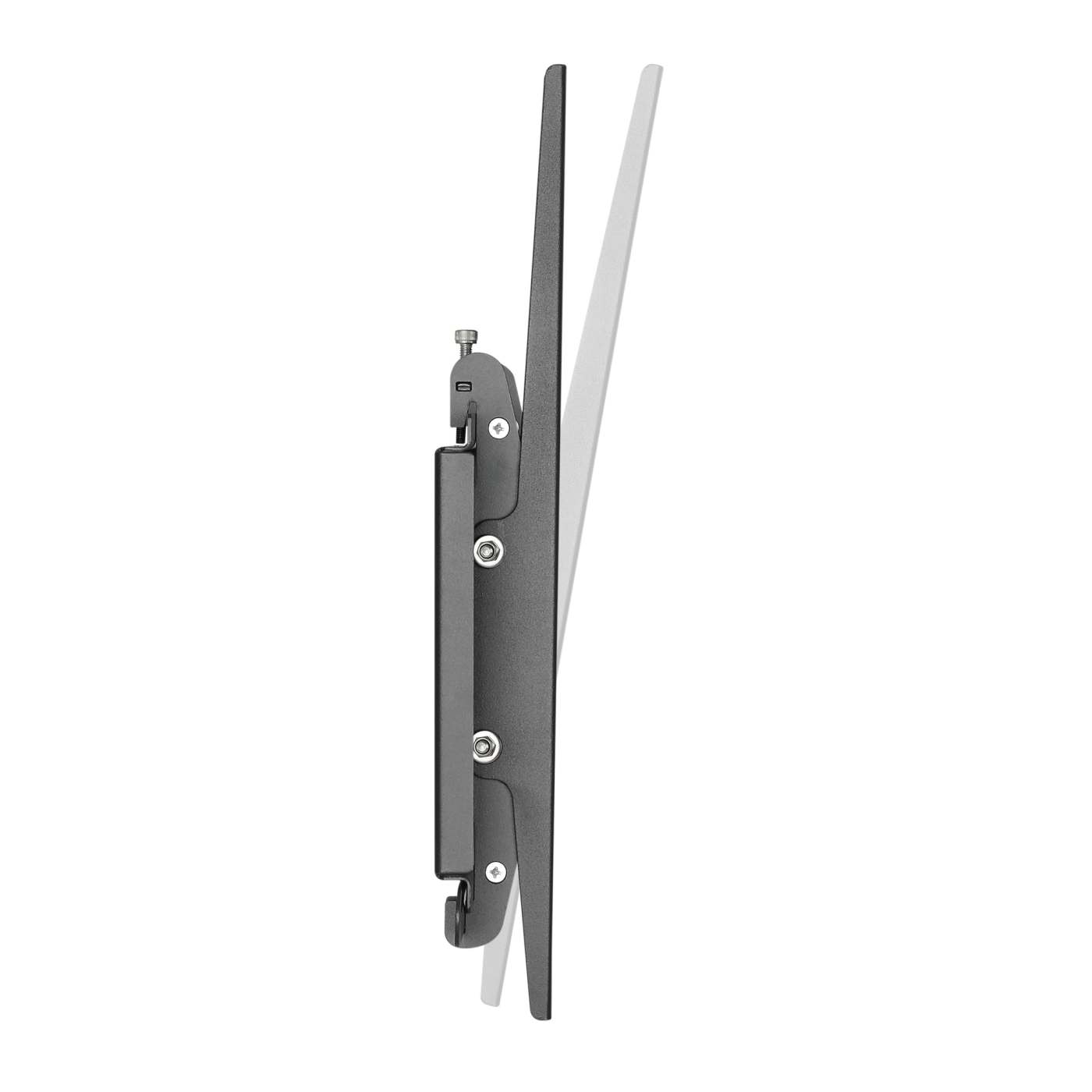

Whether you're hosting a backyard movie night or setting up a patio display, you achieve the perfect viewing angle with +5° to -10° tilt and ±5° post-installation leveling.

Strong and Safe

Designed to support one flat or curved 37" to 86" TV weighing up to 80 kg (176 lbs.), this mount is made from high-quality cold-rolled steel with metal thickness up to 2 mm.

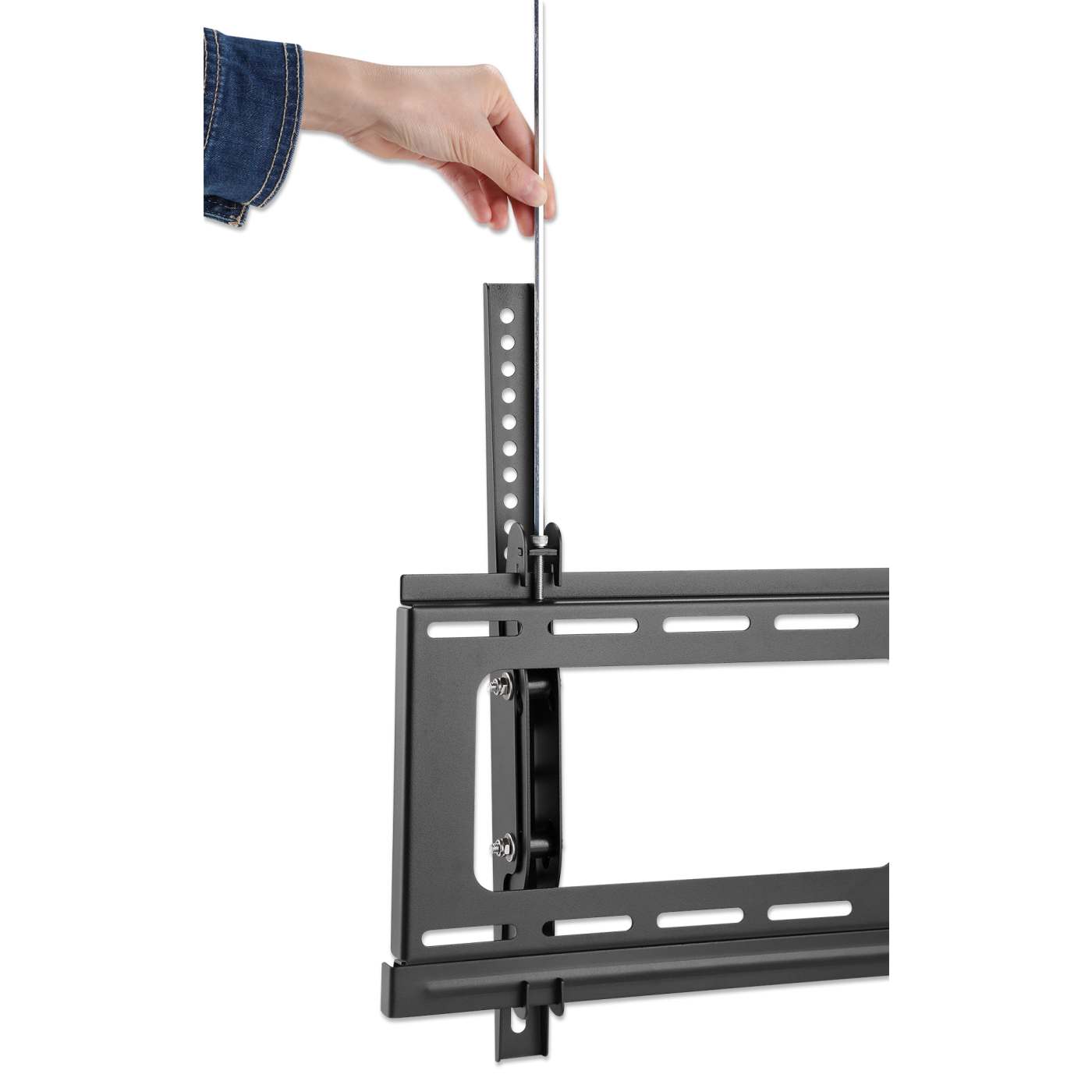

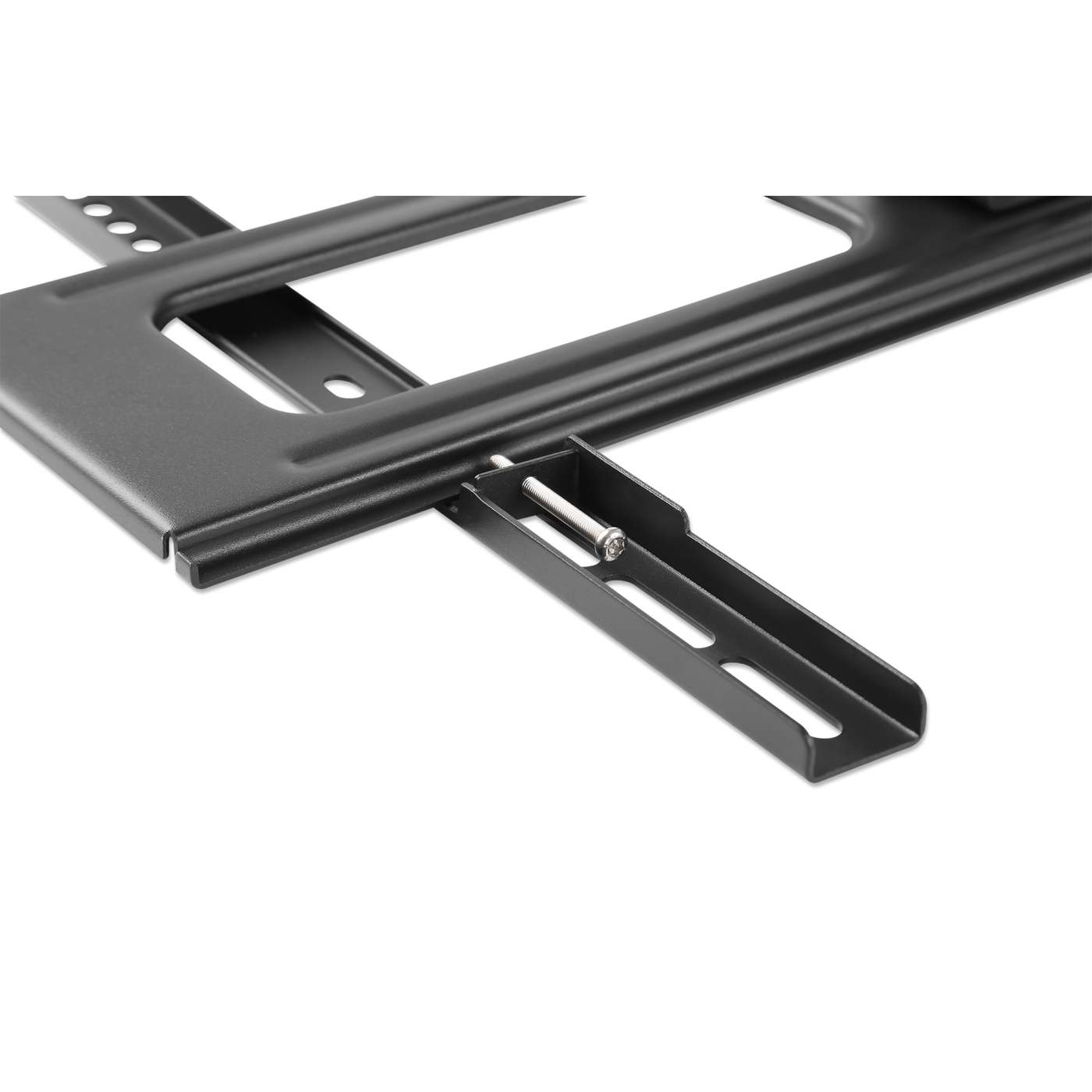

Enhanced Security Protects from Theft

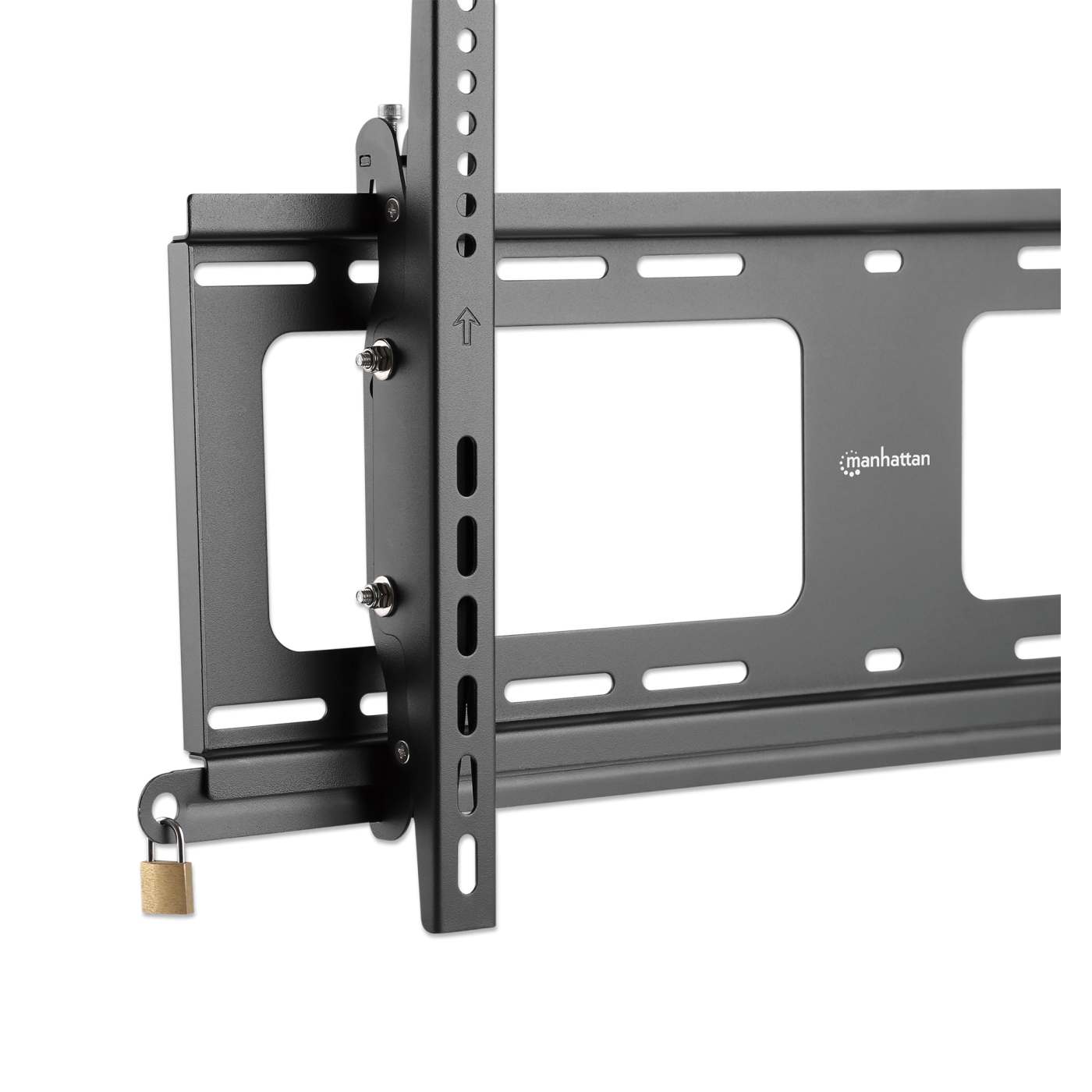

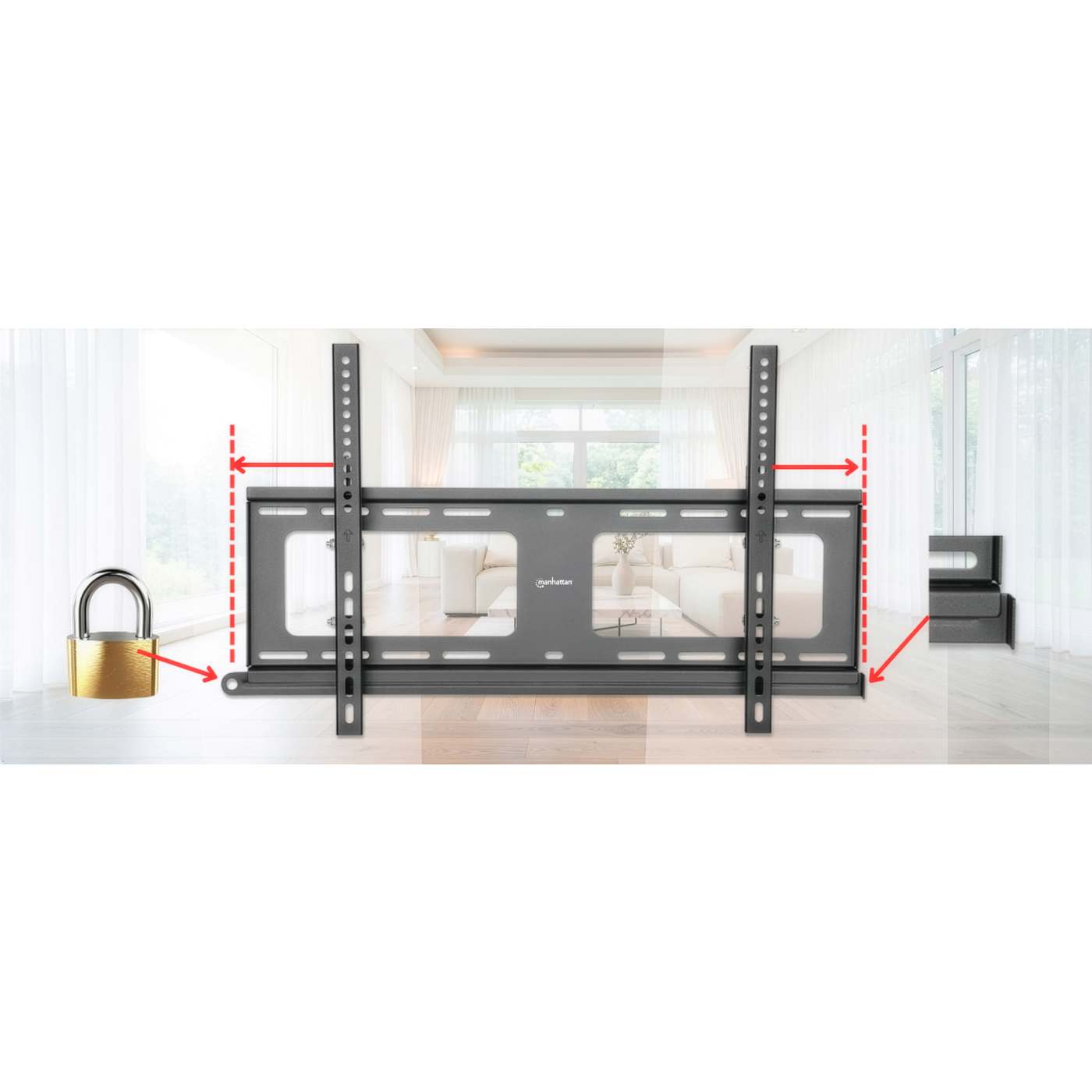

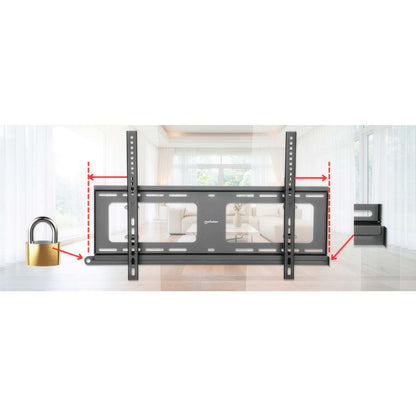

Ideal for public or commercial spaces, the anti-theft locking option (padlock required, not included) prevents the TV from being removed from the mount, perfect for digital signage or any setting where additional protection is desired.

• Built for outdoor durability with electroplating, extended powder coating, and stainless-steel hardware
• Weatherproof design resists corrosion, rain, and humidity, even in coastal conditions
• Supports one flat or curved 37" to 86" TV up to 80 kg (176 lbs.)
• Optimized views with +5 to -10° tilt and +/-5 mm post-installation leveling adjustment
• Extends 54 mm (2.1 in.) from wall
• High-quality, cold-rolled steel with thickness up to 2 mm
• Anti-theft locking option secures the TV to the mount - ideal for outdoors and digital signage (requires padlock, not included)

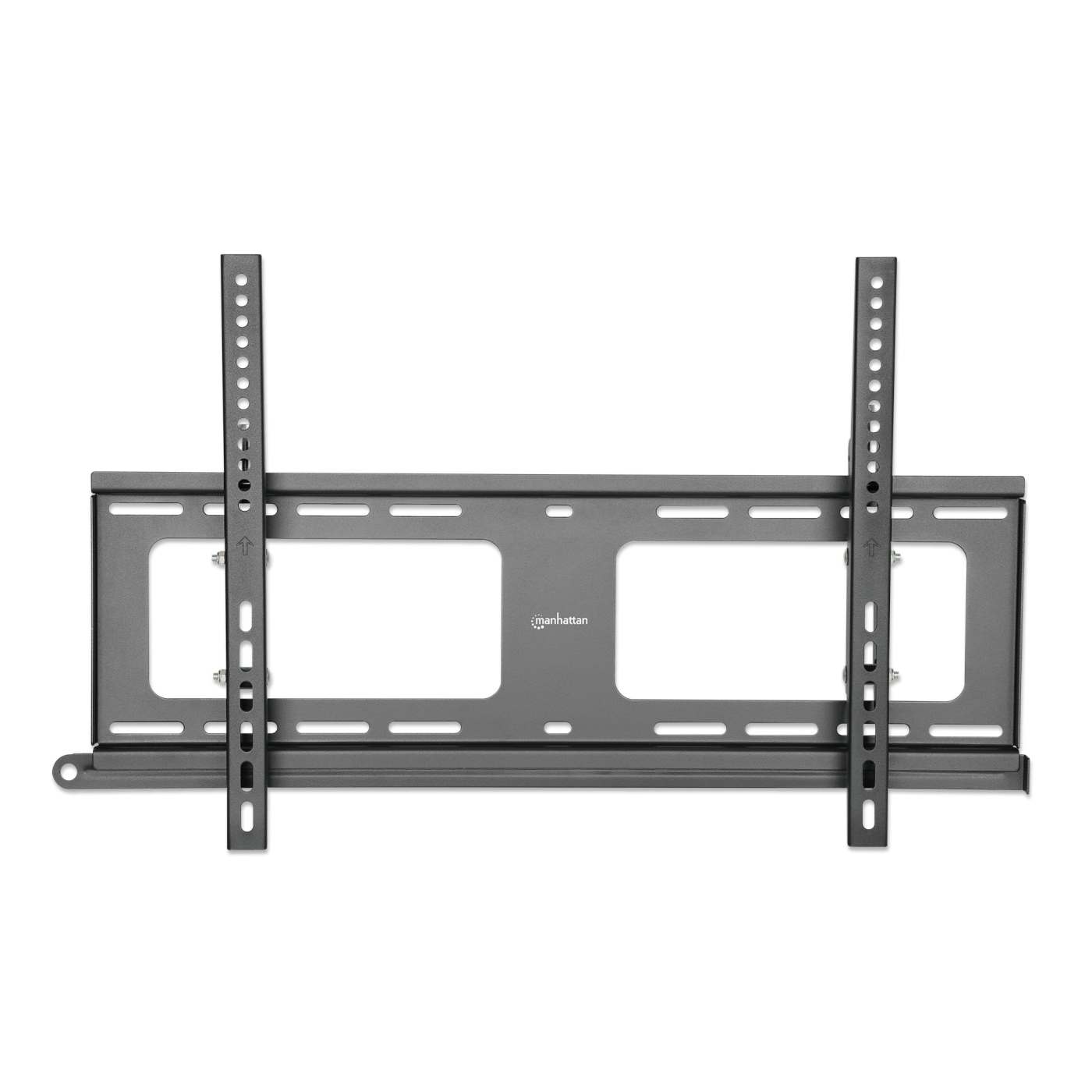

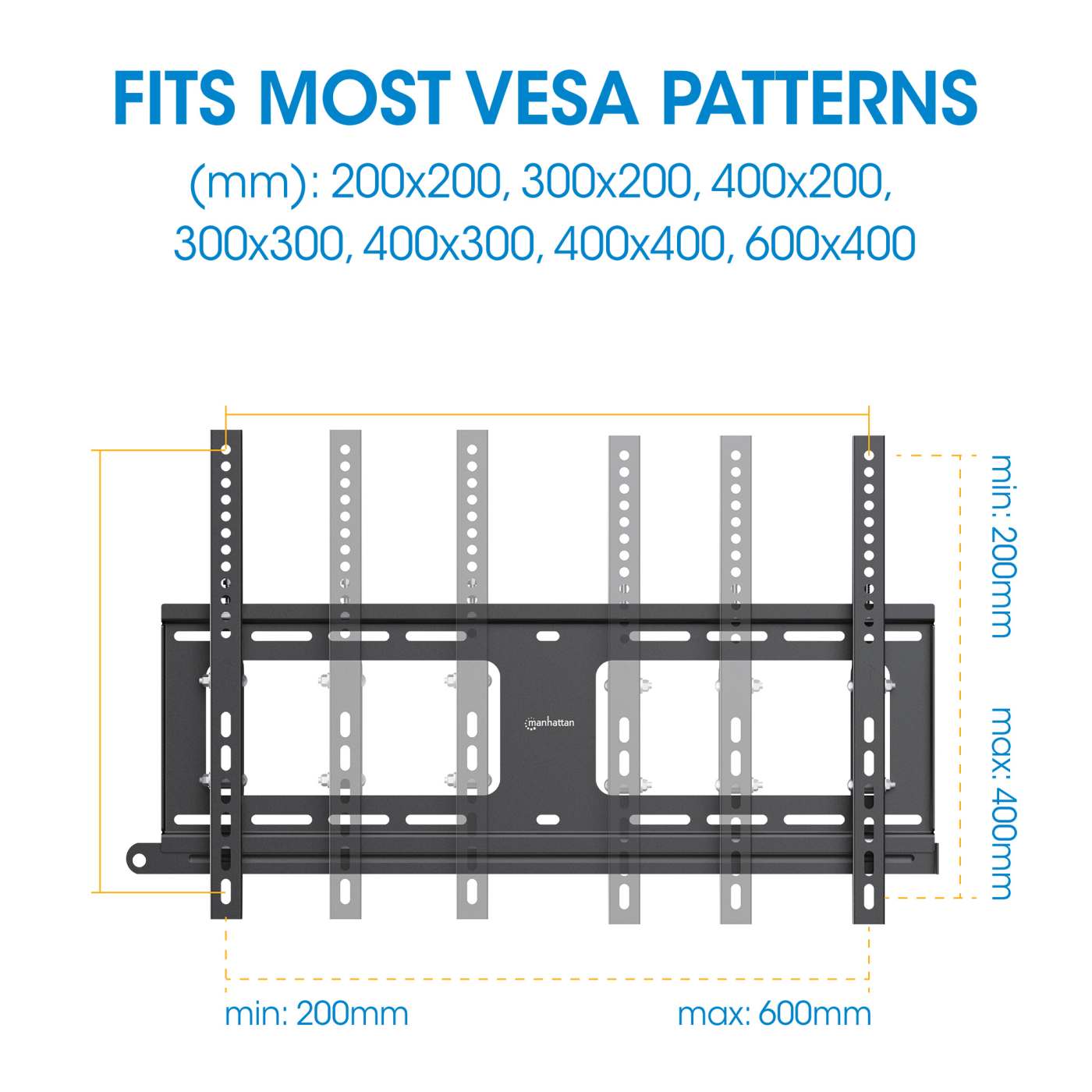

• Meets VESA standards 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
• Lifetime warranty

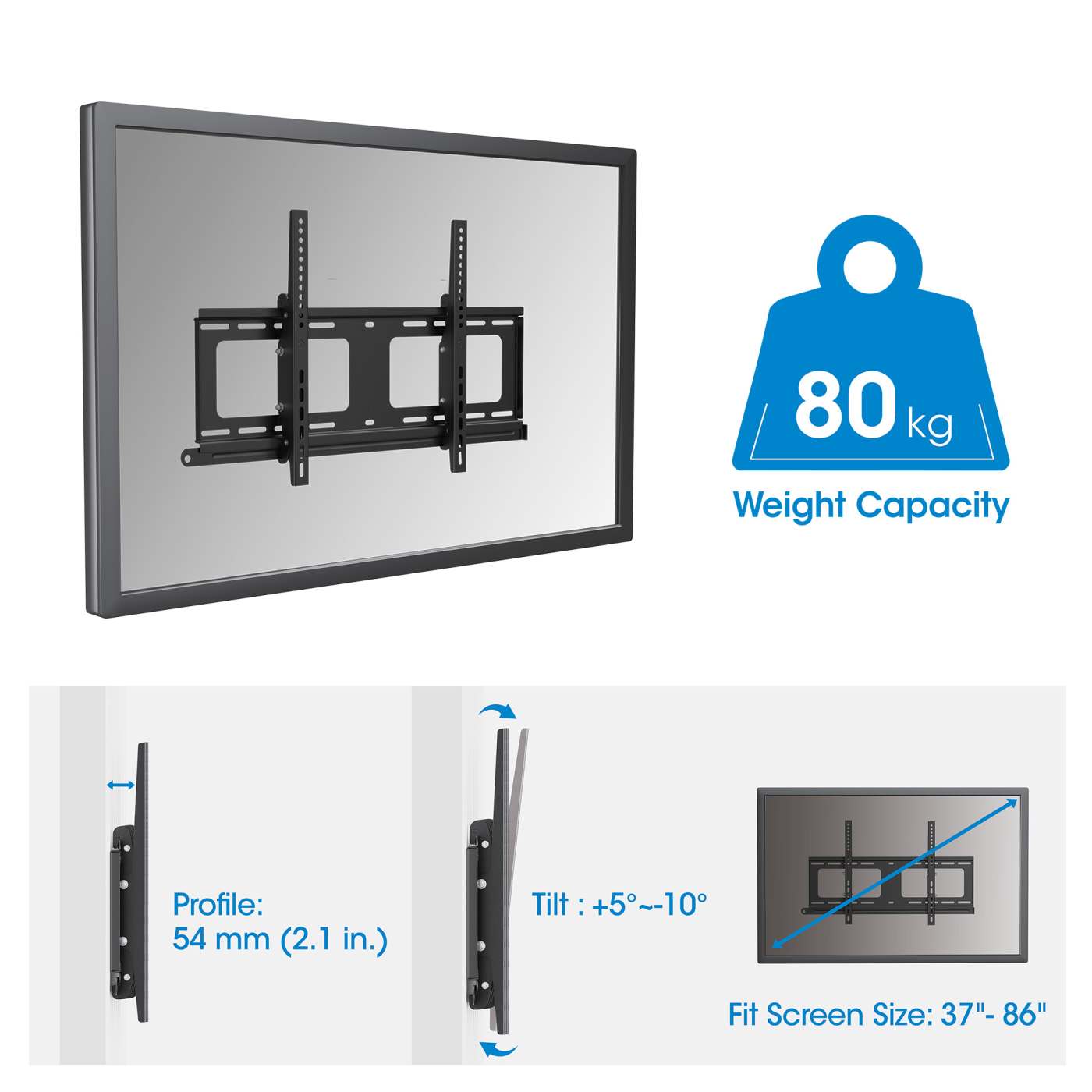

General

• Designed for most 37" to 86" flat and curved screens

• Weight capacity: 80 kg (176 lbs.)

• Tilt: +5 to -10°

• Post-installation leveling adjustment: +/-5 mm

• Dimensions (L x W x H): 54 x 700 x 440 mm (2.13 x 27.56 x 17.32 in.)

• Wall profile: 54 mm (2.1 in.)

• Net weight: 3.44 kg (7.58 lbs.)

• Gross weight: 4 kg (8.82 lbs.)

• Material: steel with weatherproof coating

• VESA standards: 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400

  Package Contents

• Outdoor Rainproof Anti-Theft TV Wall Mount, for 37" to 86"

• Installation hardware with instructions

• Additional SKUs

• EAN: 0766623462143
• UPC: 766623462143



• Physical Specifications

• Weight: 3.44 kg
• Dimensions: 54 (L) x 700 (W) x 440 (H) [mm]

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download

• Manual
• Quick Installation Guide     » Download
