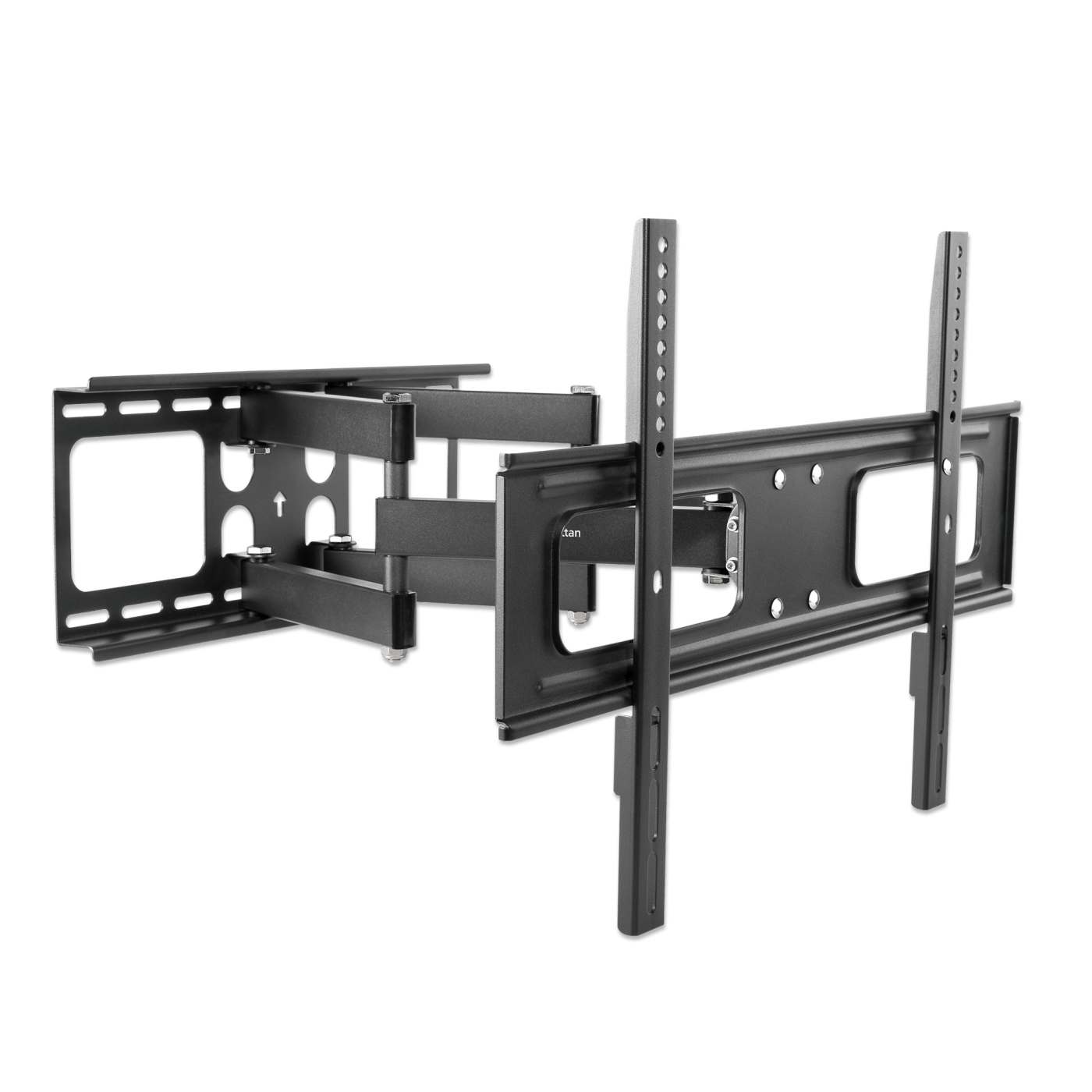

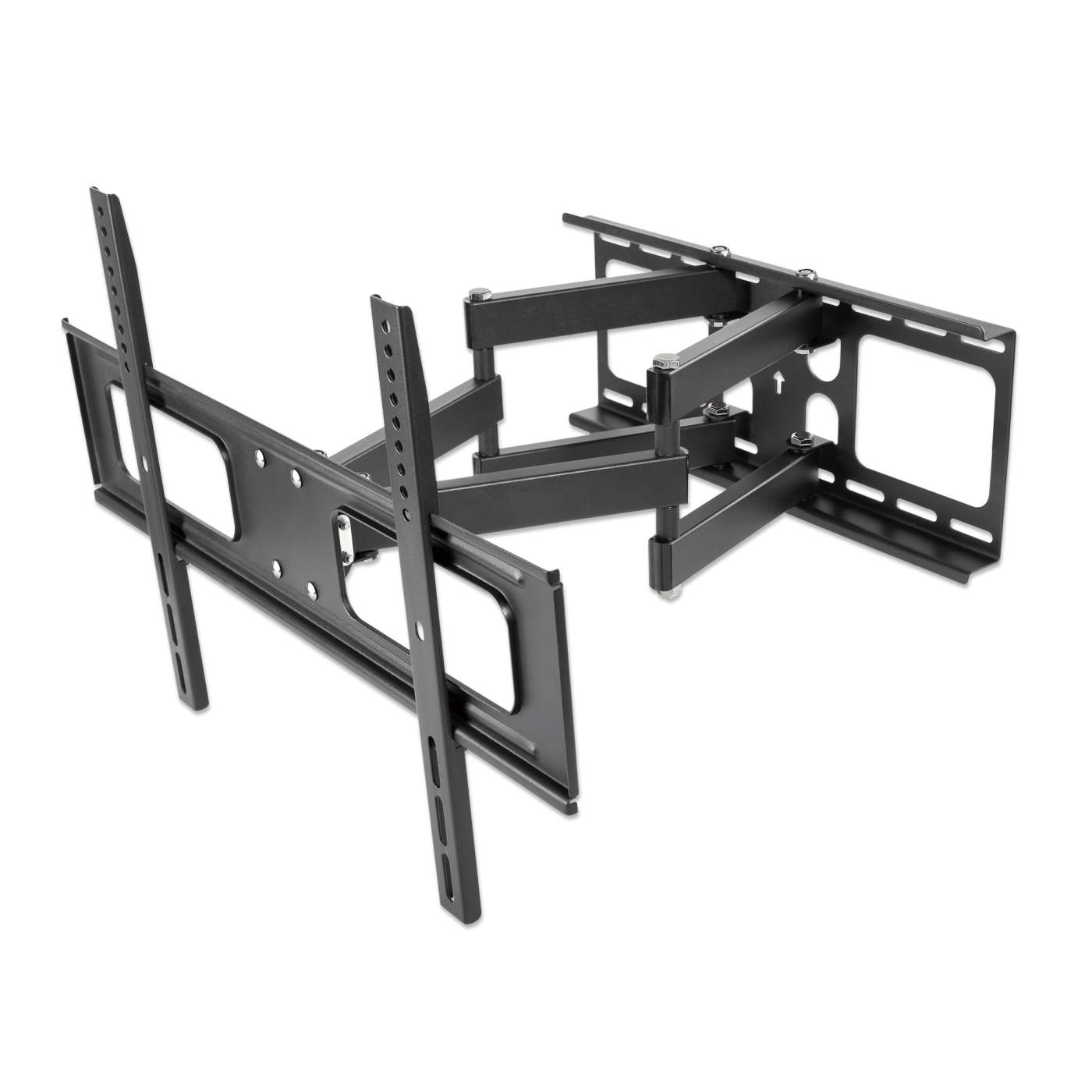

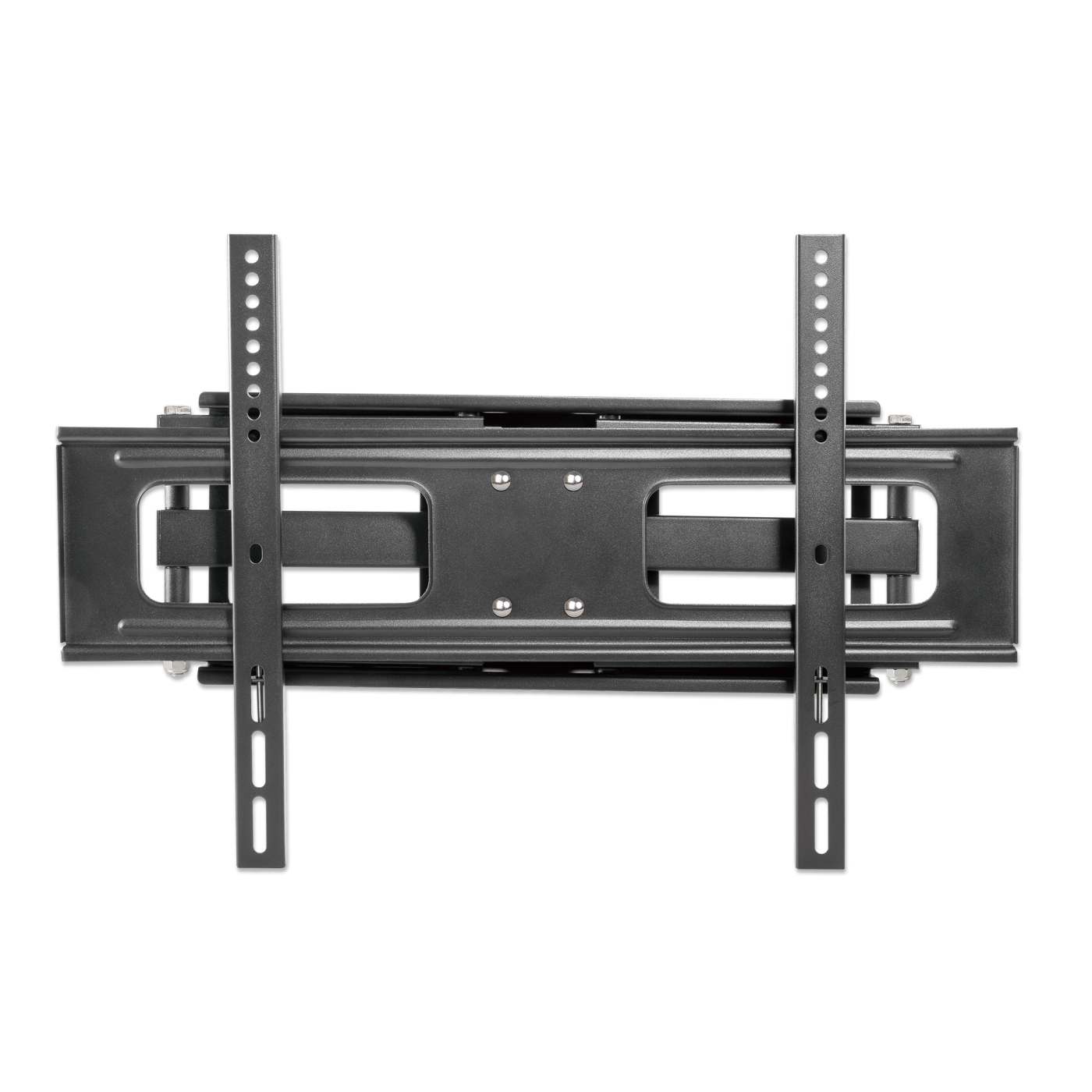

Outdoor Full-Motion TV Wall Mount, for 37" to 86" Displays

Weatherproof Outdoor TV Mount - Engineered for the Elements, Built for the Best View

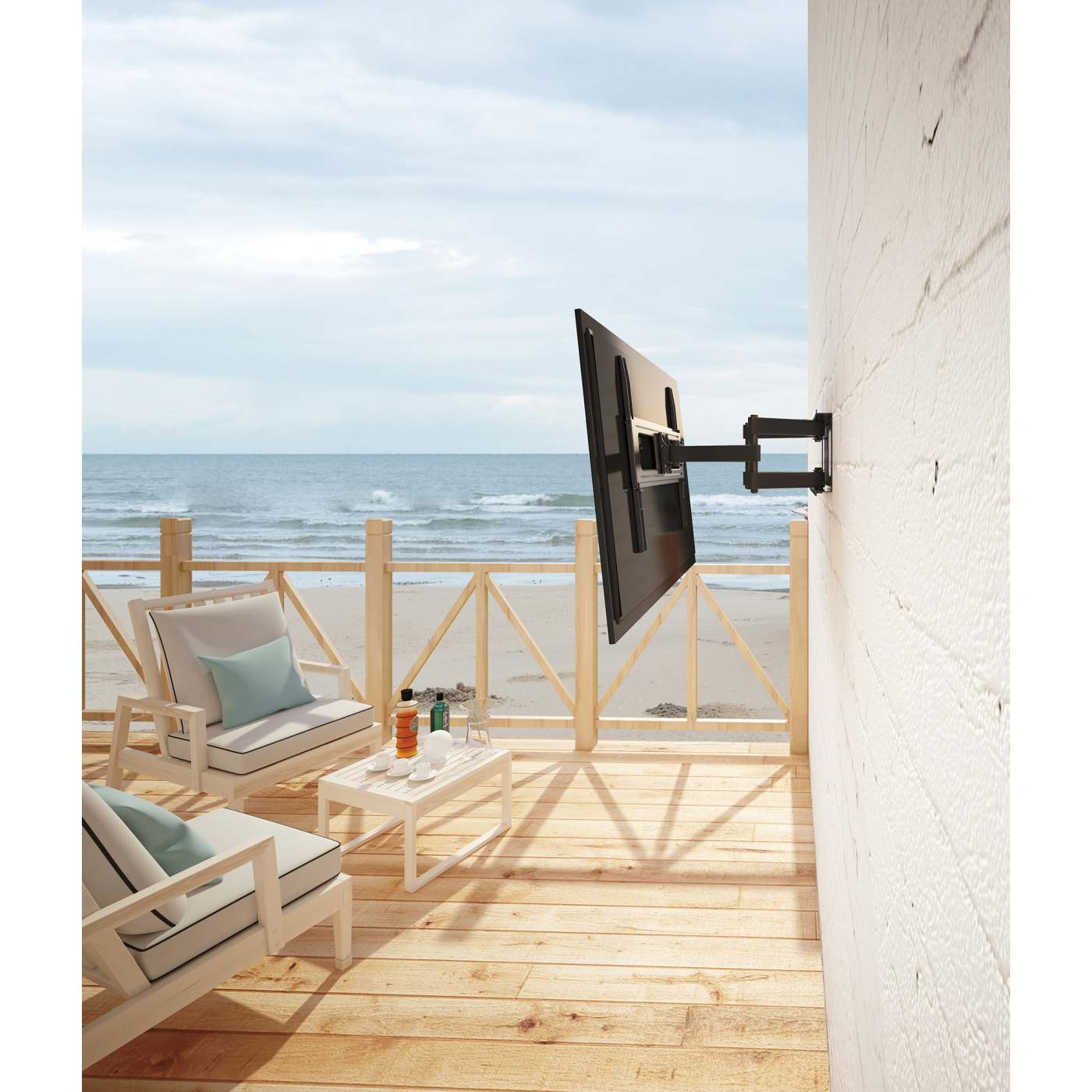

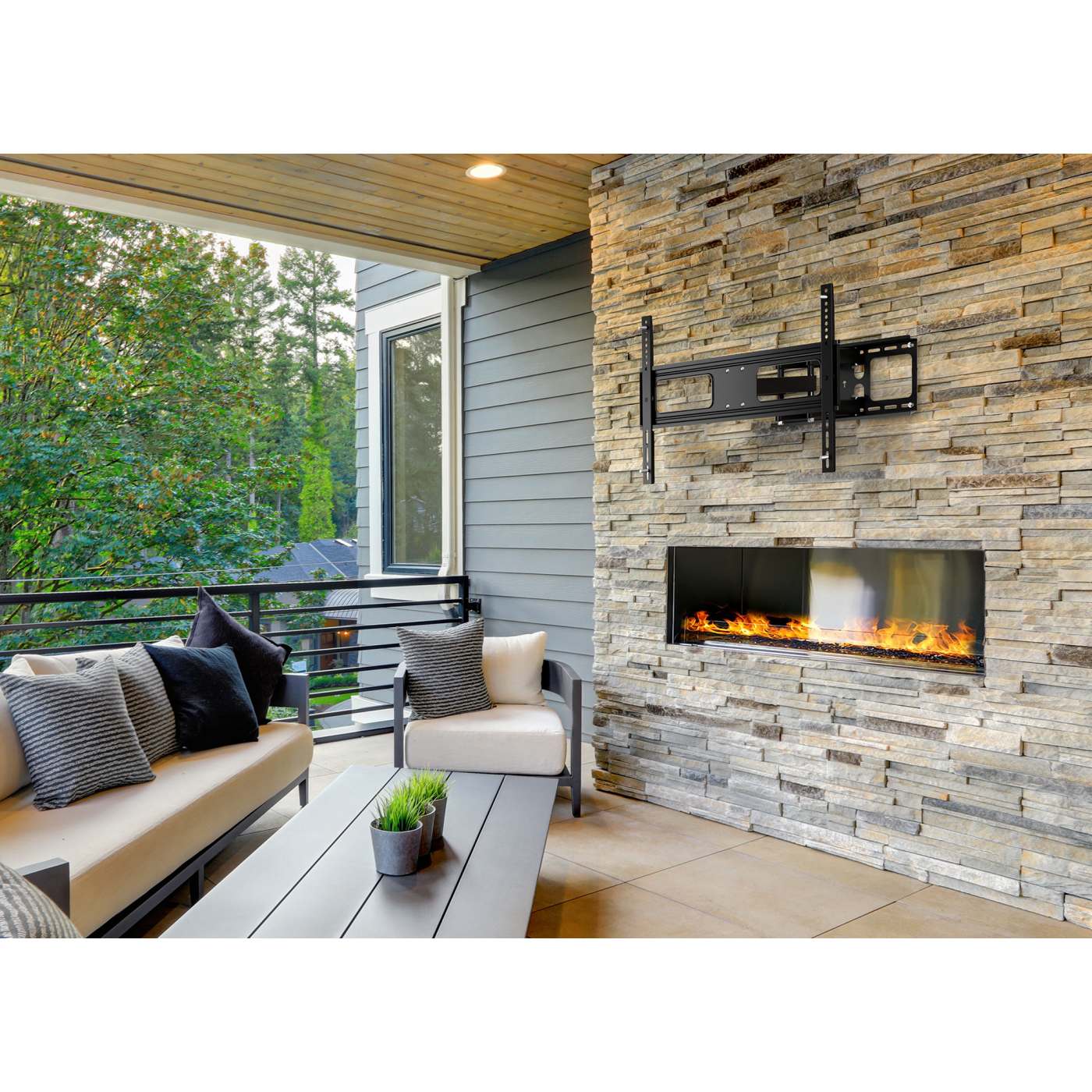

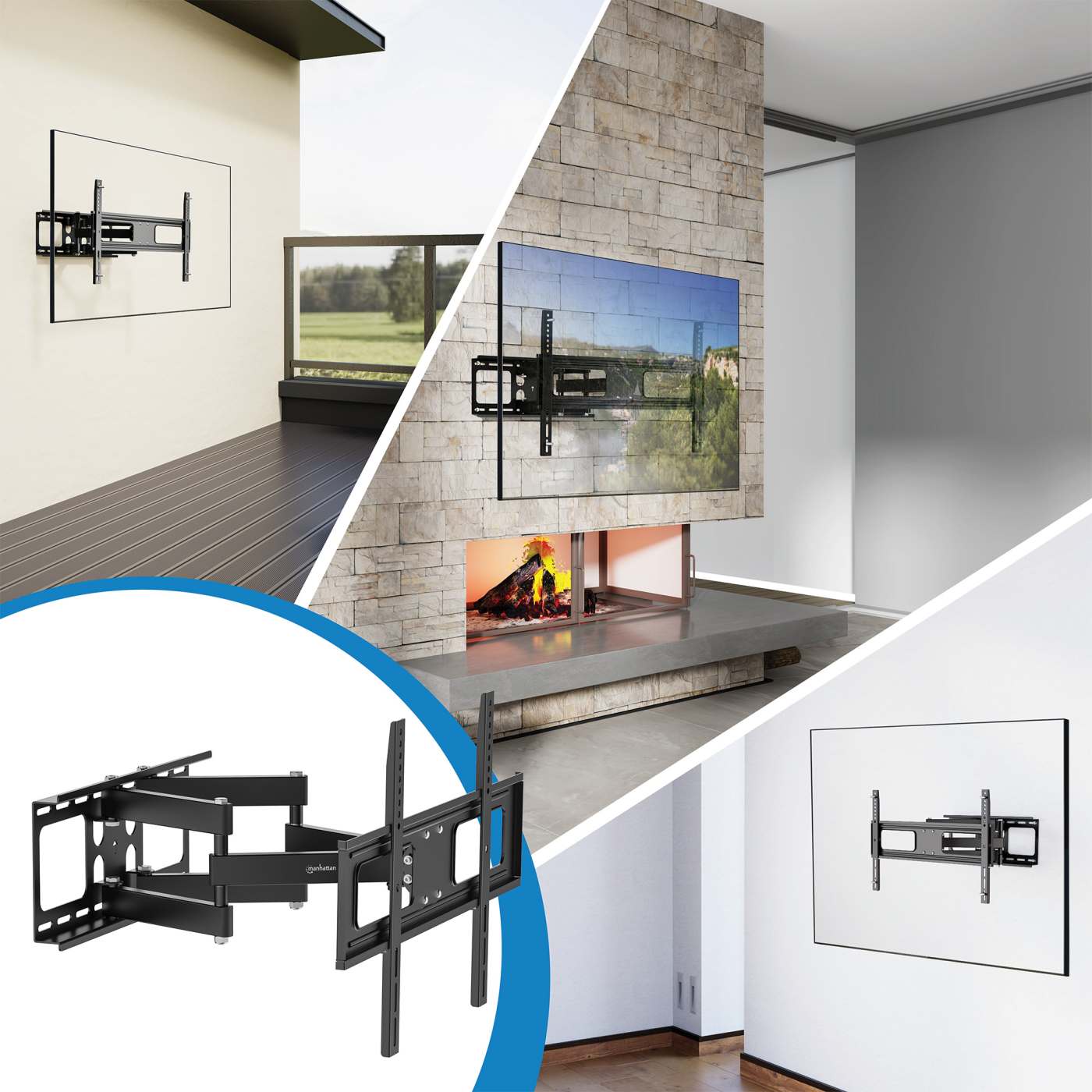

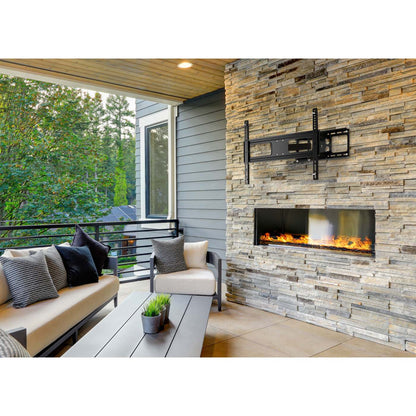

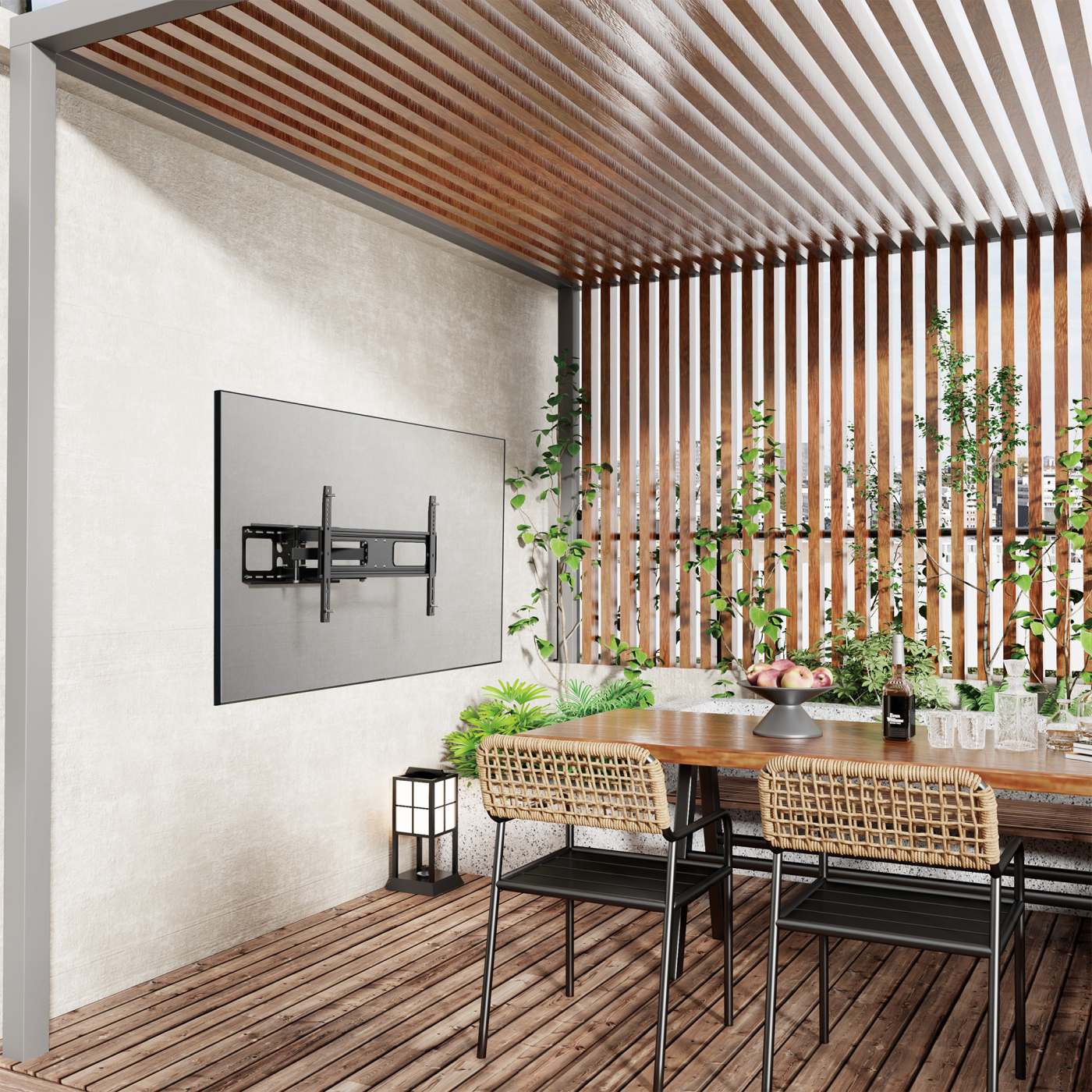

From patios to poolside, the Manhattan Outdoor Full-Motion TV Wall Mount lets you enjoy your favorite sports and other entertainment in the open air.

Weather-Friendly Construction

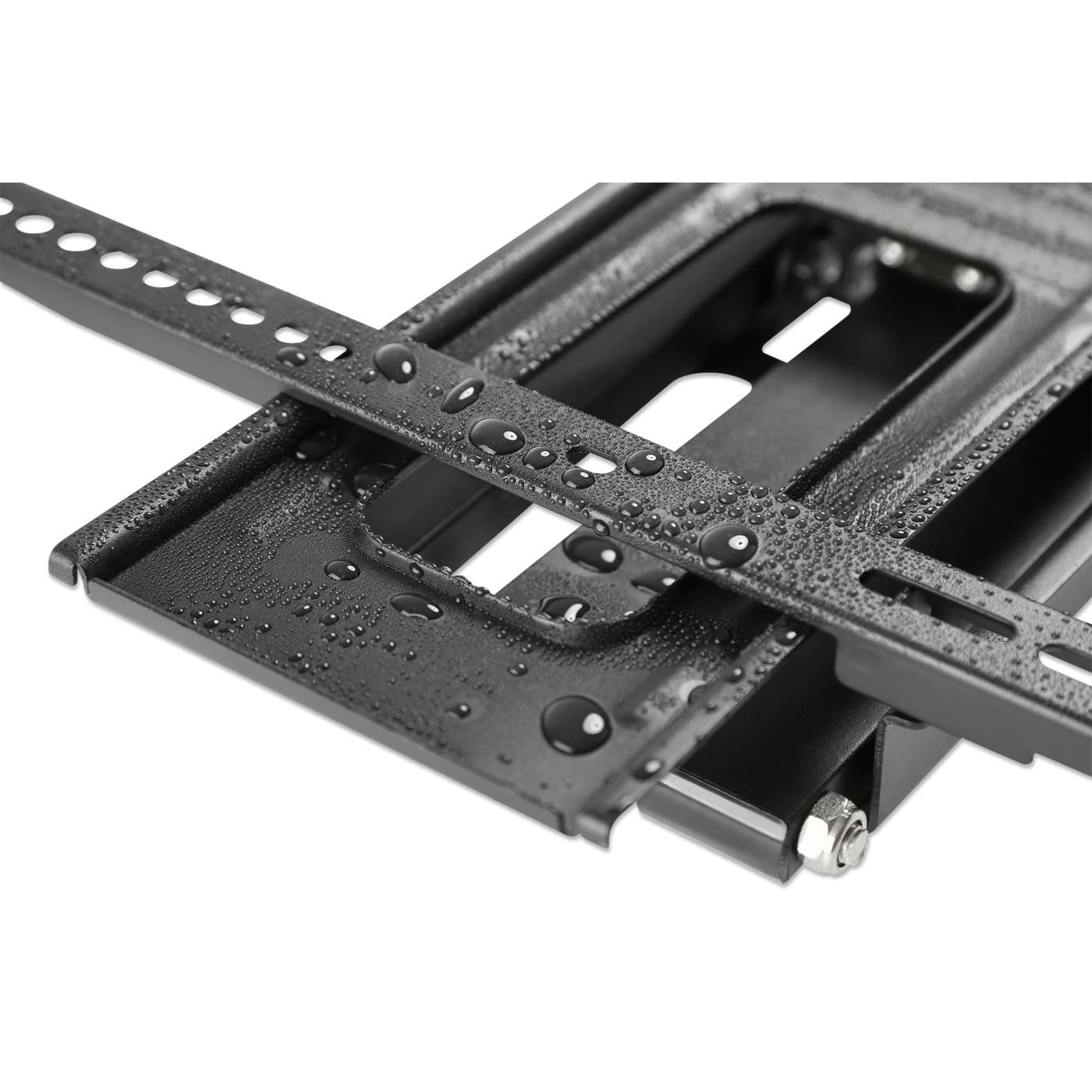

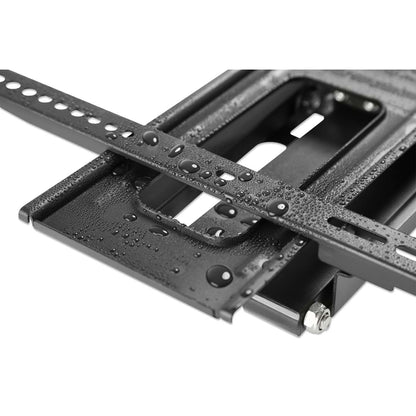

Crafted for long-lasting durability, this mount features electroplating, extended powder coating, and stainless-steel hardware to stand up to the elements. Its weatherproof design resists corrosion, rain, and humidity, making it a solid choice even in coastal environments.

Flexible Viewing for Any Setting

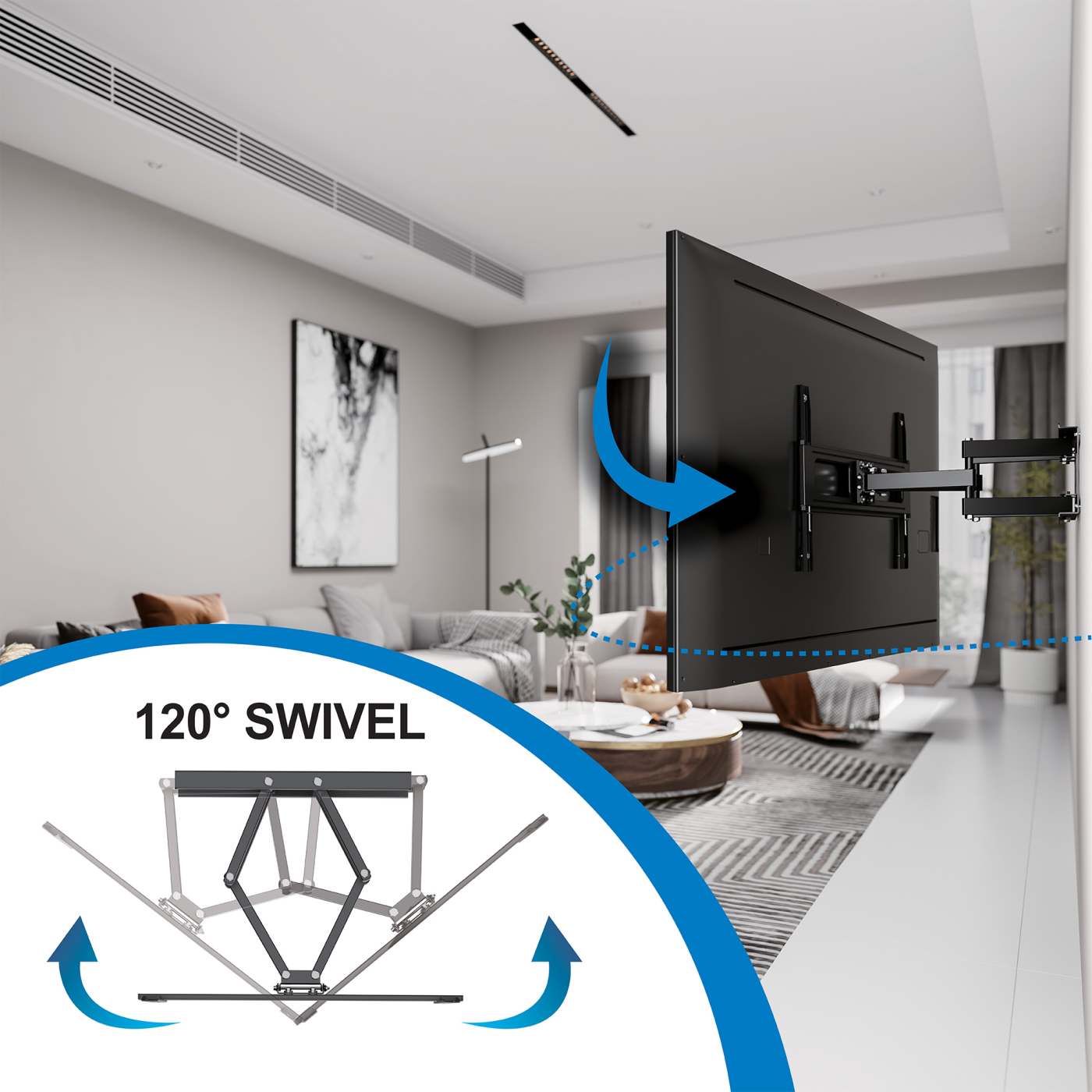

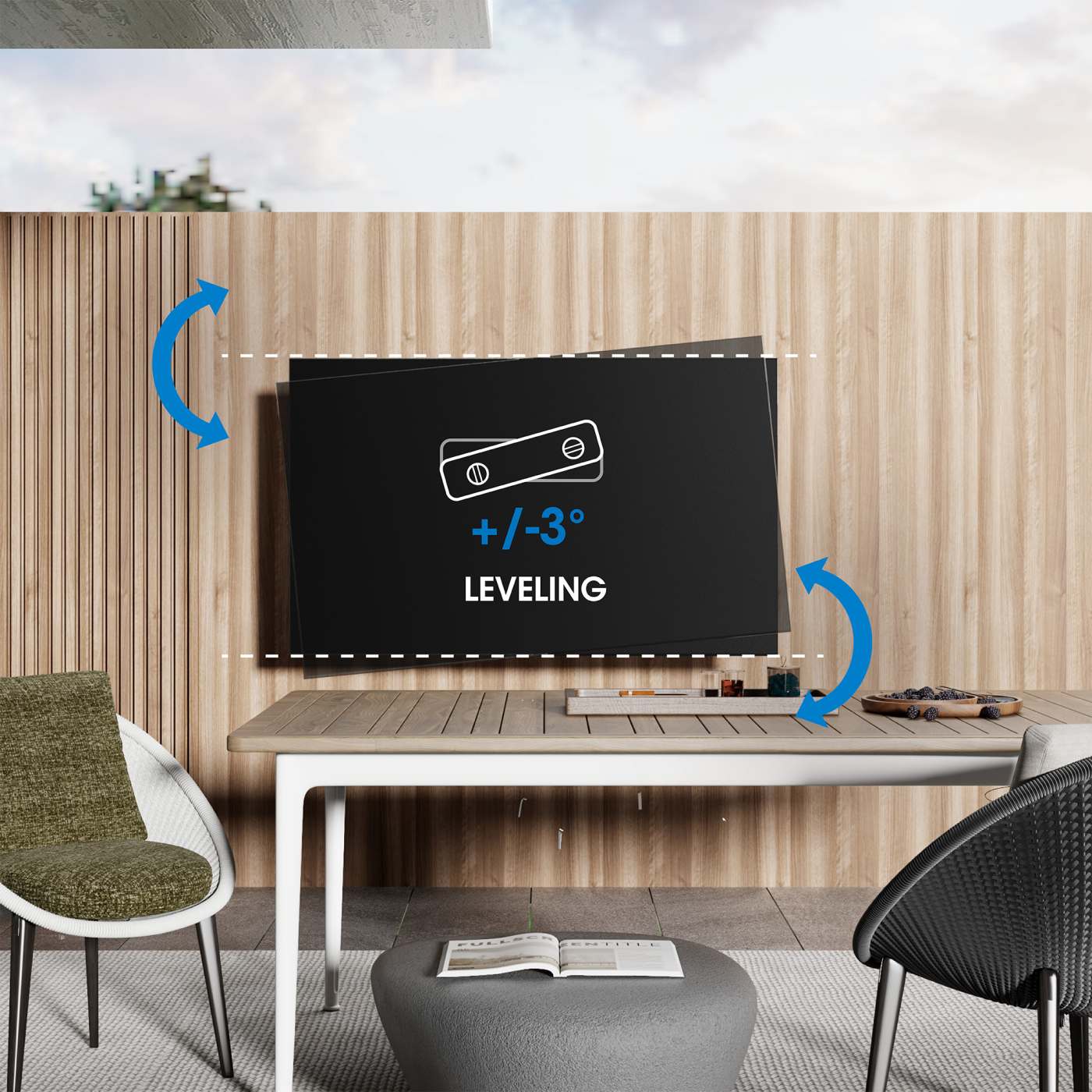

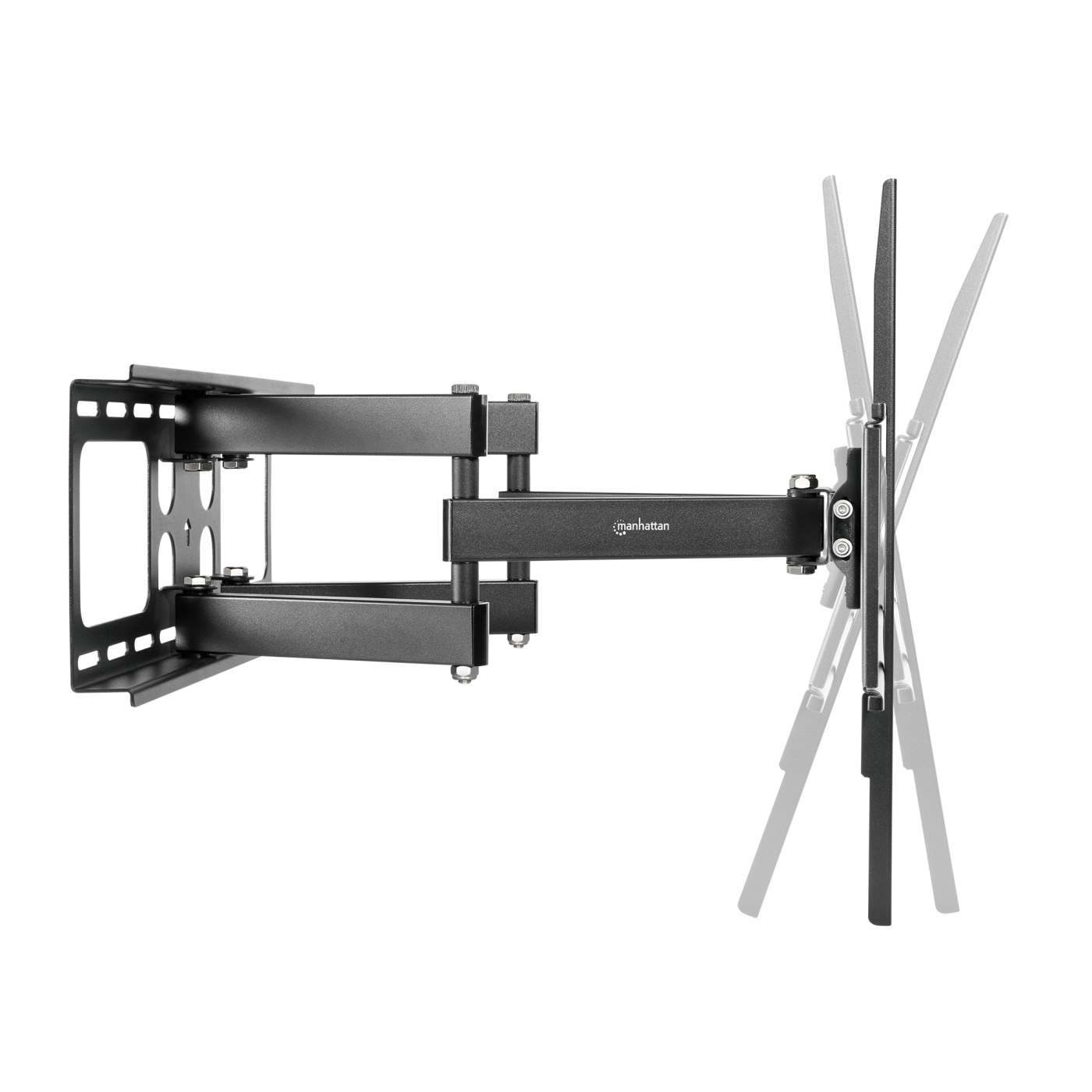

Whether you're hosting a backyard movie night or setting up a patio display, this full-motion mount offers a complete range of adjustments. Achieve the perfect viewing angle with +10° to -20° tilt, ±60° swivel, and ±3° post-installation leveling.

Strong and Safe

Designed to support one flat or curved 37" to 86" TV weighing up to 50 kg (110 lbs.), this mount is made from high-quality cold-rolled steel with metal thickness up to 2.5 mm.

• Built for outdoor durability with electroplating, extended powder coating, and stainless-steel hardware
• Weatherproof design resists corrosion, rain, and humidity, even in coastal conditions
• Supports one flat or curved 37" to 86" TV up to 50 kg (110 lbs.)
• Optimized views with +10 to -20° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment

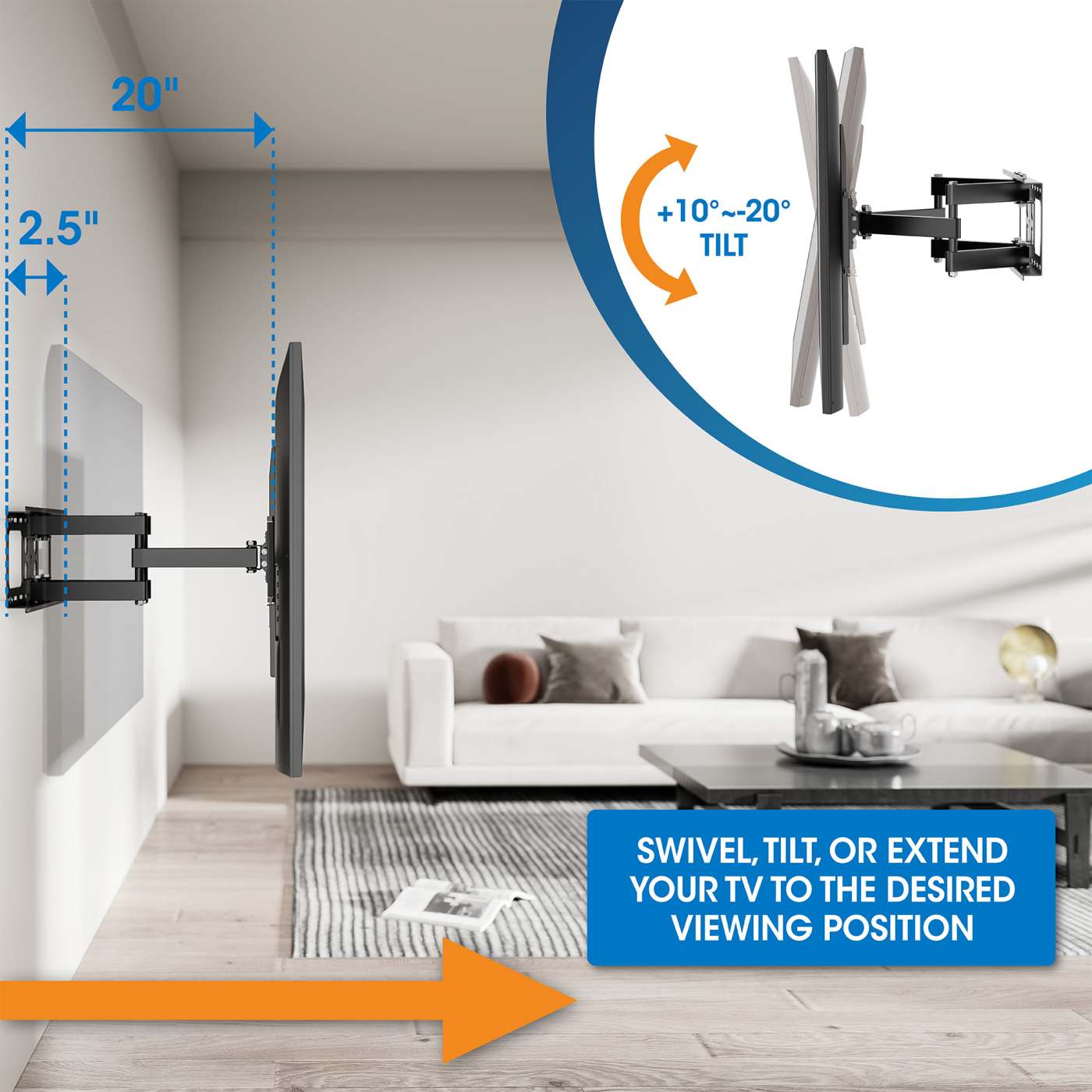

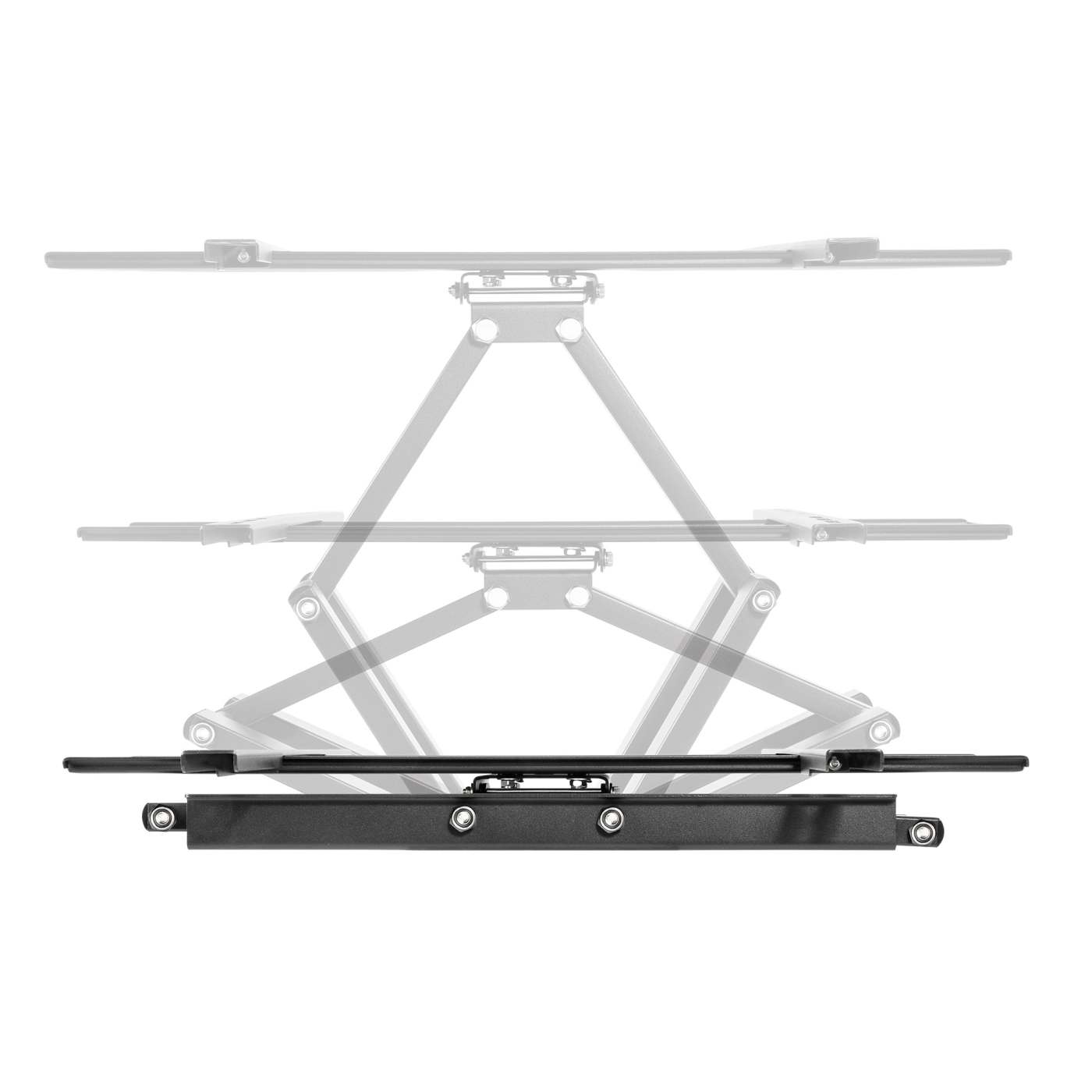

• Extends 64 to 510 mm (2.5 to 20.1 in.) from wall
• High-quality, cold-rolled steel with thickness up to 2.5 mm

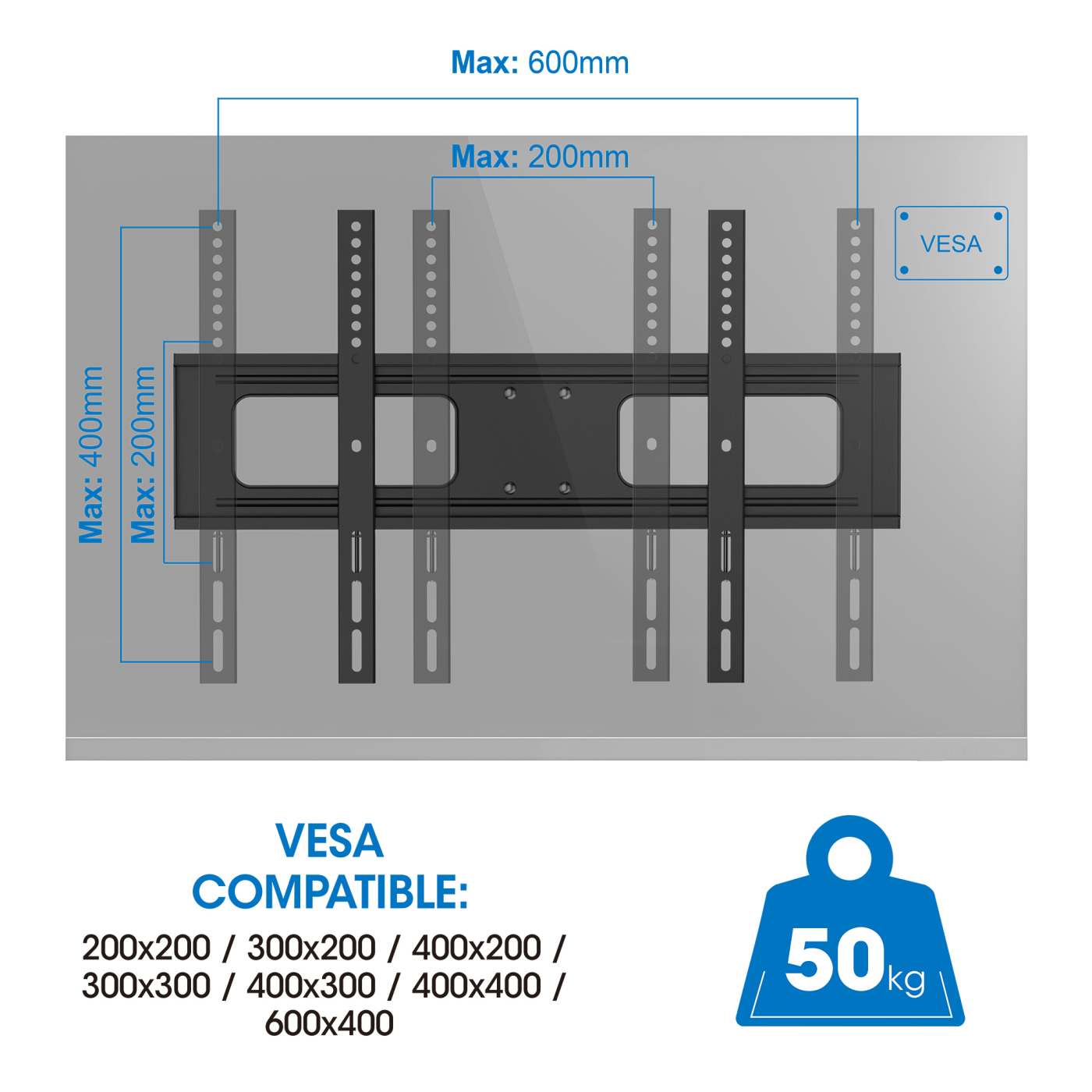

• Meets VESA standards 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
• Lifetime warranty

General

• Designed for most 37" to 86" flat and curved screens

• Weight capacity: 50 kg (110 lbs.)

• Tilt: +10 to -20°

• Swivel: +/-60°

• Post-installation leveling adjustment: +/-3°

• Dimensions (L x W x H): 510 x 660 x 430 mm (20.08 x 25.98 x 16.93 in.)

• Wall profile: 64 to 510 mm (2.5 to 20.1 in.)

• Net weight: 7.1 kg (15.65 lbs.)

• Gross weight: 7.45 kg (16.42 lbs.)

• Material: steel with weatherproof coating

• VESA standards: 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400

  Package Contents

• Outdoor Rainproof Full-Motion TV Wall Mount, for 37" to 86"

• Installation hardware with instructions

Warning

• Additional SKUs

• EAN: 0766623462150
• UPC: 766623462150



• Physical Specifications

• Weight: 7.1 kg
• Dimensions: 510 (L) x 660 (W) x 430 (H) [mm]
