Outdoor Managed IP67/IK10 4-Port PoE++/PoH Switch with 2 RJ45 Gigabit and 2 SFP Uplink Ports | 250W

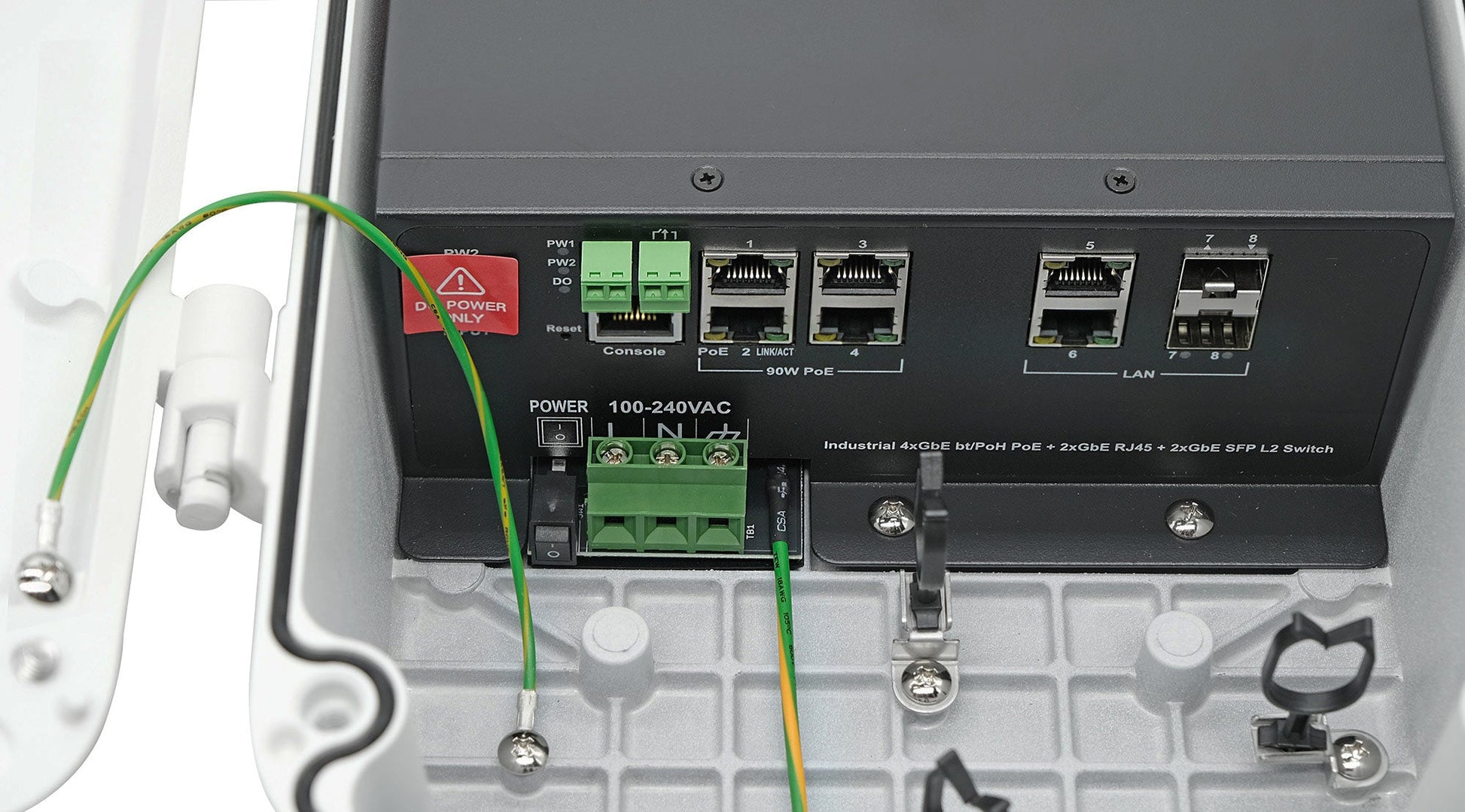

The AETEK H60-044-90-250 is a rugged, high-performance Layer 2 PRO Managed PoE switch engineered for demanding outdoor surveillance and industrial applications. With four Gigabit PoE ports supporting IEEE 802.3bt/PoH standards, it delivers up to 90W per port—ideal for powering high-wattage devices like PTZ cameras and wireless access points. Two additional Gigabit RJ45 ports and two SFP slots provide flexible uplink options.

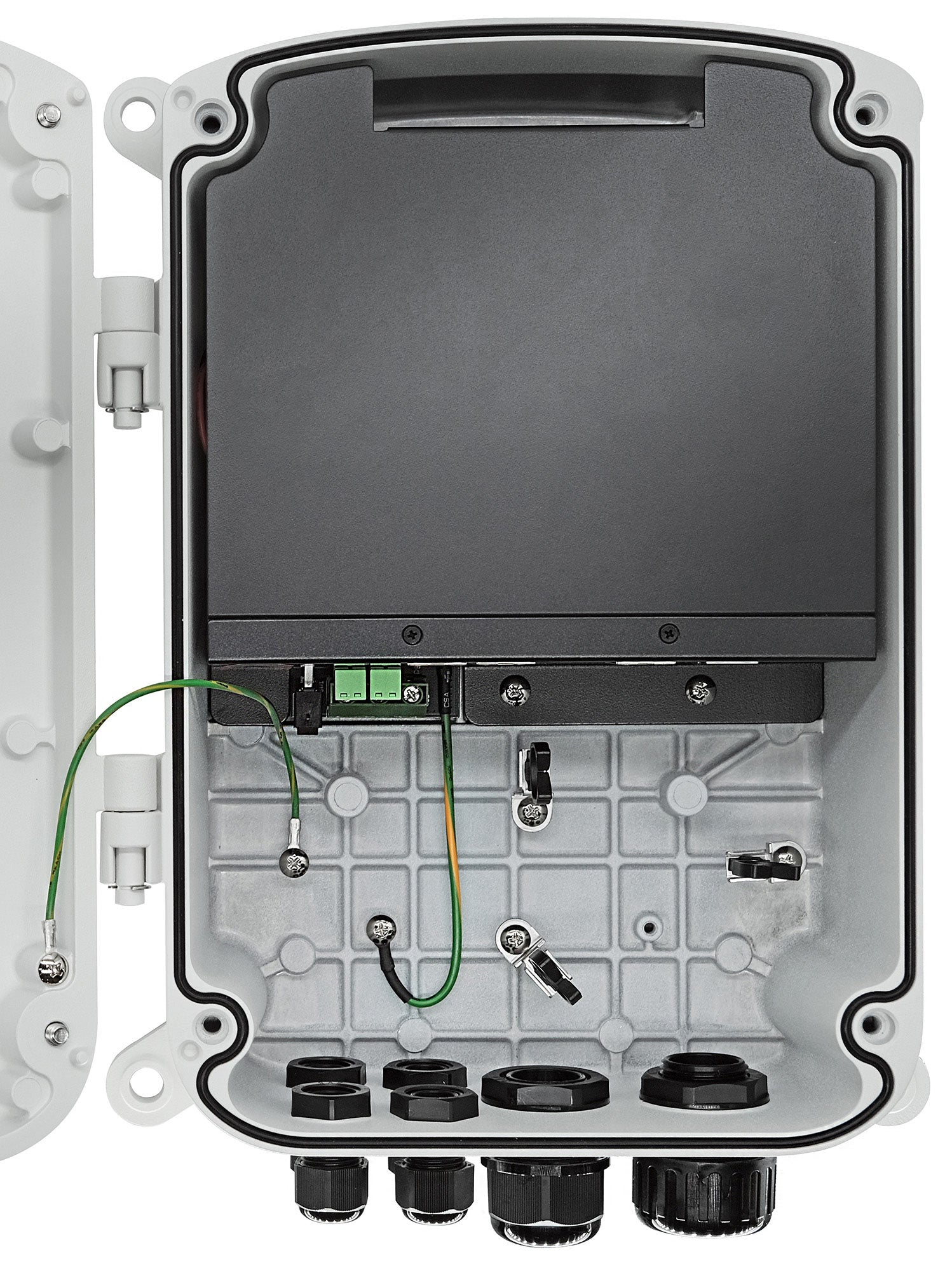

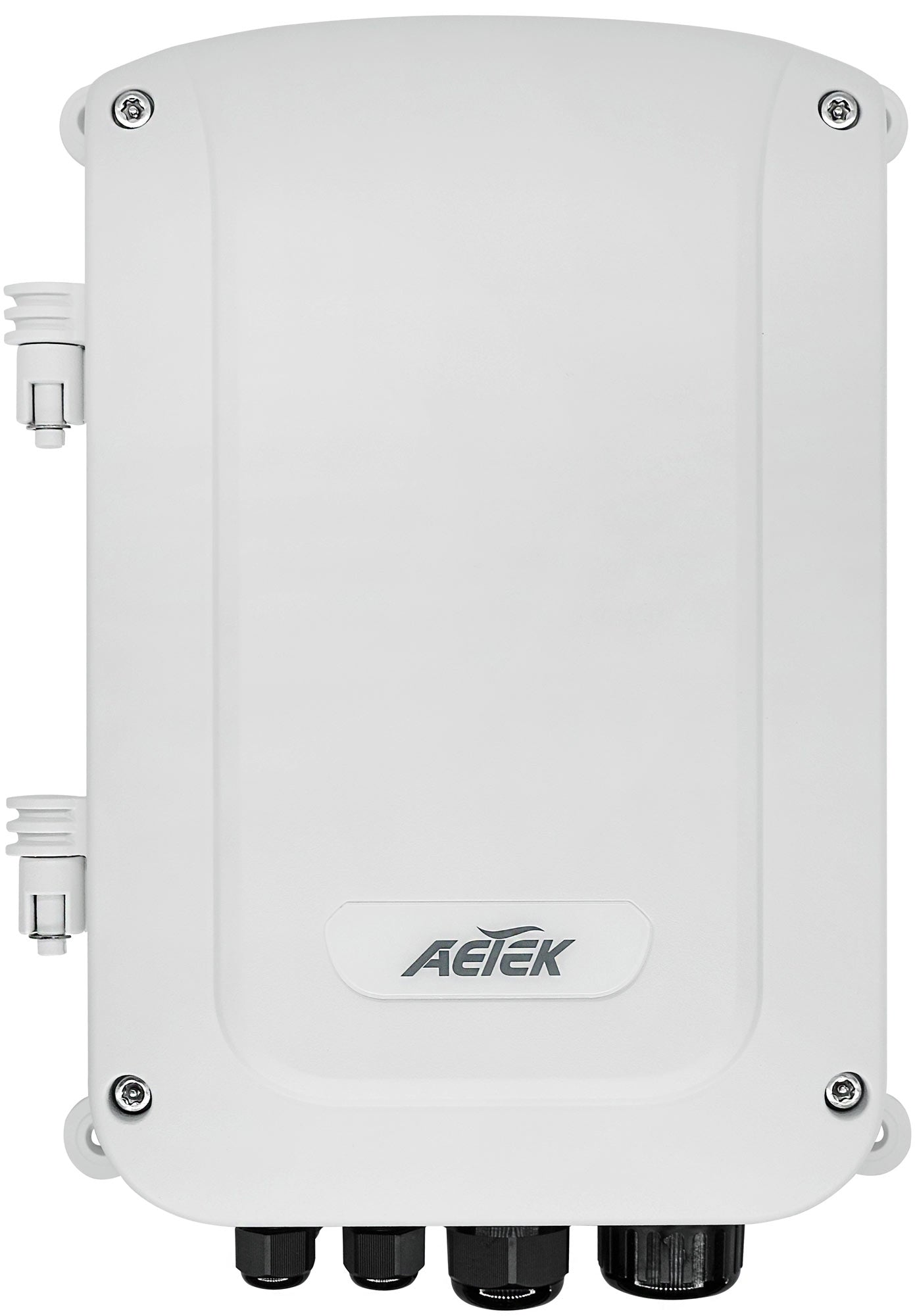

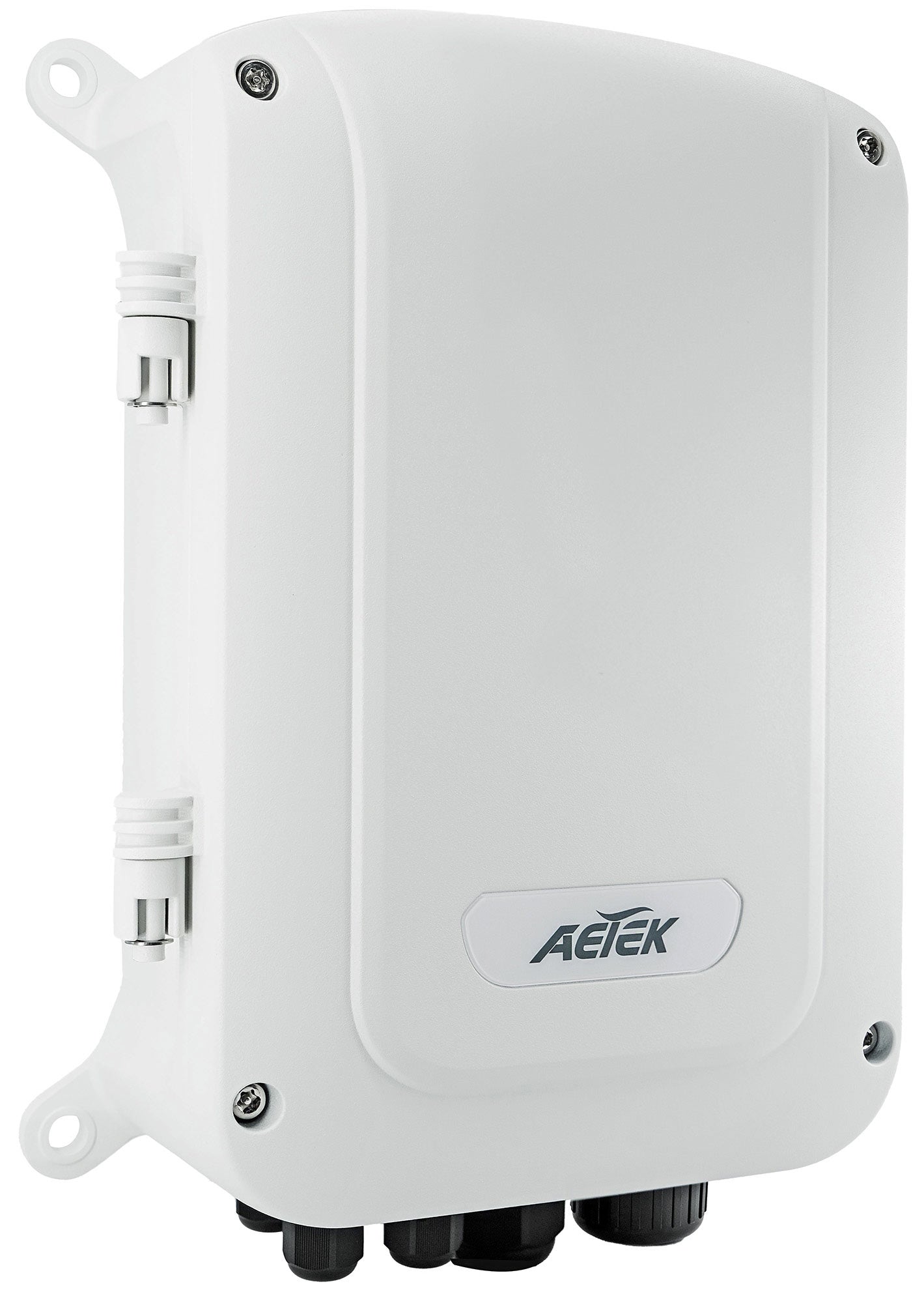

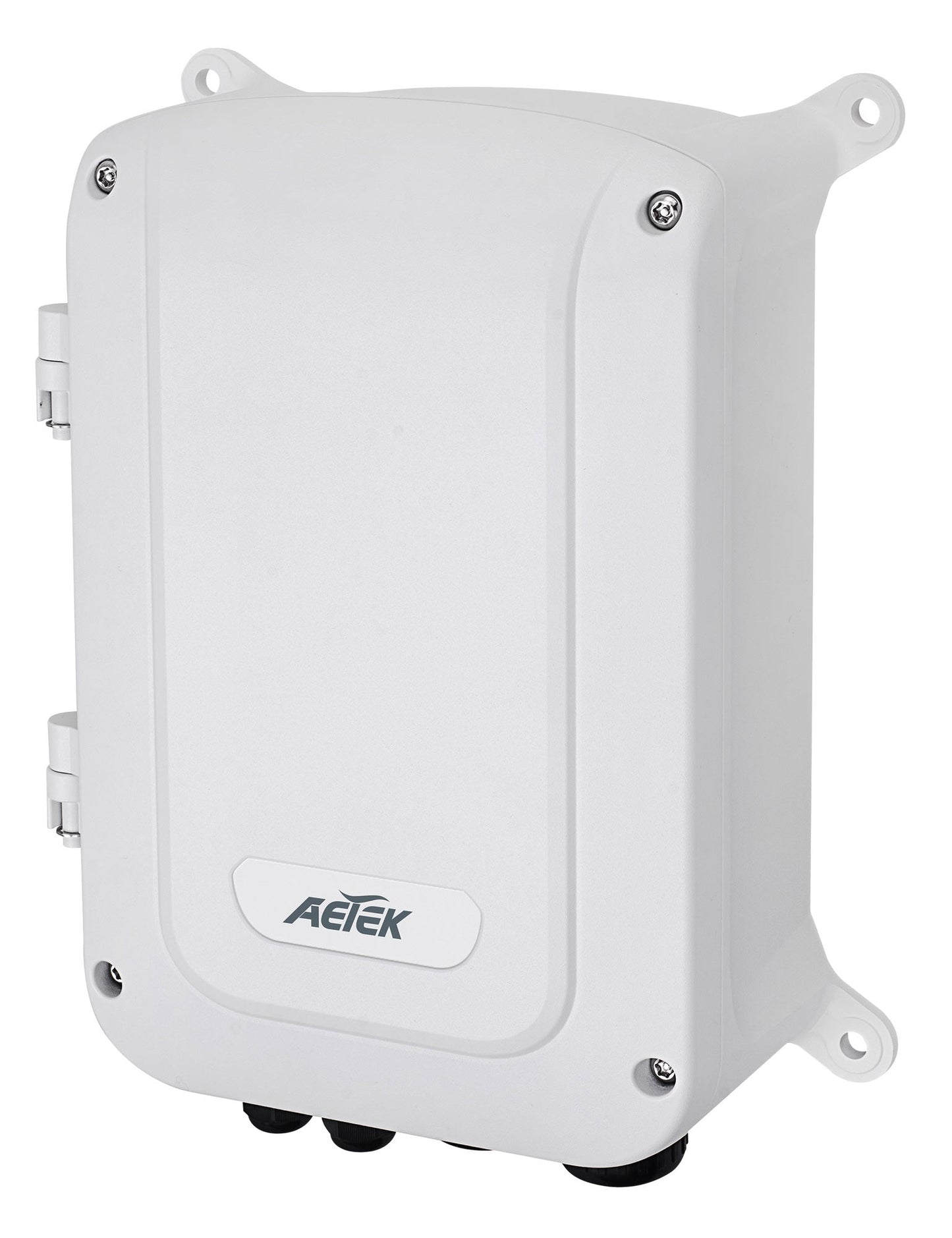

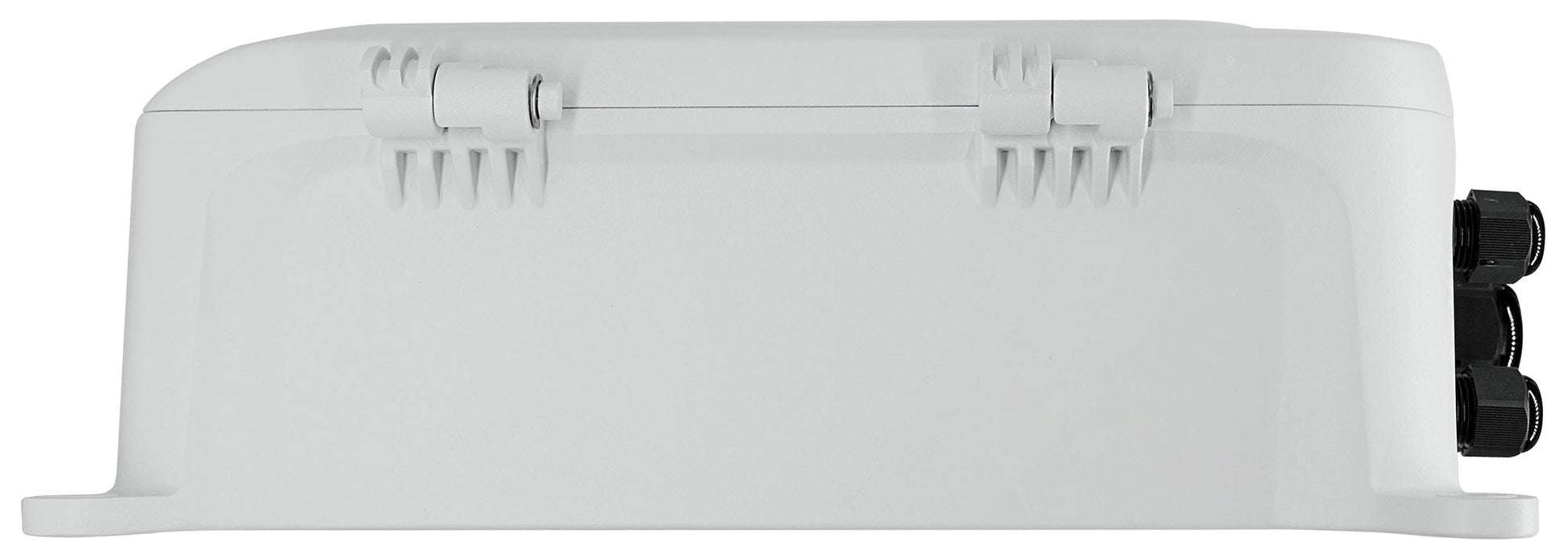

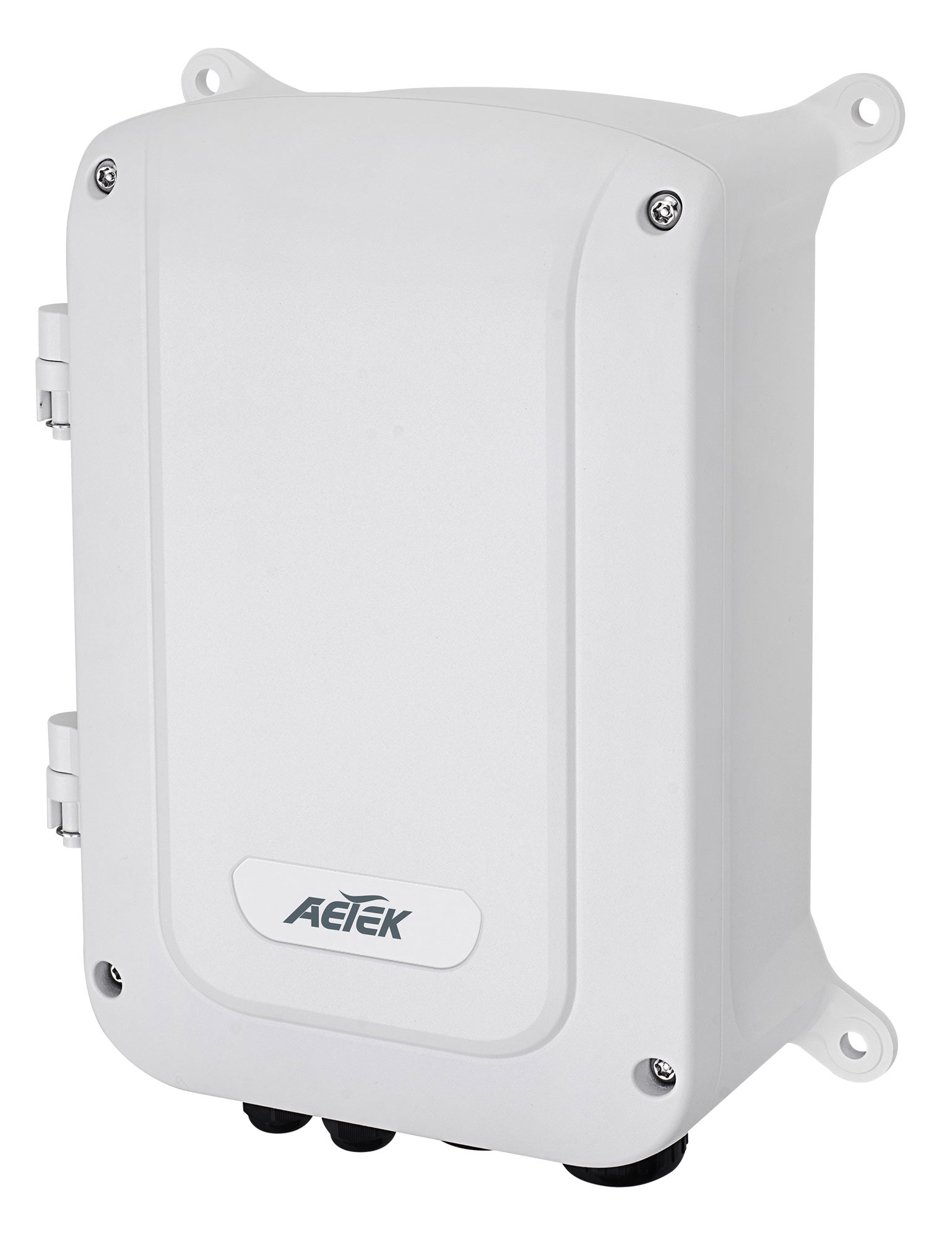

Encased in an IP67 and IK10-rated cast aluminum housing, the H60-044-90-250 withstands harsh environments, operating reliably in temperatures from -40°C to 65°C. It features 6KV Ethernet port surge protection and 40KV power supply surge protection, ensuring network stability in challenging conditions.

Designed with installers in mind, this switch offers intuitive ONVIF camera auto-discovery, real-time topology mapping, and remote cable diagnostics through its user-friendly web interface. Whether deployed in city surveillance, transportation hubs, or industrial sites, the H60-044-90-250 provides a robust and efficient networking solution.

Key Features

• 4x Gigabit PoE ports supporting up to 90W per port (IEEE 802.3bt/PoH)
• 2x Gigabit RJ45 uplink ports
• 2x SFP slots for fiber uplink
• IP67-rated for dust and water resistance
• IK10-rated cast aluminum housing for impact protection
• Operating temperature range: -40°C to 65°C
• 6KV surge protection on Ethernet ports
• 40KV surge protection on power supply
• Supports 10/100/1000Mbps data rates
• Compliant with IEEE 802.3az Energy Efficient Ethernet standard
• Layer 2 switching features: STP, RSTP, MSTP, VLAN, QoS
• SNMP v1/v2c/v3 support for network management
• Automatic ONVIF device discovery and topology mapping
• Web-based interface for monitoring and managing connected devices
• Two-year manufacturer warranty
